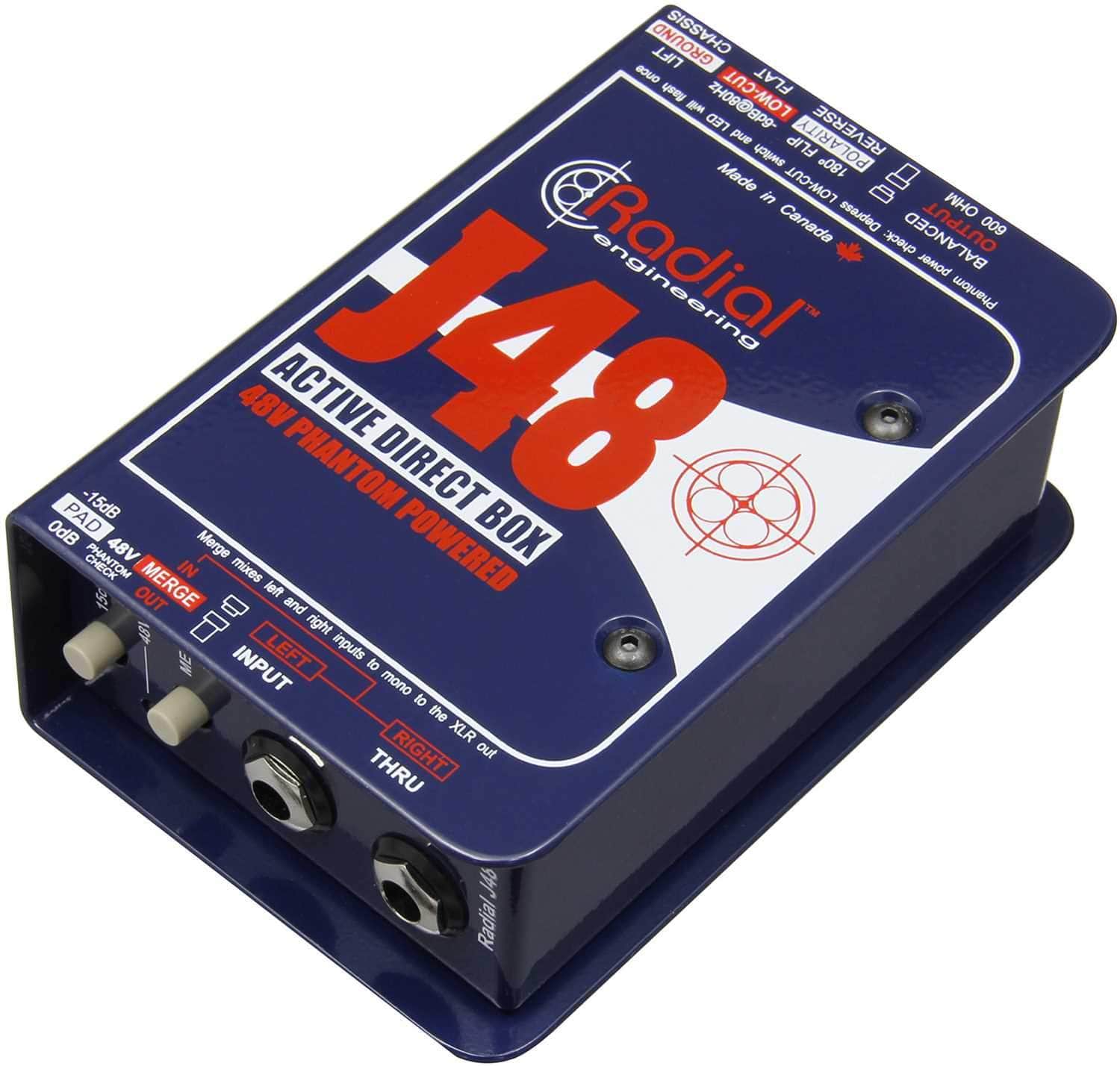

Radial J48 Active 48-Volt Phantom Powered DI Box

Radial J48 48-Volt Phantom Powered Active DI Box - The Ultimate Sound Solution

Unleash your sound with this amazing active direct box!

The J48 is a top-notch active direct box designed to handle extreme transients without a hitch, delivering a linear frequency response from 20Hz to 40kHz.

Features:

• • Exceptional headroom and dynamic range for a crystal-clear sound
• • Retains the natural sound of your instrument, making it truly yours
• • Merge switch to sum stereo instruments to mono effortlessly
• • Powered by 48V phantom, no need for batteries - so convenient!
• • 15dB Pad to reduce input sensitivity for active basses and high output keyboards
• • 48V Check flashes to confirm 48V phantom power is present
• • Merge function changes input and thru-put for seamless mixing
• • Input for easy connection to your instrument
• • Thru for smooth throughput to your amp without loading it down

Specifications:

• • Audio circuit type: Proprietary analog circuit with low-noise op-amp for great sound quality
• • Frequency response: 20Hz ~ 20kHz for a wide range of tones
• • Dynamic range: 109dB for powerful and detailed sound
• • Total harmonic distortion: 0.002% @ -5dBu for pristine audio
• • Intermodulation Distortion: 0.003% @ -3dBu for accurate sound reproduction
• • Phase Deviation: +10o at 20Hz | 0o at 1kHz | -1o at 20kHz for a natural soundstage
• • Input Impedance: 220k - for optimal signal transfer
• • Output Impedance: 200 - XLR output for reliable connections
• • Equivalent Input Noise: -103dBu for a quiet performance
• • Noise: -99dB below 0dBu for a clean sound
• • Maximum Input: +10dBu for handling high-level signals
• • Input pad, Mono Sum, 180° polarity reverse, Ground lift, HPF for versatile sound shaping
• • Input Connectors: 1/4' for easy instrument hookup
• • Output Connectors: Balanced XLR, 1/4' Thru for flexible connectivity
• • Construction: 14 gauge steel chassis and outer shell for durability
• • Size (L x W x D): 3.3' x 5.0' x 2' (84 x 127 x 48mm) - compact and portable
• • Weight: 1.55 lb (720 g) - easy to carry around
• • Power: 48V phantom - proprietary digital switching for efficient operation
• • Conditions: For use in dry locations only between 5°C and 40°C - keep it in the right environment
• • Warranty: Radial 3-year, transferable for peace of mind

The Radial J48 48-Volt Phantom Powered Active DI Box is a must-have for musicians, sound engineers, and anyone who wants to enhance their audio setup. Whether you're performing on stage, recording in the studio, or setting up a PA system, this DI box is designed to deliver exceptional sound quality. It's perfect for guitarists, bassists, keyboard players, and more. With its compact size (3.3' x 5.0' x 2' or 84 x 127 x 48mm) and lightweight design (1.55 lb or 720 g), it's easy to carry and set up wherever you need it. The J48 offers a range of features to optimize your sound, including exceptional headroom and dynamic range, a merge switch for stereo to mono conversion, and a 15dB pad for handling high-output instruments. It's powered by 48V phantom power, eliminating the need for batteries. The DI box also comes with a 3-year transferable warranty, giving you peace of mind. Keep it in dry locations between 5°C and 40°C for optimal performance.
