DiGiCo X-D2-AN-M D2-Rack: Your Ultimate Connectivity Solution for High-Definition Audio
Unleash Your Audio Potential with 96KHz on BNC
The D2-Rack is a game-changer in digital connectivity, offering expandable channels and high sample rates. It's the perfect choice for ambitious audio projects.
• Compact 9U rack with 48 inputs and 16 outputs as standard, expandable to 32 outputs.
• Choose between 48 mic inputs or 24 mic/24 AES/EBU inputs for ultimate flexibility.
• Dual MADI ports support 48kHz rack sharing or digital splits, and combine for 96kHz high-definition connection.
• Dual redundant power supplies ensure reliability.
OVERVIEW

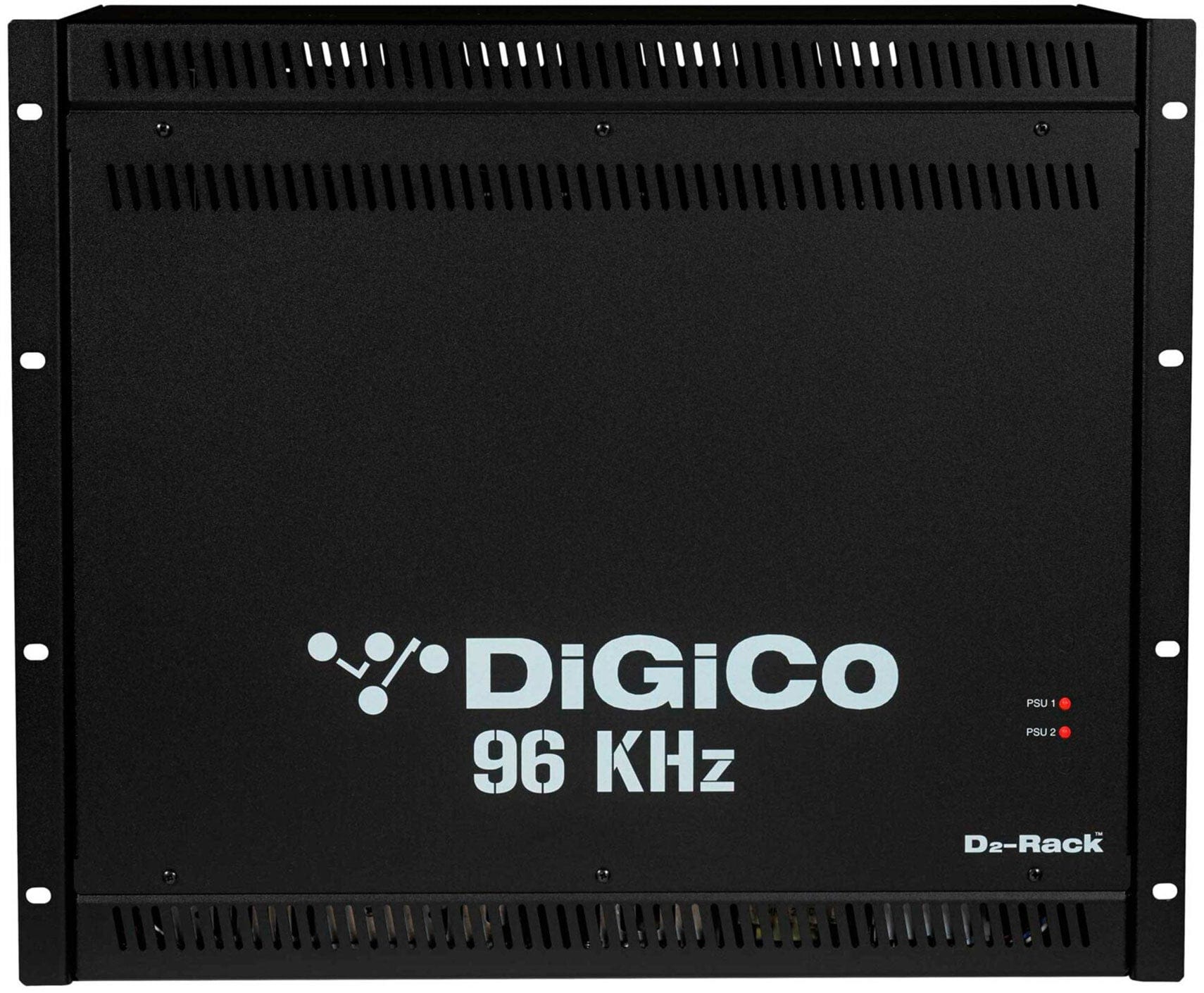

The DiGiCo D2-Rack is a 48 input, 16 output rack with two output expansion slots. It comes in two versions: 48 analogue inputs or 24 analogue/24 digital inputs.
KEY FEATURES
- • 48 Inputs (48 mic or 24 mic/24 AES)
- • 16 Line Outputs
- • 2 Output expansion slots for up to 16 more outputs
- • Supports MADI BNC or MADI RJ45
- • 9U Rack Mountable
- • Rack sharing or digital splits at 48kHz
- • Gain Tracking
- • Redundant PSUs
- • Flashing screen for easy system status check
- • Locked controls to prevent accidental changes
- • Internal Oscillator
- • Can be used as a standalone rack
TECHNICAL SPECIFICATIONS
- AUDIO SPECIFICATIONS
- • Sample Rate: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176kHz or 192kHz
- • Crosstalk (100 - 10kHz): >90dB
- • AES Input Frequency Response (10Hz - 20kHz): ±0.1dB
- • Analogue Input Frequency Response (10Hz - 20kHz): ±1dB
- • AES Noise: <-140dB
- • Analogue EIN (150Ω): 127dB
- • Dynamic Range: 113dB
- • Input Impedance: 2500Ω (2650Ω with pad)
- • CMRR @ 1kHz (150Ω Zin): >71dB
- • AES Distortion @ -1dBFS Gain (100Hz - 10kHz): <0.00015%
- • Analogue Distortion @ 30dBFS Gain (100Hz - 10kHz): <0.01%
- • AES Cable Length: OK over 100m
- • Phantom Power: 48.3V
- • Oscillator Level: -96dB to 0dB
- • Oscillator Frequency: 20Hz to 22kHz
- • Gain Range: -10dB to +60dB
- • System Delay: ≈2ms @ 48kHz or ≈1.1ms @ 96kHz
- • Maximum Input Level: +22dBu
- • Maximum Output Level: +22 dBu

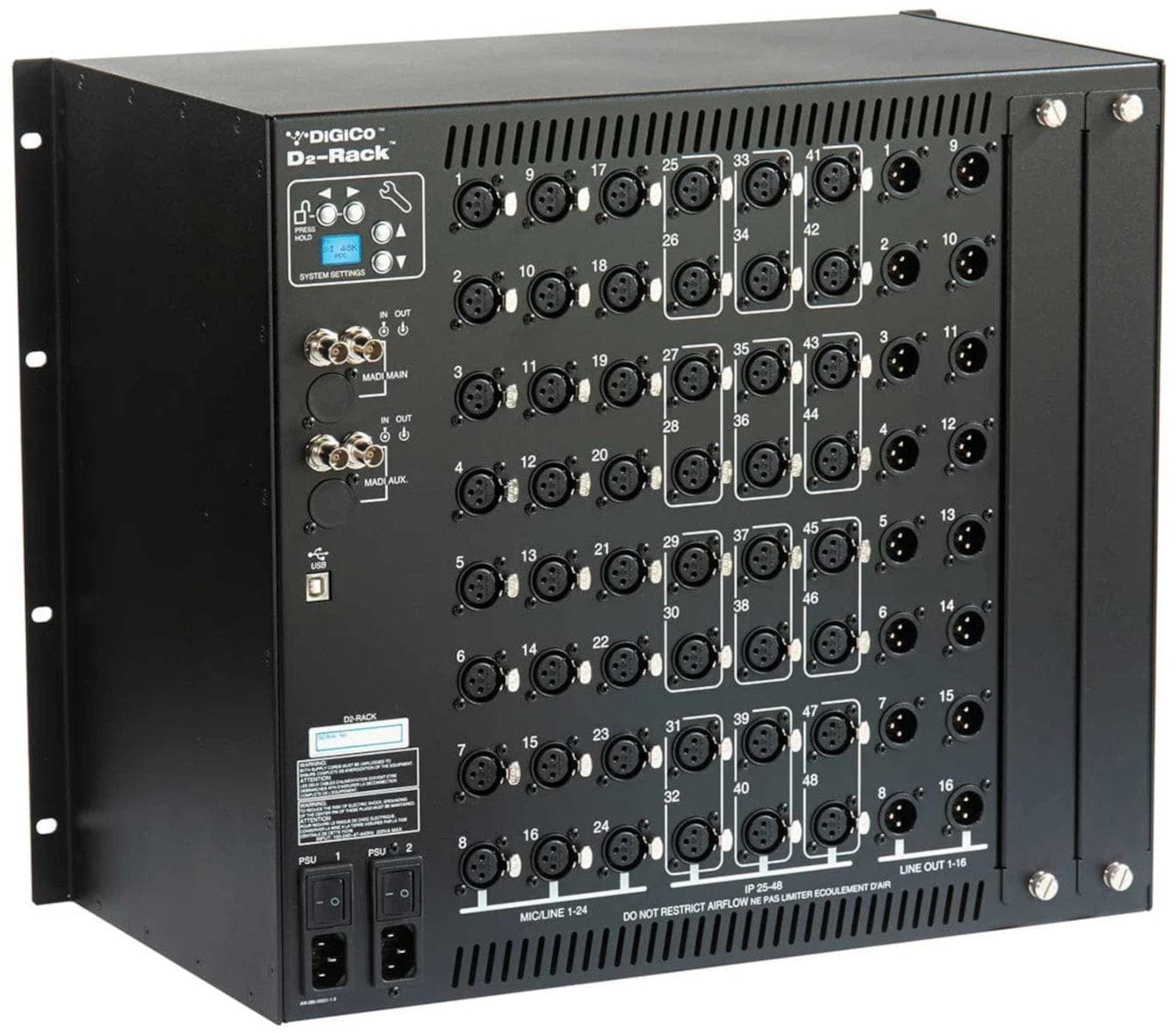

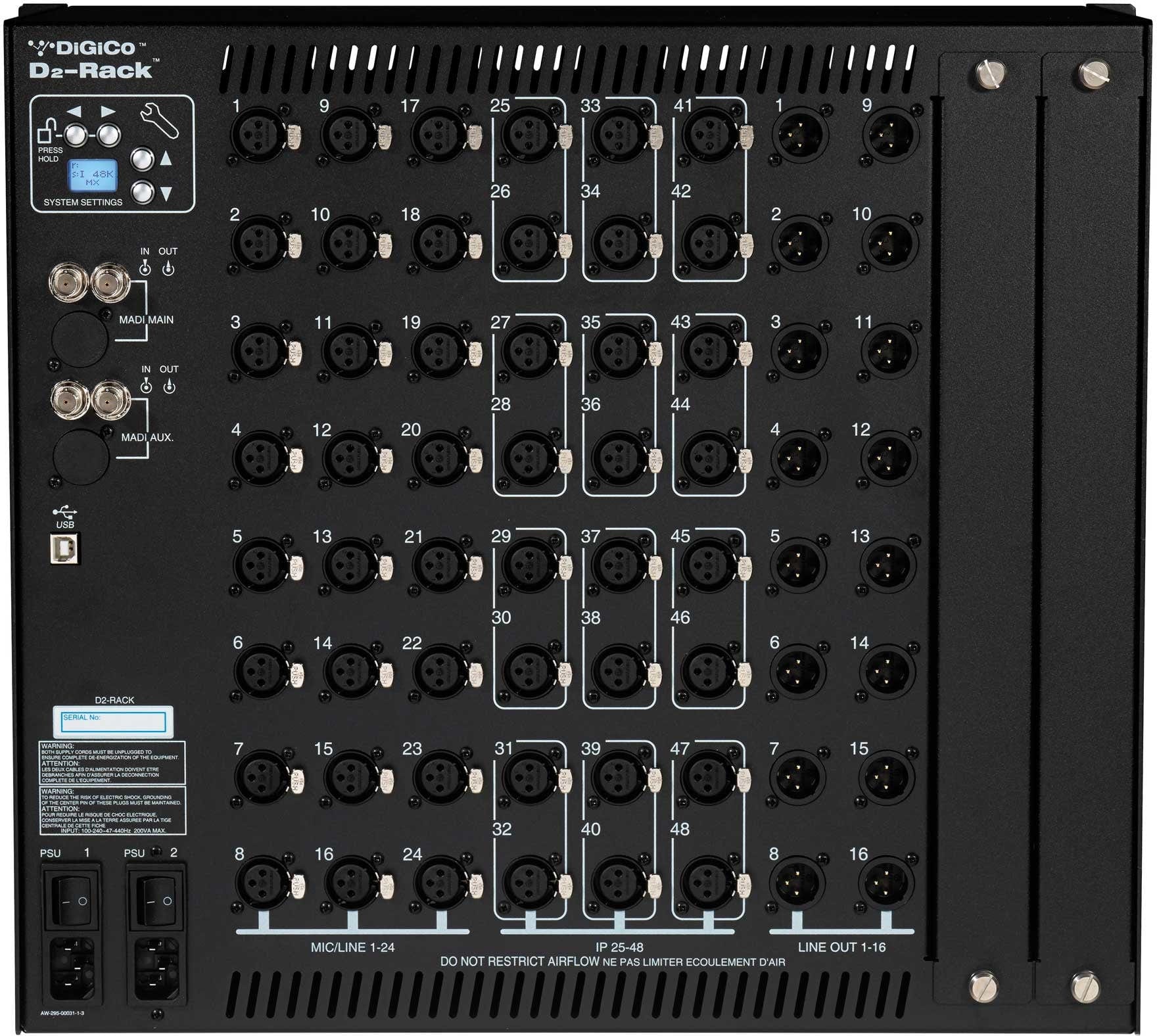

- CONNECTIONS
- • 48 x XLR Mic Inputs
- • 16 x XLR Outputs
- • 2 x Output Expansion Slots
- • 2 x Redundant PSUs
- • 1 x LCD Menu Screen
- • 4 x Menu Buttons
- • 1 x MADI Main I/O (BNC)
- • 1 x MADI Aux I/O (BNC)
- • 1 x USB 2.0 Type B port
- SIGNAL PROCESSING
- • Internal Oscillator
- • Gain Tracking
- OPTIONS
- • BNC or Cat5 (RJ45) MADI
- • 48 in and 16 out or 24in, 24 AES/EBU in and 16 out
- • Compatible Cards: 8 ch Line Output / 8 ch AES Output / 16 ch Aviom
The DiGiCo X-D2-AN-M D2-Rack is a 9U rack mountable device designed for audio professionals. It's perfect for live sound, recording studios, and broadcast applications. With its expandable channel count and high sample rates, it can handle even the most ambitious projects. The rack features 48 inputs and 16 outputs as standard, which can be expanded to 32 outputs. It offers options for 48 mic inputs or 24 mic/24 AES/EBU inputs, and supports both MADI BNC and MADI RJ45 connections. The D2-Rack also comes with dual redundant power supplies for reliability. Technical specs include a sample rate range of 44.1kHz to 192kHz, crosstalk greater than 90dB, and low noise and distortion. It has 48 XLR mic inputs, 16 XLR outputs, 2 output expansion slots, 2 redundant PSUs, an LCD menu screen, 4 menu buttons, 1 MADI main I/O (BNC), 1 MADI aux I/O (BNC), and 1 USB 2.0 Type B port.
