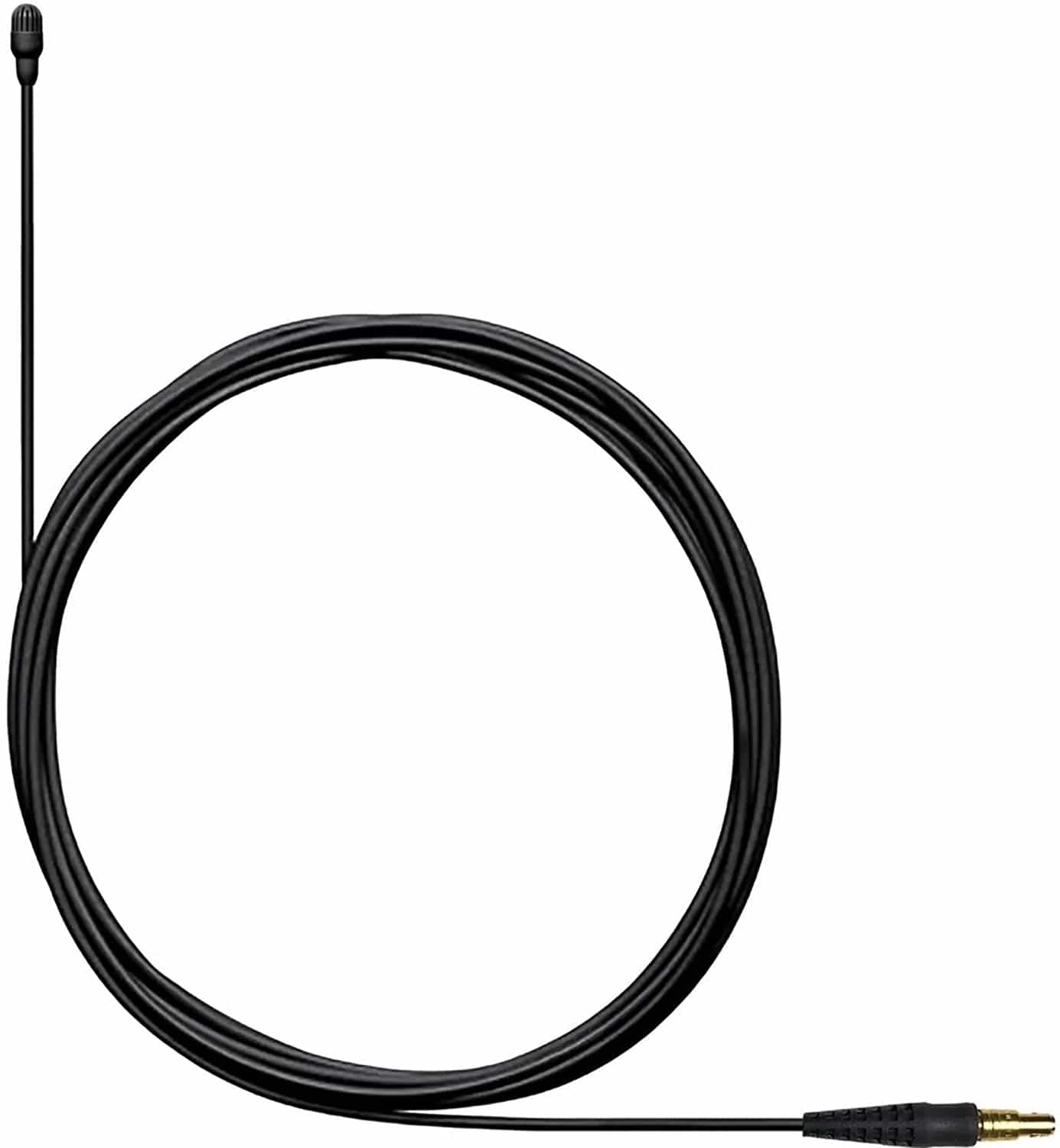

Shure TL46B/O-LEMO1-A TwinPlex Omnidirectional Subminiature Microphone - The Ultimate Sound Solution
Discover the Shure TL46B/O-LEMO1-A TwinPlex microphone, a game-changer for capturing pristine audio. With unmatched signal-to-noise, superior natural sound quality, and high sensitivity output, it's perfect for dialogue and medium SPL applications.
Key Features:
- • Ideal for theater, film, broadcast, and live TV when you need that extra output (8-10dB). Don't miss out on any crucial audio!
- • Twice the surface area of other mics for a natural, robust low-frequency response. Get the sound you've been looking for!
- • Best-in-class low self-noise and dynamic range for crystal-clear audio. Upgrade your audio production now!
The TL46 also features an ultra-durable 1.6 mm paintable cable, interchangeable moisture-resistant frequency caps with LEMO and TA4F (TQG) connector options. It's the premium choice for when your message must stand out.
Technical Details:
- • Microphone Capsule: Dual-Diaphragm, Prepolarized Condenser
- • Polar Pattern: Omnidirectional
- • Frequency Response: 20 Hz - 20 kHz
Get ready to experience audio like never before with the Shure TL46B/O-LEMO1-A TwinPlex microphone.
The Shure TL46B/O-LEMO1-A TwinPlex Omnidirectional Subminiature Microphone is perfect for theater, film, broadcast, and live TV applications. It features an ultra-durable 1.6 mm paintable cable, interchangeable moisture-resistant frequency caps with LEMO and TA4F (TQG) connector options. The microphone capsule is Dual-Diaphragm, Prepolarized Condenser with an Omnidirectional polar pattern and a frequency response of 20 Hz - 20 kHz. It has a sensitivity of -37.0 dBV(14.1 mV) at 1 kHz, a self-noise of 24.5 dB SPL-A, and a signal-to-noise ratio of 69.5 dB. The output clipping level is 3.0 dBV, 1 kHz at 1% THD, typical, and the maximum SPL is 142.0 dB SPL 1 kHz at 1% THD, typical. The dynamic range is 117.5 dB typical. The microphone current draw is 120 to 240 μA, typical, and the bias voltage recommended operating voltage is 5 VDC. The housing is Molded ABS, and the cable diameter is 1.1 mm with a length of 66 in. (1.67 m). The microphone length is 13.5 mm, the diameter is 5.6 mm, and the net weight with cable is 12.0 g (0.42 oz.).
