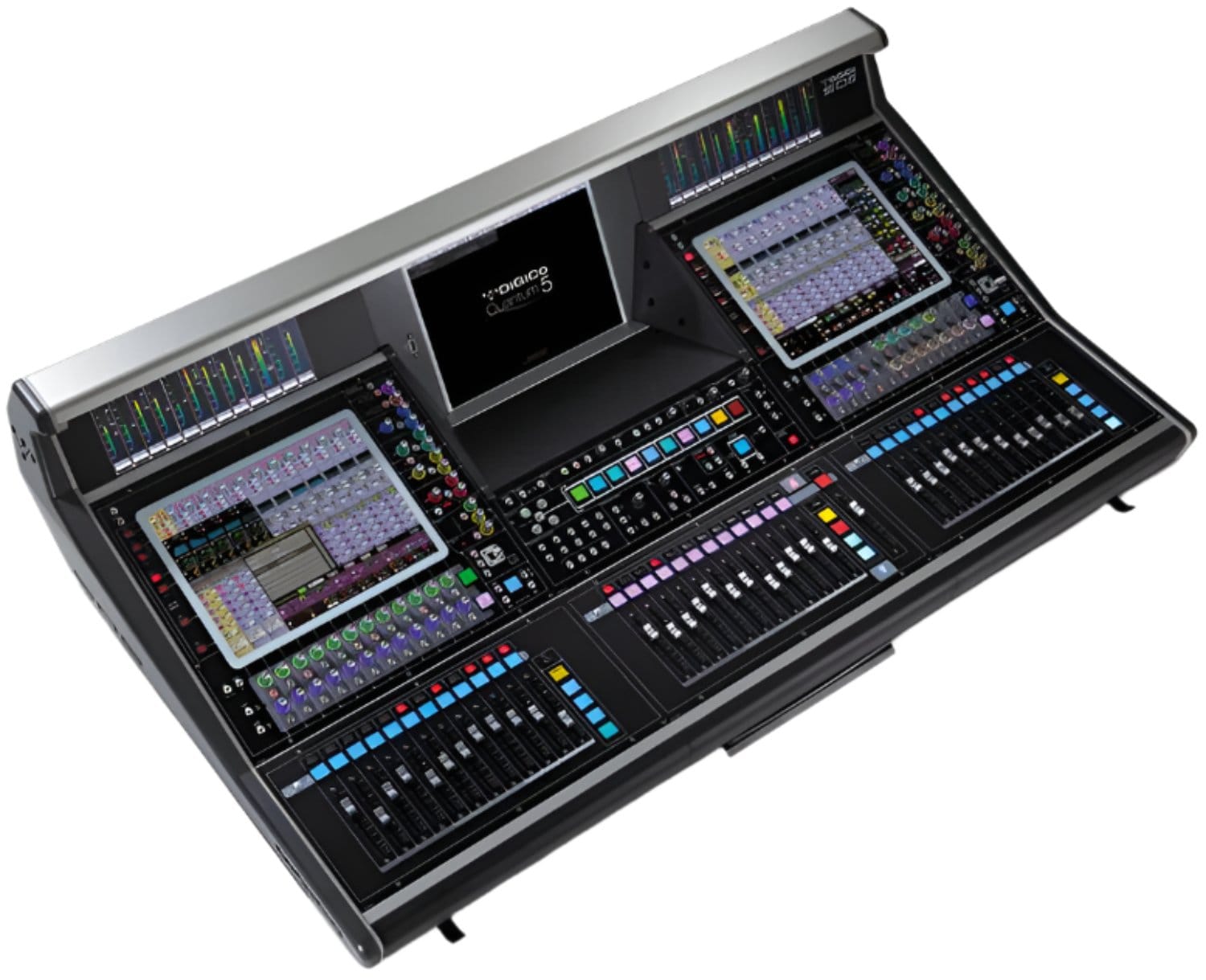

DiGiCo Quantum 5 Digital Mixing Console - Unleash Your Sound with MADI and Multi-Mode Optics ST
The DiGiCo Quantum 5 is a game-changer in the world of digital mixing consoles. With its impressive features and capabilities, it's perfect for professional sound engineers and musicians looking to take their performances to the next level.
Key Features:
- • 256 Input Channels: Get full processing power for all your audio sources.
- • 128 Aux/Sub-Group Busses: Mix and route your audio with ease.
- • Redundant PSUs: Enjoy peace of mind with reliable power supply.
Benefits:
- Powerful Processing: Three large-scale FPGAs deliver exceptional performance.
- User Programmable Macros: Customize your workflow for maximum efficiency.
- iPad Control: Take control of your console from anywhere with your iPad.
Specifications:
- Faders: 37 x 100mm touch-sensitive, motorized
- Screens: 3 x 15” LCD high-resolution touch screens
- Meterbridge: 2 x custom mounted high-resolution TFT-LCD screens
- Internal PSU: 2 units for redundancy
- Processing channels: Supports up to 330 channels, combining input channels, aux, and solo group busses
- Busses: Up to 128 aux/group busses with full processing for mono, stereo, LCR, or 5.1
- Matrix: Up to 36 input/36 outputs with full processing
- Control groups: Up to 36, selectable for VCA-style, moving fader, or mute group
- Graphic EQ: 32 x 32-band, gain +/- 12dB
- Internal FX: Up to 36 stereo effects including 16 floating point reverbs and 32 delay/chorus/pitch/enhancer effects
- Local I/O: 8 x mic/line I/O, 8 x AES I/O
- MADI interfaces: 8 x MADI interfaces at 48kHz, 4 redundant interfaces at 96kHz, BNC connectivity
- Optocore: Standard (Dual Loop – optional)
- Sampling rates: 48kHz/96kHz
- GPIO: 2 x DSub37 connectors
- DMI: 2 x DiGiCo multichannel interfaces
- Waves: Fitted as standard
- External sync: Wordclock, AES, video, MADI, Optocore
- Dimensions (Quantum 5): 1465mm (w) x 838mm (d) x 458mm (h)
- Weight (Quantum 5): 116kg / 256lbs (235kg / 518lbs with flightcase)
- Flightcase dimensions: 1600mm (w) x 600mm (d) x 1200mm (h)
- Power requirements: 90V-260V, 50-60Hz, 790VA
The DiGiCo Quantum 5 Digital Mixing Console is a must-have for professional sound engineers and musicians. Whether you're performing live, recording in the studio, or broadcasting, this console offers the power and flexibility you need. With its 256 input channels, 128 aux/sub-group busses, and 36 x 36 matrix, you can mix and route your audio with ease. The console also features 48 insertable Mustard processing strips, 128 nodal processing instances, and a True Solo function for ultimate control. The Quantum 5 is designed for reliability, with redundant PSUs as standard and the ability to redundantly mirror with another console. It also offers a range of features to enhance your workflow, including snapshots, user programmable macros, and iPad control. The console has a compact design, measuring 1465mm (w) x 838mm (d) x 458mm (h) and weighing 116kg / 256lbs (235kg / 518lbs with flightcase). It comes with a range of connectivity options, including 8 x mic/line I/O, 8 x AES I/O, 8 x MADI interfaces at 48kHz, 4 redundant interfaces at 96kHz, and Optocore (Dual Loop – optional). The console supports sampling rates of 48kHz/96kHz and comes with Waves fitted as standard. It also offers external sync options, including Wordclock, AES, video, MADI, and Optocore.
