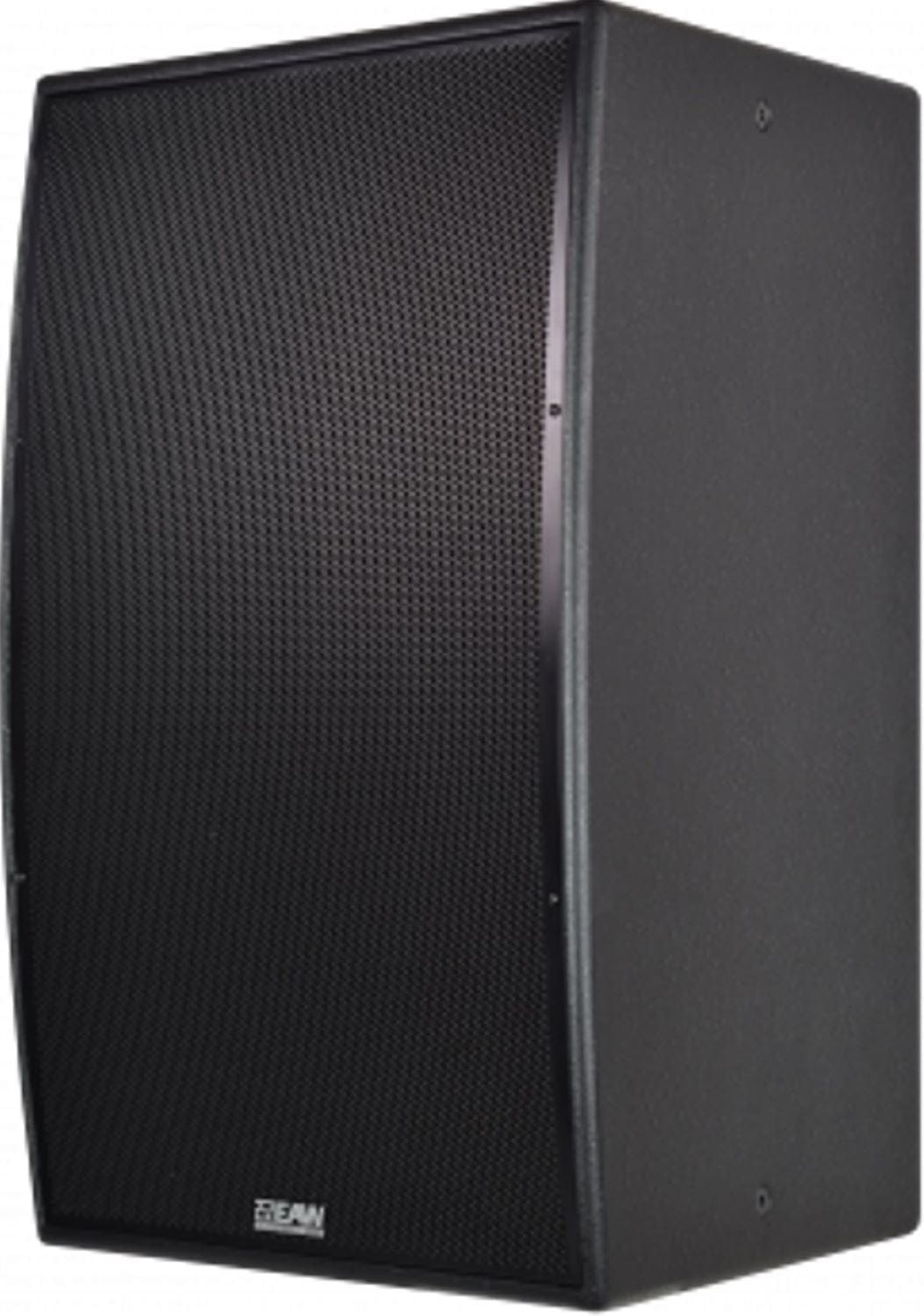

EAW MKD1294 3-Way 90 x 45-Degree Full-Range Black Loudspeaker - Your Ultimate Sound Solution
The MKD installation loudspeaker series is a game-changer! Engineered to meet the high demands of real-world applications, from stadiums to intimate music clubs.
• High Output: Delivers powerful sound for any venue.• Exceptional Fidelity: Ensures crystal-clear audio.• Flexible Mounting: Easy installation with various options.
This series builds on EAW's great tradition, developed with experts worldwide. The compact Baltic birch enclosure is durable and has multiple mounting points. It also offers weather protection, custom colors, and a curved front for discreet installs.
MKD uses QX series tech with spaced low frequency transducers around a rotatable horn. Advanced transducers can be driven lower through beamwidth matched crossover technology.
Features:
- High output passive or bi-amplified two-way performance
- QX inspired 4in voice coil compression driver with extended
- Precision EAW signature broadband pattern control
- Flexible mounting, weather protection, color and transformer options
Specifications:
- Frequency Response: 47Hz – 20kHz
- Max SPL: 145 dB
- Operating Mode: Passive, Bi-Amp
- Subsystem:
- 2 x 12in Cone, 3in Voice Coil, Vented
- 1 x 2in Exit, 3.5in Voice Coil, Compression Midrange, Horn Loaded
- 1 x 2in Exit, 1.75in Voice Coil, Compression driver, Horn Loaded
- Nominal Beamwidth:
- 90° Horizontal
- 45° Vertical
- Power Handling:
- LF/MF/HF 1200W @ 8ohms
- LF 1200W @ 8ohms
- HF/MF 140W @ 8ohms
- Connections: Terminal Block
- Dimensions:
- Height: 32 in
- Width: 22.7 in
- Depth: 20.6 in
- Weight: 104 lbs. (47.2kg)
The EAW MKD1294 3-Way 90 x 45-Degree Full-Range Black Loudspeaker is perfect for a variety of settings. Whether it's a large stadium or an intimate music club, it can handle the sound needs. It's designed for sound engineers, venue managers, and anyone looking for high-quality audio. With dimensions of Height: 32 in, Width: 22.7 in, Depth: 20.6 in and weighing 104 lbs. (47.2kg), it's ready to deliver great sound wherever you need it.
