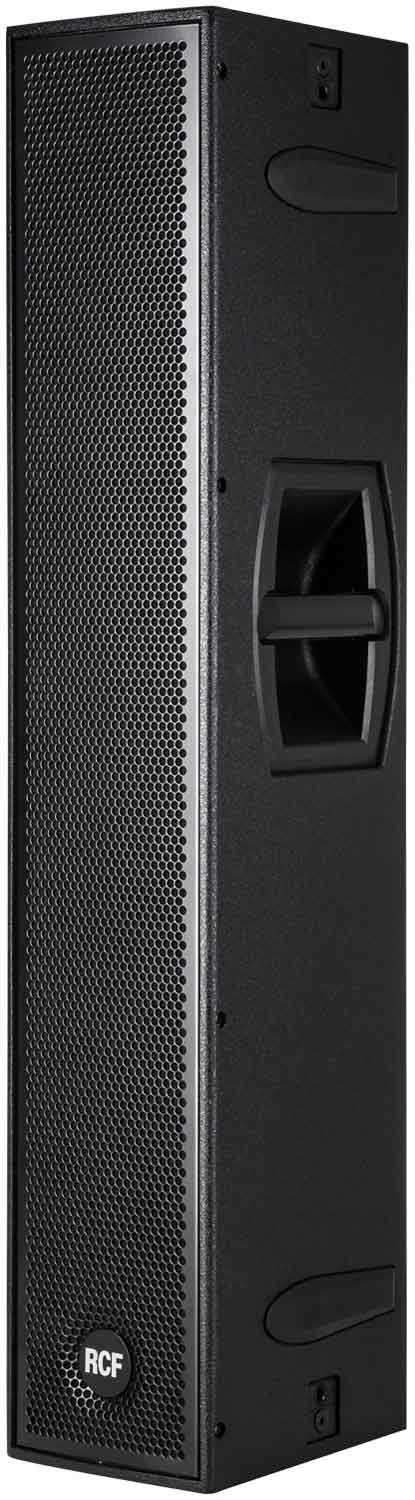

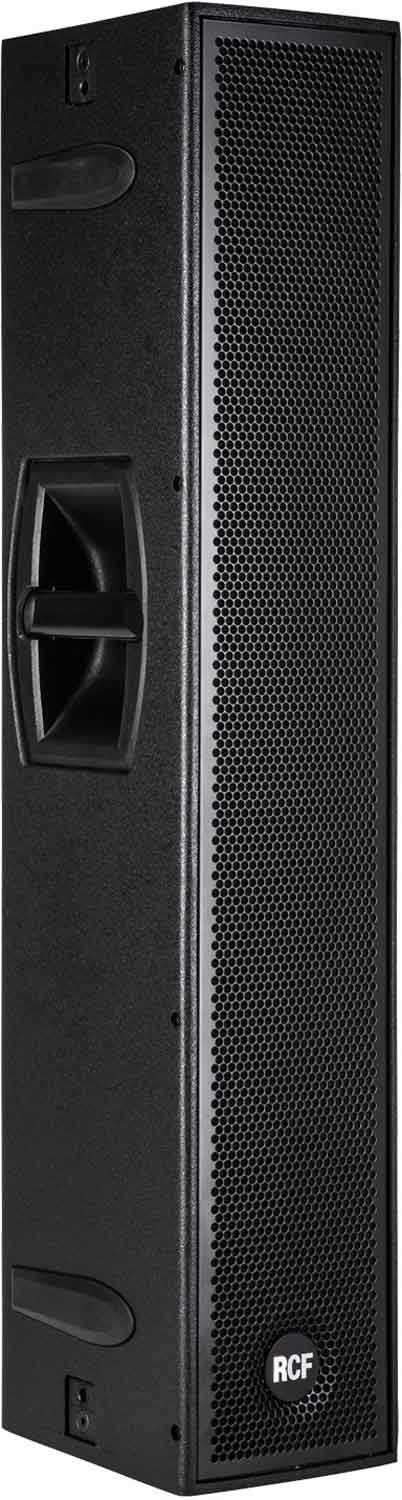

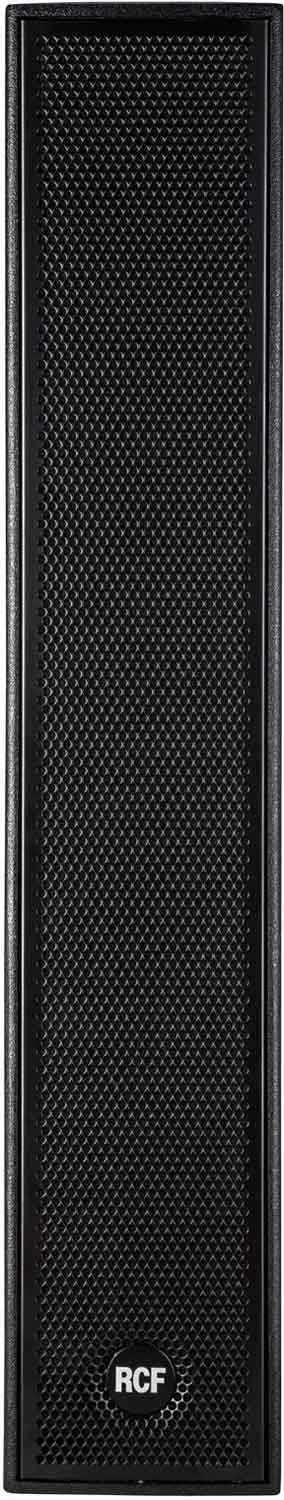

RCF NX-L24A MK2 High-Powered Column Array Speaker

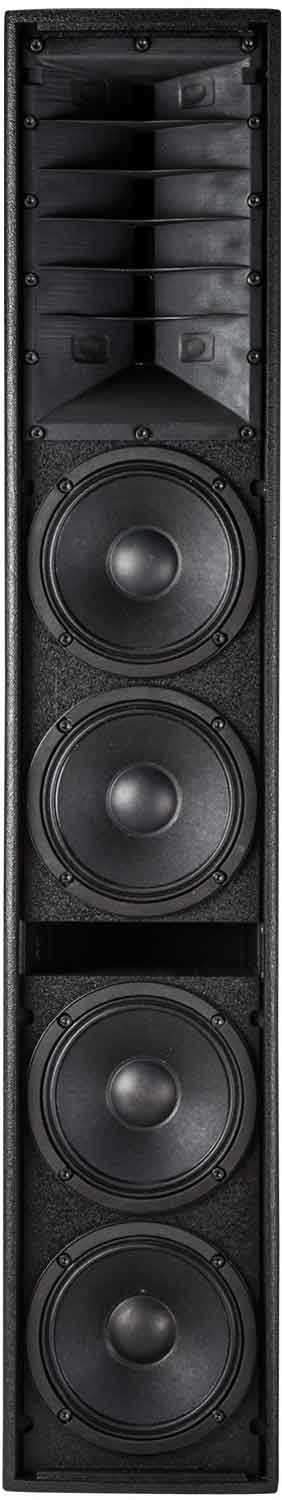

Upgrade your sound experience with the RCF NX-L24A MK2! This active column speaker array system packs a punch with four 6” high power woofers and a 2.5” voice coil compression driver on a 100° x 30° constant directivity waveguide. The 1,400 Watt amplifier, controlled by a DSP, handles all the technical stuff like crossover, equalization, phase alignment, soft limiting, and speaker protections. You can even apply equalization to a single unit or a pair of speakers.
FEATURES
- • 1,400 Watt Class D bi-amplification for powerful sound
- • Max SPL of 131 dB for a loud and clear experience
- • 65 Hz - 20 kHz frequency response for a wide range of sound
- • 4 x 6' Woofers for deep bass
- • 2.5' voice coil RCF Precision C. Driver on a waveguide for precise sound
- • 100° x 30° slightly tilted pattern control for targeted sound
- • DSP controlled input section with single or dual EQ preset for easy customization
- • Easy to fly and install with built-in rigging points and pole mount socket for hassle-free setup
SPECIFICATIONS
- ACOUSTICAL SPECIFICATIONS
- Frequency Response: 65 Hz - 20000 Hz
- Max SPL @ 1m: 131 dB
- Horizontal coverage angle: 100°
- Vertical coverage angle: 30°
- TRANSDUCERS
- Compression Driver: 1 x 1.4'', 2.5'' v.c
- Woofer: 4 x 6.0'', 1.5'' v.c

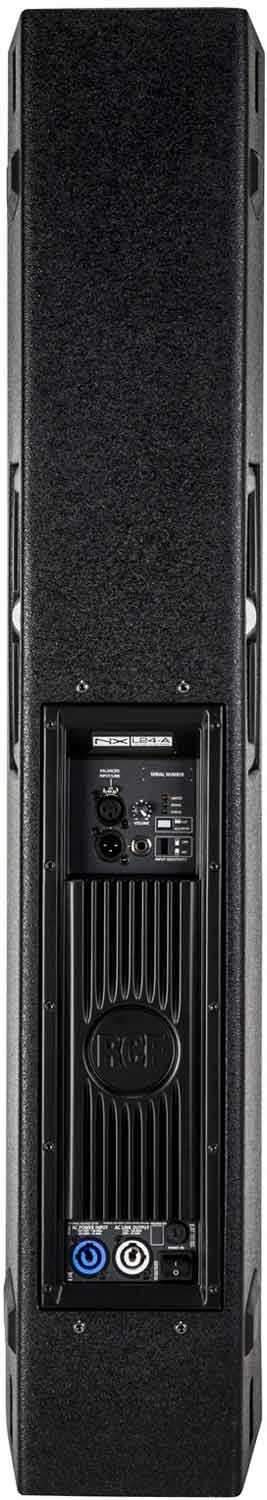

- INPUT/OUTPUT SECTION
- Input signal: bal/unbal
- Input connectors: XLR, Jack
- Output connectors: XLR
- Input sensitivity: -2 dBu/+4 dBu
- PROCESSOR SECTION
- Crossover Frequencies: 800 Hz
- Protections: Thermal, RMS
- Limiter: Soft Limiter
- Controls: Volume, EQ Shape, MIc/Line
- POWER SECTION
- Total Power: 1400 W Peak, 700 W RMS
- Low frequencies: 1000 W Peak, 500 W RMS
- Cooling: Convection
- Connections: Powercon IN/OUT
- PHYSICAL SPECIFICATIONS
- Cabinet/Case Material: Baltic birch plywood
- Hardware: 4 x MB, 4 x quick lock
- Handles: 2 side
- Pole mount/Cap: Yes
- Grille: Steel
- Color: Black
- SIZE
- Height: 1056 mm / 41.57 inches
- Width: 201 mm / 7.91 inches
- Depth: 274 mm / 10.79 inches
- Weight: 26.4 kg / 58.2 lbs
- SHIPPING INFORMATION
- Package Height: 316 mm / 12.44 inches
- Package Width: 1155 mm / 45.47 inches
- Package Depth: 222 mm / 8.74 inches
- Package Weight: 29 kg / 63.93 lbs
The RCF NX-L24A MK2 is perfect for live events, clubs, and installations. Ideal for sound engineers, event planners, and venue owners. With a height of 1056 mm (41.57 inches), width of 201 mm (7.91 inches), depth of 274 mm (10.79 inches), and weight of 26.4 kg (58.2 lbs), it's easy to handle and install.
