RME HDSPe AES PCIe Card: 32-Channel AES/EBU, 24-Bit/192kHz

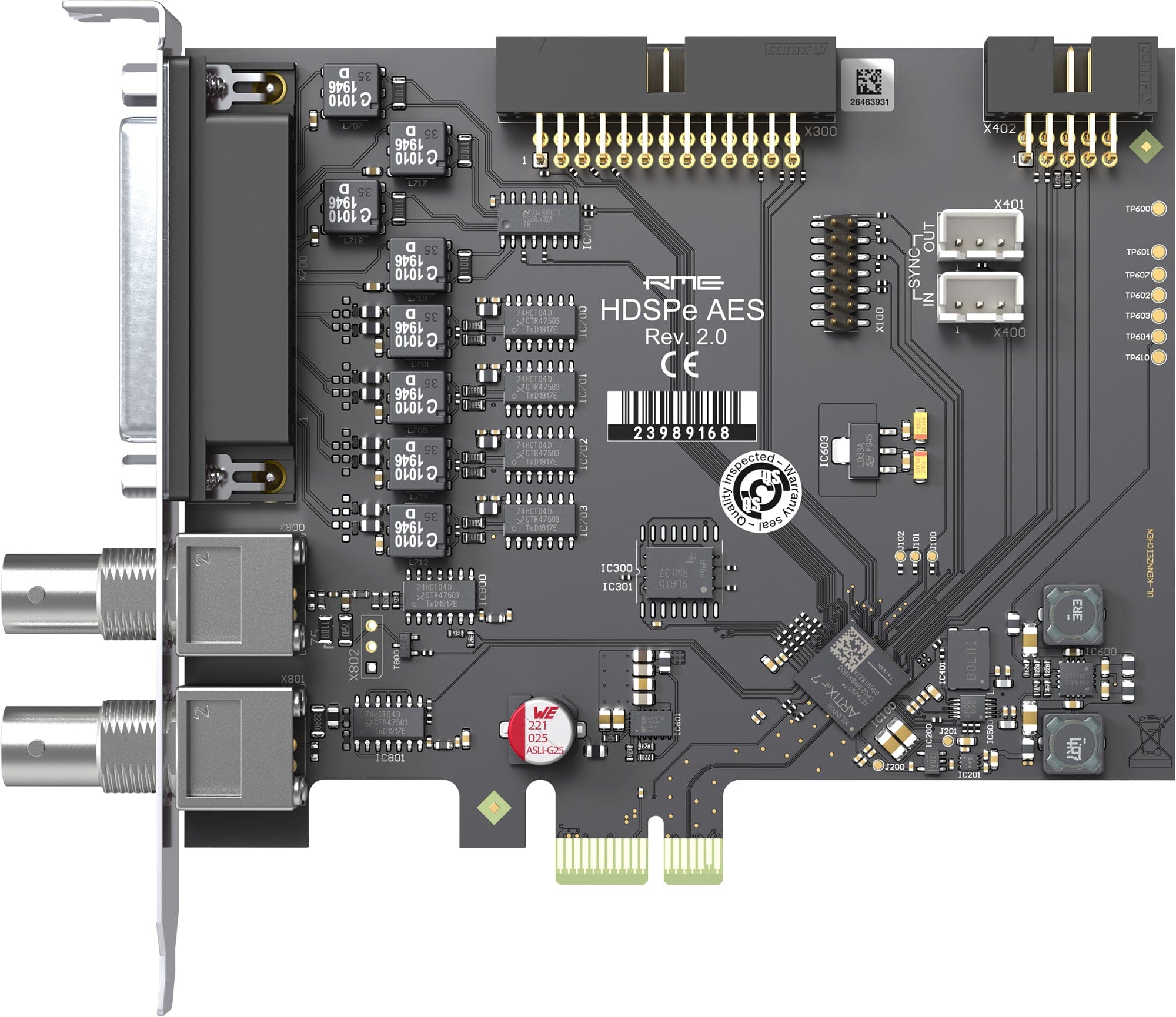

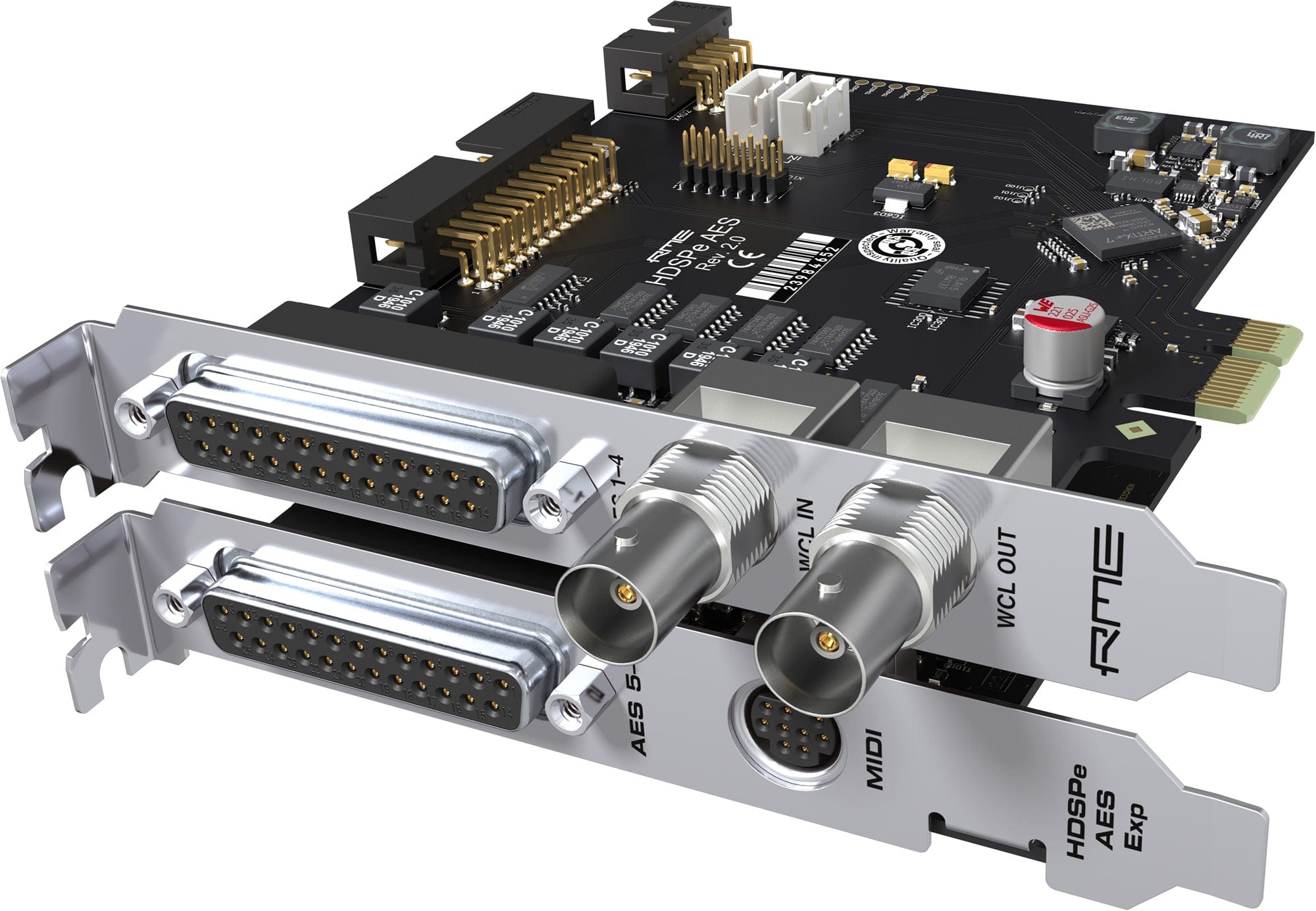

The HDSPe AES is a short-length PCI Express card with AES/EBU interfaces. It's a must-have for audio professionals seeking high-quality audio solutions. • High-Resolution Audio: With 24-bit/192kHz capabilities, enjoy crystal-clear sound. • Multiple Interfaces: Comes with eight AES inputs (16 channels), eight AES outputs (16 channels), two MIDI I/O ports, and word clock I/O. • Advanced Features: Features SteadyClock for jitter suppression, ASIO zero CPU load technology, and more.
Features:
- Short-length PCI Express card with AES/EBU interfaces
- 16 input channels and 16 output channels
- Support for 192kHz at full channel count
- Native support for Double and Quad Wire transfer with direct conversion between these formats
- 8 buffer size/latencies available
- SteadyClock for highest jitter suppression and clock regeneration
- ASIO zero CPU load technology when using ALL channels
- Slave and master clock modes with automatic and intelligent master/slave clock control
- Enhanced Zero Latency Monitoring for latency-free sub-mixes and perfect ASIO Direct Monitoring
- Input and output of Wordclock on BNC connectors
- Varipitch by input signal or Wordclock
- MIDI input and output via four 5-pin DIN jacks
- TotalMix 512 channel mixer with 42-bit internal resolution
- 48 level Peak/RMS meter, hardware-computed
- Includes DIGICheck, a software tool for measuring, analysis and testing of various functions of the data stream
Specifications
- 1-Lane PCI Express Endpoint device (no PCI Express to PCI Bridge), revision 1.1.
- 2.5 Gbps line speed
- Packet-based full-duplex communication (up to 500 MB/s transfer rate)
- All settings: changeable in real-time
- Automatic and intelligent master/slave clock control
- Enhanced Zero Latency Monitoring for latency-free submixes and perfect ASIO Direct Monitoring
- Sync sources: 8 x AES, word clock, internal
- Varipitch: by input signal or word clock
- Sample rates: 32 kHz up to 192 kHz, variable (Sync/word clock)
- Sample rate range: AES: 28 kHz - 204 kHz, word clock: 28 kHz - 204 kHz
- Jitter: < 1 ns, internal and all inputs
- Jitter sensitivity: PLL operates even at 100 ns Jitter without problems
- Comes with DIGICheck: the ultimate measurement, analysis and test tool

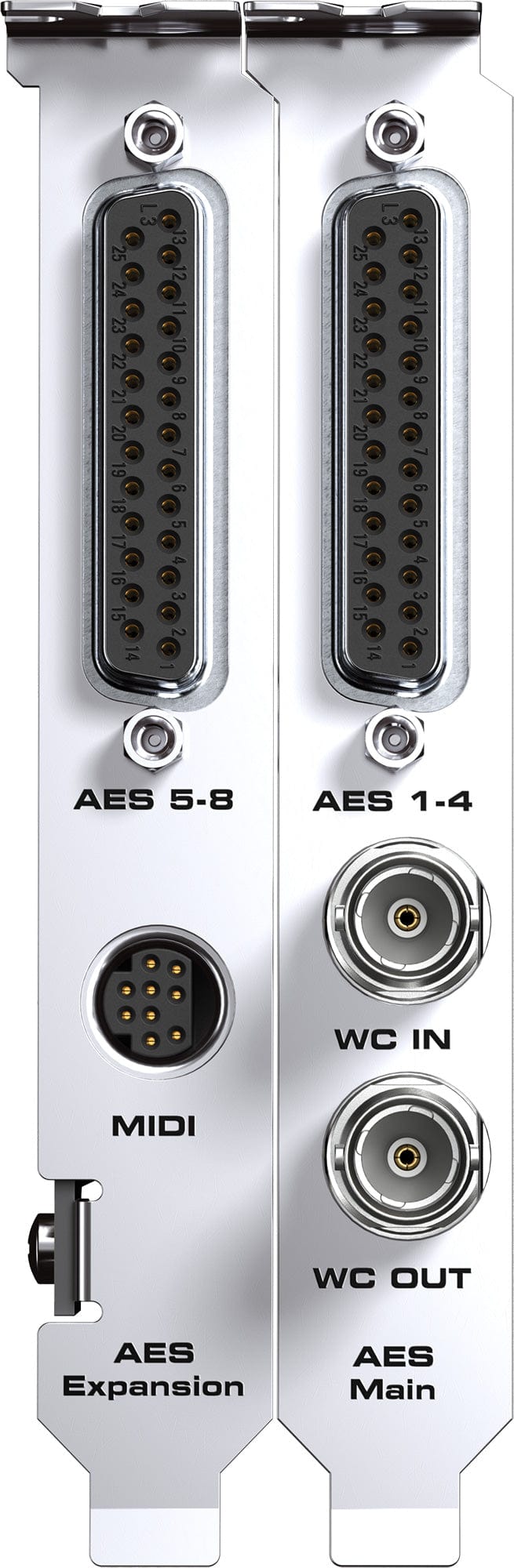

- Input 8 x AES, 2 x MIDI, word clock (BNC)
- Output 8 x AES, 2 x MIDI, word clock (BNC)
- Input word clock: BNC, Signal Adaptation Circuit (functional from 1.2 Vpp input signal), termination via jumper
- Output word clock: BNC, low-impedance driver stage, 4 Vpp into 75 Ohms, short-circuit-proof
- MIDI input and output: via four 5-pin DIN jacks
The RME HDSPe AES PCI Express Card is designed for audio professionals who need high-quality audio solutions. It's perfect for recording studios, live sound setups, and music production. This short-length card offers 16 input and 16 output channels at 192kHz, ensuring crystal-clear sound. With features like SteadyClock for jitter suppression and ASIO zero CPU load technology, it delivers top-notch performance. It also includes two MIDI I/O ports and word clock I/O for added connectivity. The card's compact size makes it easy to install in any setup.
