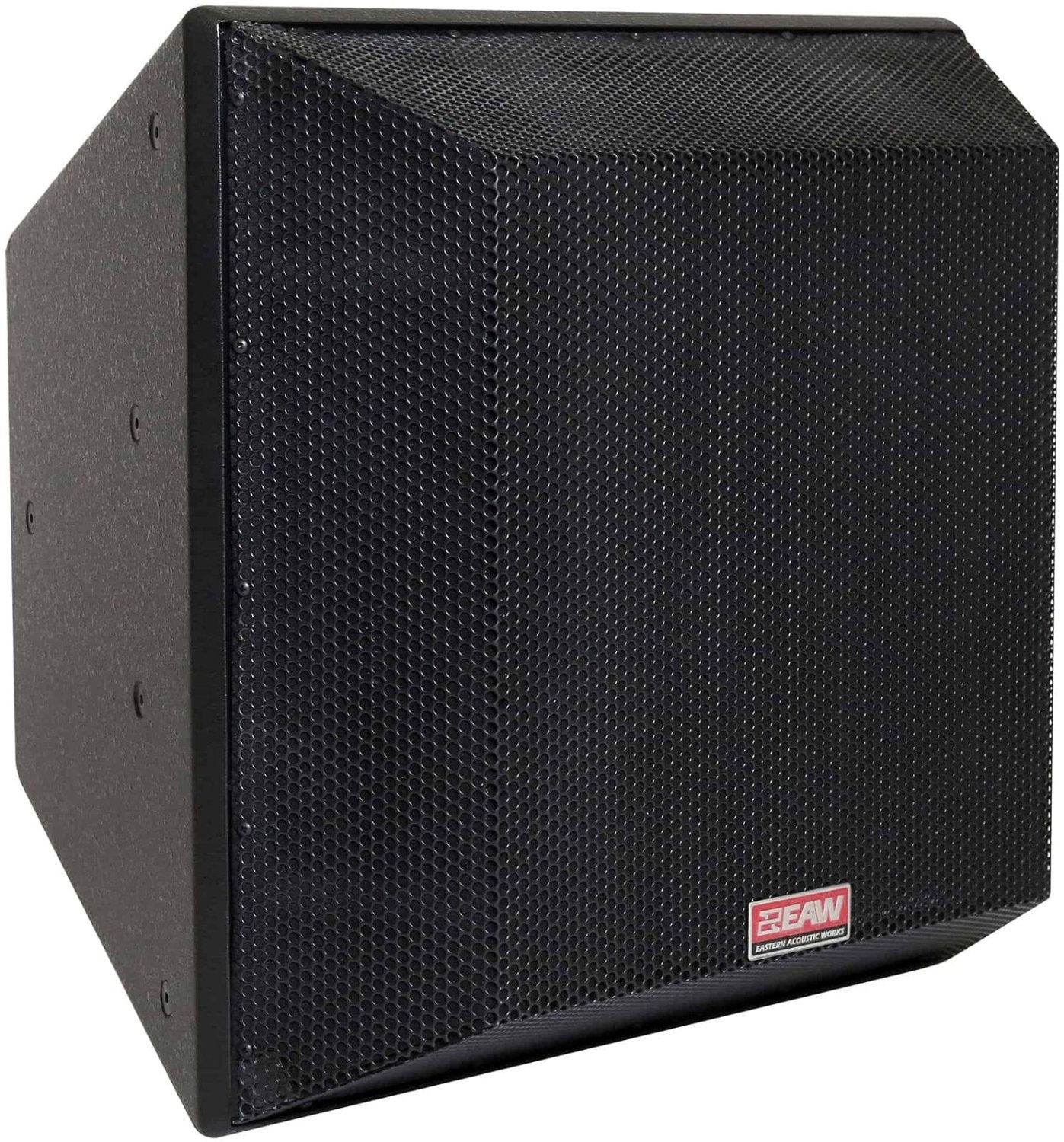

EAW QX396-WP 2-Way Trapezoidal Weather Protected Loudspeaker - High-Performance Black
• High Output: Delivers outstanding sound for various applications.
• Ultra-Efficient HF Compression Driver: Ensures clear and powerful high-frequency performance.
• Installation Flexibility: Compact size and multiple wiring options make it easy to install.
The QX396 features an ultra-efficient and unique high compression driver with a 90° x 60° constant directivity horn (one of six horn patterns available, ranging from 60° x 45° to 120° x 60°). Four Phase Aligned 10-in low frequency transducers arranged as vertical and horizontal pairs leverage beneficial interaction based on their spacing to extend pattern control.
Because the four low frequency transducers surround the high compression driver symmetrically in the horizontal and vertical planes, response across the full frequency spectrum appears to originate from a single point in space.
Users can select between single-amp and bi-amp operating modes. Additionally, each woofer pair is brought out to the input plate independently to permit independent, series, or parallel wiring. Combined, these features offer enormous installation flexibility.
Features:
- High output, single or bi-amplified, two-way performance
- Broadband pattern control
- Ultra-efficient HF compression driver
- Four Phase Aligned 10-in cone transducers (vertical and horizontal pairs)
- Installation flexibility, compact size
Specifications:
- Frequency Response: 66hz – 20khz
- Max SPL: 142 dB
- Operating Mode: Single-amp LF/HF; Bi-amp LF,HF
- External Signal Processing: DSP w/EAW Focusing
- Subsystem:
- LF: 4 x 10-in cone
- HF: 1 x 1.4-in. exit, 4-in. voice coil compression driver
- Nominal Beamwidth:
- Horizontal: 90°
- Vertical: 60°
- Power Handling:
- LF: 1800W @ 2ohms (single amp), 800W @ 4ohms (2x pairs)
- HF: 150W @ 8ohms
- Connections: Barrier Strip
- Dimensions:
- Height: 23.7 in (602 mm)
- Width: 23.7 in (602 mm)
- Depth: 19.9 in (505 mm)
- Weight:94 lbs (43 kg)
- Color: Black
This EAW QX396-WP 2-Way Trapezoidal Weather Protected Loudspeaker is perfect for outdoor events, concerts, and public spaces. It's designed for sound engineers, venue managers, and anyone looking for high-quality audio. With dimensions of 23.7 in (602 mm) height, 23.7 in (602 mm) width, and 19.9 in (505 mm) depth, and weighing 94 lbs (43 kg), it's easy to install and move around. The black color gives it a sleek look that fits any environment.
