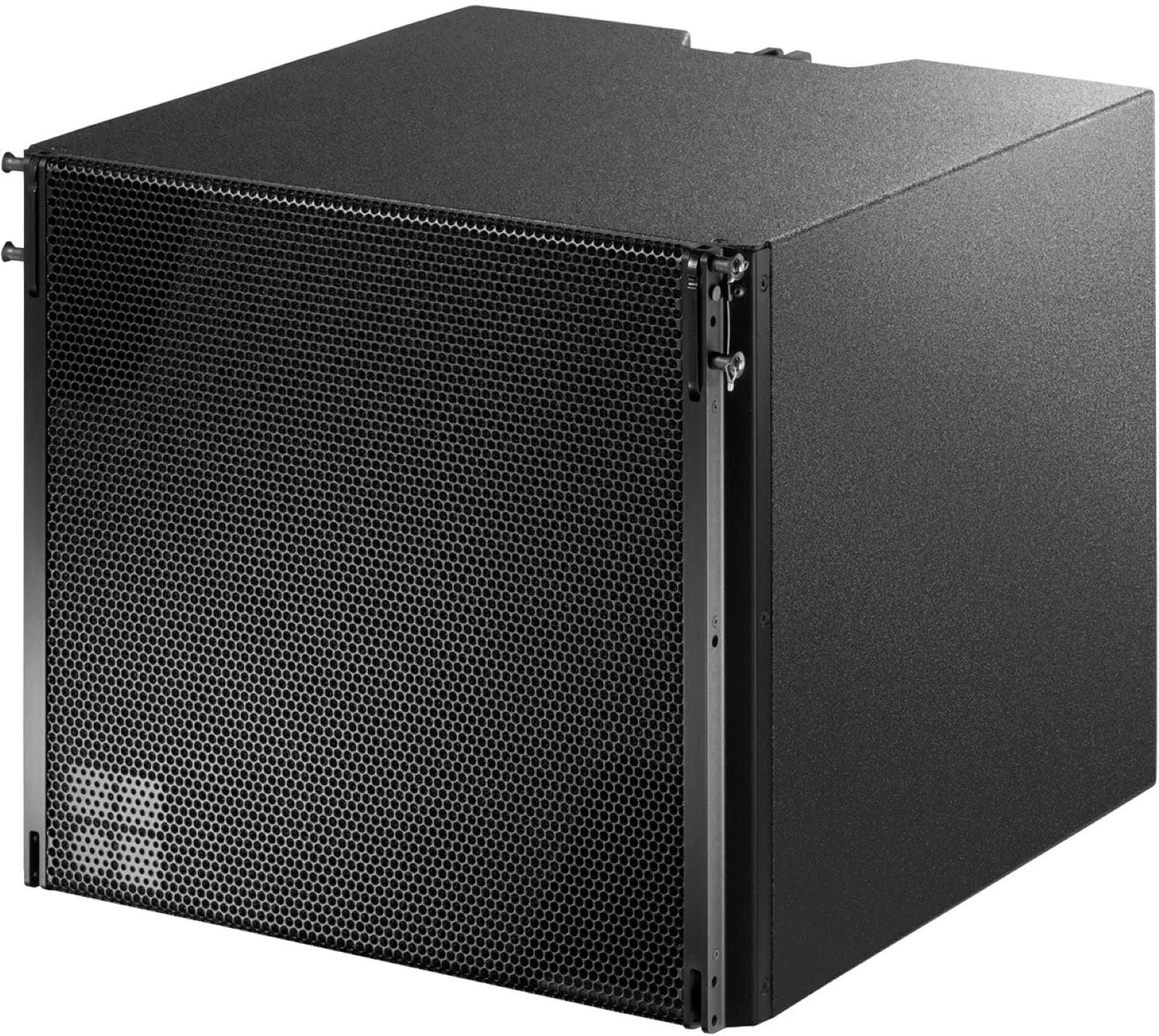

D&B Audiotechnik Z0538.100 Vi-SUB Weather-Resistant Subwoofer
• High-performance cardioid design for precise low-frequency reproduction
• Weather-resistant construction with IP55 rating for reliable use in various conditions
• Versatile installation options to enhance your audio setup
The Vi-SUB is an actively driven high-performance cardioid subwoofer. It features integrated rigging equipment and shares the same acoustical and visual design as the Vi-GSUB. It has two long excursion neodymium drivers - an 18' driver in a bass-reflex design facing forward and a 12” driver in a two-chamber bandpass design radiating to the rear. This creates a cardioid dispersion pattern that reduces unwanted energy and provides accurate low-frequency reproduction. You can use it to supplement Vi8 and Vi12 loudspeakers in multiple combinations. The cabinet is made of marine plywood with an impact-resistant paint finish. The front is protected by a rigid metal grill and an acoustically transparent foam. It's available in Special Color (SC) and Weather Resistant (WR) options. The Weather Resistant option has an IP55 rating for operation in changing ambient conditions.
Specifications:
- System data:
- Frequency response (-5 dB standard): 37 - 115 Hz
- Frequency response (-5 dB 100 Hz mode): 37 - 95 Hz
- Max. sound pressure:
- with D20/30D: 133 dB
- with D40/D80/40D2: 137 dB
- Cabinets per amplifier channel: 2
- Loudspeaker data:
- Configuration: Installation specific high performance flyable cardioid subwoofer
- Nominal impedance: 8 Ω
- Power handling capacity (RMS/peak 10 ms): 800/3200 W
- Splay angle settings: 0° and 2.5°
- Components:
- 1 x 18' driver
- 1 x 12' driver
- Connections: 2 x NL4 M
- Dimensions / weight:
- Dimensions (H x W x D):
- 606 x 700 x 728 mm
- 23.8 x 27.5 x 28.6'
- Weight:
The D&B Audiotechnik Z0538.100 Vi-SUB Weather-Resistant Subwoofer is perfect for enhancing audio setups in various scenarios. Whether you're setting up a live event, a permanent installation, or need to upgrade your existing audio system, this subwoofer is a great choice. Its high-performance cardioid design ensures precise low-frequency reproduction, making it ideal for music lovers, event organizers, and professionals who demand top-notch sound quality. The subwoofer is weather-resistant with an IP55 rating, allowing it to be used in changing ambient conditions. It has a cabinet made of marine plywood with an impact-resistant paint finish, and the front is protected by a rigid metal grill and an acoustically transparent foam. Dimensions are 606 x 700 x 728 mm (23.8 x 27.5 x 28.6') and it weighs 62 kg (137 lb). It's powered by a single amplifier channel and has integrated rigging equipment. It can be used to supplement Vi8 and Vi12 loudspeakers in various combinations, either ground stacked or flown, integrated on top of a Vi8 / Vi12 array or as a separate column. With its high power handling capacity and specific frequency response, it delivers great sound performance. Keywords like subwoofer, weather-resistant, high-performance are included for SEO optimization.
