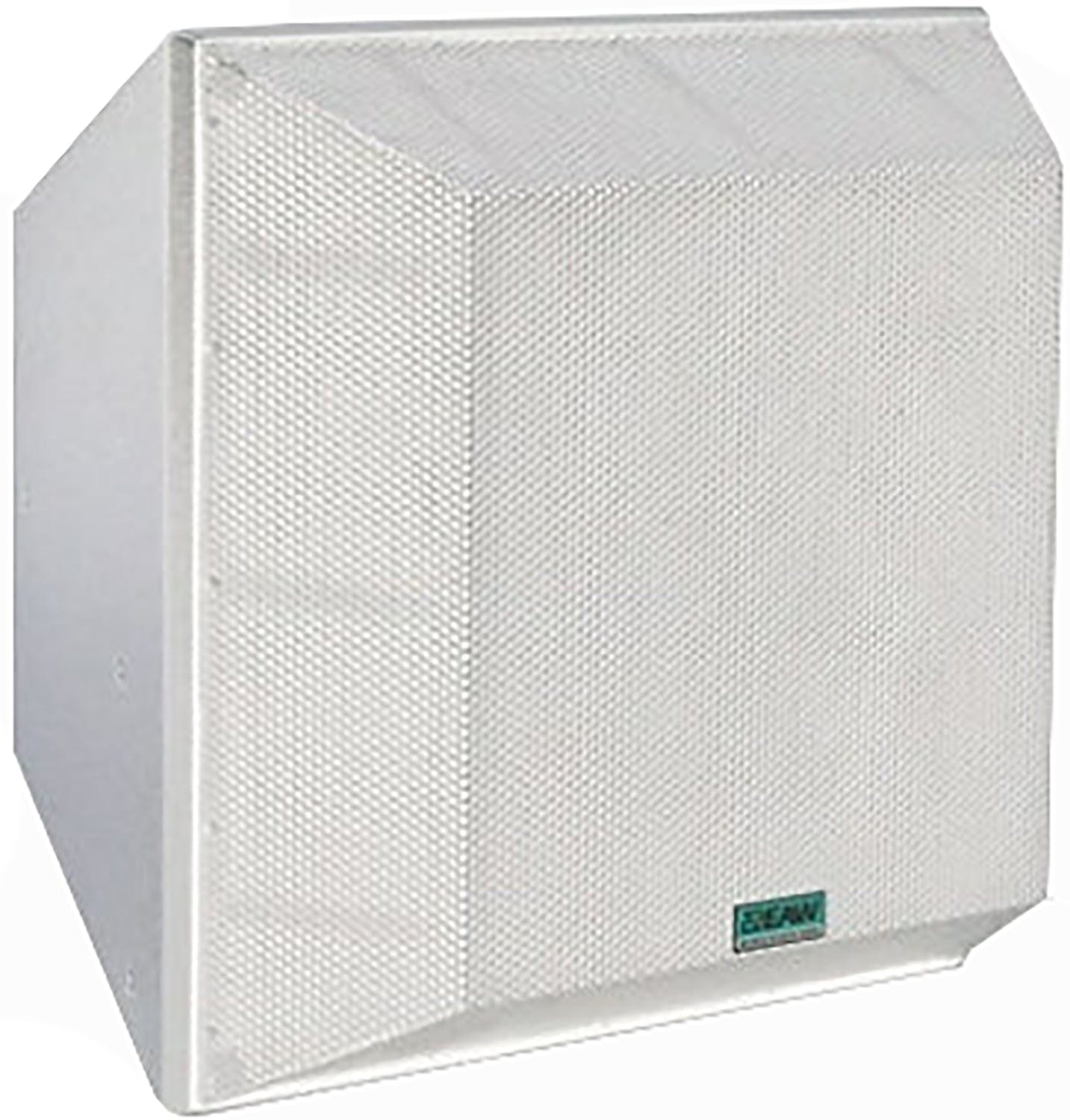

EAW QX564i 3-Way Trapezoidal Enclosure Speaker - High-Output, White
The new QX Series is a game-changer! It offers high output, broadband pattern control, and exceptional fidelity for various permanently installed applications. Whether it's long throws in arenas and stadiums, high-energy live music venues or dance clubs, or taming challenging acoustical environments like cathedrals, this speaker delivers.
• High Output: Ideal for long throws in arenas and stadiums or high-energy applications. • Broadband Pattern Control: Tames hostile acoustical environments. • Exceptional Fidelity: Pleases even the most critical listeners in concert halls and performing arts centers.
The QX564i in white features an ultra-efficient mid/high compression driver with a 60° (h) x 45° (v) constant directivity horn. Four Phase Aligned 12-in low frequency transducers, arranged as vertical and horizontal pairs, extend pattern control into the low frequency range. The symmetrical arrangement of the four low frequency transducers around the coaxial mid/high compression driver in both planes ensures a single-point sound source across the full frequency spectrum, eliminating anomalies.
Features:
- High output, bi-amplified, three-way performance
- Broadband pattern control
- Ultra-efficient, coaxial MF/HF compression driver
- Four Phase Aligned 12-in cone transducers (vertical and horizontal pairs)
- Installation flexibility
Specifications:
- Frequency Response: 55hz – 20khz
- Max SPL: 147 dB
- Operating Mode: Bi-amp (Passive MF/HF) LF, MF/HF
- External Signal Processing: DSP w/EAW Focusing
- Subsystem:
- LF: 4x 12 in. cone
- MF: 1x 2 in. exit 3.5 in. compression
- HF: 1x 2 in. exit, 1.75 in compression driver
- Nominal Beamwidth:
- Horizontal: 60
- Vertical: 45
- Power Handling:
- LF: 2000W @ 2ohms (single amp), 1000W @ 4ohms (2x pairs)
- Passive MF/HF: 175W @ 8ohms
- Connections: Barrier Strip
- Color: White
- Dimensions:
- Height: 28 in (710 mm)
- Width: 28 in (710 mm)
- Depth: 23.8 in (605 mm)
- Weight: 149 lbs (68 kg)
The EAW QX564i 3-Way Trapezoidal Enclosure Speaker is perfect for a variety of venues. In arenas and stadiums, it's great for long throws. For live music venues and dance clubs, its high output is ideal. In cathedrals or other reverberant public spaces, it tames the acoustics. It's also great for concert halls and performing arts centers, pleasing the most critical listeners. This white speaker has a height of 28 in (710 mm), width of 28 in (710 mm), depth of 23.8 in (605 mm), and weighs 149 lbs (68 kg).
