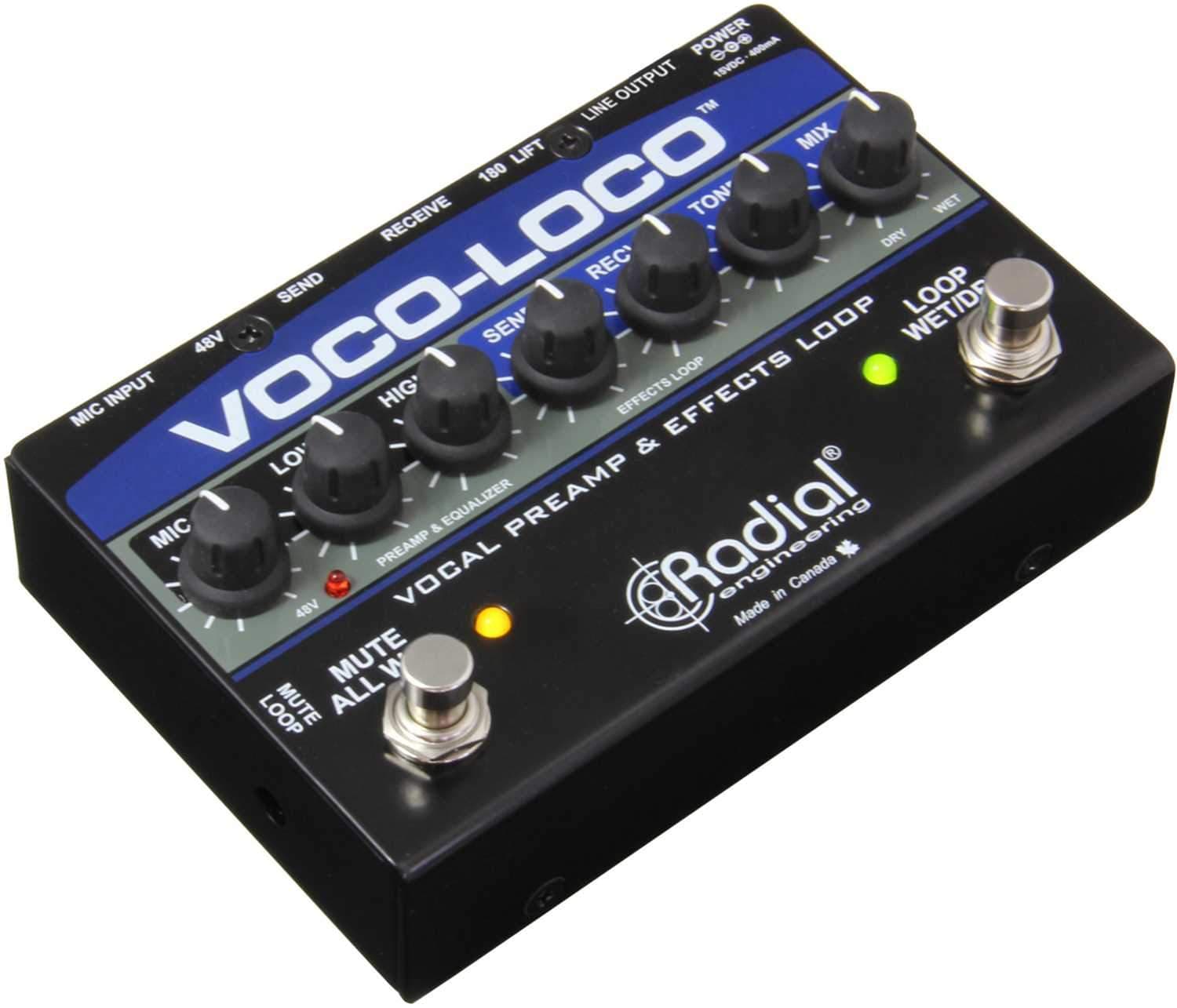

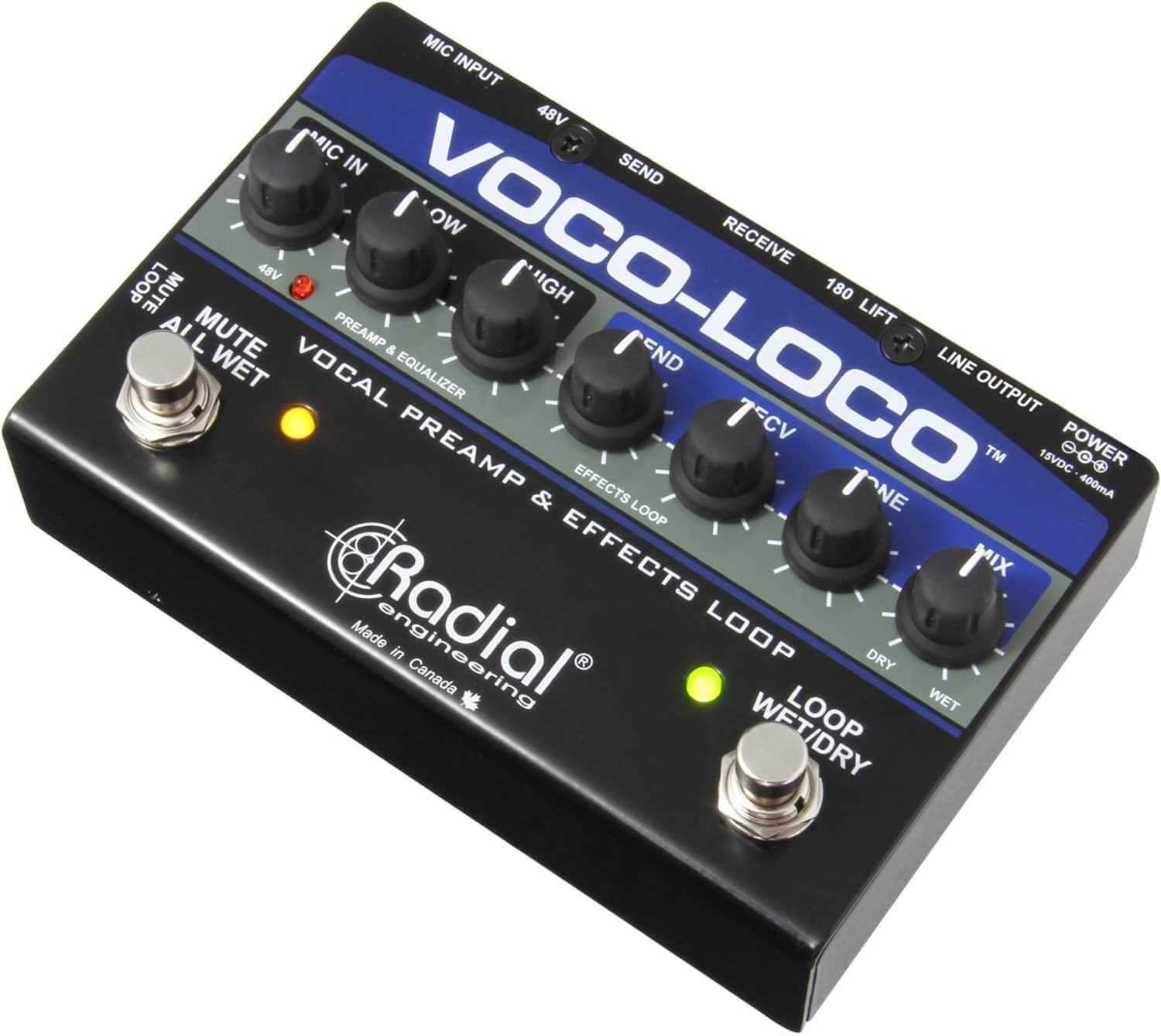

Radial Voco-Loco: Unleash Your Mic's Potential with Guitar Effects
Revolutionize your sound with the Voco-Loco!
• Connect Any Mic to Guitar Pedals: Combine a microphone preamp with a guitar pedal effects loop. Plug your mic in via XLR, connect pedals with guitar cables, and send the output to your mixer. Add delay, reverb, distortion, or wah-wah with a footswitch.
• Multiple Applications: Works great for vocals, brass instruments like sax and trumpet, and even harmonica. Create unique and exciting effects for every performance.
• User-Friendly Controls: Features like Mute Loop, Mic In, and various footswitch functions give you full control over your sound. Adjust EQ, signal levels, and more.
The Voco-Loco is a must-have for musicians looking to add a new dimension to their sound. Whether you're on stage or in the studio, it's time to take your mic effects to the next level!
Features:
- Add guitar effects pedals to vocal or instrument mics
- Create exciting and unique effects as you perform
- Turn on multiple effects with one footswitch
- Works with dynamic and condenser microphones

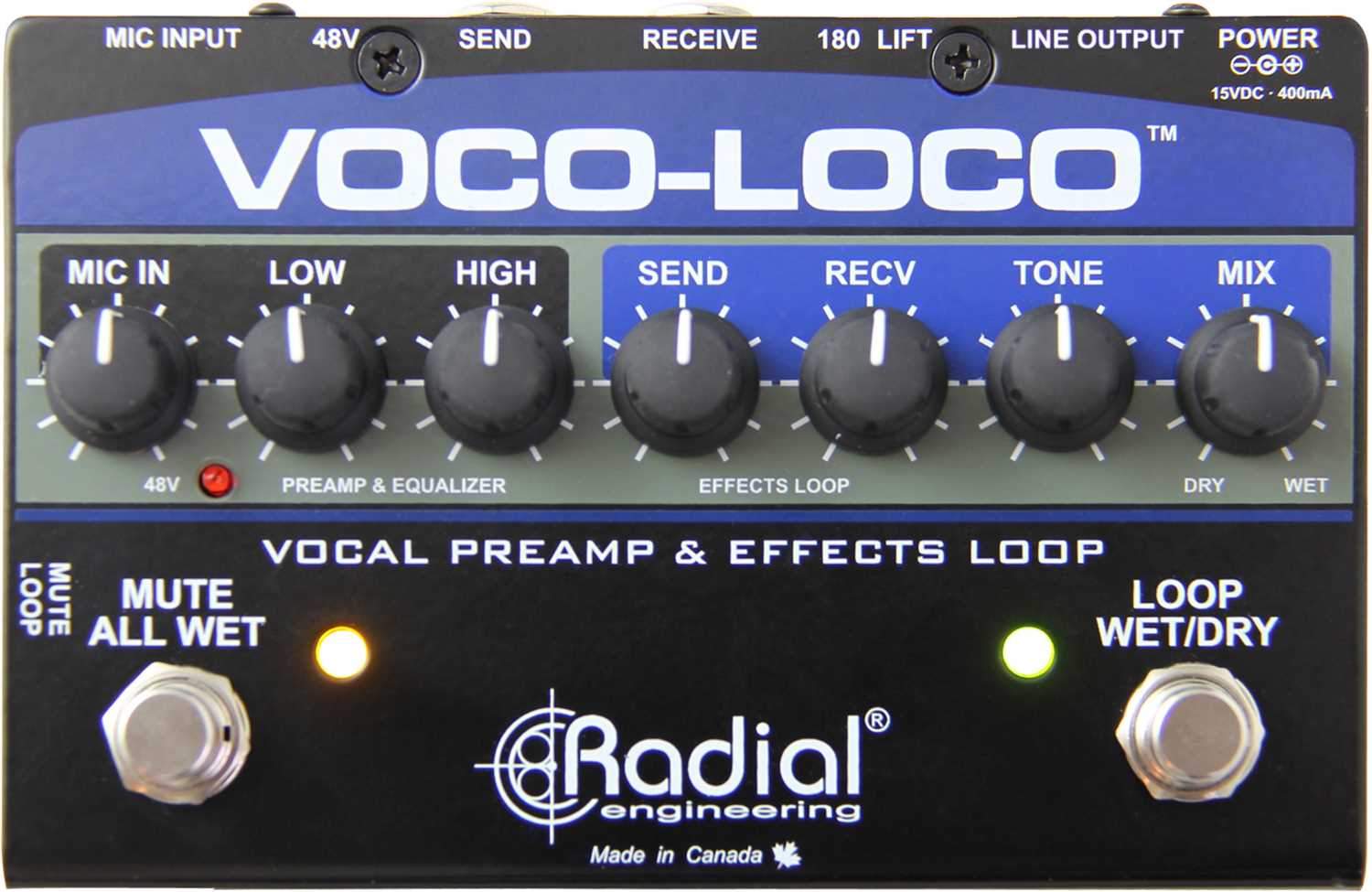

- Mute Loop
Used to set the function of the left footswitch to either Mute or All Wet. - Mic In
Sets the input level of the Voco-Loco's mic preamp. - Mute / All Wet
Footswitch activates the MUTE or ALL WET function. - Low / High
Dual band shelving EQ is used to add bass to warm up the voice or add sparkle for extra cut. - Send / Receive
Innavidual send and receive controls let you adjust the level going to the pedals to optimize signal-to-noise and reduce distortion. - Tone
Lets you tame the sound of the effects return path to soften the harsh tone certain pedals produce. - Loop Web / Dry
Primary footswitch turns on or off the effects loop with wet/dry mix engaged. - Mix
Sets the wet/dry mix between the original unprocessed vocal sound and the effects loop. - Power
Voco-Loco comes with an external 400mA 15VDC supply for powering. - Line Output

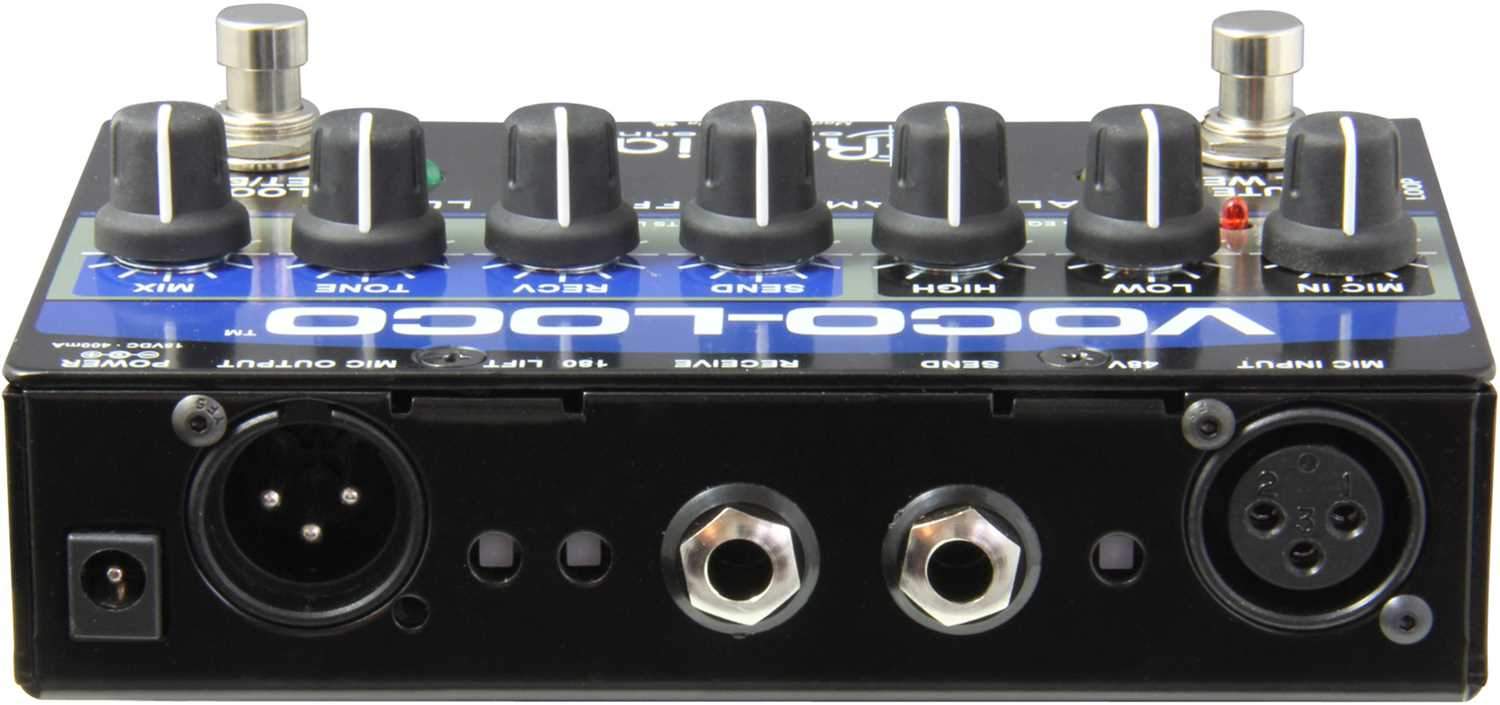

Standard XLR male output, used to connect the Voco-Loco to the line input of a mixing console. - Lift
Used to help eliminate ground loops by lifting pin-1 on the XLR. - 180°
Used to reverse the polarity of the effects loop to ensure guitar pedals are in phase with the vocal mic. - Send / Receive
Unbalanced 'jacks used to send the mic signal to the guitar pedals and back into the Voco-Loco. - 48V
Recessed switch turns on the phantom power when using the Voco-Loco with a condenser microphone. - Mic Input
Standard XLR female input, used to connect your microphone to the Voco-Loco. - 14-Gauge Steel
Heavy duty construction eliminates stress on the PCB and provides excellent shielding against magnetic fields and RFwhich otherwise could introduce noise. - Warranty: Radial 3-year, transferable
Specifications:
- Audio circuit type: Integrated Op-Amp with Class A FET input circuit
- Frequency response: 20Hz ~ 20kHz
- Dynamic range:100dB
- Gain:52dB
- Clip Level: +15dBu
- Total harmonic distortion:<0.005%
- Intermodulation Distortion: <0.005%
- Phase Deviation: 8° @50Hz
- Input Impedance: 10K-Ohms, 100K (FX Loop)
- Output Impedance: 300 Ohms, 3000 Ohms (FX Loop)
- Common Mode Rejection Ratio: -73dB @55Hz
- Equivalent Input Noise: -120dBu
- Noise: -85dBu
- Maximum Input:+10dB
- Features
- Input pad, 180° polarity reverse, Ground lift, Effects Loop
- Input Connectors: XLR-F
- Output Connectors: XLR-M
- General
- Construction: 14 gauge steel chassis and outer shell
- Power:100mA, center positive
- Conditions: For use in dry locations only between 5°C and 40°C
The Radial Voco-Loco is a foot-controlled device designed for vocalists, acoustic instrumentalists, and musicians using brass instruments like sax and trumpet. It allows you to connect any microphone to guitar pedals, adding a new dimension to your sound. Here's how it works: 1. Connect your microphone to the Voco-Loco via the XLR input. 2. Use standard guitar cables to connect your effects pedals. 3. Send the output from the Voco-Loco to the input on your mixer. With the touch of a footswitch, you can add effects like delay, reverb, distortion, or wah-wah to any mic'd up instrument or vocal. The options are endless! The Voco-Loco features user-friendly controls, including Mute Loop, Mic In, and various footswitch functions. You can adjust EQ, signal levels, and more to optimize your sound. Technical Specifications: - Audio circuit type: Integrated Op-Amp with Class A FET input circuit - Frequency response: 20Hz ~ 20kHz - Dynamic range: 100dB - Gain: 52dB - Clip Level: +15dBu - Total harmonic distortion: <0.005% - Intermodulation Distortion: <0.005% - Phase Deviation: 8° @50Hz - Input Impedance: 10K-Ohms, 100K (FX Loop) - Output Impedance: 300 Ohms, 3000 Ohms (FX Loop) - Common Mode Rejection Ratio: -73dB @55Hz - Equivalent Input Noise: -120dBu - Noise: -85dBu - Maximum Input: +10dB The Voco-Loco is housed in a 14 gauge steel chassis and outer shell, providing durability and excellent shielding against magnetic fields and RF interference. It comes with an external 400mA 15VDC supply for powering and is designed for use in dry locations only, between 5°C and 40°C. Get ready to take your sound to the next level with the Radial Voco-Loco!
