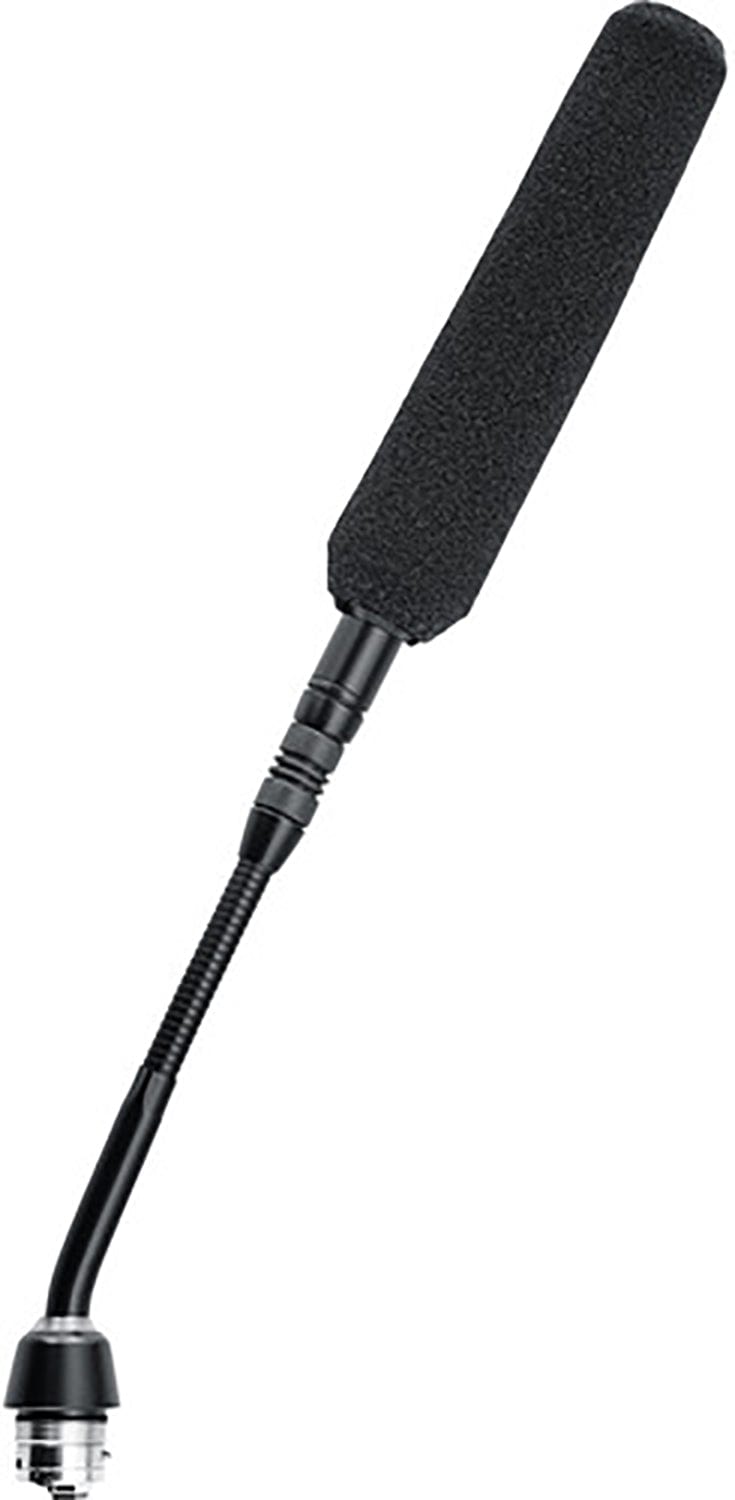

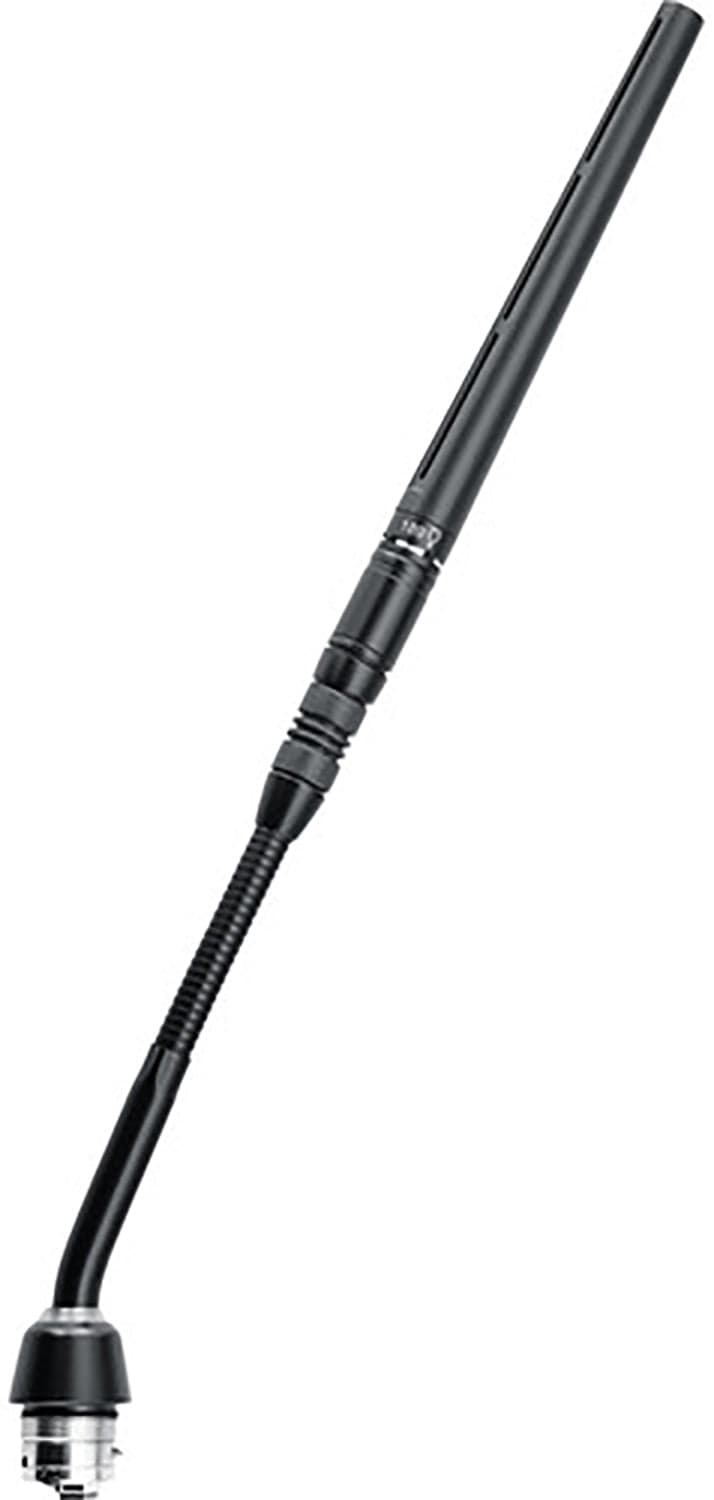

Shure MX405R/MS 5 Inch Shock-Mount Gooseneck Mini Shotgun Microphone with LED Ring/Preamplifier

Shure MX405R/MS 5，LED/

The MX405 is a gooseneck microphone with a Bi-Color LED or red light ring status display. It has a 12.7 cm / 5 inch gooseneck and is suitable for boardrooms and other sites where aesthetics are important.

Features:

• Gooseneck length: 5 inch / 12.7 cm
• Low profile, aesthetic design
• Wide dynamic range and smooth frequency response
• RF filtering with CommShield technology
• Status indicator: Bi-Color LED at gooseneck bottom or red light ring on gooseneck top

Specifications:

• Type: Condenser (electret bias)
• Frequency Response: 50-17000 Hz
• Polar Pattern (at 1 kHz): Supercardioid
• Output Impedance: EIA Rated at 150 Ω (170 Ω actual)
• Output Configuration: Active Balanced
• Sensitivity (at 1 kHz , open circuit voltage): -34 dBV/Pa (21 mV), 1 Pascal=94 dB SPL
• Maximum SPL (1 kHz at 1% THD, 1 kW load): 120 dB
• Equivalent Output Noise (A-weighted): 27 dB SPL
• Signal-to-Noise Ratio (referenced at 94 dB SPL at 1 kHz): 68 dB
• Dynamic Range (1 kΩ load at 1 kHz): 93 dB
• Common Mode Rejection (10 Hz to 100 kHz): 45 dB minimum
• Preamplifier Output Clipping Level (1% THD): -8 dBV (0.4 V)
• Polarity: 5-Pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 4 relative to pin 2 of output XLR connector.
• Weight: MX405: 0.054 kg (0.119 lbs)
• Logic Connections: LED IN: Active low (=1.0V), TTL compatible. Absolute maximum voltage: -0.7V to 50V.
• LOGIC OUT: Active low (=1.0V), sinks up to 20mA, TTL compatible. Absolute maximum voltage: -0.7V to 50V (up to 50V through 3kΩ).
• Mute Switch Attenuation: -50 dB minimum
• Cable: MX400DP: 6.1 m (20 ft) attached cable with shielded audio pair terminated at a 3-pin male XLR and three unterminated conductors for logic control.
• Operating Temperature: -18-57 °C (0-135 °F)
• Storage Temperature: -29-74 °C (-20-165 °F)
• Relative Humidity: 0-95%
• Power Requirements: 48-52 VDC phantom, 8.0 mA
