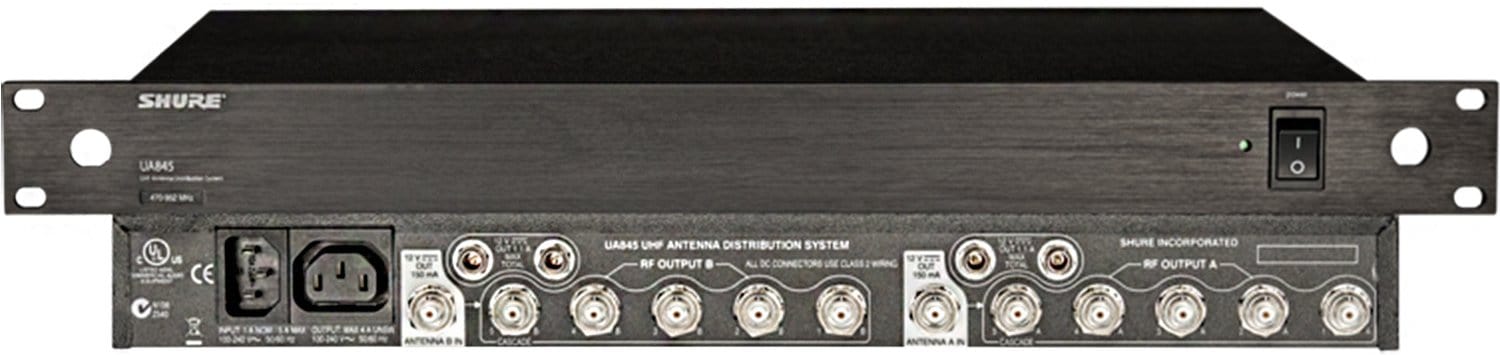

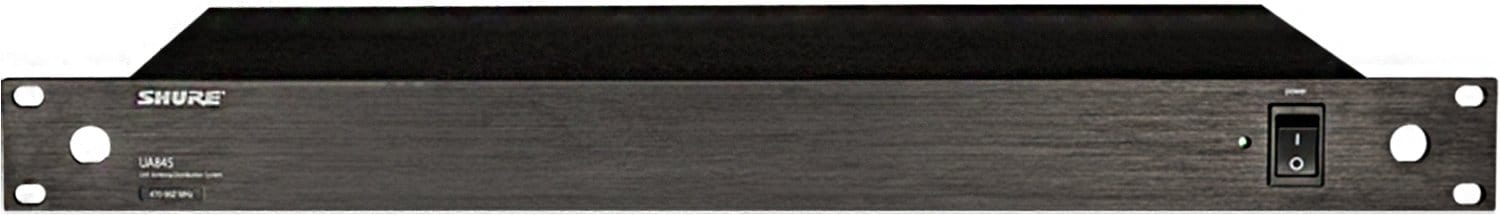

Shure UA845: The Ultimate Wideband UHF 5-Way Antenna and Power Distribution System
Upgrade your wireless microphone setup with the Shure UA845! This amazing system integrates seamlessly with Shure U4S, U4D, or UC4 wireless microphone receivers. Here's why you need it:
- • Dual Antennas for Stronger Signal: The UA845 uses dual antennas to receive incoming RF signal, ensuring a stronger and more reliable connection.

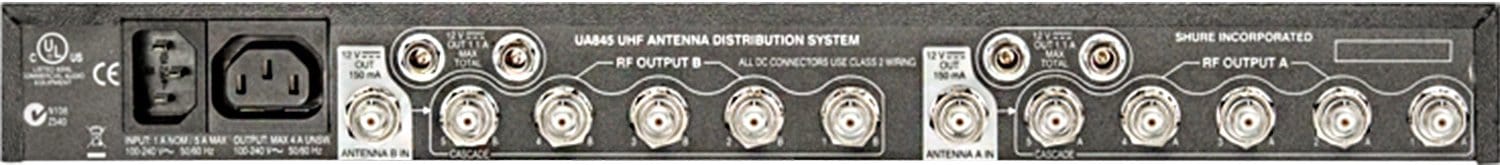

- • 4 BNC Connections for Easy Distribution: Distribute the signal via 4 BNC type connections, making it easy to connect multiple receivers.
- • Signal Amplification for Clear Sound: Amplify the signal on output to compensate for insertion loss, delivering crystal-clear sound.
Each UA845 allows up to four receivers to use the same antennas. CASCADE connectors let you connect to a fifth receiver or a second UA845. And there are power connectors for powering Shure UHF and UC Wireless systems directly from the UA845.
Specifications:
- Carrier Frequency Range: US: 500 - 900 MHz
- Connector Type: BNC-type x4
- Gain Control:
- 3dB typical, 0dB to 3.5dB from antenna input (Output ports 1-4)
- 1dB typical, -1.6dB to +1.8dB from antenna input (Cascade port)
- Impedance: 50 ohms
- Operating Voltage:
- AC Power Consumption
- 15W per unit typical (when used with 4UC4's, 55W max.)
- Weight: 7 lbs, 5 oz. (3.32 Kg)
- Dimensions: 1.75 x 19 x 11.63' (44.5 x 482.6 x 295.3) (HxWxD)
- Package Weight: 12.1 lbs.
- Box Dimensions (LxWxH): 23.3 x 17.8 x 3'
The Shure UA845 is perfect for anyone looking to enhance their wireless microphone setup. Whether you're a professional musician, a live event organizer, or a content creator, this system will meet your needs. Here's what you can expect:
- • Easy Integration: Seamlessly integrates with Shure U4S, U4D, or UC4 wireless microphone receivers.
- • Strong Signal: Dual antennas ensure a reliable RF signal for clear sound.
- • Convenient Power: Power connectors allow you to directly power Shure UHF and UC Wireless systems.
- • Compact Design: Weighs 7 lbs, 5 oz. (3.32 Kg) and has dimensions of 1.75 x 19 x 11.63' (44.5 x 482.6 x 295.3) (HxWxD), making it easy to transport and set up.
