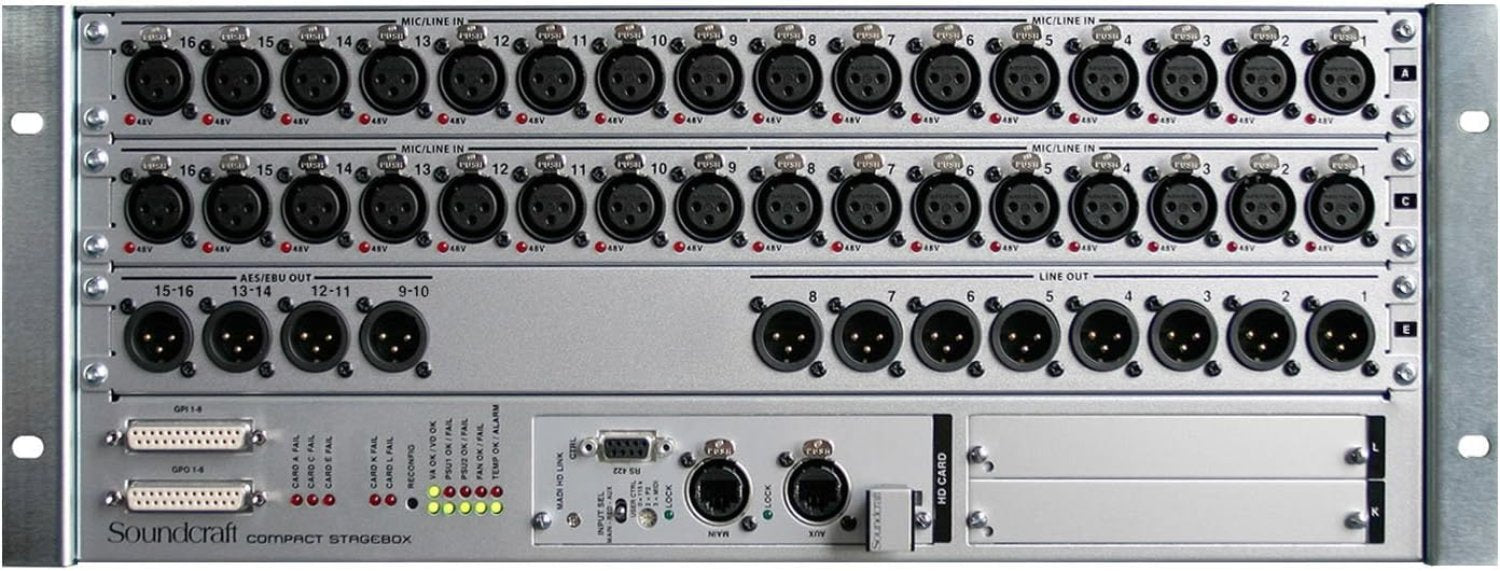

Soundcraft E947.351000 Compact Stage Box: Expand Your Sound Setup with Ease
The Compact Stagebox is a must-have for Soundcraft digital live sound console owners! It offers a cost-effective way to expand your input capability. Whether you're in a live sound gig, studio session, or need remote stage I/O expansion, this box has you covered.
• High Density of I/O: Packed with 32 mic/line inputs, 8 line outputs, and 8 AES/EBU digital outputs in just 4U of rack space. Expandable to 48 mic/line inputs too!
• Modular Flexibility: With 2 Studer D21m expansion slots, you can configure it as you like. Supports popular digital formats like CobraNet, AVIOM A-Net16, and more.
• Easy Connectivity: Connects via optical-fiber or Cat5 MADI with redundant MADI cable capability. Shares I/O modules with Soundcraft Vi1 consoles for extra flexibility.
The unit comes with twin redundant power supplies, thermostatically-controlled fan cooling, and full LED status monitoring. There's also an 8ch GPIO interface. Ideal for Vi Series, Si Series, Vi1, and Si Compact console owners.
Features:
- 32 mic/line inputs, 8 line outputs, and 8 AES/EBU digital outputs
- Modular design with 2 Studer D21m expansion slots for flexible I/O configurations
- Supports popular digital formats such as CobraNet, AVIOM A-Net16, Ethersound, ADAT, and RockNet
- Expandable to 48 mic/line inputs by replacing the output module with an additional input module
- Compatible with Soundcraft Vi Series, Si Series, Vi1, and Si Compact consoles
- Connects via optical-fiber or Cat5 MADI with redundant MADI cable capability
- Shares I/O modules with Soundcraft Vi1 consoles for greater flexibility
- Dual redundant power supplies and thermostatically-controlled fan for reliable operation
- Full LED status monitoring and 8-channel GPIO interface for additional control
- Maximum I/O capacity of 64 inputs and 64 outputs via MADI link
- Compact 4U rackmount design for efficient transport and installation
- Ideal for live sound, studio applications, and remote stage I/O expansion
Specifications:
- Width: 19”/483mm
- Height: 4U/7”/178mm
- Depth (chassis only): 14.76”/375mm
- Compatibility:
- Vi1
- Vi2
- Vi4
- Vi6
- Vi2-4-600
- Vi1000
- Vi2000
- Vi3000
- Vi5000
- Vi7000
- Si Compact
- Si Expressio
- Si Impact
- Si Performer
This Soundcraft Compact Stage Box is perfect for live sound gigs, studio sessions, and anyone needing remote stage I/O expansion. It's great for owners of Vi Series, Si Series, Vi1, and Si Compact consoles. It has a width of 19”/483mm, height of 4U/7”/178mm, and depth (chassis only) of 14.76”/375mm. Compatible with multiple console models like Vi1, Vi2, etc.
