Sennheiser ew 500 FILM G4 Portable Combo Set AW+
Unleash professional film sound with this highly versatile solution! A rugged all-in-one wireless system perfect for professional interviews and recording.
The go-to choice for broadcast-quality sound. Offers supreme flexibility for video sound and field recording. A robust wireless microphone system delivering top-notch sound quality, easy mounting, and effortless use.
What's in the box:- EK 500 G4 camera receiver
- SK 500 G4 bodypack transmitter
- SKP 500 G4 pro plug-on transmitter
- MKE 2 clip-on microphone
- 4 AA batteries
- CL 1 3.5 mm jack cable
- CL 500 XLR to 3.5 mm jack adapter cable
- CA 2 camera adapter
- fur windscreen for MKE 2
- quick guide
- safety guide
- manufacturer declaration sheet
Features:
- • Versatile professional film sound solution
- • Professional sound & excellent build quality
- • Easy setup & fast operation
- • Effortless wireless sync via infrared
- • Up to 88 MHz bandwidth, 32 channels
- • Range up to 100 meters / 330 feet
- • Adjustable RF output power (10/30/50 mW)
- • Up to 8 hours of operation
- • 48 V phantom power available
Specifications:
- Frequency range: 470 - 558 MHz
- Dimensions: Approx. 82 x 64 x 24 mm
- Compander: Sennheiser HDX
- THD, total harmonic distortion: 0.9 %
- Weight: (incl. batteries) approx. 130 g
- Audio output: 3.5 mm jack socket: +17 dBu (mono, balanced)
- Signal-to-noise ratio: Line: 110 dBA, Phones: approx. 90 dBA
- Switching bandwidth: up to 88 MHz
- Peak deviation: ±48 kHz
- Nominal deviation: ±24 kHz
- Operating time: Typically 8 h
- Modulation: Wideband FM
- Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
- Current consumption: at nominal voltage: typ. 140 mA with receiver switched off: 25 μA
- Adjacent channel rejection: Typically 65 dB
- Intermodulation attenuation: Typically 65 dB
- Powering: 3 V battery / 2.4 V rechargeable battery
- Receiving frequency: Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
- RF sensitivity: < 1.6 μV for 52 dBA eff S/N
- Squelch: low: 5 dBμV, middle: 15 dBμV, high: 25 dB μV
- Temperature Range: -10 °C to +55 °C
- Receiver Principle: Adaptive naversity
- Blocking: 70 dB

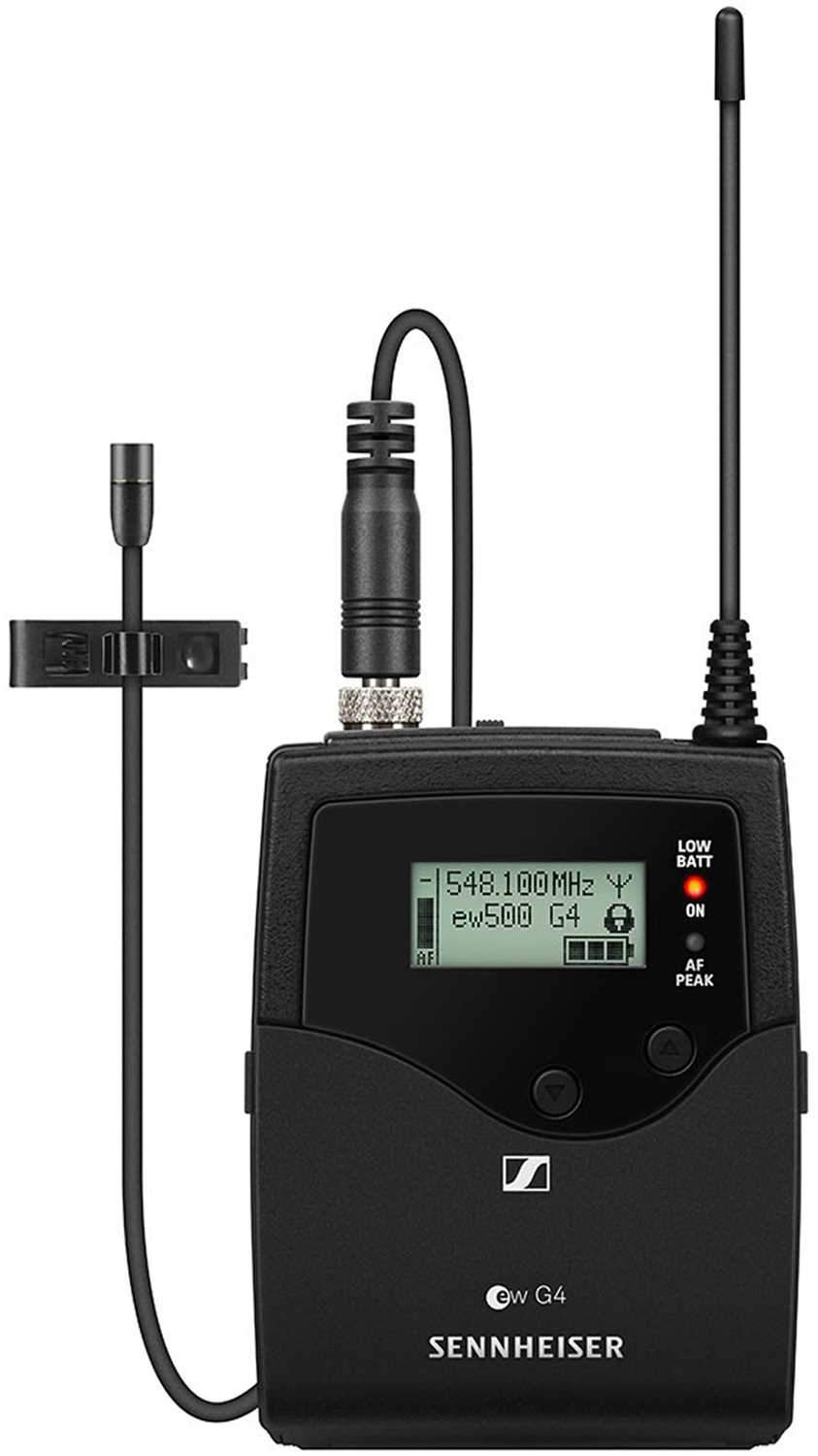

SK 500 G4
- Dimensions: Approx. 82 x 64 x 24 mm
- Compander: Sennheiser HDX
- THD, total harmonic distortion: 0.9 %
- Weight: (incl. batteries) approx. 160 g
- Signal-to-noise ratio: 115 dBA
- RF output power: switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
- Switching bandwidth: up to 88 MHz
- Peak deviation: ±48 kHz
- Nominal deviation: ±24 kHz
- Operating time: Typically 8 h
- Modulation: Wideband FM
- Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
- Current consumption: at nominal voltage: typ. 180 mA with transmitter switched off: 25 μA
- Input impedance: 40 kΩ, unbalanced / 1 MΩ
- Max. Input voltage: 3 Veff
- Powering: 3 V battery / 2.4 V rechargeable battery
- Transmission frequency: Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
- AF frequency response: Mic: 80 – 18,000 Hz, Line: 25 – 18,000 Hz
- Temperature Range: -10 °C to +55 °C
- Frequency stability: ±15 ppm

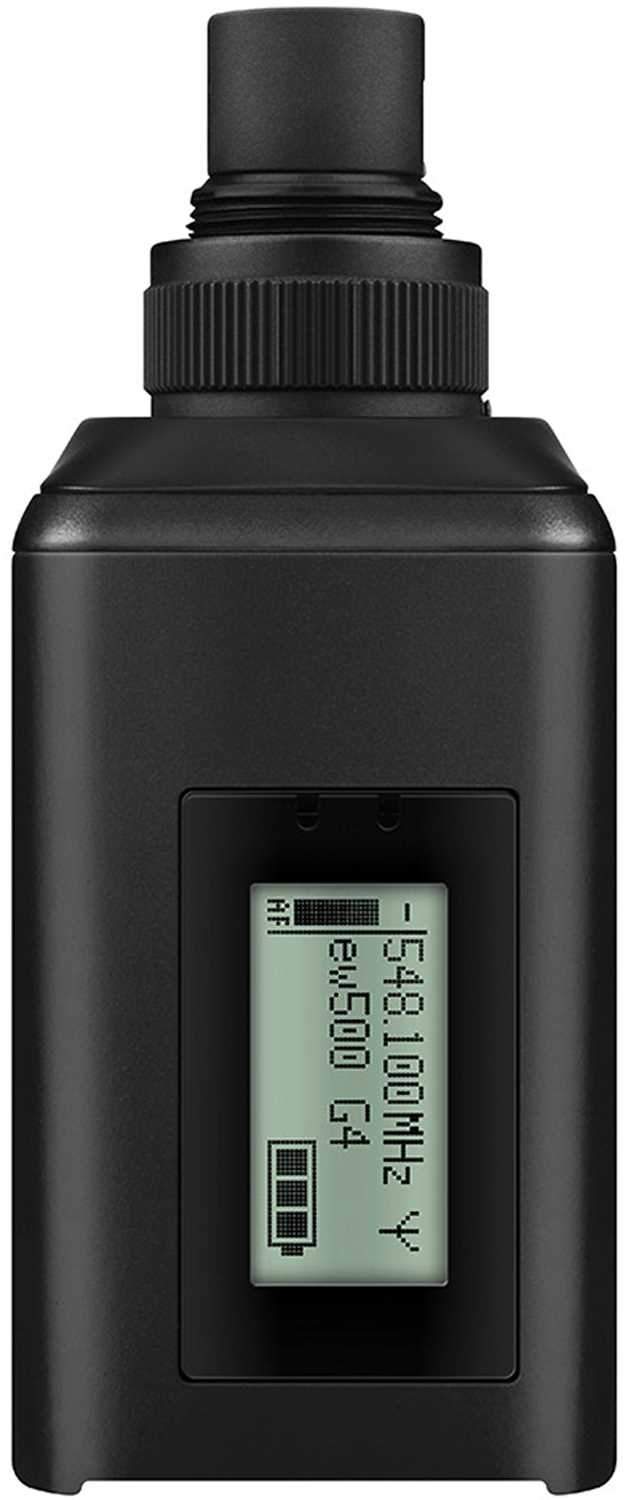

SKP 500 G4
- Dimensions: Approx. 105 x 43 x 43 mm
- Compander: Sennheiser HDX
- THD, total harmonic distortion: 0.9 %
- Weight: (incl. batteries) approx. 195 g
- Signal-to-noise ratio: 120 dBA
- RF output power: switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
- Switching bandwidth: up to 88 MHz
- Peak deviation: ±48 kHz
- Nominal deviation: ±24 kHz
- Operating time: Typically 8 h
- Modulation: Wideband FM
- Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
- Current consumption: at nominal voltage: typ. 210 mA with transmitter switched off: 25 μA
- Input impedance: 68 kΩ, unbalanced
- Max. Input voltage: 6 Veff
- Powering: 3 V battery / 2.4 V rechargeable battery
- Transmission frequency: Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
- AF frequency response: 80 – 18,000 Hz
- Temperature Range: -10 °C to +55 °C
- Frequency stability: ±15 ppm
MKE 2
- Connector: 3.5 mm jack
- Frequency response: 20 to 20.000 Hz ± 3 dB
- Max. sound pressure level: 142 dB
- Cable length: approx. 1.60 m
- Transducer principle: pre-polarized condensor microphone
- Pick-up pattern: omni-directional
- Sensitivity in free field, no load (1kHz): 5 mV/Pa, ± 3 dB
- Equivalent noise level: 26 dB
- Equivalent noise level weighted as per CCIR 468-3: 39 dB
This Sennheiser ew 500 FILM G4 Evolution Wireless All-in-One Microphone Set is designed for professionals in the film and audio industries. It's perfect for capturing high-quality sound during interviews and recording sessions. With a rugged build and easy setup, you can quickly get started. The set includes an EK 500 G4 camera receiver, SK 500 G4 bodypack transmitter, SKP 500 G4 pro plug-on transmitter, MKE 2 clip-on microphone, and more. It offers features like up to 88 MHz bandwidth, 32 channels, a range of up to 100 meters, adjustable RF output power, and up to 8 hours of operation. The dimensions of the receivers and transmitters are approximately 82 x 64 x 24 mm (EK 500 G4 and SK 500 G4) and 105 x 43 x 43 mm (SKP 500 G4), with weights (including batteries) of around 130 g (EK 500 G4), 160 g (SK 500 G4), and 195 g (SKP 500 G4). The MKE 2 clip-on microphone has a 3.5 mm jack connector, a cable length of about 1.60 m, and various other specifications.
