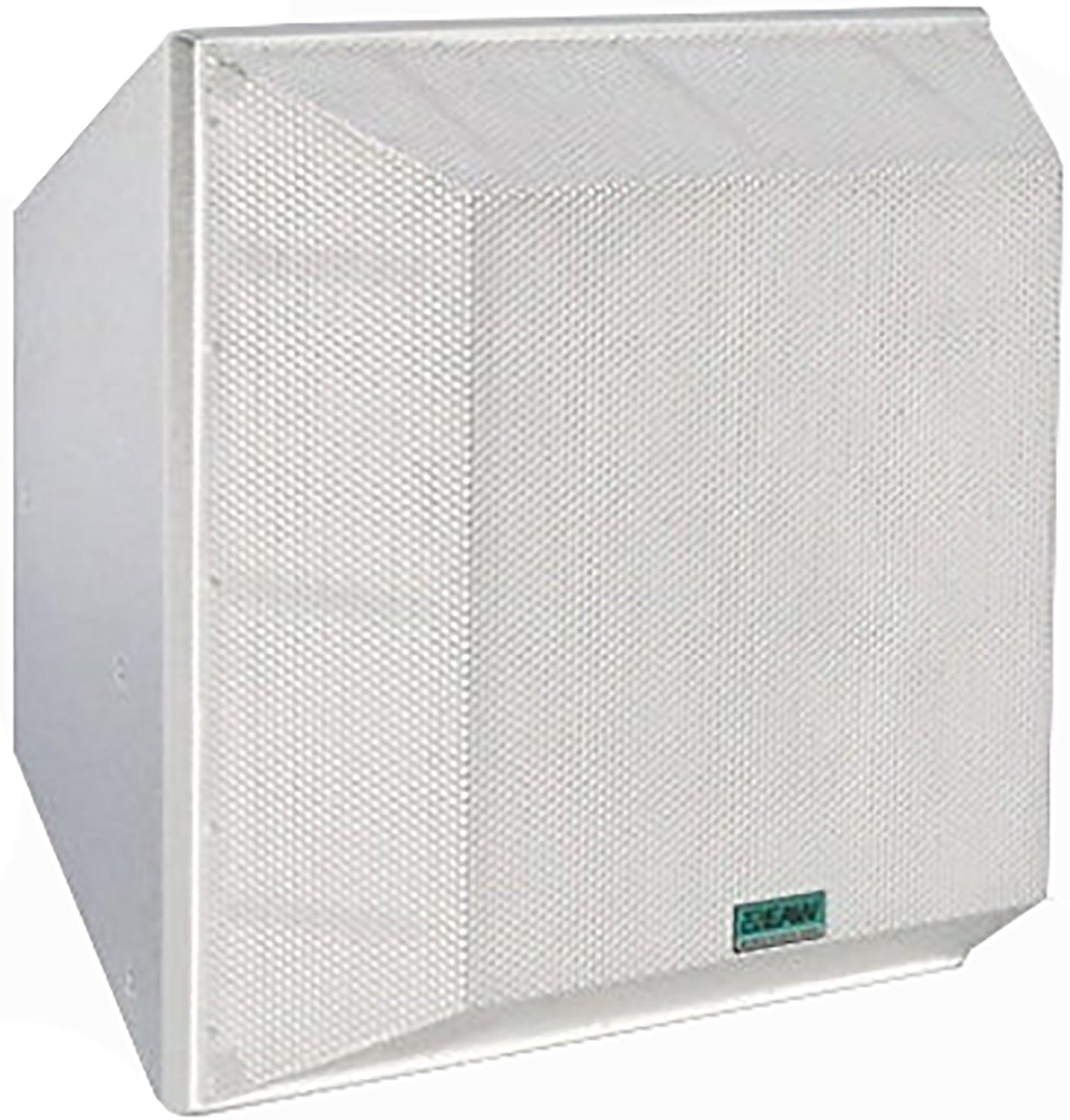

EAW QX566i 3-Way Trapezoidal Enclosure Speaker - White - High-Output, Clear Sound, Flexible Installation
The new QX Series speakers are a game-changer! They offer high output, ensuring your sound fills the space. With broadband pattern control, they handle any acoustical environment. And their exceptional fidelity will delight even the most picky listeners.
• High Output: Perfect for arenas, stadiums, live music venues, and dance clubs.
• Broadband Pattern Control: Tames challenging spaces like cathedrals.
• Exceptional Fidelity: Pleases audiences in concert halls and performing arts centers.
The QX566i in white features an ultra-efficient mid/high compression driver with a 60° (h) x 60° (v) constant directivity horn. Four Phase Aligned 12-in low frequency transducers, arranged in vertical and horizontal pairs, extend pattern control into the low frequencies.
Since the four low frequency transducers surround the coaxial mid/high compression driver symmetrically, the sound appears to come from a single point. This design ensures ideal frequency summation and eliminates anomalies.
Features:
- High output, bi-amplified, three-way performance
- Broadband pattern control
- Ultra-efficient, coaxial MF/HF compression driver
- Four Phase Aligned 12-in cone transducers (vertical and horizontal pairs)
- Installation flexibility
Specifications:
- Frequency Response: 55hz – 20khz
- Max SPL: 146 dB
- Operating Mode: Bi-amp (Passive MF/HF) LF, MF/HF
- External Signal Processing: DSP w/EAW Focusing
- Subsystem:
- LF: 4x 12 in. cone
- MF: 1x 2 in. exit 3.5 in. compression
- HF: 1x 2 in. exit, 1.75 in compression driver
- Nominal Beamwidth:
- Horizontal: 60
- Vertical: 60
- Power Handling:
- LF: 2000W @ 2ohms (single amp), 1000W @ 4ohms (2x pairs)
- Passive MF/HF: 175W @ 8ohms
- Connections: Barrier Strip
- Color: White
- Dimensions:
- Height: 28 in (710 mm)
- Width: 28 in (710 mm)
- Depth: 23.8 in (605 mm)
- Weight: 149 lbs (68 kg)
This EAW QX566i speaker is perfect for various venues. In arenas, stadiums, live music gigs, and dance clubs, it provides high output for a great sound experience. For more refined settings like concert halls and performing arts centers, its exceptional fidelity shines. Even in challenging acoustical spaces such as cathedrals, its broadband pattern control keeps the sound in check. Measuring 28 in (710 mm) in height and width, and 23.8 in (605 mm) in depth, it weighs 149 lbs (68 kg). It has a frequency response of 55hz – 20khz, a max SPL of 146 dB, and comes in white color with barrier strip connections.
