JBL AM5215/26 High-Performance 15-Inch Rotatable Loudspeaker
2-Way Loudspeaker System with 1 x 15' LF

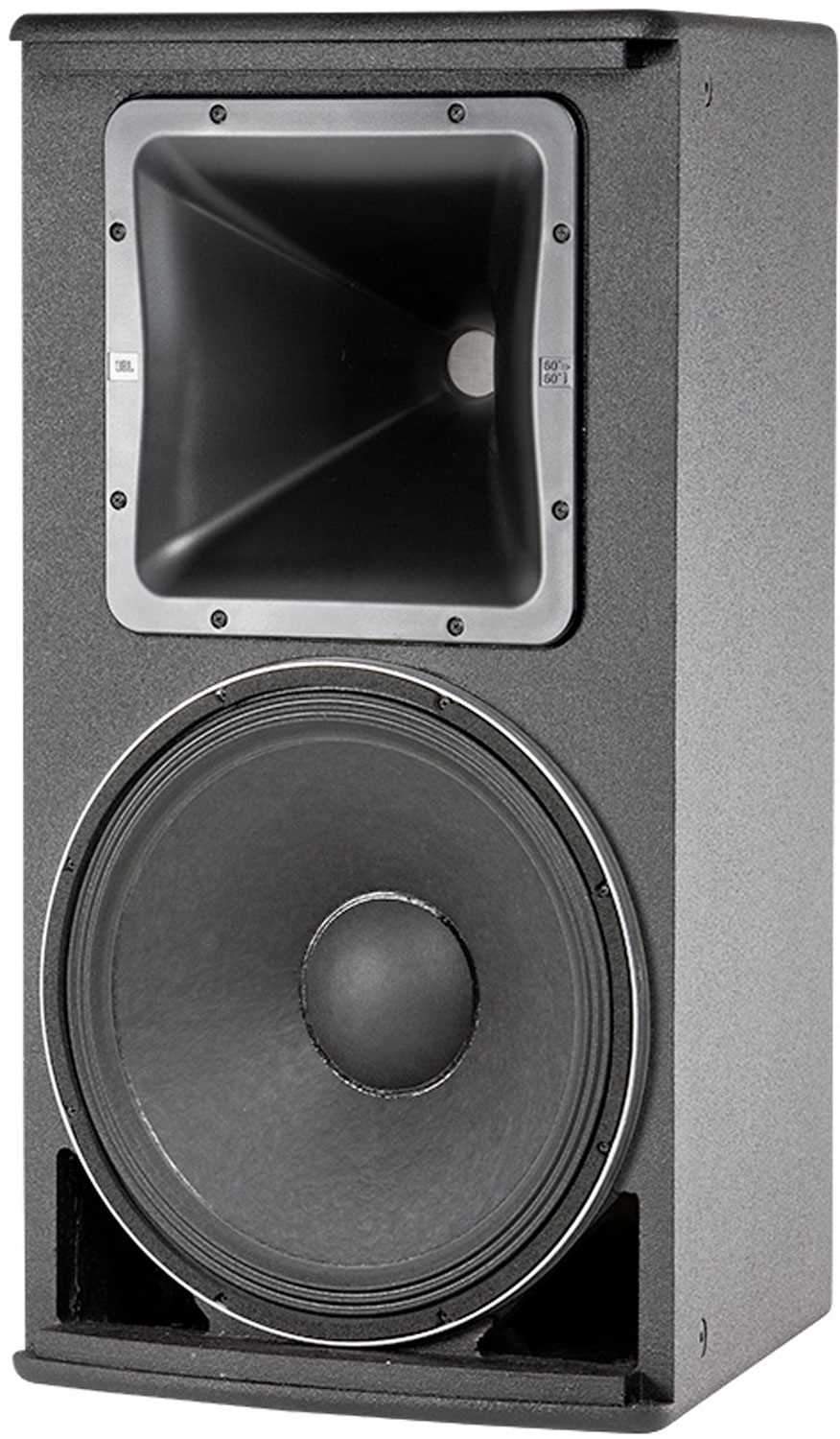

The AM5215 is a remarkable 2-way, full-range loudspeaker system. It features a JBL Differential Drive dual voice coil and dual magnetic gap 265H-1 380 mm (15 in) low frequency driver, along with a 2408H-1 high frequency 38 mm (1.5 in) exit, 38 mm (1.5 in) voice-coil compression driver. The large format PT Progressive Transition waveguide offers outstanding pattern control and low distortion. It's also rotatable, allowing for flexible vertical or horizontal orientation. High-slope passive networks reduce band overlap, and the well-controlled off-axis response enhances arrayability.
Features:
- • High-quality JBL drivers for powerful sound
- • Rotatable waveguide for versatile setup
- • Bi-Amp/Passive Switchable for flexibility
Applications:
- Performing Arts Facilities
- Theatrical Sound Design
- Auditoriums
- Worship Facilities
- Live Clubs
- Dance Clubs
- Sports Facilities
- Themed Entertainment Venues
Specifications:
- Frequency Range (-10 dB): 35 Hz - 20 kHz
- Frequency Response (±3 dB): 41 Hz – 18 kHz
- Coverage Pattern: 120° x 60°
- Directivity Factor (Q): 14.5
- Directivity Index (DI): 11.6 dB
- Crossover Modes: Bi-amp/Passive switchable
- Passive Crossover Frequency: 2 kHz
- Transducer Power Rating (AES): LF: 500 W (2000 W peak), 2 hrs 350 W (1400 W peak), 100 hrs HF: 40 W (160 W peak), 2 hrs
- Long-Term System Power Rating (IEC): Passive mode: 350 W (1400 W peak), 100 hrs
- Maximum SPL: Bi-amp mode: LF: 125 dB-SPL cont avg HF: 131 dB-SPL cont avg.
- System Sensitivity (1W @ 1m): Passive mode: 98 dB SPL
- Low Frequency Driver: 1 x JBL 265H-1 380 mm (15 in) driver with 50.8 mm (2 in) dual voice coil
- Nominal Impedance: 8 ohms
- Sensitivity (1W @ 1m, within operational band): 99 dB SPL
- High Frequency Driver: JBL 2408H-1, 38 mm (1.5 in) exit compression driver, 38 mm (1.5 in) voice coil
- Nominal Impedance: 8 ohms
- Sensitivity (1W @ 1m): 115 dB SPL
- Waveguide: PT-H66HF-1
- Enclosure: Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply birch plywood
- Suspension Attachment: 15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware
- Finish: Black DuraFlex finish. White available upon request.

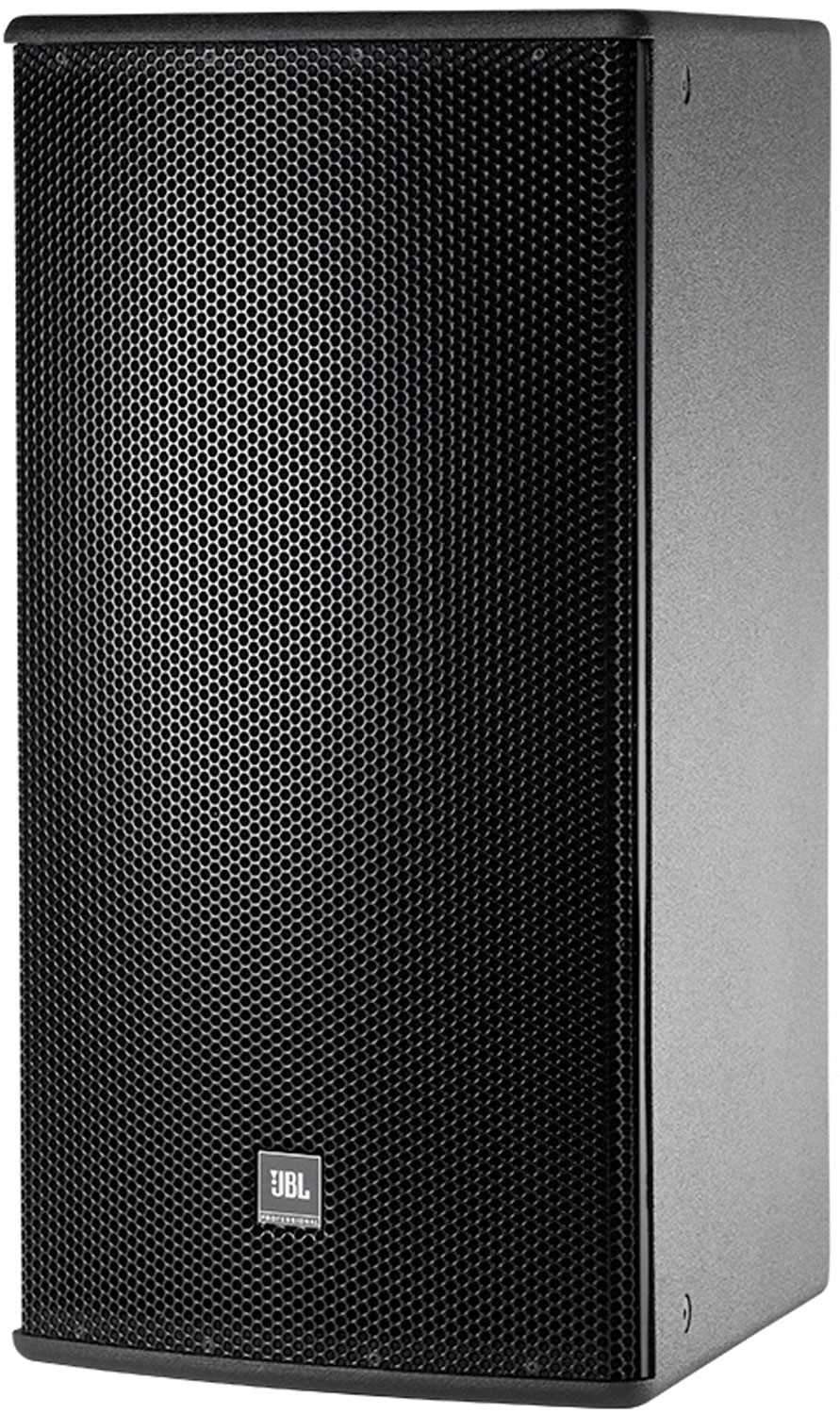

- Grille: Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
- Input Connector: NL4 Neutrik Speakon and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
- Environmental Specifications: Mil-Std 810; IP-x3 per IEC529.
- Dimensions (H x W x D in vertical cabinet orientation): 783 x 422 x 504 mm (30.8 x 16.6 x 19.85 in)
- Net Weight: 25.0 kg (55 lb)
- Optional Accessories: M10 x 35 mm forged shoulder eyebolts with washers U-Bracket MTU-1
This JBL AM5215/26 loudspeaker is perfect for a variety of venues. It's great for performing arts facilities, auditoriums, and live clubs. The target includes sound engineers and venue owners who want high-quality sound. With dimensions of 783 x 422 x 504 mm (30.8 x 16.6 x 19.85 in) and a net weight of 25.0 kg (55 lb), it's easy to install and move around. It offers a frequency range of 35 Hz - 20 kHz and a coverage pattern of 120° x 60°.
