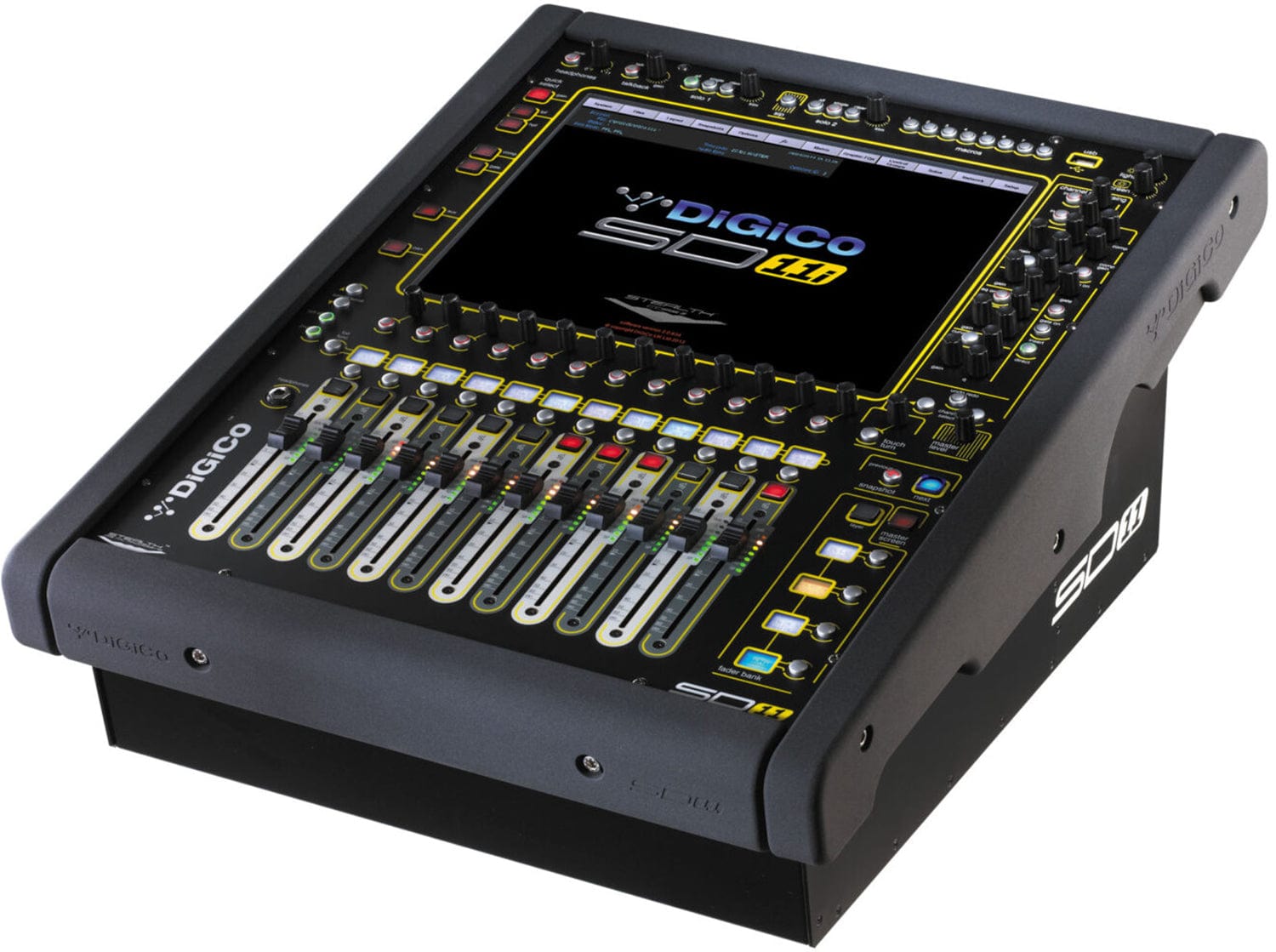

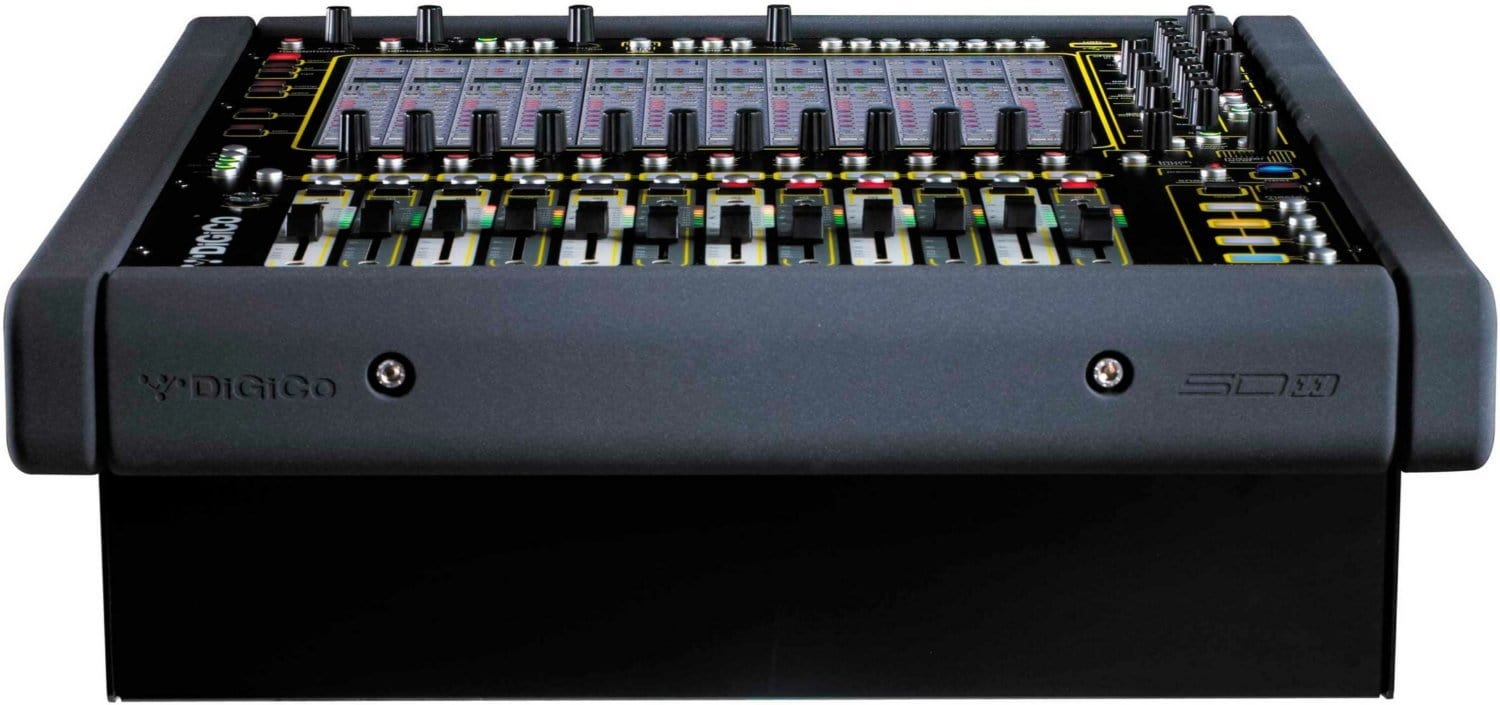

DiGiCo SD11i Rack Pack - Unleash Your Musical Creativity with MADI and Multi-Mode Optics
Get ready to revolutionize your music production with the DiGiCo SD11i Rack Pack! This compact 19-inch rack mount or table top mixer packs a powerful punch of seventh generation FPGA technology, allowing you to create amazing music on the go. Whether you're in the studio or on stage, the SD11i is the perfect companion for musicians and producers looking for a portable yet feature-rich mixer.
Key Features:
- • Compact and Portable: Small enough to fit in the back seat of a car, the SD11i is perfect for on-the-go music production.
- • Full Feature Set: With 80 input channels, 24 aux/sub-group busses, and a range of powerful processing tools, the SD11i has everything you need to create professional-quality music.
- • High-Quality Sound: The SD11i features 115 dynamic equalizers, 115 DiGiTuBes, and 115 multi-band compressors, ensuring your music sounds its best.
Technical Specifications:
- • Faders: 12 x 100mm touch-sensitive, motorized
- • Screens: 1 x 15” (38cm) LCD high-resolution touch screen
- • Meters: 12 x 8-segment LED bargraph
- • Input Channels: 48
- • Busses: 24 + LR or LCR master
- • Solo Busses: 2 stereo busses
- • Matrix: 8 x 8 matrix (additional to busses above)
- • Control Groups: 8, selectable for VCA-style, Moving fader, Mute Group
- • Graphic EQ: 12 x 32-band, Gain +/- 12dB
- • Internal FX: 6
- • Local I/O: 16 x mic/line on, 8 Line out, 2x AES/EBU I/O (mono)
- • MADI Interface: 2 x 75 ohm BNC connectivity
- • D-Rack Interface: 1 x RJ45 shielded connectivity
- • MIDI Interface: In / Out / Through
- • VGA Port: DB-15 mini-female (1024 x 768 resolution)
- • USB Ports: 3 x USB2
- • Light Connection: 1 x XLR3 1.2 – 12V
- • Ext Sync: Word clock, MADI
- • Headphone: TRS unbalanced / 8-600 ohms 1/4 inch Jack
- • GPI: 2 x 1/4 inch Jack
- • GPO: 2 x 1/4 inch Jack
- • SD11 Dimensions: 483mm/19inch (w) x 577mm/22.7inch (d) x 232mm/9.1inch (h)
- • SD11 Weight: 24Kg (53lbs)

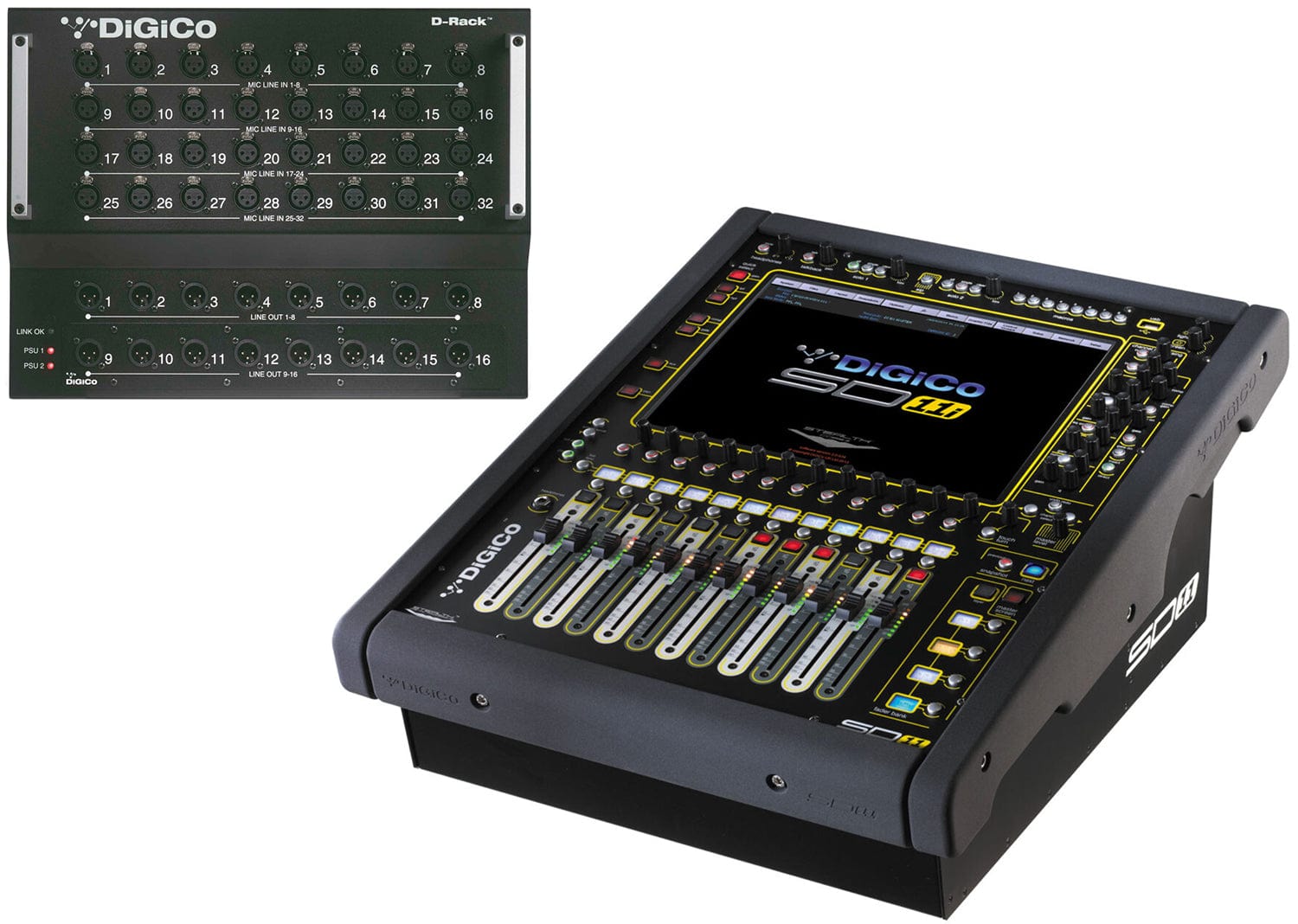

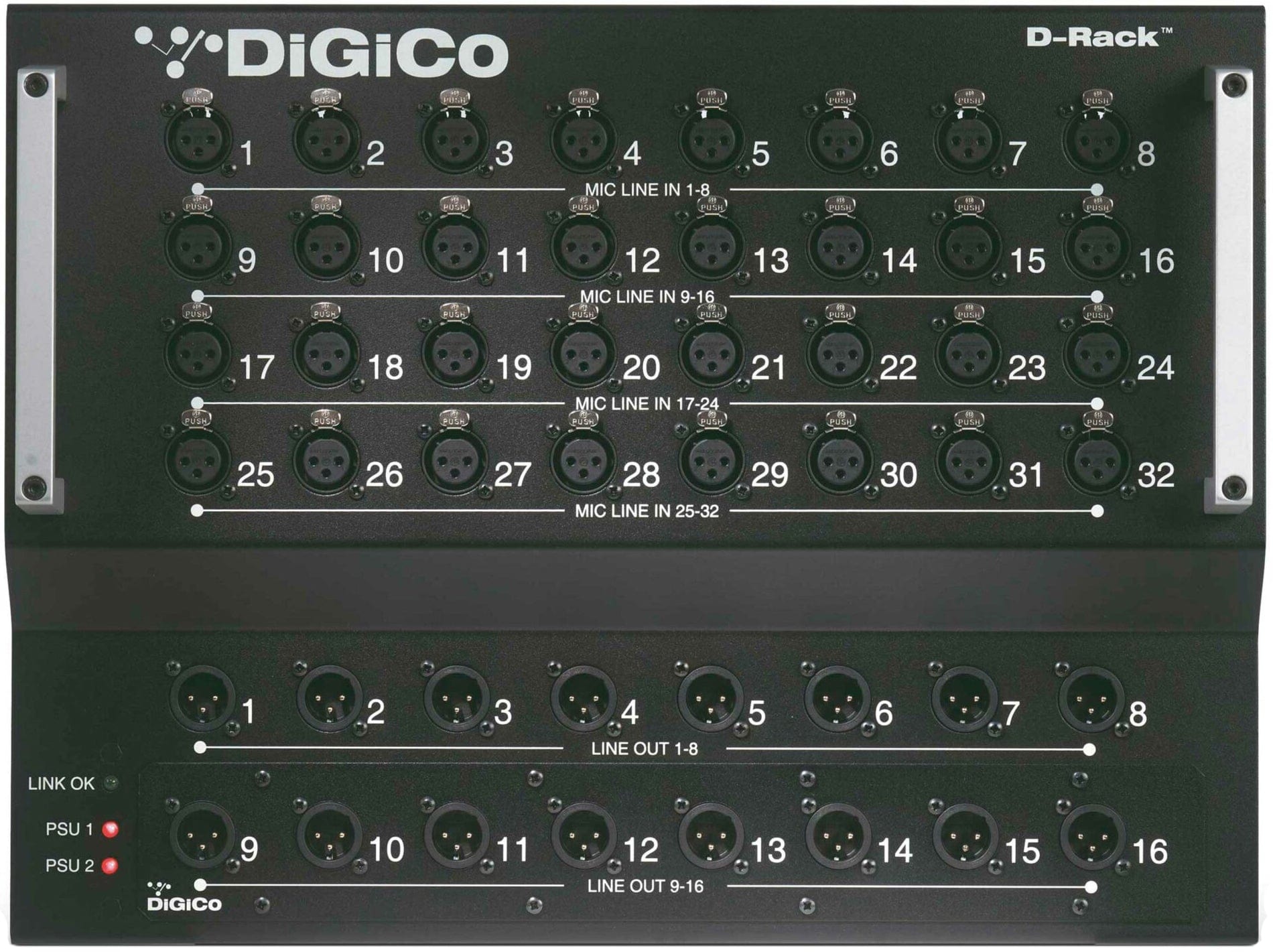

- • D-Rack: 412mm/16.22inch (w) x 312mm/12.3inch (d) x 179mm/7inch (h)
- • D-Rack Weight: 7.4Kg (16lbs)
The DiGiCo SD11i Rack Pack is a versatile mixer designed for musicians and producers on the go. Its compact size makes it easy to transport, fitting comfortably in the back seat of a car. With 80 input channels, 24 aux/sub-group busses, and a range of powerful processing tools, it offers a full feature set for professional-quality music production. The SD11i features 115 dynamic equalizers, 115 DiGiTuBes, and 115 multi-band compressors for high-quality sound. Its technical specifications include 12 touch-sensitive motorized faders, a 15-inch LCD touch screen, and various input/output options. The SD11 measures 483mm/19inch (w) x 577mm/22.7inch (d) x 232mm/9.1inch (h) and weighs 24Kg (53lbs), while the D-Rack measures 412mm/16.22inch (w) x 312mm/12.3inch (d) x 179mm/7inch (h) and weighs 7.4Kg (16lbs).
