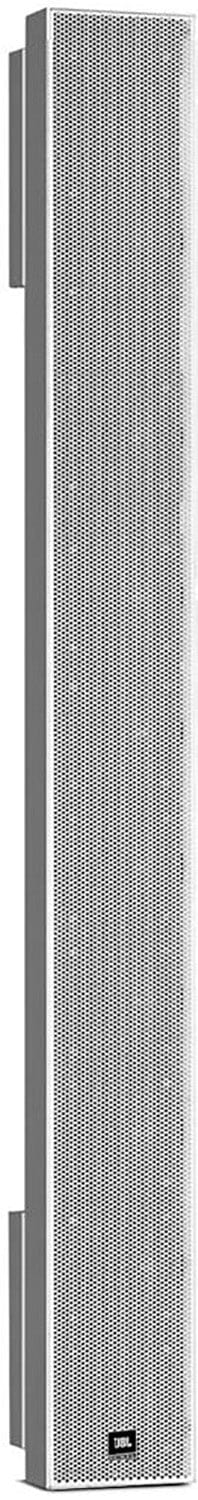

JBL Intellivox HP-DS170 Active Beam Shaping Powerhouse Column Loudspeaker Array
The Intellivox HP-DS170 is a remarkable self - contained loudspeaker array. It's super high - power and high - output, perfect for wide - bandwidth beam - shaping needs. It's great for outdoor use too! Since 1999, these Intellivox High Power models have been the go - to solution for making speech crystal - clear and enhancing music in large, echo - filled spaces like churches, theaters, and transportation halls. The Intellivox HP-DS170 can blast out up to 106 dB SPL at 30 meters (100 ft) with a 100° horizontal dispersion. Measuring just 1.7 meters (5' 7”) long, it fits neatly into spaces with tricky architecture and acoustics.
Features:
- • IP55 rated for durability
- • Built - in DSP and amplification for easy operation
- • DDS Beam Shaping for precise sound projection
- • 6.5' Drivers for rich sound
- • RS - 485 serial control for convenient setup
Specifications:
- Maximum SPL (30m):
- Continuous : 97 dB SPL
- Peak : 105 dB SPL
- Typical Maximum Throw: 10 - 25 m / 33 - 82 ft
- Drivers:
- 10 x 6.5”
- 2 x 1” Compression
- Dimensions:
- Height - 1698mm
- Width - 198mm
- Depth - 189mm
- Weight - 56kg / 123lb
- Enclosure: stainless steel (AISI 304) with epoxy coating for long - lasting protection
- Color:
- Enclosure and grill : RAL 9010 (white)
- Speaker baffle : RAL 9011 (black)
- Optional Accessories: Multiple optional accessories available. Check the spec sheet or ask your local dealer for details.
- Coverage Angle: Vertical complex beam shaping (via software), wide horizontal dispersion for great sound coverage
The JBL Intellivox HP-DS170 is perfect for large, reverberant spaces like churches, theaters, and transportation halls. Ideal for event organizers, venue managers, and sound engineers. It measures 1698mm in height, 198mm in width, 189mm in depth, and weighs 56kg (123lb). With its powerful features, it can cover a large area with clear sound.
