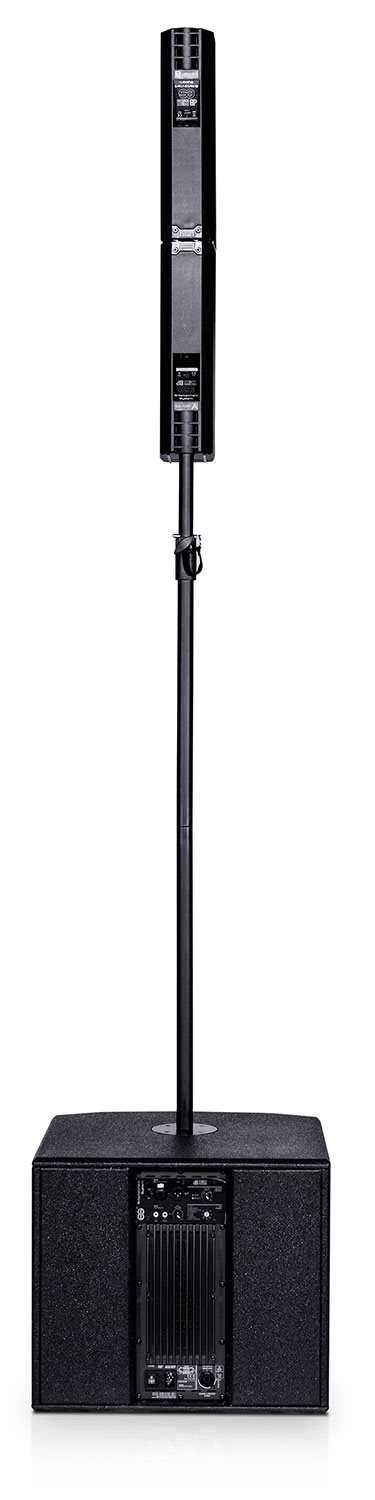

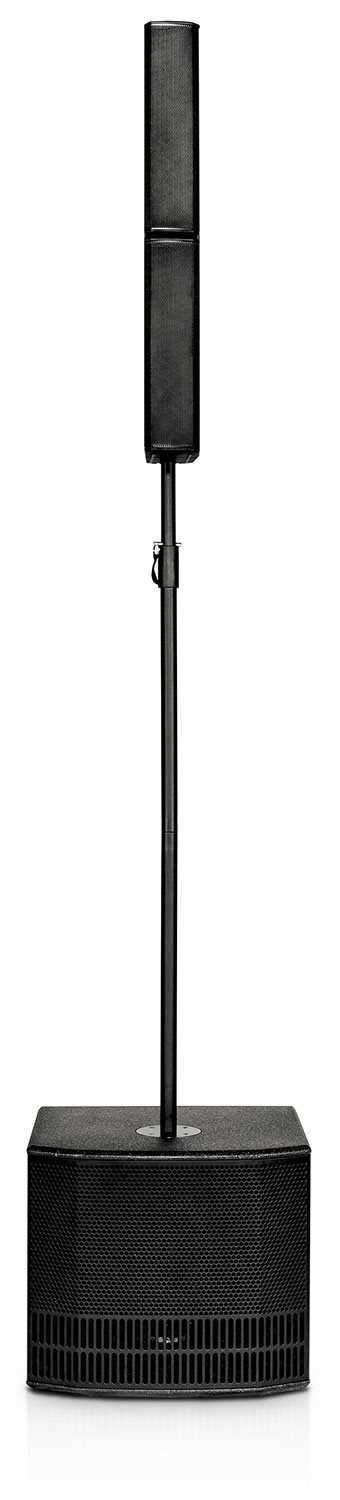

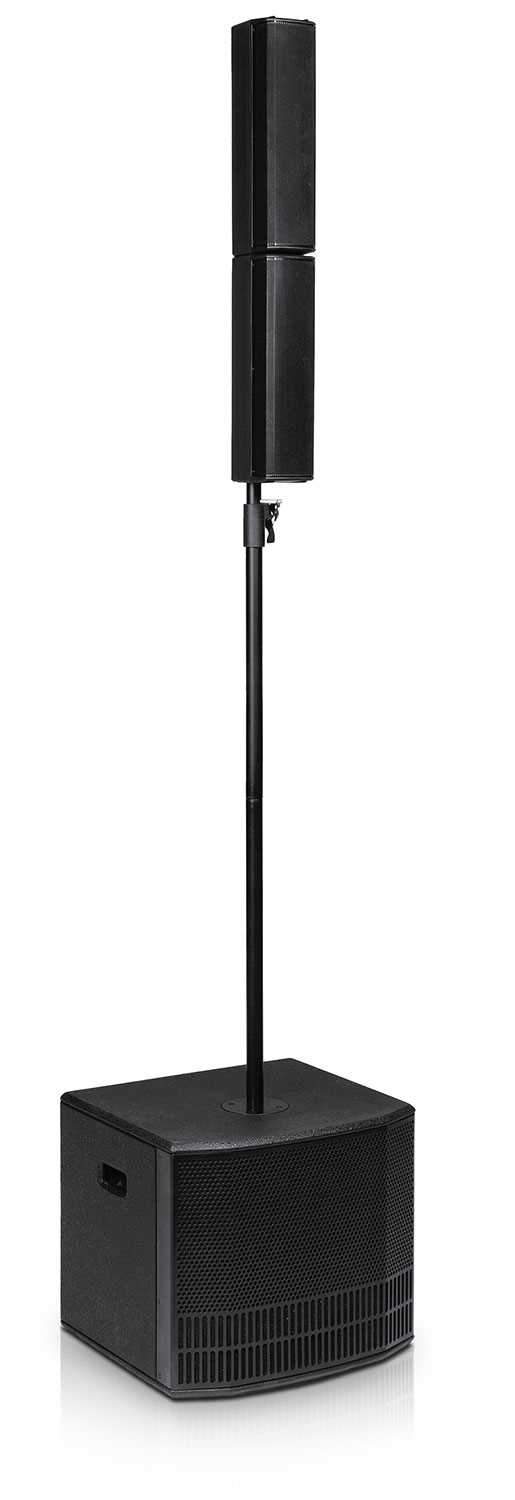

dB Technologies ES-802 Professional Portable PA System

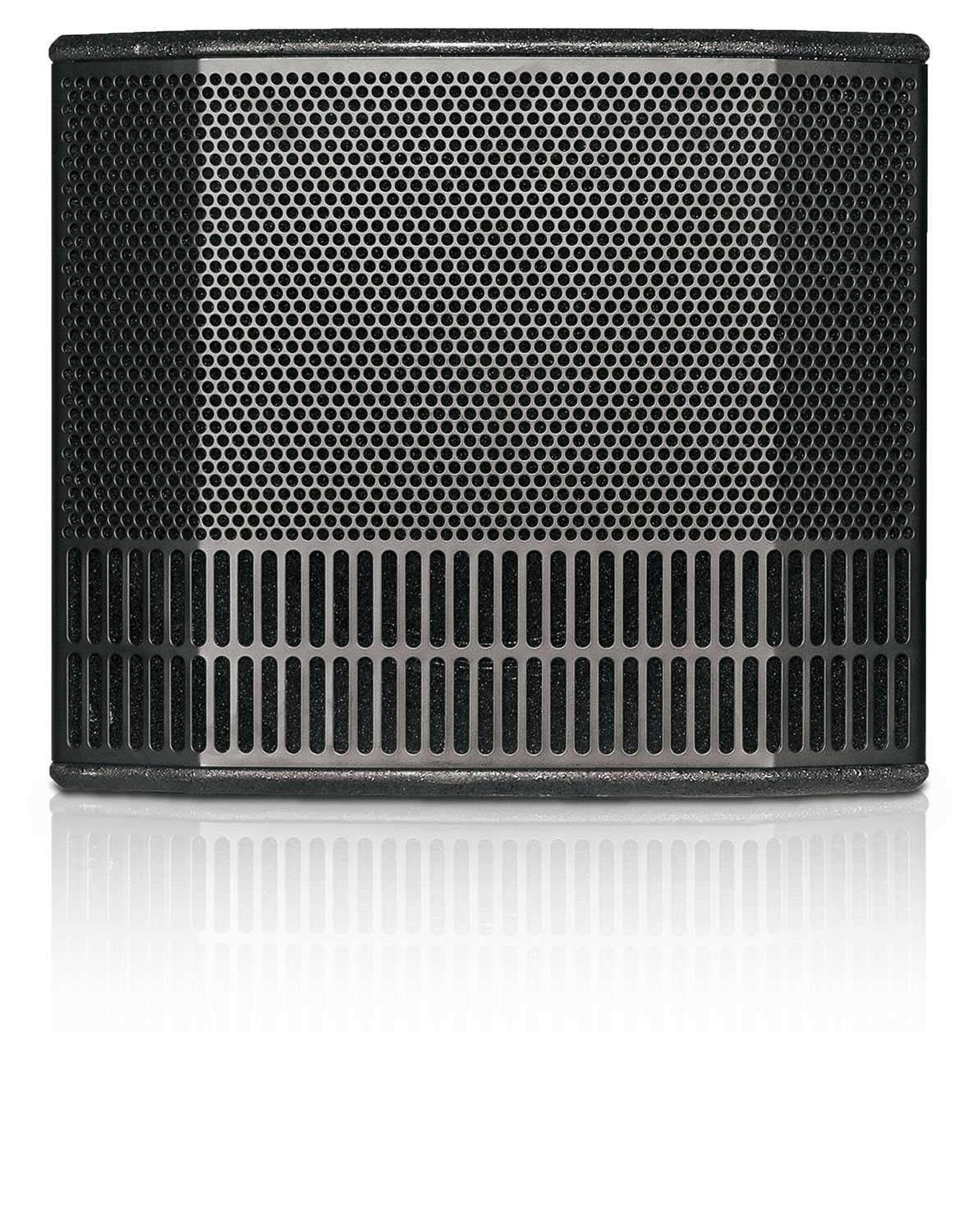

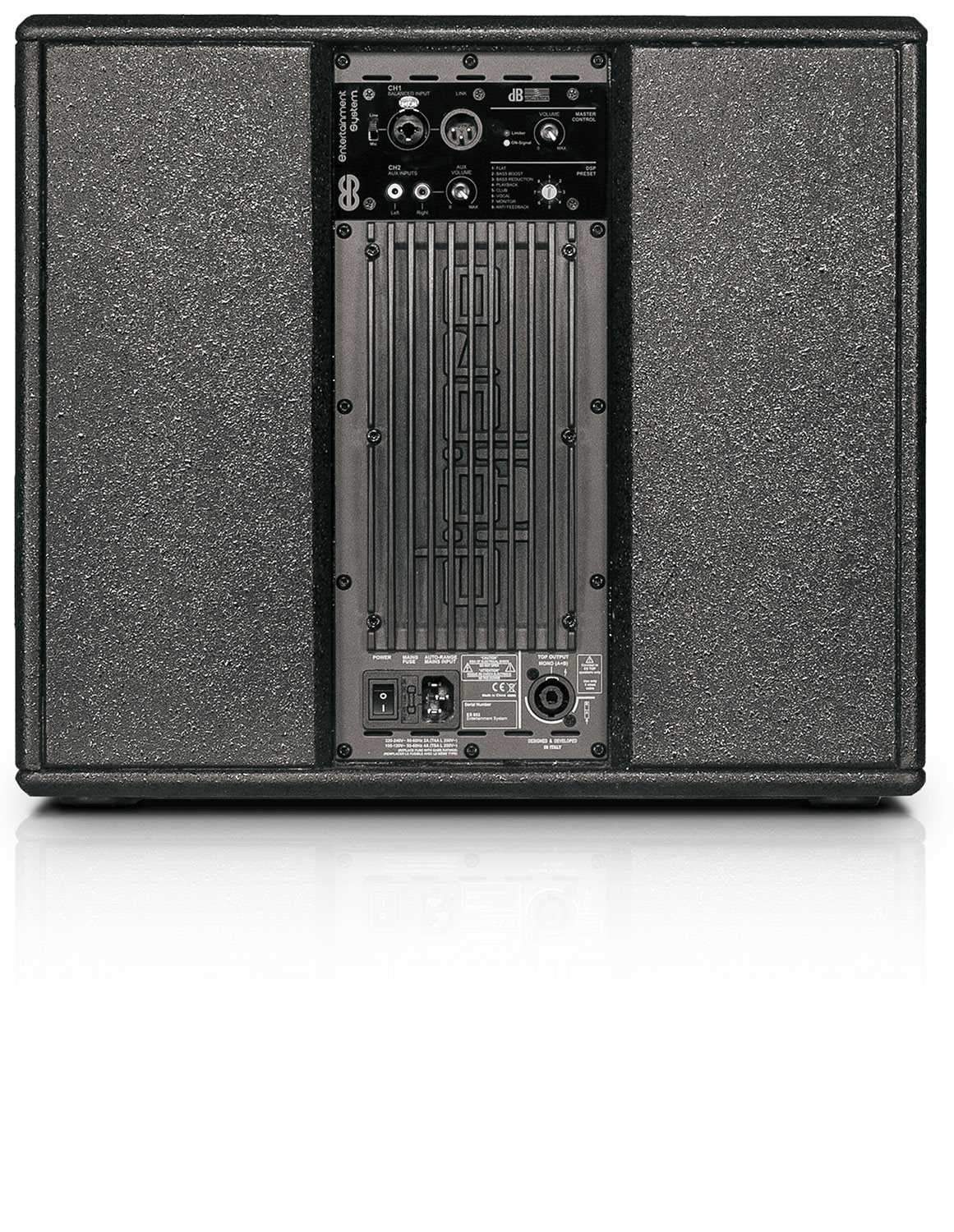

The ES Series combines dB Technologies' expertise in acoustic design, drawing on experiences from vertical array systems like DVA T Series and MINI. The top components are mechanically aligned (Logarithmic Curved Column Array) for enhanced vertical beam coverage. A special double-ringed phase plug boosts horizontal coverage and delivers a rich, crystal-clear sound. Satellites connect top-on-top and mount on the subwoofer via the supplied D25mm pole. In mono mode, all inputs are routed to both outputs. The bass-reflex subwoofer houses a 12' woofer and amplifier module. Its sturdy, stylish birch plywood enclosure, coated in durable scratch-resistant black, is ready for the road. Two recessed handles ease transportation. The metal grid with foam protects the woofer, adds elegance and professionalism, and aids the reflex effect with larger-diameter holes at the reflex ports for better air flow. The highly efficient amplifier offers high power in a compact form. The digital preamplifier with DSP controls audio crossover, frequency response, limiter, and phase alignment for extended vertical and wide horizontal coverage.
Features: • 12' Woofer for powerful bass • 1200W Power Amp for high volume • 8 Preset Equalizations for versatile sound
Specifications: • Acoustical data - Frequency response [-10dB]: 37 - 15,000 Hz - Max SPL: 124 dB - MF - HF: 8 x 3' - Type MF - HF: Neodymium - LF: 12' - Directivity: 95 x 65° • Amplifier - Amp technology: Digipro G3 - Amp class: class-D - Power amp peak: 1200W • Processor - Controller: DSP 24 Bit/48 kHz - System presets: factory presets - Limiter: dual active, peak, RMS, thermal - Crossover frequency: LF-HF 206 Hz • Input - Mic/instrument channel: 1 combo (XLR/jack) balanced/unbalanced input, 1 RCA stereo input - Link output: 1 XLR balanced output • Mechanics - Housing (subwoofer): 15mm black painted birch plywood - Housing (tops): polypropylene PP - Handles: 2 lateral side (subwoofer) - Dimensions (top): 3.74' x 13.98' x 5.39' (W x H x D) - Dimensions (subwoofer): 18.3' x 15.7' x 16.9' (W x H x D) - Weight (top): 4.19lbs - Weight (subwoofer): 36.16lbs
The dB Technologies ES-802 is a professional portable PA system perfect for events, small gigs, and presentations. Ideal for musicians, event organizers, and public speakers. With a 12' woofer, 1200W power amp, and 8 preset equalizations, it delivers powerful, versatile sound. The top components provide extended vertical coverage, and the double-ringed phase plug offers wide horizontal coverage. The subwoofer's bass-reflex design enhances low-frequency performance. It features a sturdy birch plywood enclosure, recessed handles for easy transport, and a metal grid with foam for protection and style. Dimensions: Top - 3.74' x 13.98' x 5.39' (W x H x D), Subwoofer - 18.3' x 15.7' x 16.9' (W x H x D). Weight: Top - 4.19lbs, Subwoofer - 36.16lbs.
