D&B Audiotechnik Z1650.500 44S 2x 4.5-Inch Passive Loudspeaker - Flushmount Version

D&B Audiotechnik Z1650.500 44S 2x 4.5-Inch Passive Loudspeaker - Flushmount Version

• Exceptional Sound Quality: Enjoy crystal-clear audio with two 4.5” neodymium LF drivers and two 1.25' HF dome tweeters on a rotatable CD horn, delivering a 90° x 30° rotatable dispersion characteristic.

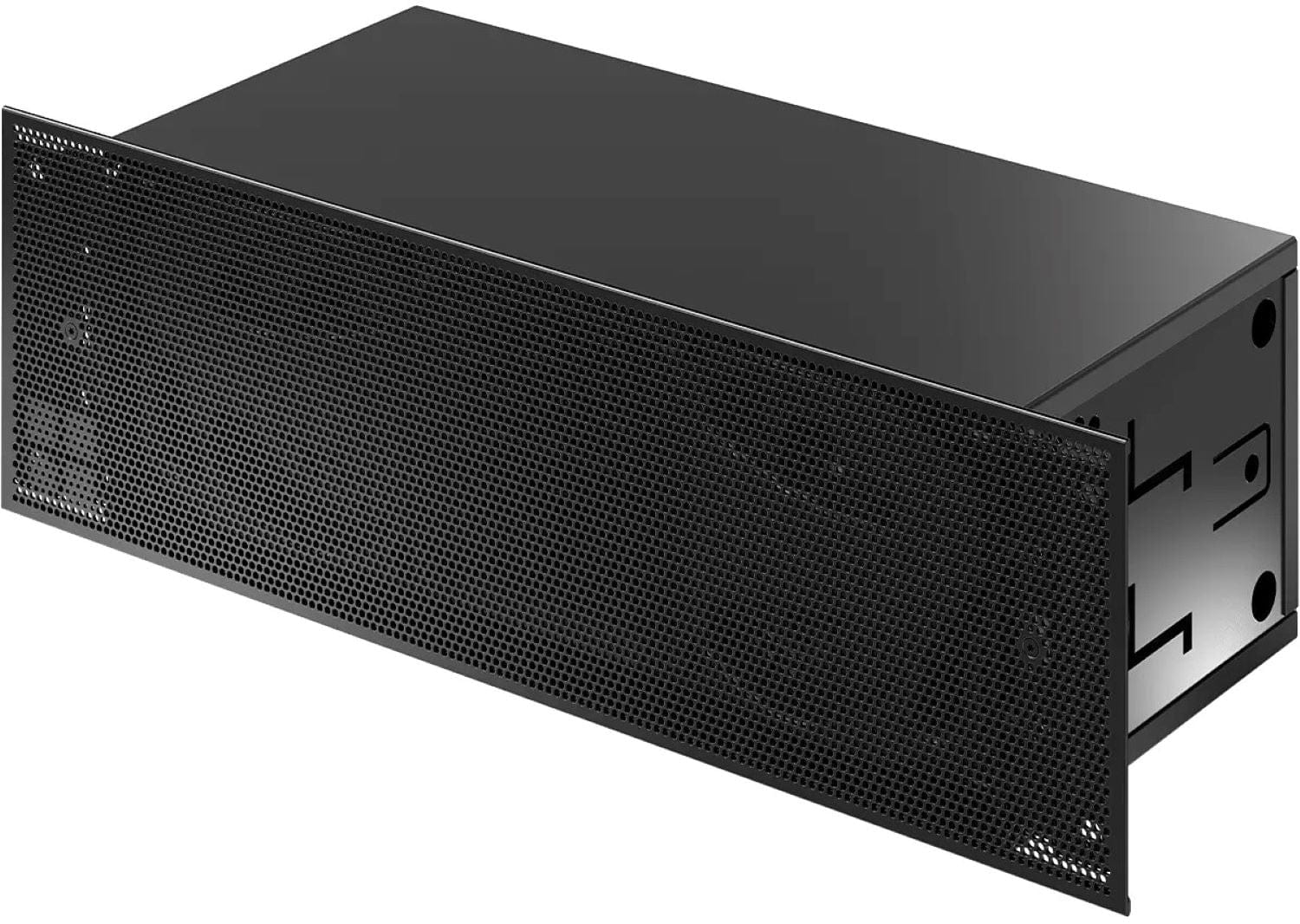

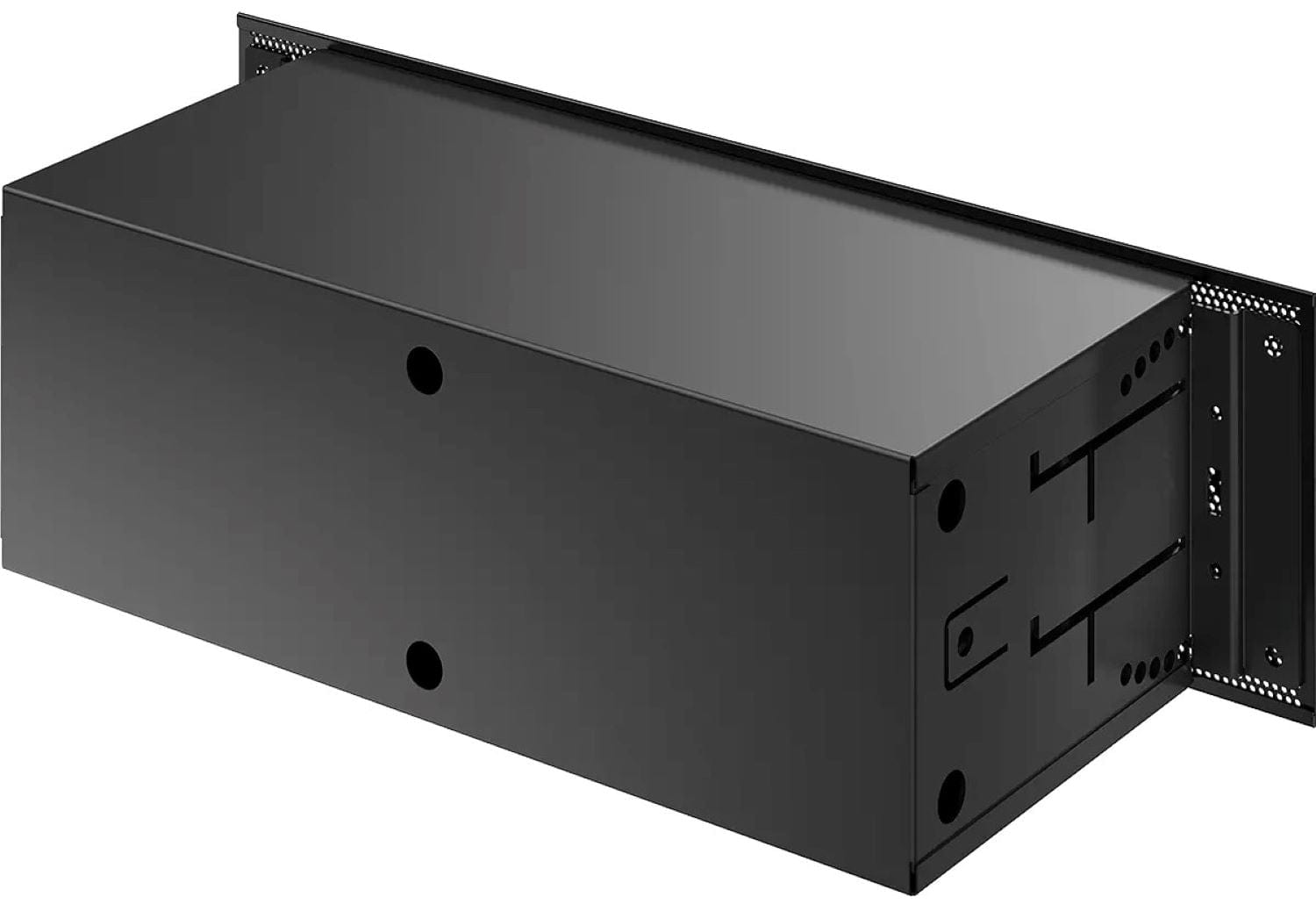

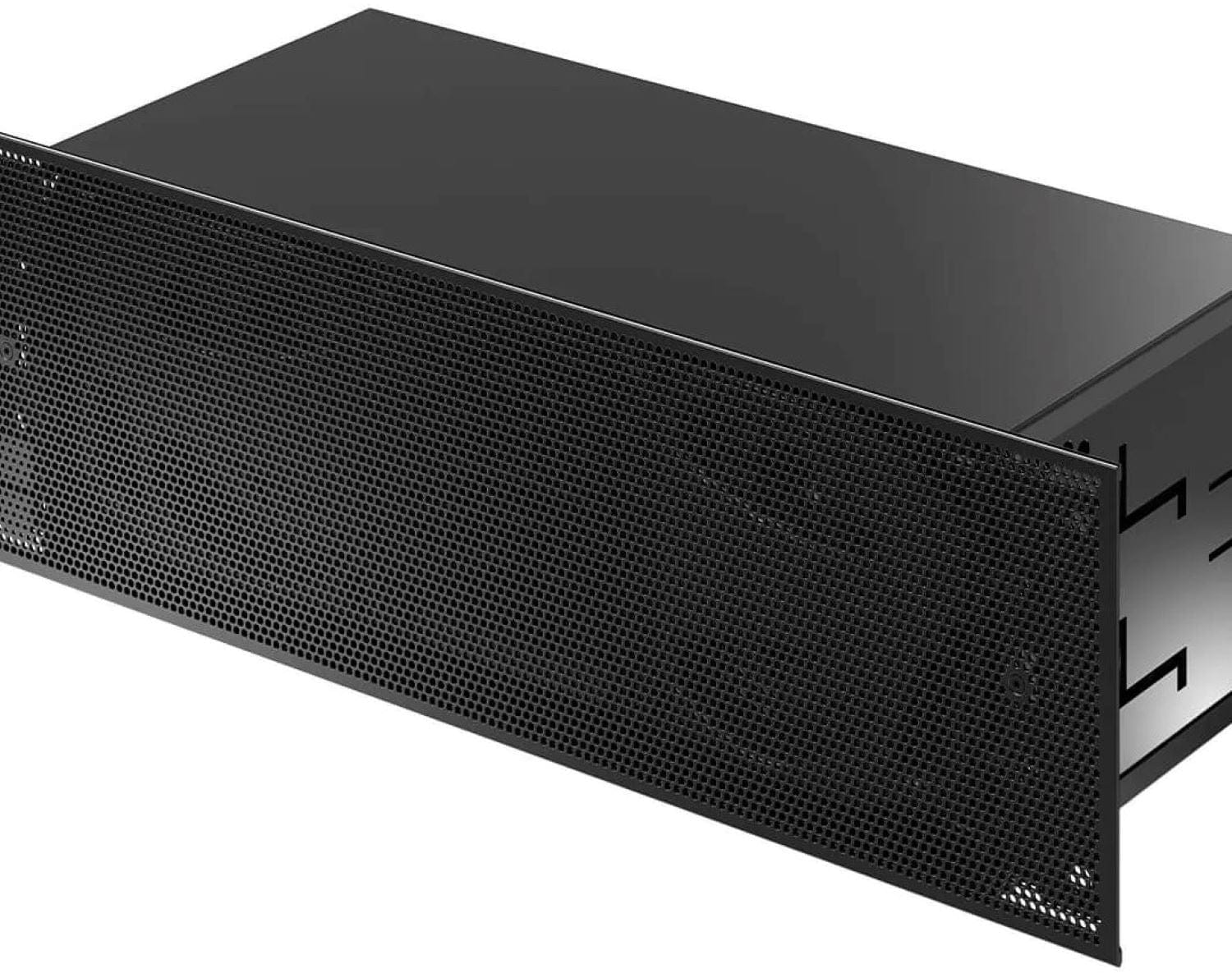

• Versatile Mounting Options: Use the optional d&b Z5427.000 44S back box for easy flush mounting into ceilings or walls, horizontally or vertically. Adjust the dispersion by +/- 20° in five-degree increments within the back box.

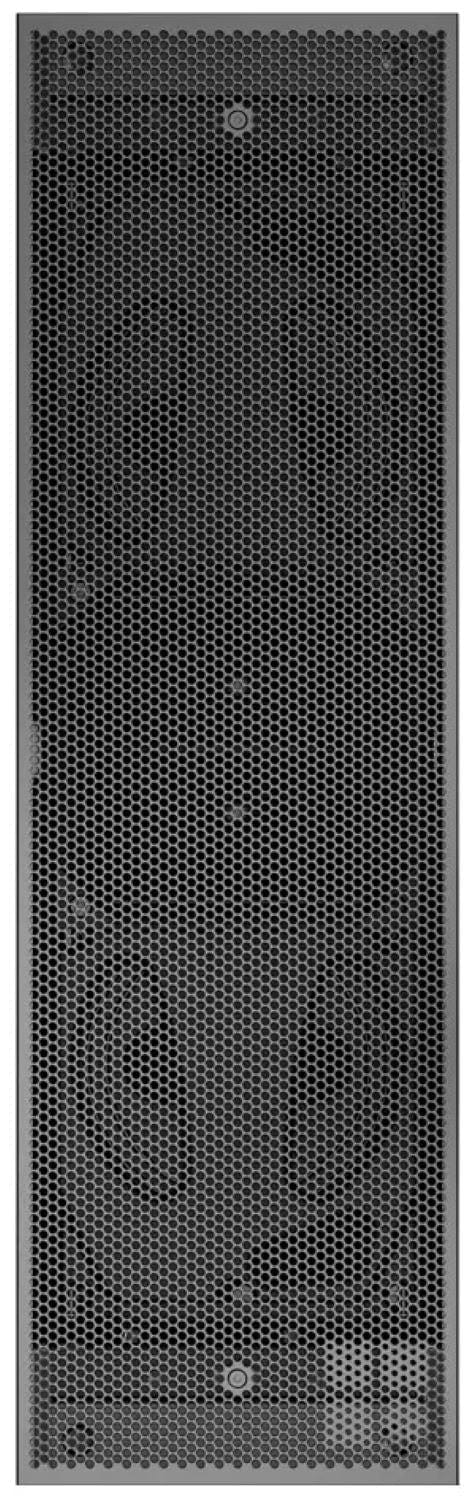

• Durable and Stylish: The enclosure is injection moulded with an impact resistant paint finish, and the front is protected by a rigid metal grill. Connect to different rigging accessories with two M8 threaded inserts. Choose from all RAL colours with the Special Colour (SC) option.

Features:

• Components 2 x 4.5″, 2 x 1.25″
• Dispersion 90° x 30° rotatable
• SPLmax 123 dB
• Weight 3.6 kg (8 lb)

Specifications:

• System data:
  • Frequency response (-5 dB standard): 90 Hz - 17 kHz
  • Frequency response (-5 dB CUT mode): 150 Hz - 17 kHz
  • Max. sound pressure:
    • with 10D: 121 dB
    • with D20/5D/30D: 123 dB
    • with D40/D80/40D: 123 dB
  • Cabinets per amplifier channel: 4
• Loudspeaker data:
  • Configuration: Compact universal high performance 2-way loudspeaker with an asymmetric cabinet shape
  • Nominal impedance: 16 ohms
  • Power handling capacity (RMS/peak 10 ms): 150/500 W
  • Nominal dispersion angle (h x v): 90° x 30°
  • Components:
    • 2 x 4.5″ driver with neodymium magnet
    • 2 x 1.25″ dome tweeter mounted on CD horn
  • Connections: 4-pin Phoenix Euroblock and 2 x NL4 M
• Dimensions / Weight:
  • Dimensions (H x W x D):
  • 390 x 128 x 150 mm
  • 480 x 140 x 180 mm with Backbox
  • 15.3 x 5 x 5.9″
  • 18.9 x 5.5 x 7.1″ with Backbox
  • Weight:
  • 3.6 kg
  • 6.2 kg with Backbox
  • 8 lb
  • 13.7 lb with Backbox

The D&B Audiotechnik Z1650.500 44S is a passive 2-way loudspeaker designed for various audio setups. It's great for venues like small clubs, cafes, or even home theaters. Ideal for audio enthusiasts and professionals seeking high-quality sound. It has a 90° x 30° rotatable dispersion, components including two 4.5” neodymium LF drivers and two 1.25' HF dome tweeters. The dimensions are 390 x 128 x 150 mm (15.3 x 5 x 5.9″) and it weighs 3.6 kg (8 lb). It can be used stand-alone or with d&b subwoofers. The optional back box helps with flush mounting on ceilings or walls, and the cabinet has an injection moulded finish with a metal grill for protection.
