Yamaha's High-Powered PX3 Power Amplifier: Unleash Exceptional Sound
Discover the Yamaha PX3 Power Amplifier, a versatile powerhouse that combines intelligent processing with high output power. It's perfect for a wide range of sound reinforcement needs, whether in live events, studios, or installations. Since 1976, Yamaha has been at the forefront of delivering top-notch sound quality, power output, and reliability. The new PX series builds on this legacy, using renowned digital signal processing technology.
Key Features: - • High Output Power: Delivers 2 x 300W @ 8ohms and 2 x 500W @ 4ohms, ensuring your sound is heard loud and clear.
- • Intelligent Processing: Equipped with onboard PEQ, crossover, filters, delay, and limiter functions, plus Yamaha speaker presets for easy setup.
- • Durable Design: Lightweight and built to last, with optimized processing to protect your speakers.
Technical Highlights: - • Sampling frequency rate: 48kHz internally
- • A/D D/A converters: 24-bit linear, 128 times over sampling
- • Total harmonic distortion: 0.1% (1kHz, 10W), 0.3% (1kHz, half power)
- • Frequency response: 1W, 8ohms, 20Hz to 20kHz (+1.0dB)
- • S/n ratio: 100dB (A-weighted, 8ohms, Gain setting = +14dBu)
- • Crosstalk: less than -60dB (Half Power, 8ohms, 1kHz, Vol max input 150 shunt)
- • Processors: input summing; D-CONTOUR; delay; hpf/lpf; speaker processor
- • Latency: 1.5 msec - analog input to speakers
- • Presets: 8 user amplifier presets, factory preset - speaker presets for Yamaha passive speakers
- • Amplifier: Class D, balanced output circuit
- • Maximum input voltage: +24dBu

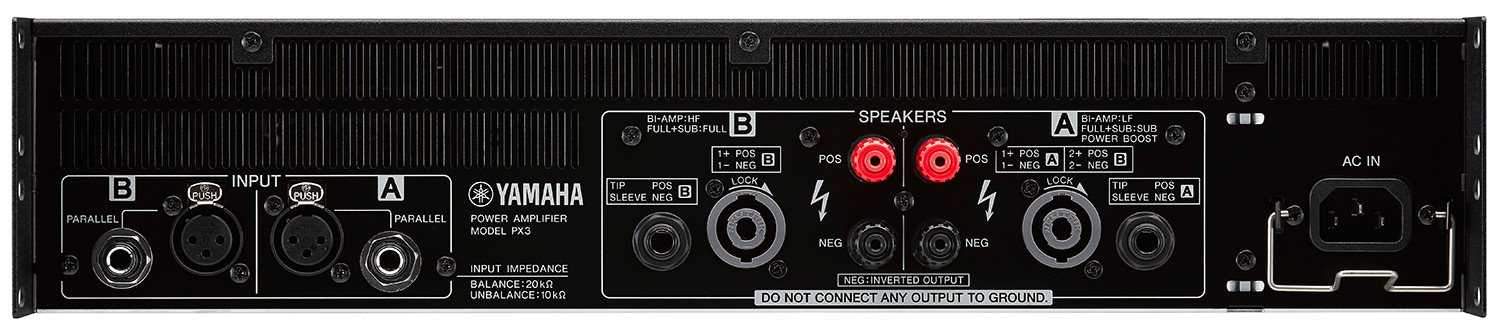

- • Speaker output ports: (2) Neutrik speakON NL4, (2 - pairs) binding post, (2) 1/4' phone (TRS)
- • Line input: (2) XLR-3-31 & (2) 1/4' phone (TRS)
- • Other I/O connectors: USB-a 2.0 connector (female), AC inlet with AC cord clamp
- • Power requirements: 100V 50Hz/60Hz, 120V 60Hz, 220V-240V 50Hz/60Hz
- • Power consumption: 160W (1/8 max power, 4ohms, pink noise at all channels), 55W (4ohms, idling)
- • Dimensions:18-7/8' x 3-7/16' x 15-2/8' / 480mm x 88mm x 388mm (H x W x D)
- • Net Weight: 15.21 Lbs. (6.9 kg)
The Yamaha PX3 Power Amplifier is a great choice for sound reinforcement in live events, studios, and installations. It's suitable for audio professionals and enthusiasts looking to enhance their sound systems. With its high output power, intelligent processing, and durable design, it's a reliable solution. The amplifier has dimensions of 18-7/8' x 3-7/16' x 15-2/8' (480mm x 88mm x 388mm) and weighs 15.21 Lbs. (6.9 kg). It supports multiple power requirements including 100V 50Hz/60Hz, 120V 60Hz, 220V-240V 50Hz/60Hz.
