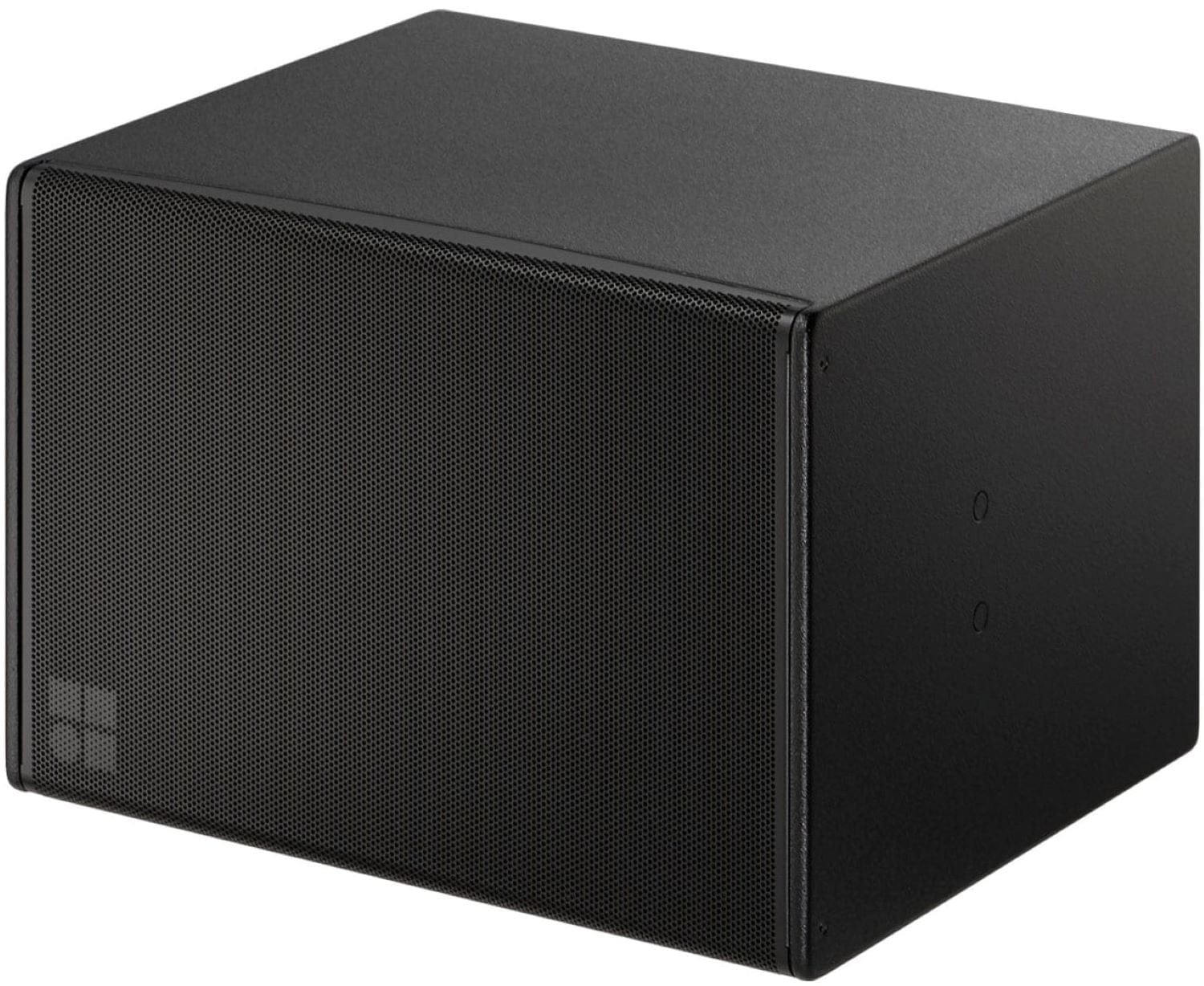

D&B Audiotechnik Z1630.000 12S-SUB High-Performance 12-Inch Passive Subwoofer

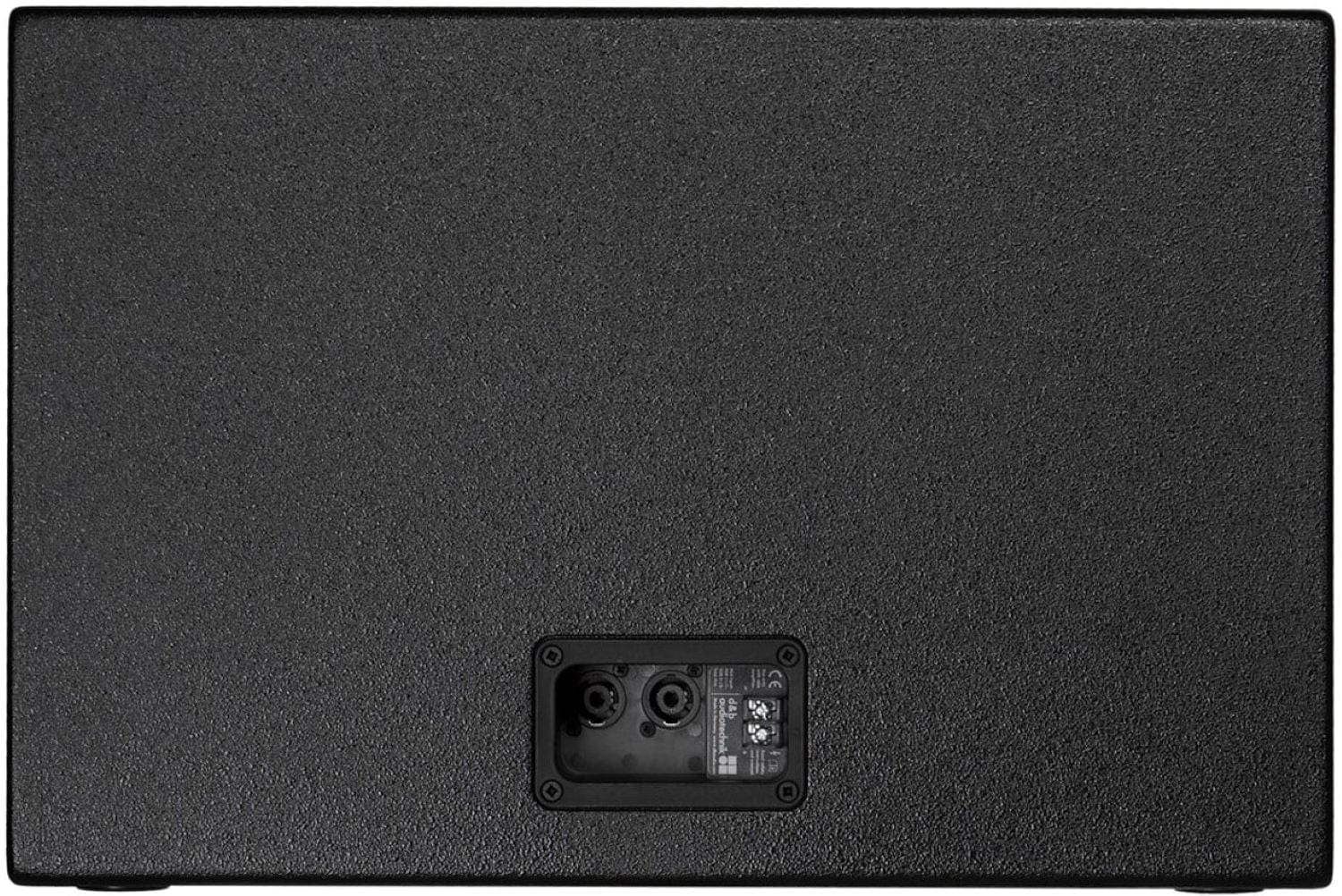

The 12S-SUB is a remarkable subwoofer designed for an outstanding audio experience. It's perfect for enhancing sound in various settings. • Compact and high performance, it pairs seamlessly with xS-Series loudspeakers. • With a long excursion 12” neodymium driver in a bass-reflex design, it delivers powerful bass. • Can be used stand-alone, stacked, or flown, offering great flexibility. The enclosure is made of marine plywood with a durable paint finish, ideal for schools and sports halls. The front is protected by a rigid metal grill and acoustically transparent foam. It has M10 threaded inserts on side panels and NL4 connectors plus a screw terminal block at the rear. There are also special options like Special Colour (SC) in all RAL colours and Weather Resistant (WR) with IP55 rating for changing conditions.
Features:
- Components 12'
- Dispersion Omni directional
- SPLmax 127 dB
- Weight 16 kg / 35 lb
Specifications:
- System data:
- Frequency response (-5 dB standard): 45 - 130 Hz
- Frequency response (-5 dB CUT mode): 45 - 100 Hz
- Max. sound pressure:
- with 10D: 124 dB
- with D20/5D/30D: 127 dB
- with D40/D80/40D: 127 dB
- Cabinets per amplifier channel: 2
- Loudspeaker data:
- Configuration: Installation specific compact subwoofer
- Nominal impedance: 8 Ω
- Power handling capacity (RMS/peak 10 ms): 300/1600 W
- Nominal dispersion angle (h x v): 110° x 55° rotatable
- Components: 12' driver with neodymium magnet
- Connections:
- 2 x NL4
- screw terminal block
- Dimensions / Weight:
- Dimensions (H x W x D): 354 x 530 x 448 mm / 13.9 x 20.9 x 17.6'
- Weight: 16 kg / 35 lb
The D&B Audiotechnik Z1630.000 12S-SUB is a great choice for those looking to boost their audio setup. It's perfect for schools, sports halls, and other venues where high-quality sound is needed. With a height of 354 mm, width of 530 mm, and depth of 448 mm, weighing 16 kg (35 lb), it's a manageable size. It features a long excursion 12” neodymium driver in a bass-reflex design, delivering powerful bass. It can be used stand-alone, stacked, or flown, offering flexibility in installation. The enclosure is made of marine plywood with a durable finish, and is resistant to ball impacts according to DIN 18032-3, making it suitable for schools and sports halls.
