Sennheiser EW-D ME2 SET Digital Wireless Lavalier System (R1-6)

Sennheiser EW-D ME2 Digital Lavalier System R1

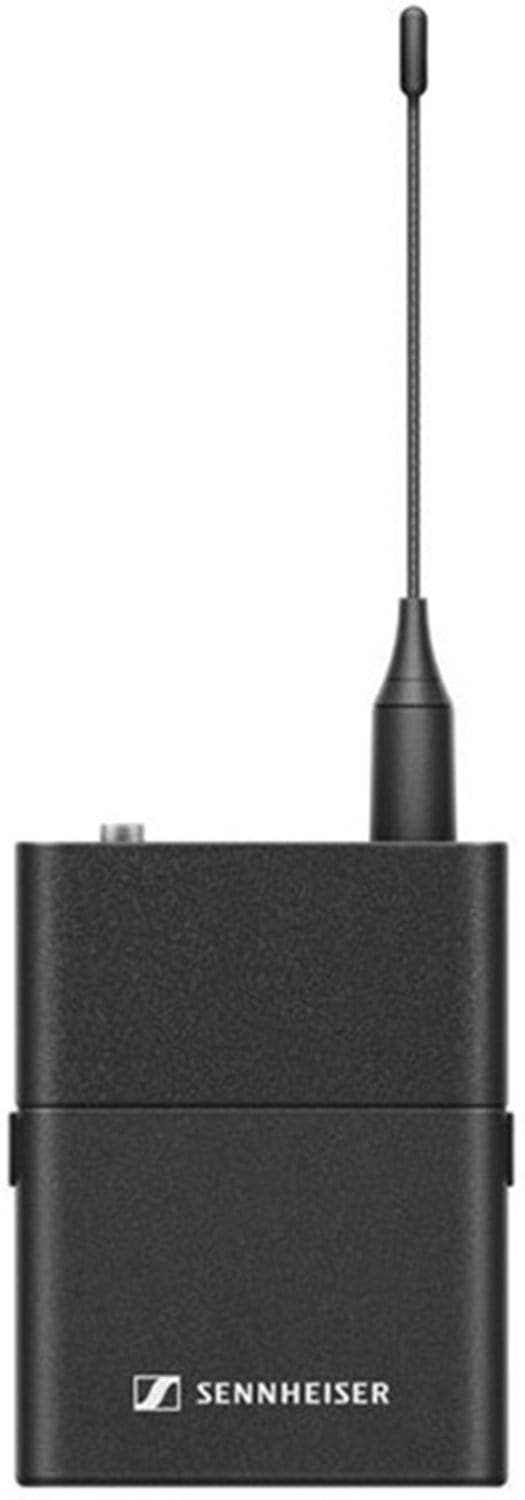

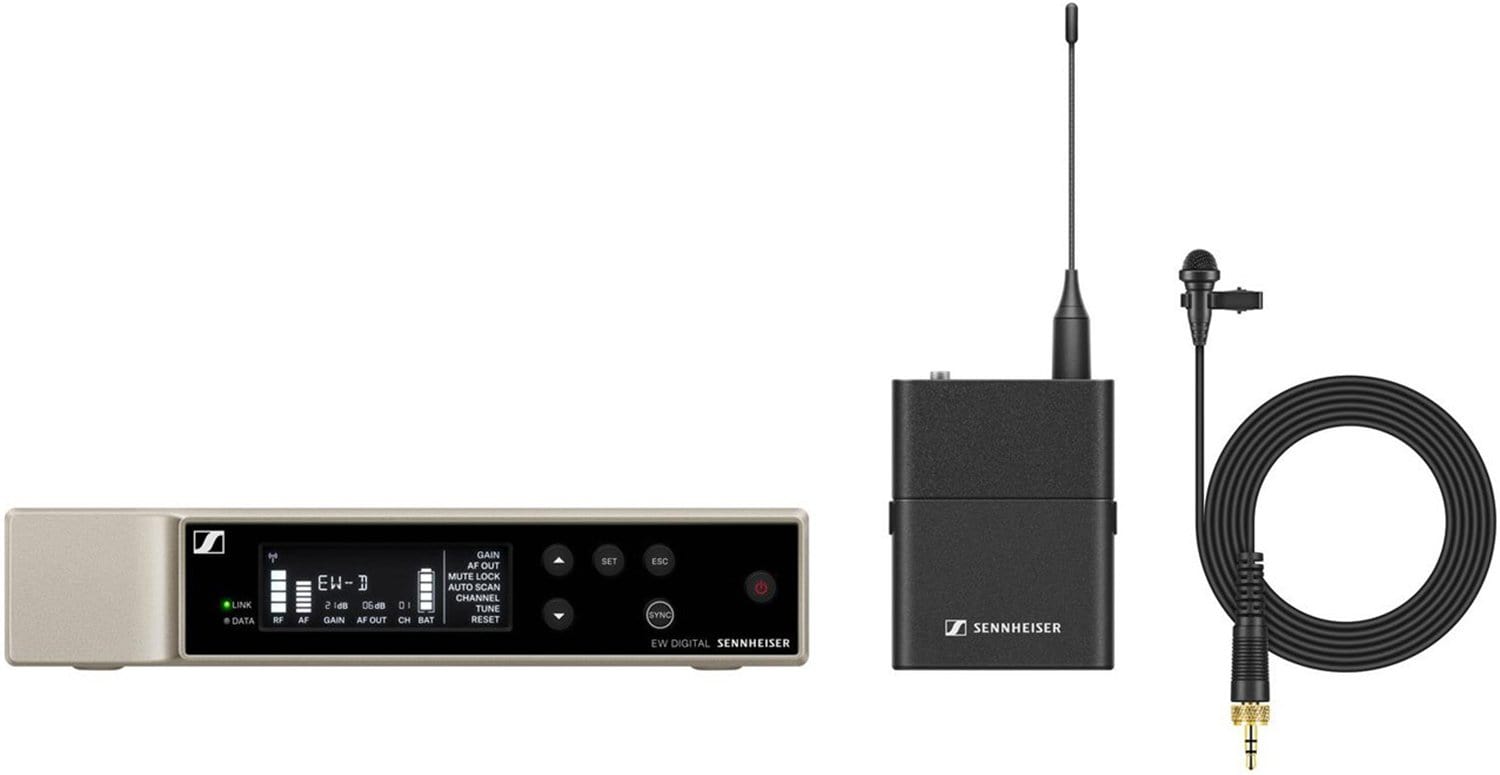

Discover the perfect digital wireless system for speakers and presenters! With seamless product pairing and management via the EW-D Smart Assist App, it's a breeze to use. The metal housing ensures durability, while the robust bodypack transmitter and unobtrusive clip-on microphone ME 2 (omni-directional) with high speech intelligibility are ideal for daily stage use.

Features:

• • Enhanced Range: Digital transmission in the UHF spectrum offers extended range, reliability, and scalability.
• • Easy Setup: Connect via Bluetooth Low Energy with the Smart Assist App for a hassle-free experience.
• • Auto Scan: Creates reliable connections quickly and effortlessly.
• • High-Definition Audio: 134 dB audio input dynamic range preserves every detail without sensitivity adjustments.
• • Intermodulation Free: Channels can be placed in an equidistant tuning grid 600 kHz apart.
• • Wide Tuning Bandwidth: 56 MHz of tuning bandwidth enables up to 90 channels.
• • Fine Tuning: 2,240 selectable frequencies for precise customization.
• • Long Battery Life: Lithium-Ion battery pack (sold separately) provides up to 12 hours of operation (8 hours with 2x provided AA batteries).

Specifications:

• Frequency range: 520 - 576 MHz
• THD, total harmonic distortion: ≤ -60 dB for 1 kHz @ -3 dBfs input level
• Operating temperature: -10 °C - +55 °C (14 °F - 131 °F)
• Operating relative humidity: 5 - 95 % (non-condensing)
• Audio frequency response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
• Cable length: approx. 1.60 m
• EW-D EM:
  • Dimensions: 212 x 44 x 189 mm
  • Weight: approx. 1000 g (without antennas and power supply)
  • Current consumption: ≤ 300 mA
  • Input voltage range: 11 - 13 V
  • Audio output level: 18 dBu max.
  • Transmission power: BLE: max. 10 mW EIRP
• EW-D SK:
  • Dimensions: 63 x 80 x 20 mm (without antenna)
  • Power supply: 2 AA batteries 1.5 V (alkaline manganese) or BA 70 rechargeable battery pack
  • Current consumption: < 300 mA
  • Input voltage range: 2.0 - 4.35 V
  • Transmission power:
    • Audio link: 10 mW
    • ERP (Range Y1-3: 12 mW ERP)
    • BLE: max. 10 mW EIRP
  • Weight: approx. 120 g

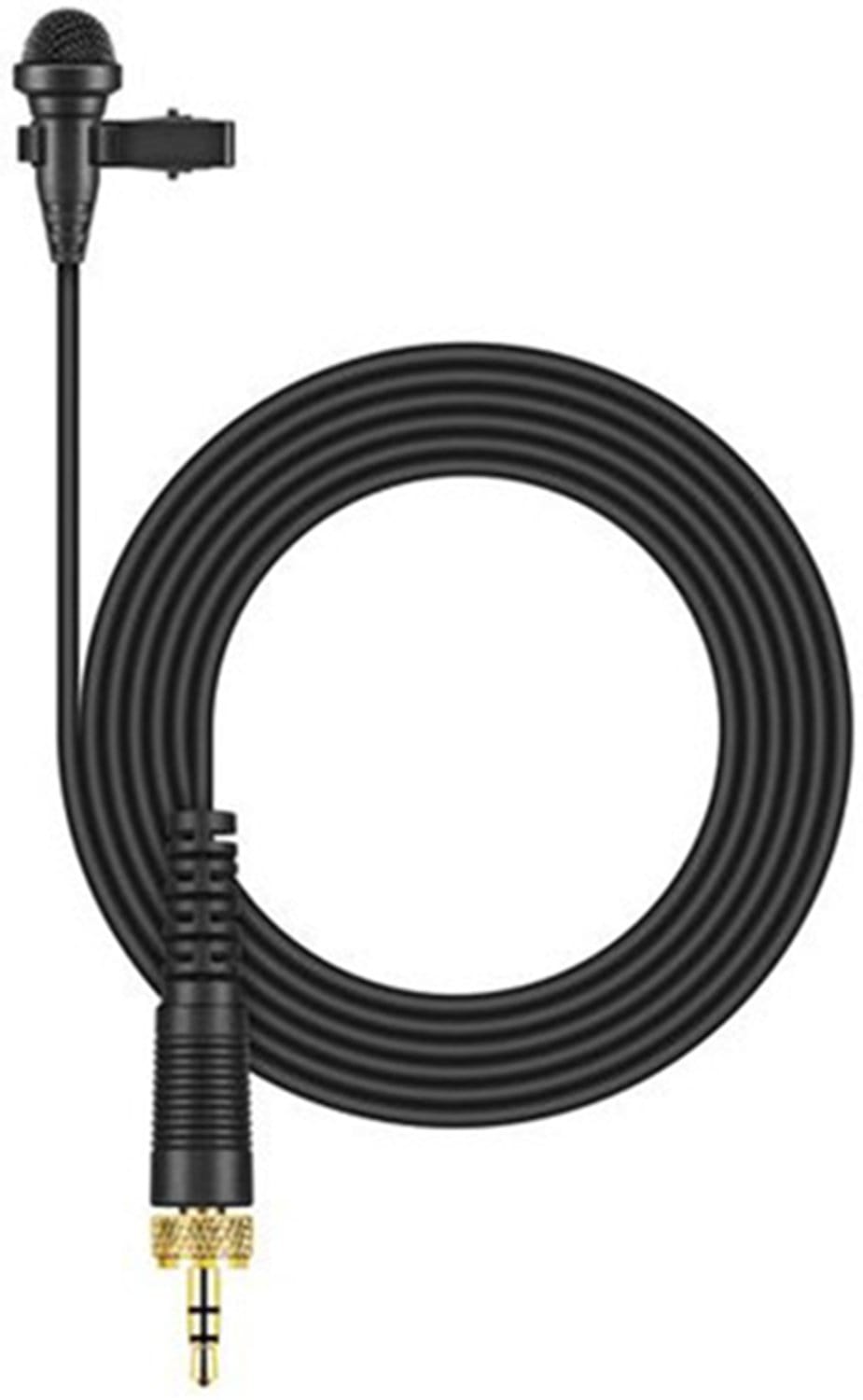

• ME 2 :
  • Cable length: approx. 1.60 m
  • Connector: 3.5 mm jack
  • Frequency response: 50 to 18,000 Hz
  • Max. sound pressure level: 130 dB
  • Transducer principle: pre-polarized condensor microphone
  • Pick-up pattern: omni-directional
  • Sensitivity in free field, no load (1kHz): 17 mV/Pa
  • Equivalent noise level: 32 dB
  • Power supply: 7.5 V

This Sennheiser EW-D ME2 SET Digital Wireless Lavalier System is perfect for speakers and presenters. With its metal housing, it's durable. The bodypack transmitter and clip-on microphone are great for daily stage use. The EW-D EM has dimensions of 212 x 44 x 189 mm and weighs about 1000 g (without antennas and power supply). The EW-D SK has dimensions of 63 x 80 x 20 mm (without antenna) and weighs around 120 g. The ME 2 has a cable length of about 1.60 m.
