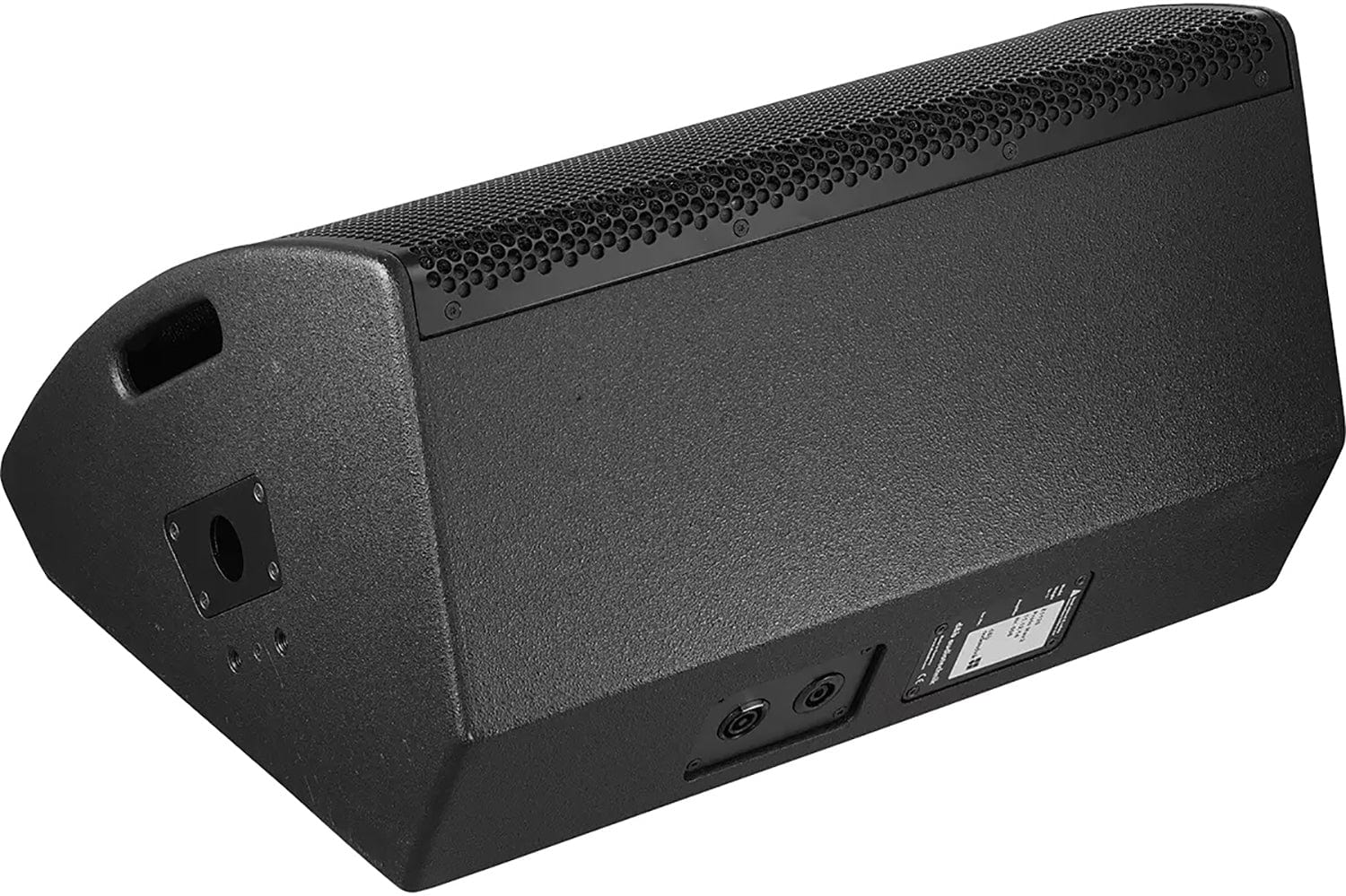

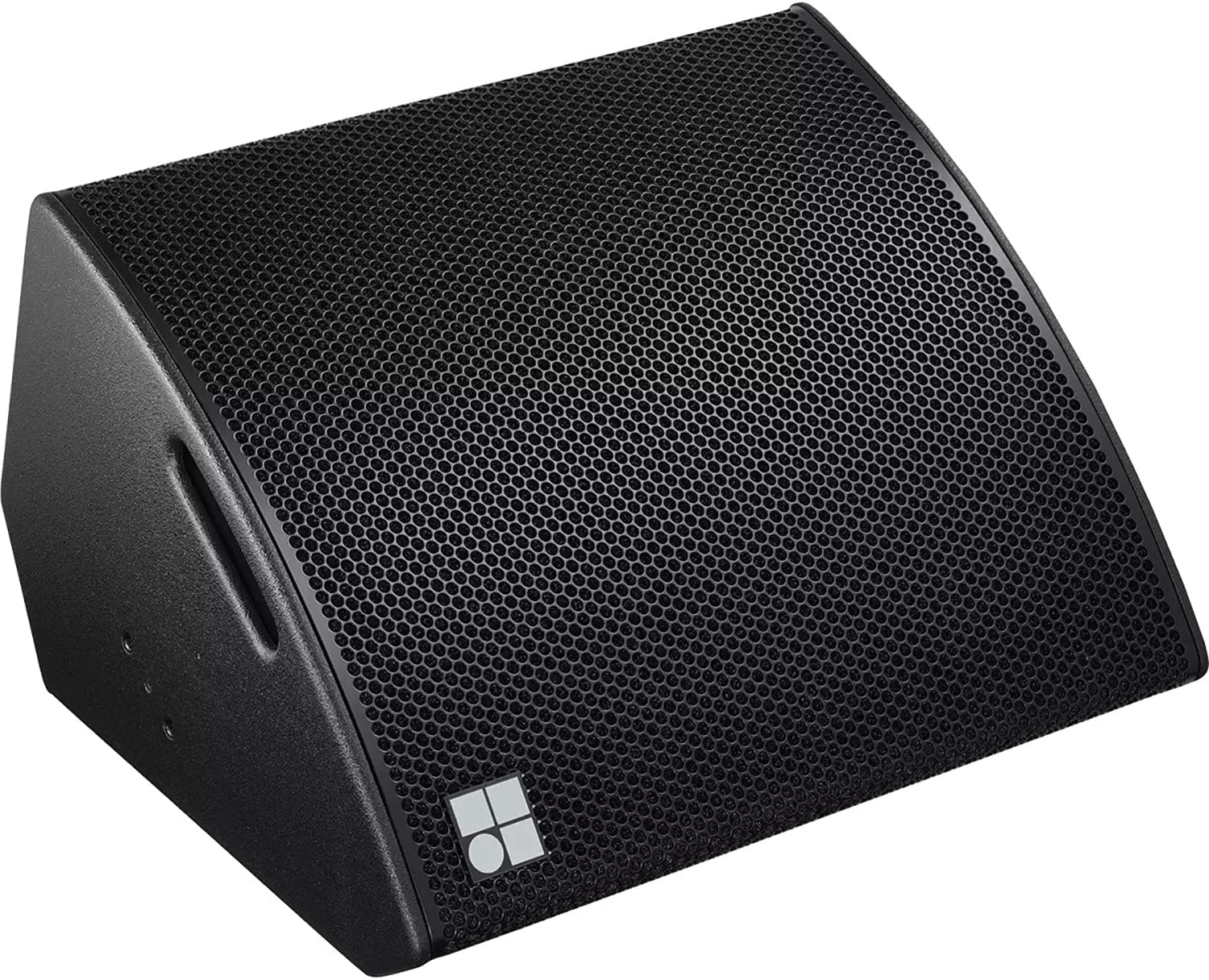

D&B Audiotechnik Z1120.001 MAX 2 Monitor with NL4 Speakon Connection
Upgrade your audio experience with the D&B Audiotechnik Z1120.001 MAX 2 Monitor! • Exceptional Sound Quality: Equipped with a 15” LF driver and a coaxially mounted 1.4” HF compression driver, delivering clear and powerful sound. • Versatile Deployment: Ideal for stage monitors, stand-alone full range systems, or combined with subwoofers as a drumfill. • Durable Build: Constructed in marine plywood with an impact resistant paint finish, ensuring long-lasting performance.
Features:
- Components 15″/1.4″
- Dispersion 75°
- SPLmax 135 dB
- Weight 23 kg / 50 lb
Specifications:
- System data:
- Frequency response (-5 dB standard): 55 Hz - 20 kHz
- Max. sound pressure:
- with 10D 131 dB
- with D20/30D 135 dB
- with D40/D80/40D 135 dB
- Cabinets per amplifier channel: 2
- Loudspeaker data:
- Configuration: 2-way stage monitor
- Nominal impedance: 8 Ω
- Power handling capacity (RMS/peak 10 ms): 250/1600 W
- Nominal dispersion angle (h x v): 75°
- Components:
- 15' driver with ferrite magnet
- coaxial 1.4' exit compression drive
- passive crossover network
- Connections: 2 x NL4
- Dimensions / weight:
- Dimensions (H x W x D): 354 x 580 x 496 mm/ 14 x 22.8 x 19.5'
- Weight: 23 kg / 50 lb
The D&B Audiotechnik Z1120.001 MAX 2 Monitor is perfect for musicians, sound engineers, and event organizers. Whether you're on stage, setting up a stand-alone system, or enhancing your drumfill, this monitor delivers. With a 15” LF driver and 1.4” HF compression driver, it offers great sound quality. It's built tough with marine plywood and impact resistant paint. Measuring 354 x 580 x 496 mm and weighing 23 kg (50 lb), it's easy to handle and install.
