Radial X-AMP Pro Active Class-A Reamping Device
Unleash Your Creativity with Active Reamp
The Radial X-Amp Pro is a game-changer for musicians and engineers. It lets you play pre-recorded tracks through guitar amps and pedals, opening up a world of new sonic possibilities. Stand out from the crowd with unique sounds!
For the Pros
Building on the success of the Radial JD7 Injector, the X-Amp Pro features a top-notch class-A circuit design optimized for guitars. Key features include a balanced line level input with LED peak indicator and level control, a class-A circuit for great reach and frequency response, a transformer isolated output to kill hum and buzz, a 180° polarity reverse switch for phase alignment, and a dual ground lift switch for noise-free operation.
Limitless Applications
Step 1: Reamp
Record a dry track with a Radial J48 and split the signal. Record the wet track with a mic so the guitarist can hear it. Send them to a musical adventure!
Step 2: Refine
Use the X-Amp Pro to send the dry track back through amps and pedals. Tweak the tone and move mics until it's perfect. Reamp anytime for a new sound.
Beyond Guitars
Experiment by sending a vocal track into a Marshall amp or a Tonebone Classic-V9 for tube warmth. Take it further by sending your kick drum to a wah pedal. The possibilities are endless!
Key Features:
- • Active Reamp with two outputs for versatile use
- • 100% discrete class-A signal path for pure tone
- • Transformer isolated to eliminate annoying noise
- • LED peak indicator and level control for easy adjustments

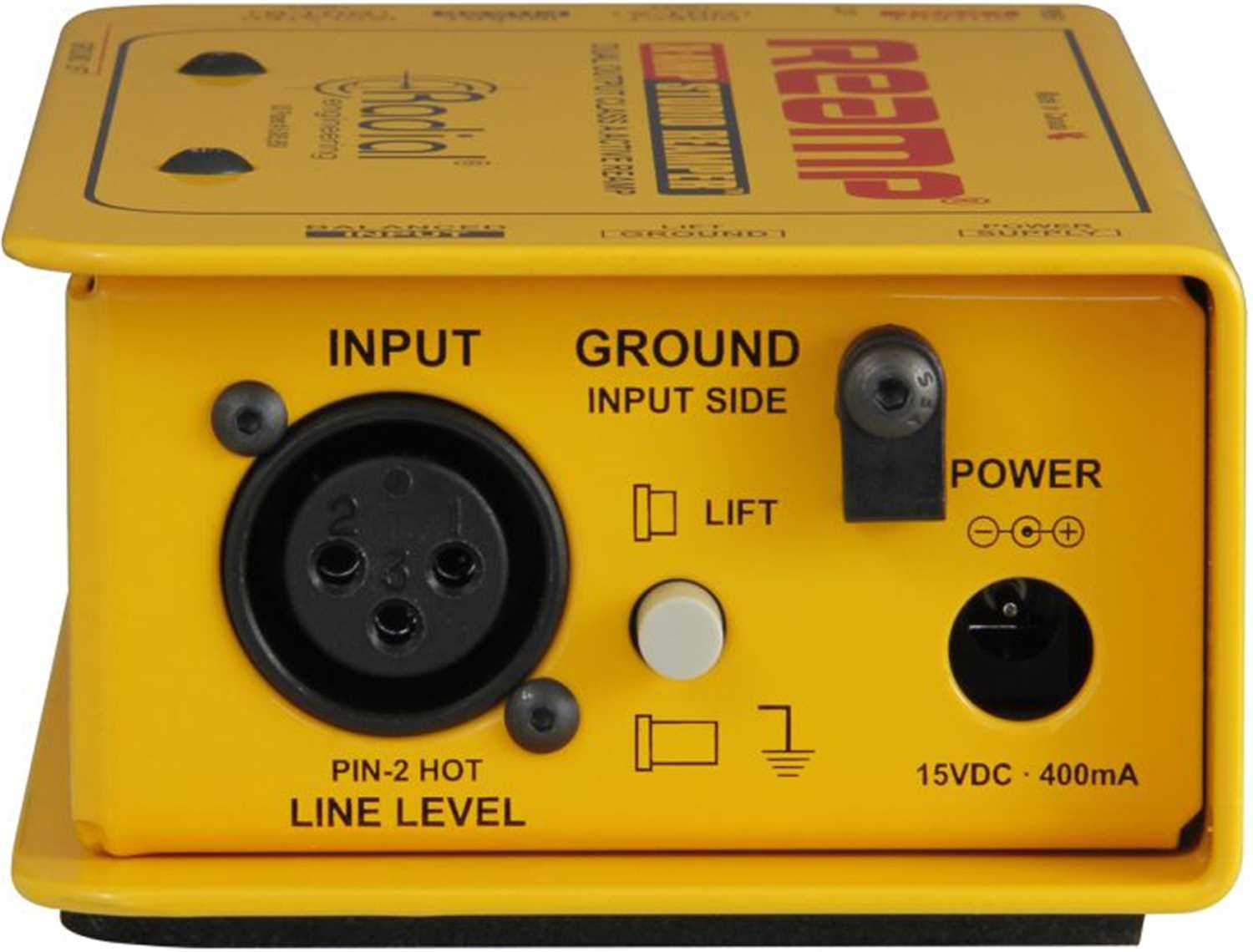

- XLR In
Balanced +4dB line level input to receive audio from the recorder. Follows AES standard. - Ground
Lifts pin-1 ground on XLR input for noise-free connections. - No Slip Pad
Neoprene pad for electrical and mechanical protection. - Power LED

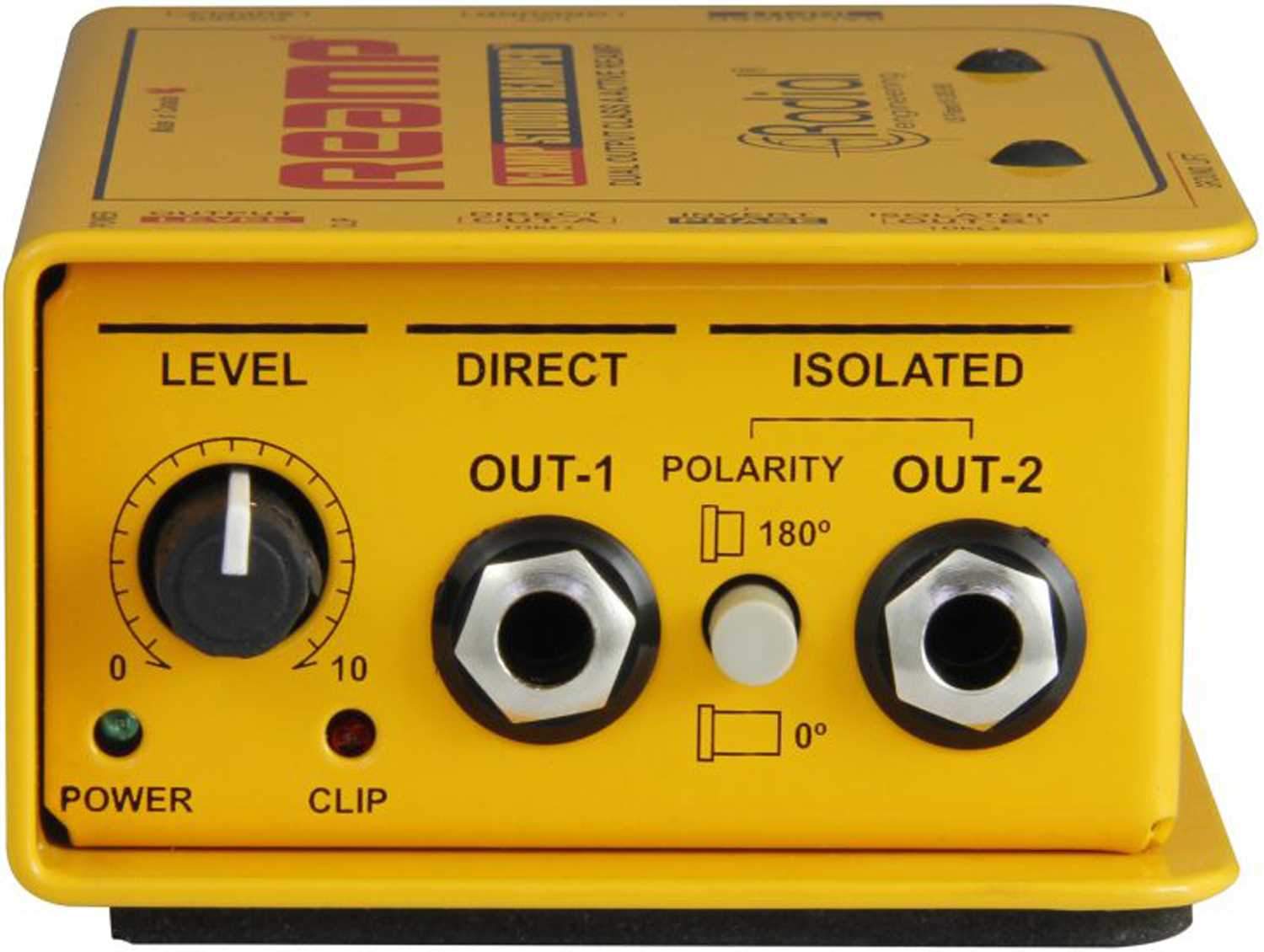

Illuminates when powered, so you know it's ready. - Level
Adjust the output level going to the amplifiers. - Clip LED
Visual cue for input signal. Turn down the source if it lights up. - Out-1
Direct buffered output for your first amp. Make sure it's grounded and safe. - 180o Polarity
Reverse the phase on output 2 for phase alignment or unique effects. - Out-2
Transformer isolated output for your second amp, avoiding ground loops. - Connector
Tough nylon XLR connector with large nickel-silver pins. - 100% Discrete
Full-sized parts for the best audio quality. Class-A design for pure tone. - Transformer
Provides 100% isolation to get rid of ground loop noise. - Ground Lift

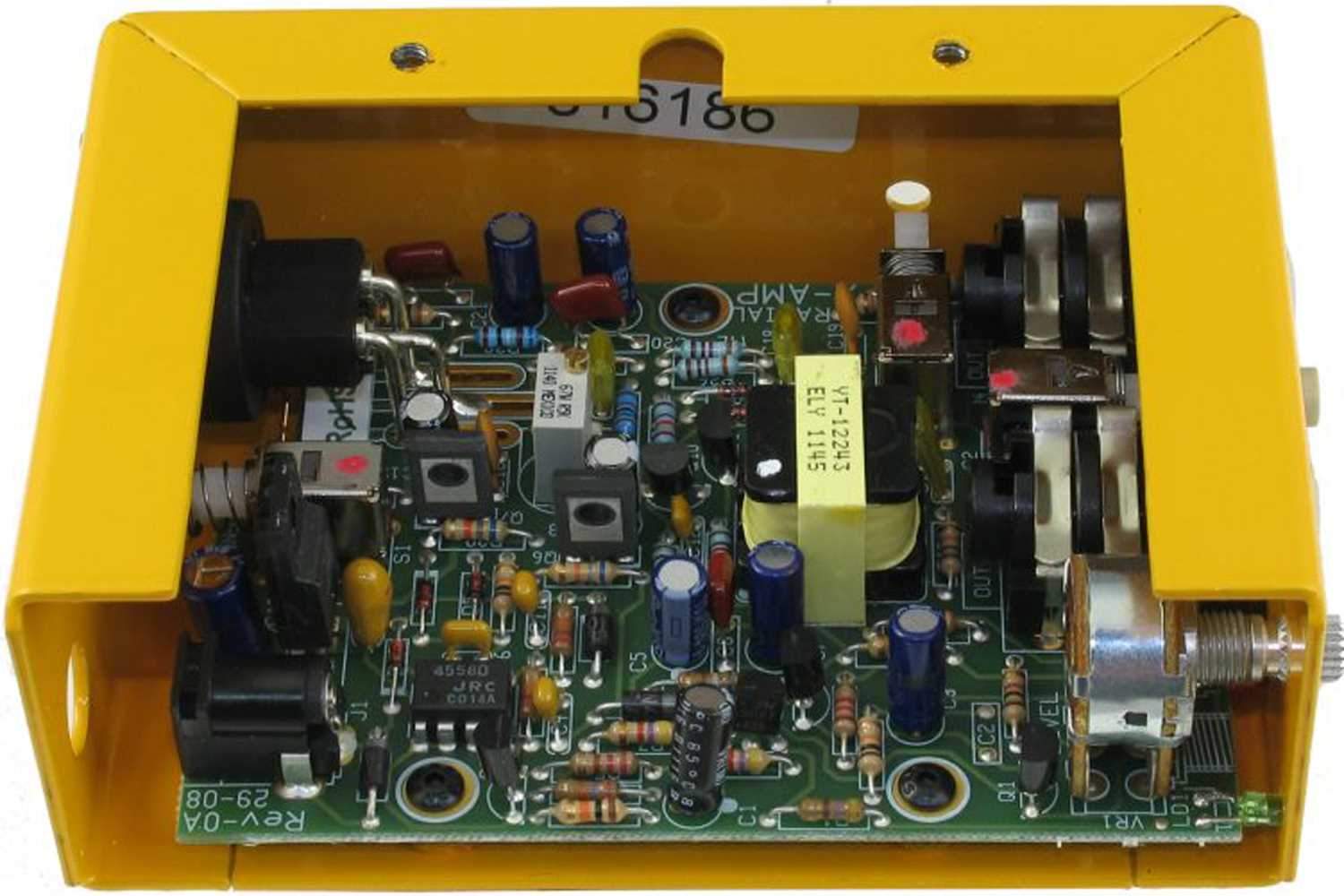

For guitar amp output 2. Alternate ground path or ground loop elimination. - Circuit Board
Double-sided military spec for durability and to reduce interference. - 14-Gauge Steel
I-Beam construction keeps the circuit board safe from damage.
Specifications:
- Audio circuit type: 100% discrete class-A
- Frequency response: 20Hz ~ 15kHz (± 1.0dB)
- Dynamic range: 119dB
- Total harmonic distortion: 0.02% @ -15dBu
- Intermodulation Distortion: 0.02% @ -20dBu
- Input Impedance: 600 ohms
- Noise: OUT-1 -110dB; OUT-2 -108dBu
- Maximum Input: +22dBu
- Features
- 180° polarity reverse, Ground lift, Level Control
- Input Connectors: XLR
- Output Connectors: 1/4' Isolated and Direct
- General
- Construction: 14 gauge steel chassis & outer shell
- Size (L x W x D): 3.3' x 5.0' x 2' (84 x 127 x 48mm)
- Weight: 1.55lb (720g)
- Shipping size (L x W x D): 5' x 2.75' x 10.75' (127 x 70 x 273mm)
- Shipping weight: 2.6lbs. (1.18kg)
- Power: +15VDC/400mA adapter included
- Conditions: For use in dry locations only between 5°C and 40°C
The Radial X-AMP Pro is perfect for musicians and engineers looking to add unique guitar tones to their recordings. It's easy to use and offers great sound quality. Use it in your home studio or on stage. The device has a 14 gauge steel chassis and outer shell, measuring 3.3' x 5.0' x 2' (84 x 127 x 48mm) in size and weighing 1.55lb (720g). Shipping size is 5' x 2.75' x 10.75' (127 x 70 x 273mm) and shipping weight is 2.6lbs. (1.18kg). It comes with a +15VDC/400mA adapter and is for dry locations only, between 5°C and 40°C.
