Allen & Heath QU-PAC-32 32-Channel Digital Mixer

Allen & Heath QU-PAC-32 Compact Digital Mixer

Unleash your mixing potential with the Qu-Pac! It packs the power and legendary quality of the Qu family into a super-compact design. Mix from your iPad, or use the front panel and touchscreen for full control.

Perfect for bands, schools, hotels, corporate events, live music bars, conferences - anyone seeking a pro mixing solution in a small footprint. Custom settings and expandability up to 38 inputs make it a scalable, reliable choice.

User permissions and customizable Qu-Control screen ensure easy and safe use for non-technical staff.

Features:

• 16 acclaimed AnaLOGIQTM recallable preamps

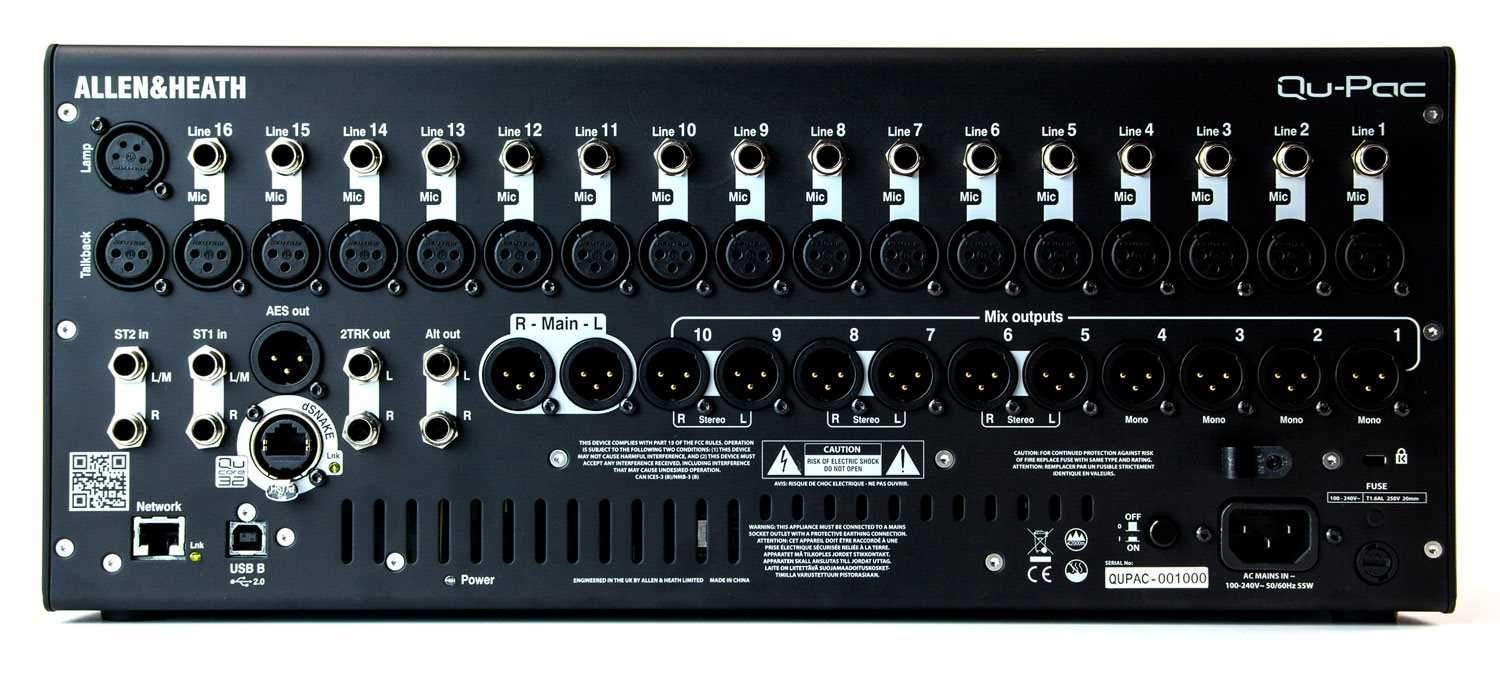

• 16 on-board Mic / Line Inputs (XLR / TRS)
• Expandable up to 38 inputs via dSNAKETM
• 3 Stereo Inputs (TRS)
• 32 Mono + 3 Stereo Input Channels
• 12 on-board Mix Outputs (XLR)
• 4 Stereo Groups
• 2 Stereo Matrix Outs
• AES Digital Out
• 4 DCA Groups
• 4 Mute Groups
• Qu-Pad iPad App for all live mixing controls
• Qu-You iPhone App for personal monitoring
• Qu-Drive direct Multitrack Recording / Playback on USB drives
• 15 Soft Keys
• 16 Custom Select keys
• Qu-Control custom screen to suit application
• 4 FX Engines
• 4 FX Sends / Returns
• 32¡Á32 USB Audio Interface
• 5' Touchscreen
• iLive FX Library
• Compatible with ME Personal Mixing System
• Trim, polarity, HPF, gate, insert / ducker, 4-band PEQ, compressor and delay on all Inputs
• Insert, 4-band PEQ, 1/3 octave GEQ, compressor and delay on all Mix outputs
• Built-in Signal Generator
• RTA with Peak Band indication

QU-PAD

Enhance your mixing experience with the Qu-Pad iPad app. Control monitors, adjust PA, and mix from the audience. Connect via Wi-Fi* for instant access to live mixing parameters.

TOUCH CONTROL

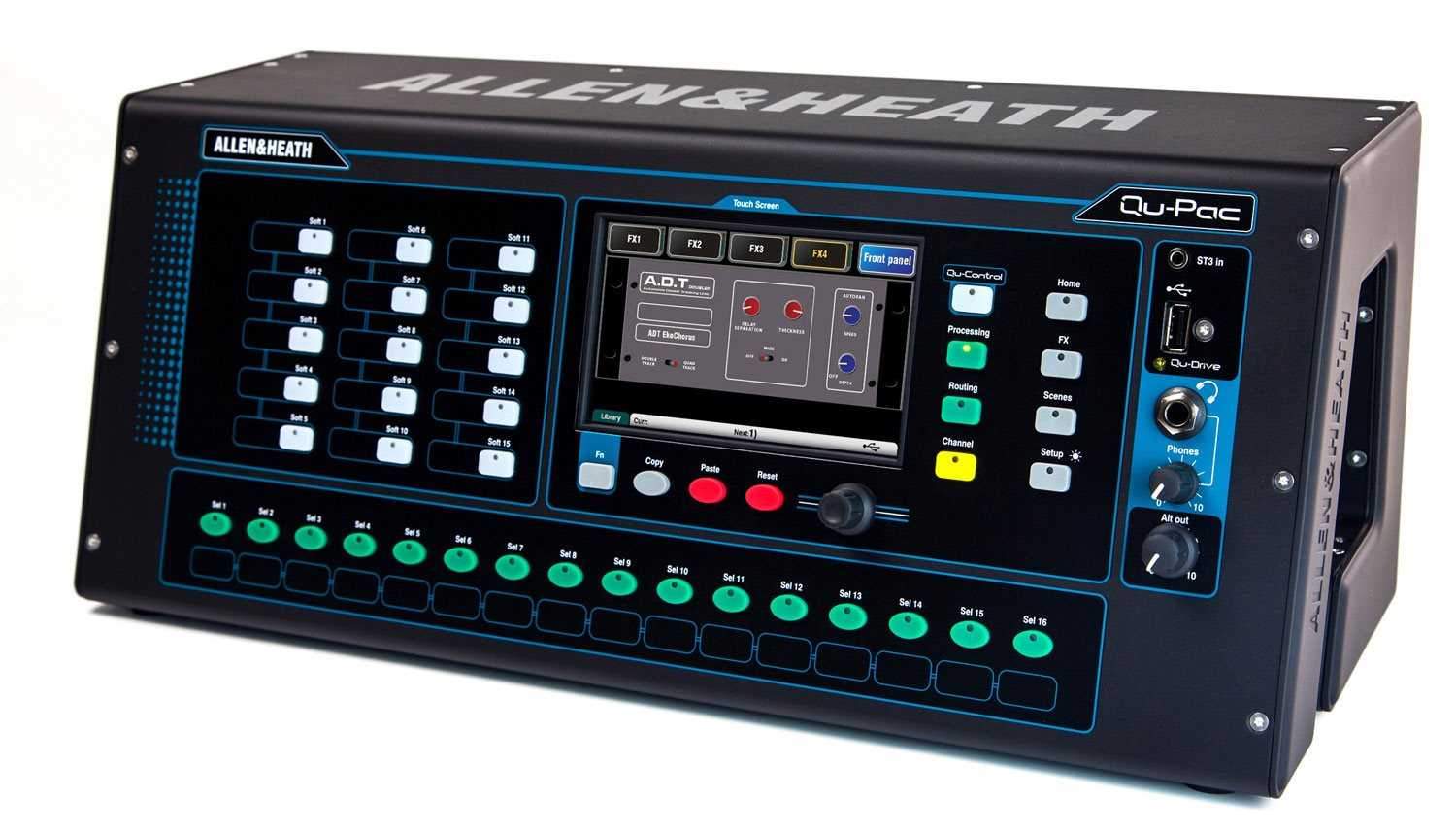

The 5-inch touchscreen and data encoder are the heart of the Qu interface. Fast, easy access to settings with a user-friendly design. Dedicated keys and tabs lead to meter, RTA, FX, and more views.

The Qu-Control key brings up a customizable screen for tailored channel and setting access. Widgets like channel levels, mutes, and switches can be arranged as needed.

ANALOGIQTM PREAMPS

Our AnalogiQ preamps offer zero crossing detection and 1dB step gain. High-quality converters ensure optimal gain accuracy and audio transparency.

DSNAKETM

Qu mixers are self-contained, but dSNAKE port allows for future-proofing with Cat5 digital snake. Low latency connection to AudioRacks.

ILIVE FX

Qu's FX algorithms are from the iLive pro series. 4 stereo iLive FX engines with classic reverbs and more. Expandable FX library.

USB AUDIO STREAMING

Stream multitrack audio to Mac or PC via flexible patching. Class-compliant on Mac, drivers available for Windows. Recognized by major DAWs.

QU-DRIVE

Integrated multitrack USB recorder for easy 48kHz, 24bit recording and playback. Independent controls for main LR and 2-track USB return.

CHANNEL DUCKER

Advanced yet easy-to-use Ducker on every channel. Auto signal attenuation for various applications like reducing background music during announcements.

ARMED TO THE HILT

Qu mixers have 5 high-efficiency ARM cores for processing. Next-generation dual core DSPs ensure future-proofing and ample capacity.

ME PERSONAL MIXING SYSTEM

Qu mixers are fully compatible with our ME Personal Mixing System. Chain multiple ME-1 personal mixers from the dSNAKE port.

The Allen & Heath QU-PAC-32 Compact Digital Mixer is perfect for bands, schools, hotels, corporate events, live music bars, and conferences. It's designed for those seeking a professional mixing solution in a small footprint. With features like 16 AnaLOGIQTM recallable preamps, expandable inputs, and compatibility with iPad apps, it offers great flexibility. It has 32 Mono + 3 Stereo Input Channels, 12 on-board Mix Outputs (XLR), and various other functions for a complete mixing experience.
