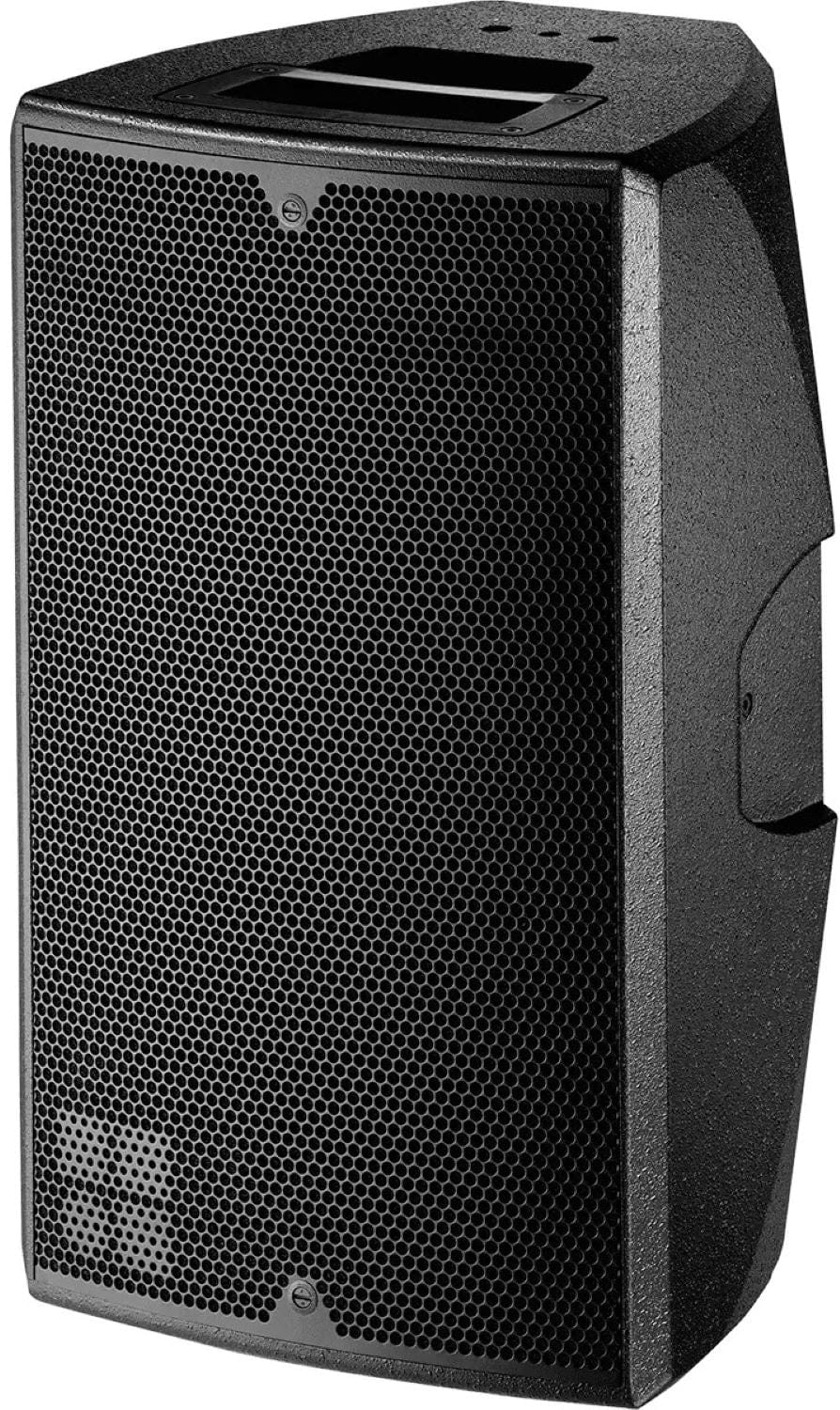

D&B Audiotechnik Z0602.001 E12-D 12-Inch NL4 Passive Loudspeaker

D&B Audiotechnik Z0602.001 E12-D 12-Inch NL4 Passive Loudspeaker

• ：E12E12-D，2，！
• ：，，
• ：，，，，，IP54，

Specifications:

• System data:
  • Frequency response (-5 dB standard): 50 Hz - 18 kHz
  • Frequency response (-5 dB CUT mode): 100 Hz - 18 kHz
  • Max. sound pressure
    • with 10D: 130 dB
    • with D20/30D: 133 dB
    • with D40/D80/40D: 133 dB
  • Cabinets per amplifier channel: 2
• Loudspeaker data:
  • Configuration: High performance 2-way coaxial loudspeaker with wide dispersion
  • Nominal impedance: 8 Ω
  • Power handling capacity (RMS/peak 10 ms): 300/1600 W
  • Nominal dispersion angle (h x v): 110° x 50° rotatable through 50° x 110°
  • Components:
    • 12' driver with neodymium magnet
    • 1.3' exit compression driver with 3” coil and rotatable CD horn
    • passive crossover network
  • Connections:
    • 2 x NL4

• Dimensions / weight:
  • Dimensions (H x W x D):
    • 580 x 350 x 334 mm
    • 22.8 x 13.8 x 13.2'
  • Weight:
    • 16 kg
    • 35 lb
