Q-SYS DPM-300H 10-Channel Digital Cinema Audio Processor

Q-SYS DPM-300H Digital Cinema Audio Processor - Your Gateway to Immersive Sound

Discover the ultimate solution for today's D-Cinema audio systems with QSC's DPM. From server to speakers, it offers a complete set of tools for signal processing, audio distribution, monitoring, and automation control.

• Builds on QSC's legacy for all Digital Cinema signal processing and monitoring in one integrated system
• Optimizes loudspeaker performance with advanced settings and simplifies wiring and configuration
• Configurable for various operations and compatible with multiple audio formats

This powerful audio processor is a must-have for both single auditorium and large multiplex designs. It provides flexibility in configuration, networking, audio distribution, and advanced management services to get the job done.

Features:

• Accepts digital and analog audio from multiple sources, including D-Cinema servers and film processors
  • Decodes Dolby Audio and DTS-HD for enhanced sound quality
  • Features QSC Intrinsic Correction for optimal speaker performance
  • Offers master volume and EQ control on all channels

Specifications:

• Dimensions & Accessories:
  • 3.5' (2 RU) x 19' x 15'
    Line voltage: 100 - 240 VAC, 50/60 Hz
    Includes 6 ft UL/CSA line cord and Connector Kit

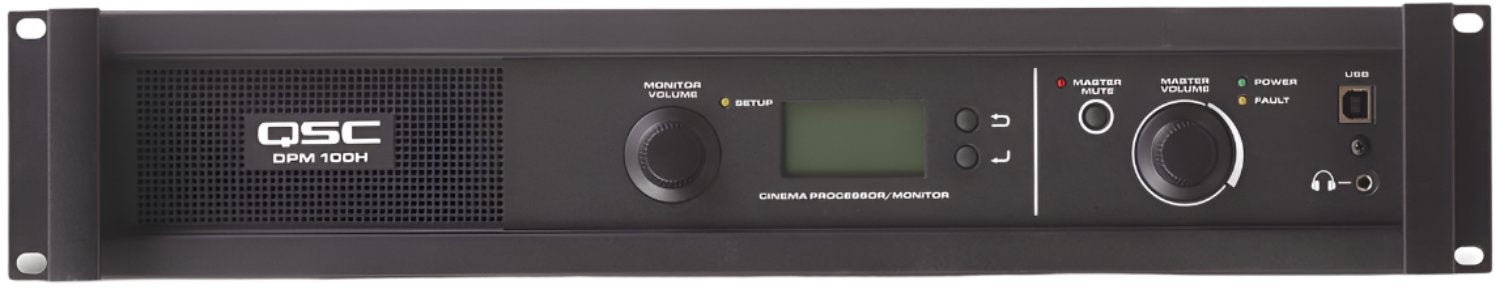

• Front Panel Controls and Indicators:
  • Monitor Volume/parameter adjust: Rotary encoder
    128 x 64 bit Monochrome LCD
    Master Mute: Push buttons
    Master Volume: Rotary encoder
    USB Type B port for config and management
    Monitor output: 3.5 mm TRS

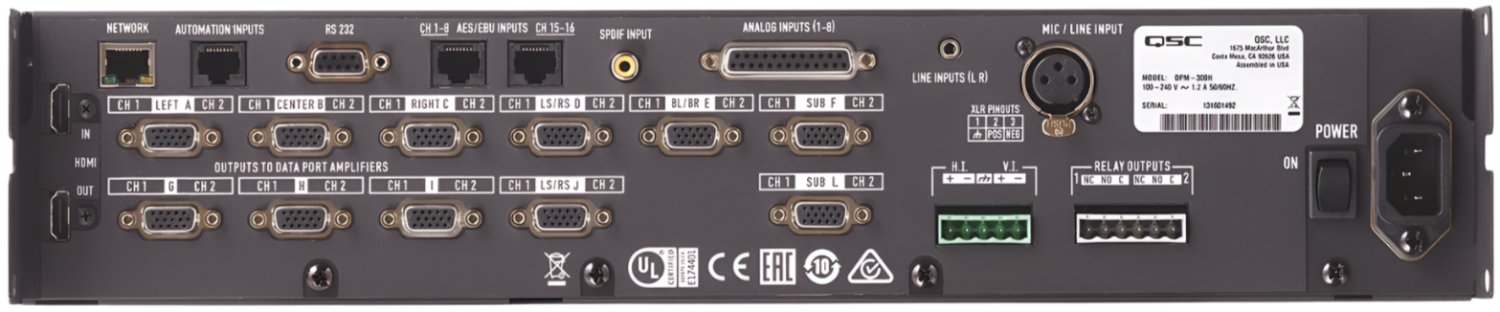

• Rear Panel Connectors:
  • Network RJ45 for 10/100 Mbps management
    Automation Inputs: RJ45 - 6 contact closure inputs
    RS232: DB-9 Serial Interface
    Multiple audio inputs and outputs for various connections
• Monitor Speaker:
  • 2'x 3.5' full-range
• Audio Performance:
  • 24-bit delta-sigma A/D conversion at 48 kHz
    Frequency response: 20 Hz to 20 kHz (+- .5dB)
• Inputs/Outputs:
  • Main Analog Input: 8-channel DB25F
    Multiple analog and digital input/output options with specific impedance and level details

This Q-SYS DPM-300H Digital Cinema Audio Processor is designed for cinema owners and audio professionals. It's perfect for creating immersive sound experiences in single auditoriums or large multiplexes. With dimensions of 3.5' (2 RU) x 19' x 15' and line voltage requirements of 100 - 240 VAC, 50/60 Hz, it's easy to install and use. The included 6 ft UL/CSA line cord and Connector Kit make setup a breeze.
