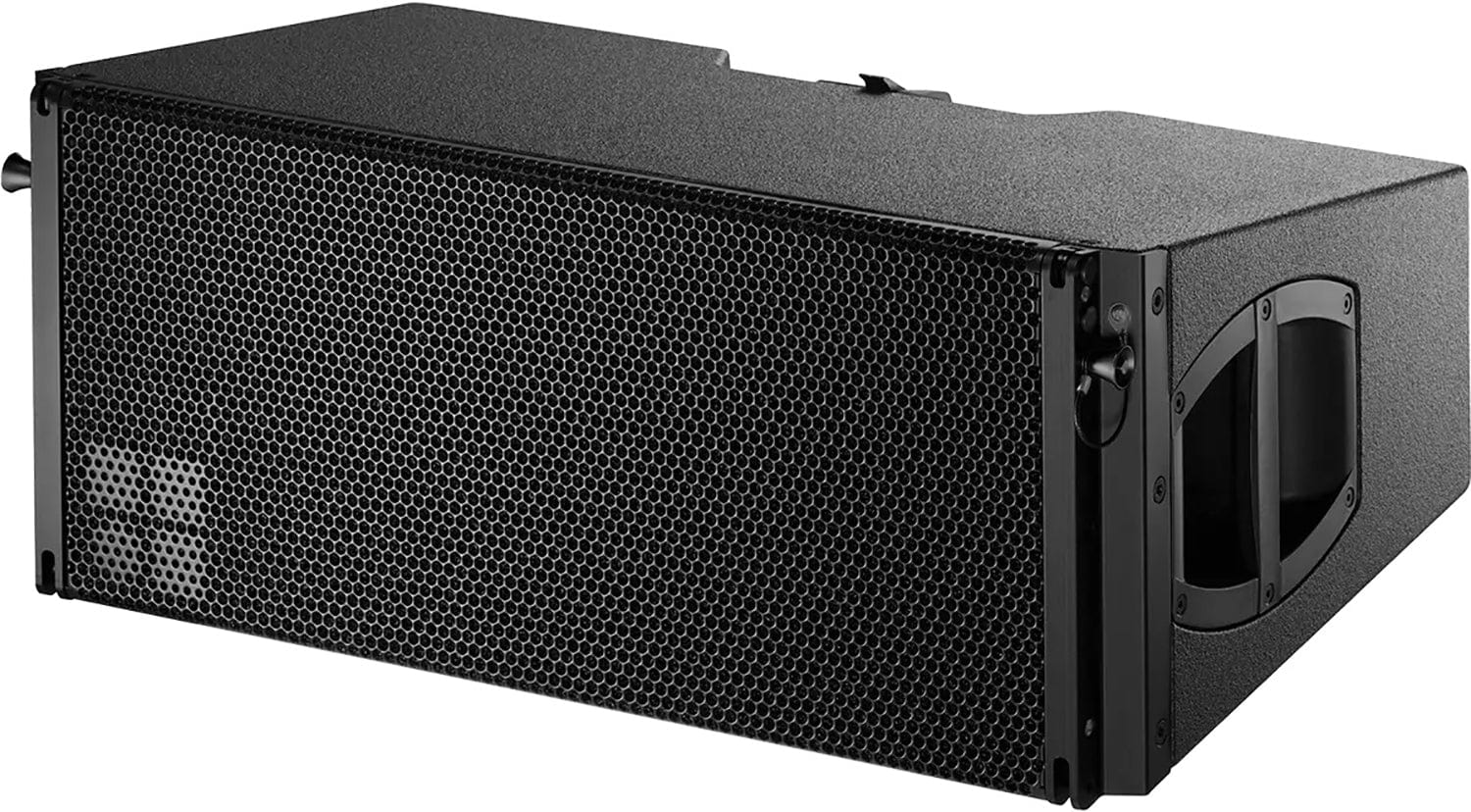

D&B Audiotechnik Z0708.001 Y12 High-Performance Loudspeaker with NL4 Connections

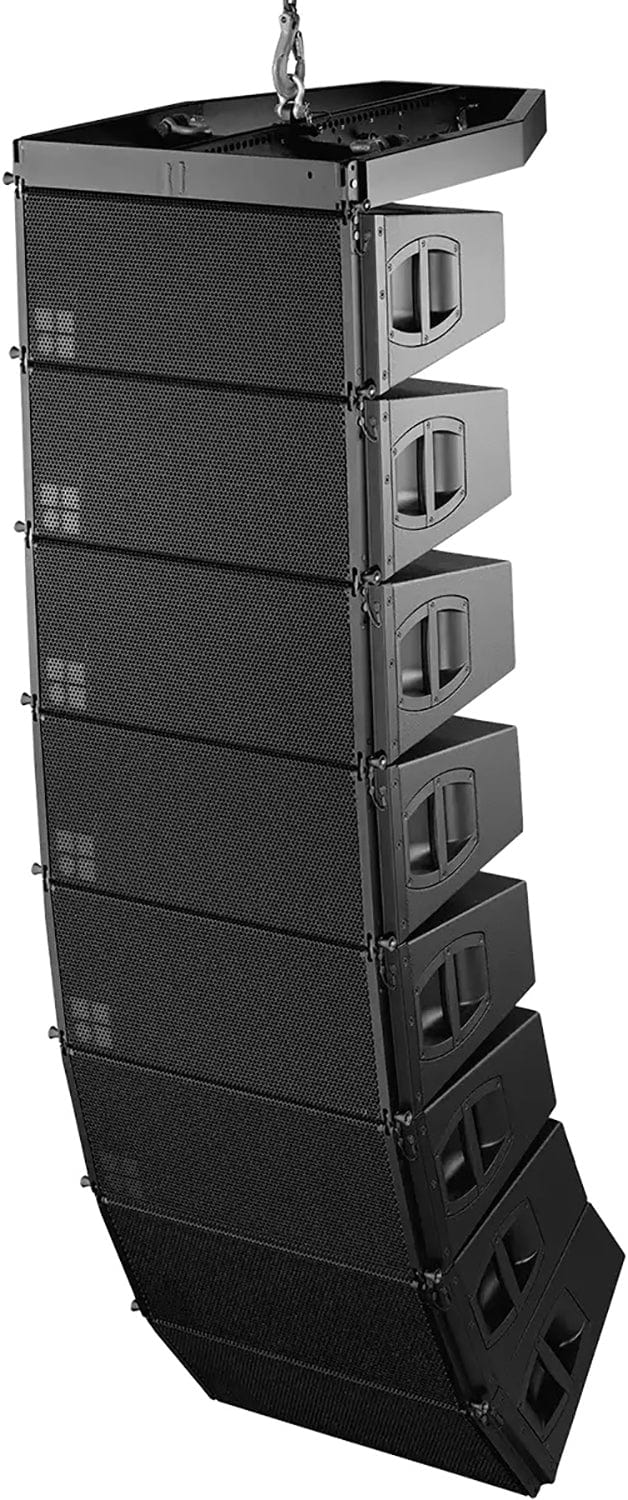

• Compact and powerful, perfect for vertical column setups.
• Delivers full bandwidth sound with extended LF output.
• Offers 120° horizontal directivity controlled down to 500 Hz.
The Y12 line array loudspeaker is a top choice for those seeking high-quality sound in various applications. Its sophisticated design and advanced features make it stand out. With its compact size, it can be easily integrated into different spaces. The full bandwidth capabilities ensure clear and rich sound across the spectrum, while the extended LF output adds depth and impact. The 120° horizontal directivity provides wide coverage, making it ideal for large venues or events. Whether it's for concerts, conferences, or live performances, the Y12 is a reliable choice.
In terms of technical specifications, the loudspeaker cabinet is 257 x 630 x 375 mm (10 x 24.8 x 14.8') and weighs 20 kg (44 lb). It has a frequency response (-5 dB standard) of 54 Hz - 19 kHz and (-5 dB CUT mode) of 100 Hz - 19 kHz. The max. sound pressure varies depending on the amplifier used, with 134 dB with 10D, 137 dB with D20/30D, and 139 dB with D40/D80/40D. It has a nominal impedance of 8 Ω and a power handling capacity (RMS/peak 10 ms) of 400/1600 W. It comes with 2 x NL4 connections.
Use in vertical columns for concerts, conferences, live performances, etc. Targets event organizers, sound engineers, and anyone seeking high-quality sound. Cabinet dimensions: 257 x 630 x 375 mm (10 x 24.8 x 14.8'), weight: 20 kg (44 lb). Frequency response (-5 dB standard): 54 Hz - 19 kHz, (-5 dB CUT mode): 100 Hz - 19 kHz. Max sound pressure varies with amplifier. Nominal impedance: 8 Ω, power handling capacity (RMS/peak 10 ms): 400/1600 W. 2 x NL4 connections.
