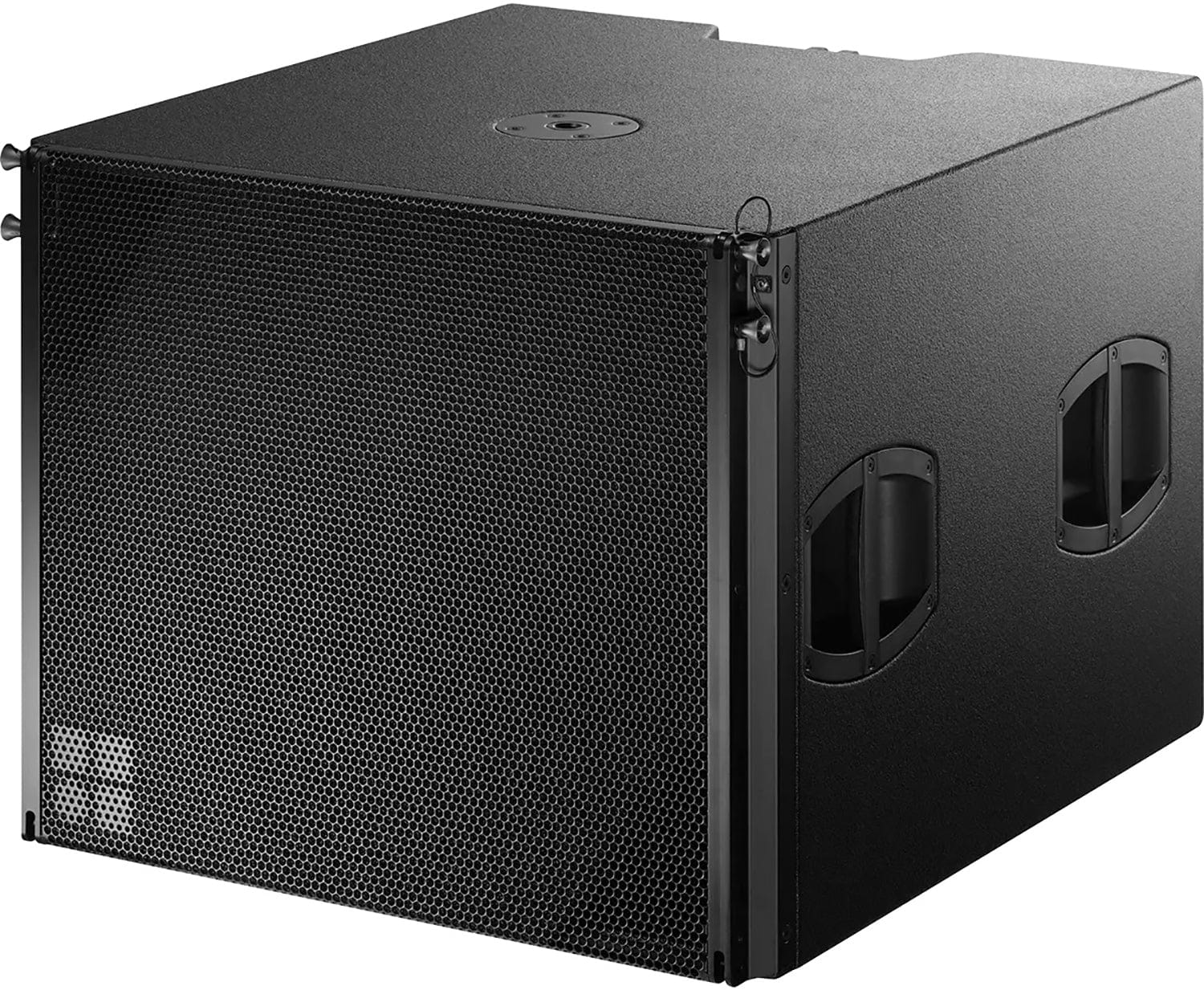

D&B Audiotechnik Z0709.001 Y Subwoofer - The Ultimate Bass Powerhouse
• Unmatched Cardioid Design: Our Y-SUB subwoofer features an innovative cardioid setup that ensures precise low-frequency reproduction and minimizes energy waste. With two long excursion neodymium drivers working in harmony, it delivers a punchy bass that will leave you in awe.

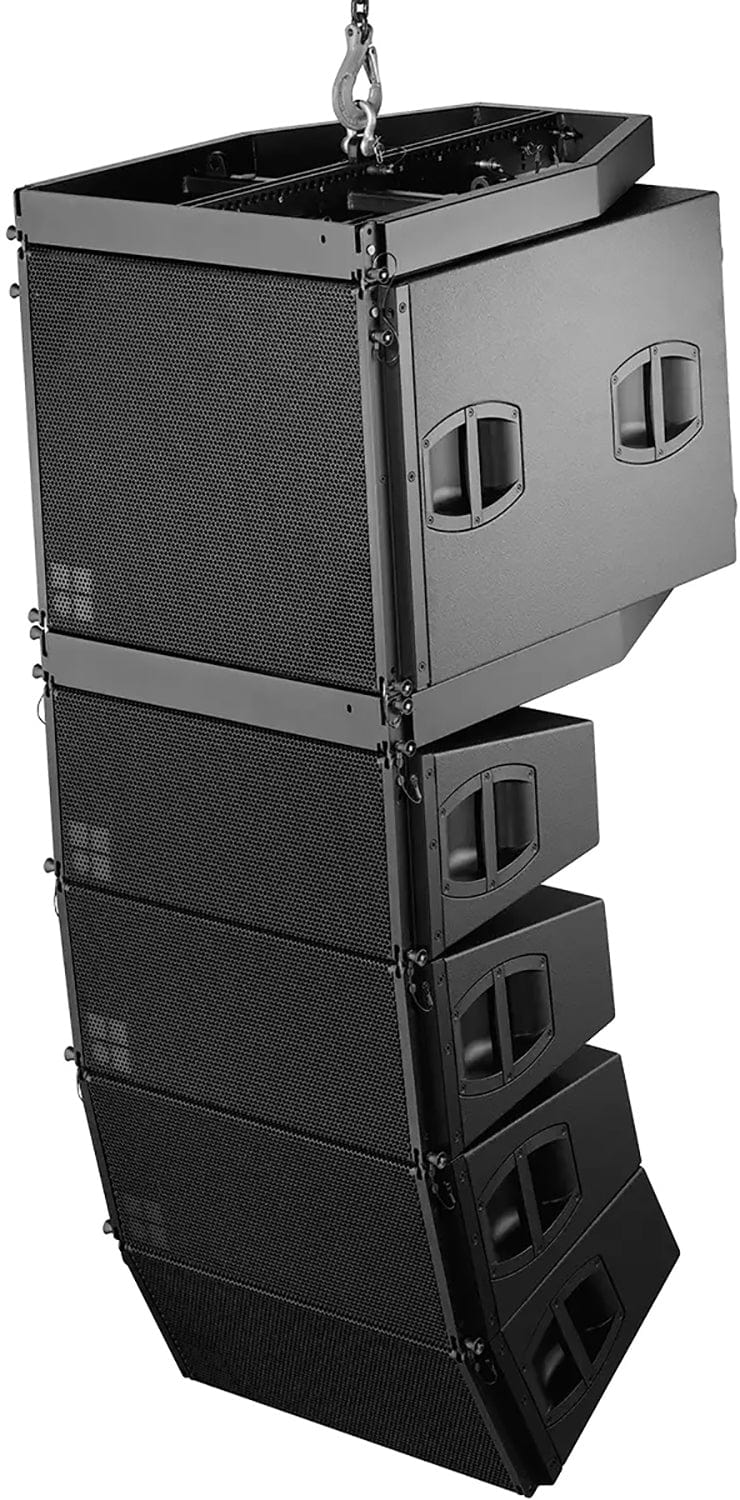

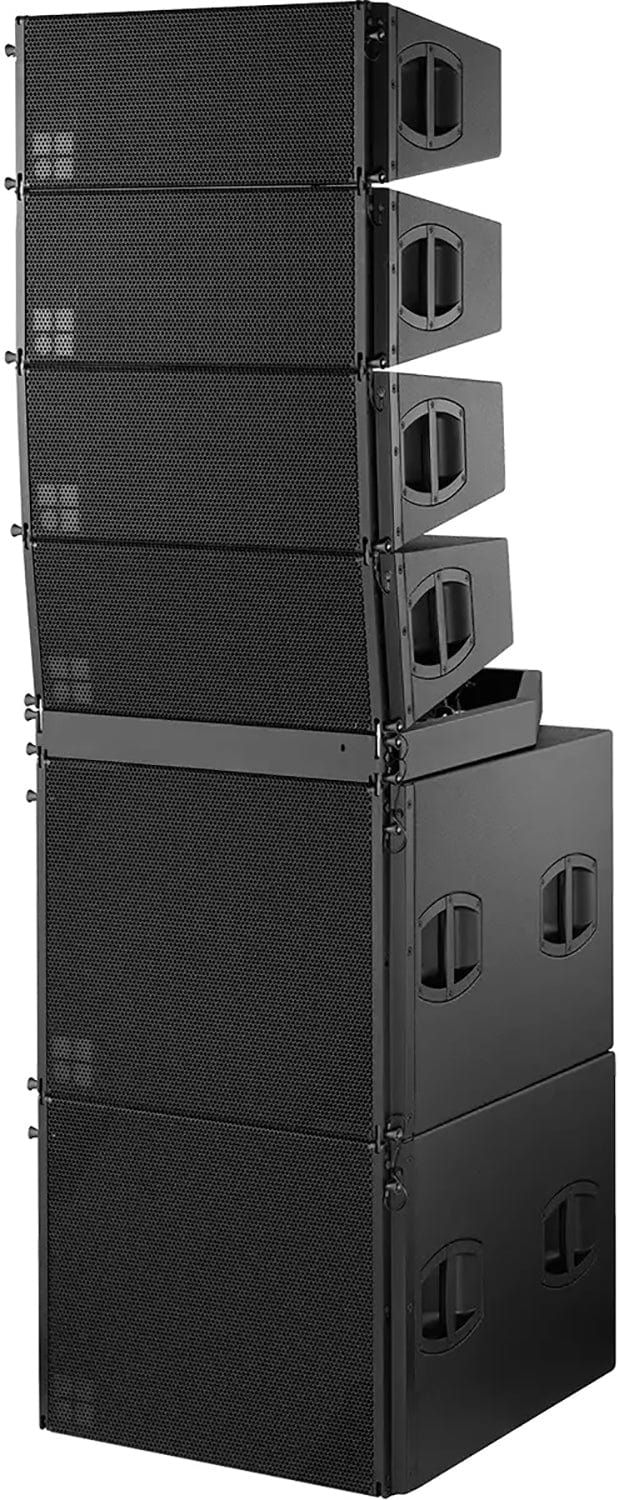

• Versatile Setup Options: Whether you're flying it in a column of Y subwoofers, mounting it at the top of a Y array, or using it in a ground stacked setup, the Y-SUB can adapt to your needs. Its three-point rigging hardware makes installation a breeze.
• Durable and Reliable: Built from marine plywood with a tough PCP finish, this subwoofer can withstand the rigors of any environment. The rigid metal grill and acoustically transparent foam protect the speakers, while the handles and wheels make transportation easy.
Specifications:
- System data:
- Frequency response (-5 dB standard): 39 Hz - 140 Hz
- Frequency response (-5 dB CUT mode): 39 Hz - 110 Hz
- Max. sound pressure:
- with 10D: 128 dB
- with D20/30D: 131 dB
- with D40/D80/40D: 134 dB
- Cabinets per amplifier channel: 2
- Loudspeaker data:
- Configuration: High performance flyable cardioid subwoofer
- Nominal impedance: 8 Ω
- Power handling capacity (RMS/peak 10 ms): 600/2400 W
- Nominal dispersion angle (horizontal): 120°
- Splay angle settings: 0° and 2.5°
- Components:
- 1 x 18' driver with neodymium magnet
- 1 x 12' driver with neodymium magnet
- Connections: 2 x NL4
- Dimensions / weight:
- Dimensions (H x W x D): 500 x 630 x 700 / 804 mm (19.7 x 24.8 x 27.6 / 31.6')
- Weight: 52 kg (115 lb)
The D&B Audiotechnik Z0709.001 Y Subwoofer is perfect for professional audio setups. It's great for live events, concerts, and clubs. Musicians, event organizers, and sound engineers will love it. With dimensions of 500 x 630 x 700 / 804 mm (19.7 x 24.8 x 27.6 / 31.6') and a weight of 52 kg (115 lb), it's easy to handle and install. Its cardioid design provides precise low-frequency reproduction, and it offers versatile setup options. Whether you're on stage or on the ground, this subwoofer will deliver an amazing audio experience.
