D&B Audiotechnik Z0440.000 E4 4-Inch NL4 Passive Loudspeaker

D&B Audiotechnik Z0440.000 E4 Compact 4-Inch Passive Loudspeaker

The E4 is a lightweight 2-way passive loudspeaker. It's perfect for mobile near field applications! • Neodymium LF driver and coaxially mounted dome tweeter for great sound. • Offers wide symmetrical dispersion in both horizontal and vertical planes. • Compact sealed enclosure, weather protected, great for outdoor use too!

Features:

• Components 4'/0.75'
• Dispersion 100° conical
• SPLmax 115 dB
• Weight 1.1 kg / 2.4 lb

Specifications:

• System data:
  • Frequency response (-5 dB standard): 130 Hz - 20 kHz
  • Frequency response (-5 dB CUT mode): 180 Hz - 20 kHz
  • Max. sound pressure:
    • with 10D: 114 dB
    • with D20/5D/30D: 115 dB
    • with D40/D80/40D: 115 dB
  • Cabinets per amplifier channel4
• Loudspeaker data:
  • Configuration: 2-way compact coaxial loudspeaker
  • Nominal impedance: 16 Ω
  • Power handling capacity (RMS/peak 10 ms): 60/400 W
  • Nominal dispersion angle (h x v): 100° conical
  • Components:
    • 4' driver with neodymium magnet
    • 0.75' dome tweeter coaxially mounted
    • passive crossover network
  • Connections:
    • 2 x NL4
    • two pole push terminal
• Dimensions / weight:
  • Dimensions (H x W x D):
    • 150 x 120 x 106 mm
    • 5.9 x 4.72 x 4.2'
  • Weight:
    • 1.1 kg
    • 2.4 lb

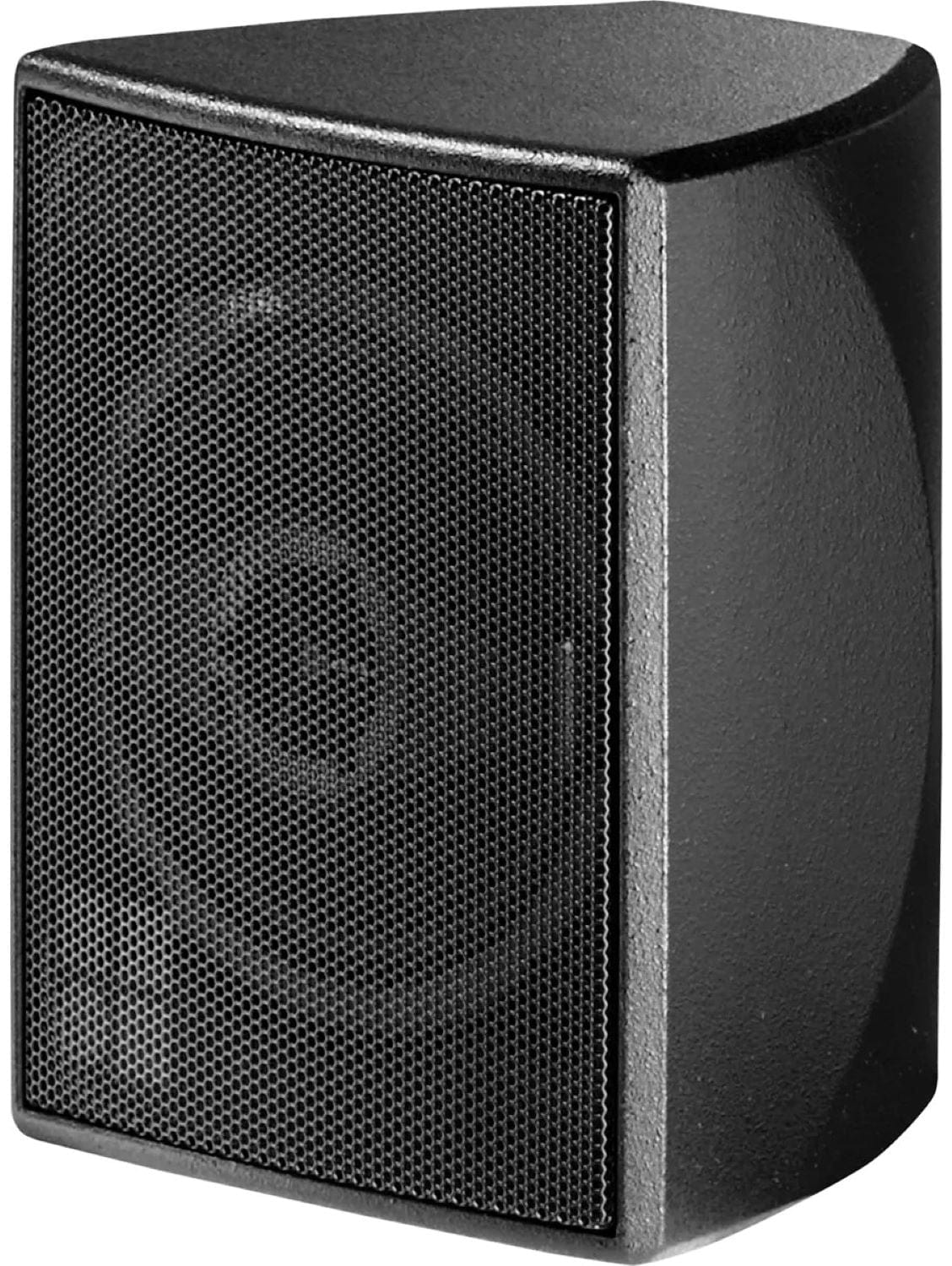

This D&B Audiotechnik Z0440.000 E4 Compact 4-Inch Passive Loudspeaker is designed for mobile near field applications. Ideal for use in theatres, conferences, industrial presentations, broadcast studios and as surround sound, delay and fill systems. It can be used stand-alone or with different subwoofers from the E-Series. With a highly compact sealed enclosure, it's injection moulded with an impact resistant black paint finish. Weather protected, suitable for outdoor use as standard and also available with a Special Colour (SC) option. Dimensions are 150 x 120 x 106 mm (5.9 x 4.72 x 4.2') and it weighs 1.1 kg (2.4 lb).
