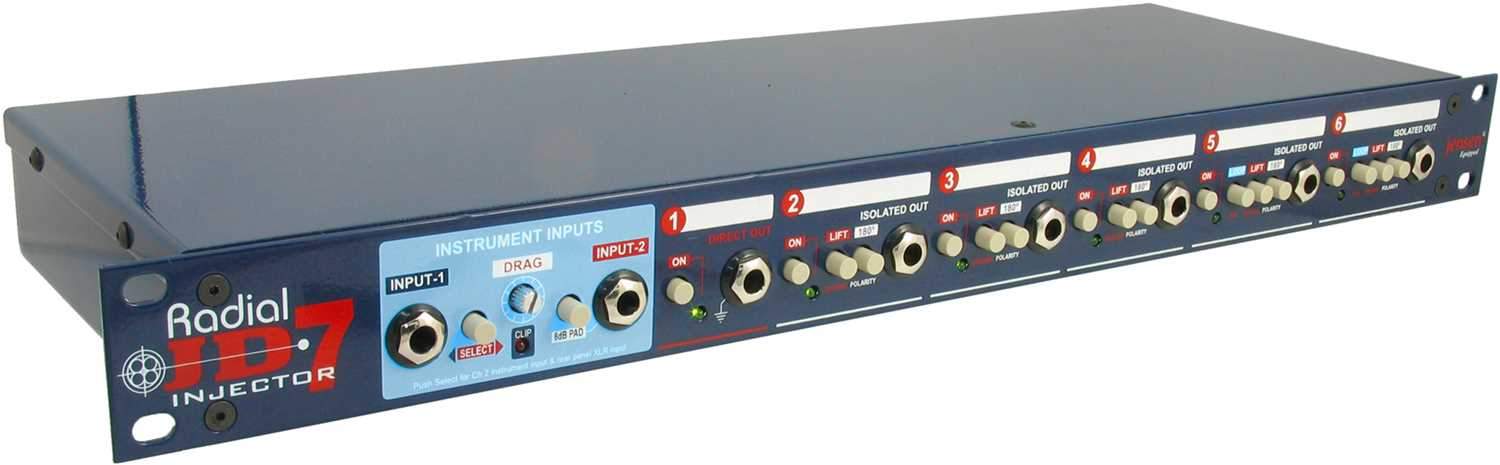

Radial JD7 Pro Guitar Signal Splitter & Distro
Take your guitar sound to the next level with the Radial JD7! Ideal for studio sessions and live performances, this powerful signal splitter allows you to drive up to seven amplifiers simultaneously without any noise, signal loss, or hum.
Natural Tone, Quiet Operation
Featuring premium Jensen transformers on the outputs, the JD7 ensures distortion-free signal transfer while blocking hum and buzz from ground loops. The Drag control load correction on the input helps retain the natural tone of your instrument, giving you the same great sound as connecting directly to an amplifier.
Record Direct and Reamp with Ease
The built-in Radial DI box allows you to take a clean guitar track directly to your recording interface while playing through multiple amplifiers. The Reamp input lets you send your recorded track back through any or all of your amps, giving you the freedom to experiment with different tones and effects later.
Versatile and Easy to Use

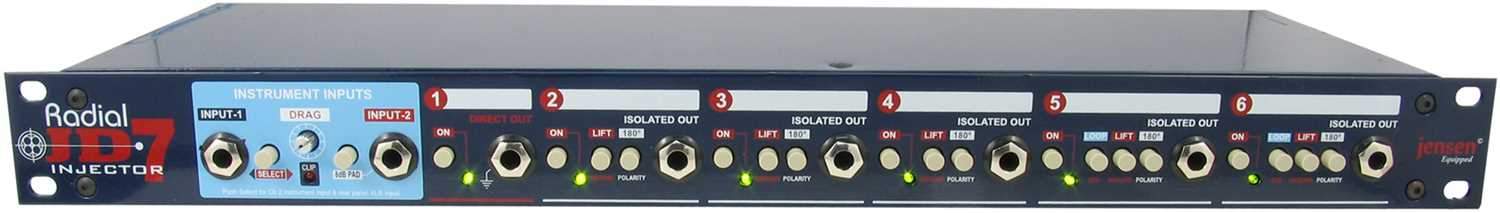

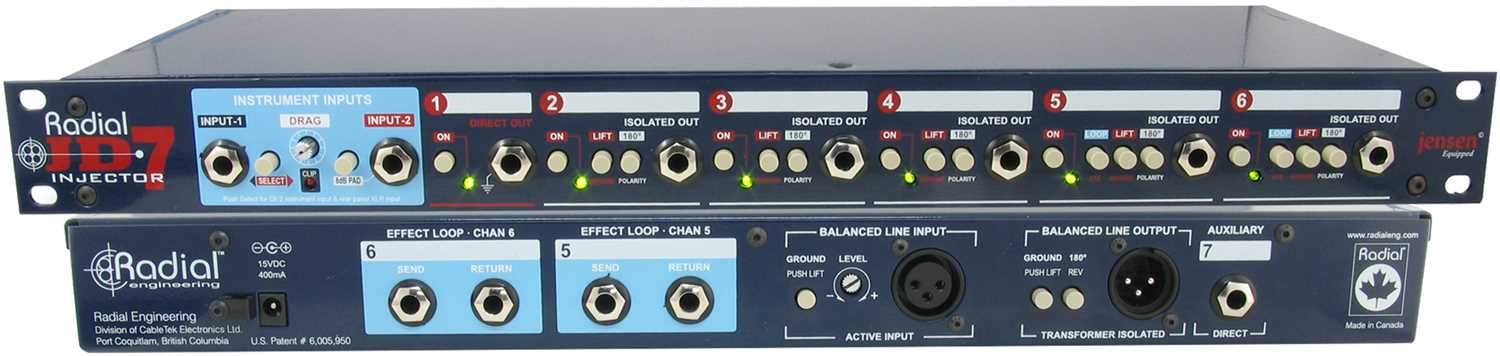

With A or B inputs, 6 guitar outs on the front panel, and a tuner out on the rear, the JD7 is perfect for splitting your guitar signal and driving multiple amps. All outputs are isolated to eliminate hum and buzz, and the intuitive controls make it easy to use in any setting.
Features:
- Drive up to 7 amplifiers and 2 effects loops at the same time

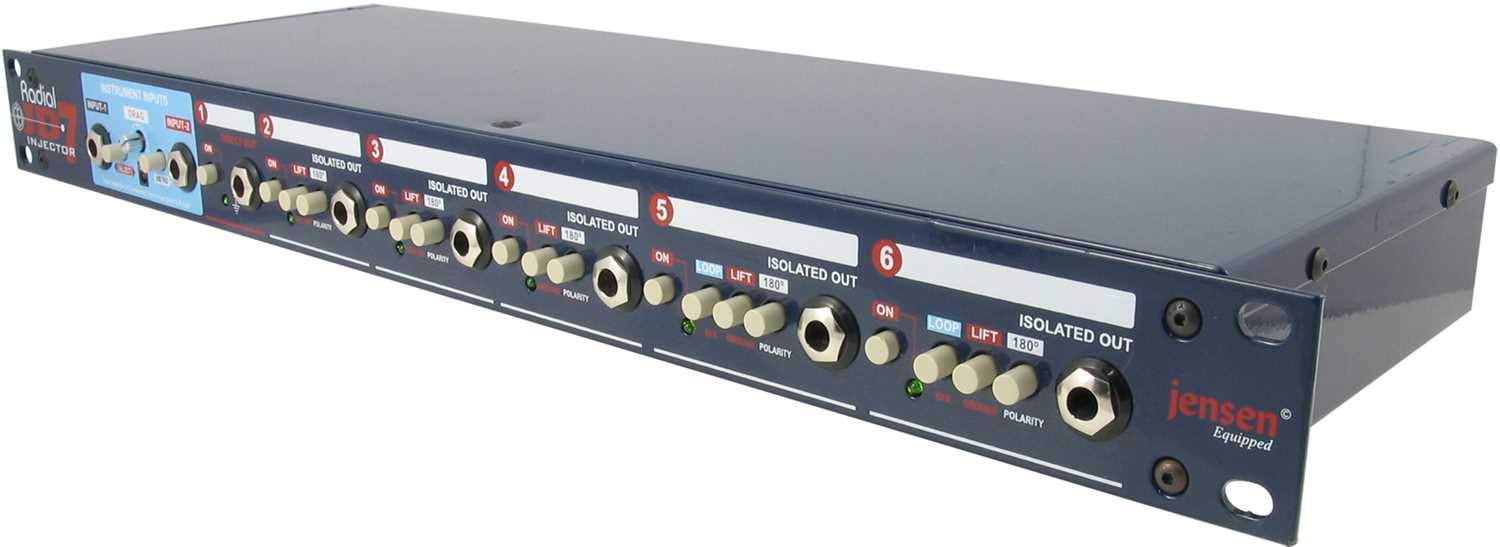

- Jensen transformer isolation for clean, noise-free sound
- Built-in Radial Direct box and Reamp capabilities
- Drag control load correction for natural tone
- Input A: High impedance unbalanced input for connecting your guitar
- A/B Selector: Choose between input A, input B, or the Reamp input
- Drag Control: Adjust the load on the pickup for a more natural sound
- -8dB Pad: Protect against overload from high output instruments
- Input B: High impedance jack for a second guitar with priority switching
- Output 1: Primary output for grounding the guitar through the first amp
- Output 2-4: Transformer isolated outputs for driving multiple amps
- Output 5-6: Transformer isolated outputs for driving multiple amps
- Power: Connect the external 15V power supply included

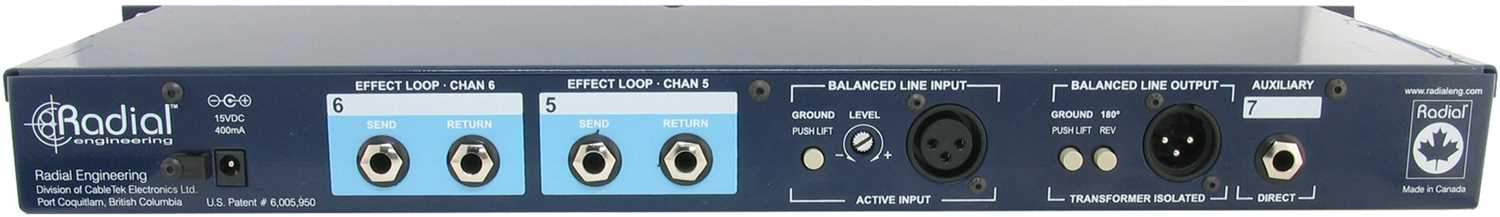

- Effects Loops: High impedance send and receive jacks on outputs 5 and 6
- Reamp XLR Input: Convert pre-recorded signals to guitar level for reamping
- Direct Box XLR: Transformer isolated output for recording dry tracks
- Aux Out: Rear panel unbalanced output for driving a tuner or 7th amp
- Warranty: Radial 3-year, transferable
Specifications:
- Audio circuit type: 100% discrete class-A with transformer isolation
- Number of channels: 2 Input 7 Outputs
- Frequency response: 20Hz ~ 20kHz (± 1dB)
- Dynamic range: 125dB (unbalanced input to unbalanced output)
- Total harmonic distortion: 0.05% @ 1k (unbalanced) 0.1% @ 1k (balanced)
- Intermodulation Distortion: 0.2% @ -20dBu
- Input Impedance: Variable from 10k Ohms ~ 1megaOhm
- Output Impedance: Unbalanced: 10k Ohms; XLR balanced: 150 Ohms
- Noise: -115dBu
- Maximum Input: +13dBu (unbalanced) +23dBu (balanced)
- Input pad, 180° polarity reverse, Ground lift, Drag Control, Effects Loop
- Input Connectors: 1/4', XLR
- Output Connectors: 1/4', XLR
- Construction: 14 gauge steel chassis & outer shell
- Size (L x W x D): 17.5' x 6' x 1.75' (44.5cm x 15.25cm x 4.45cm)
- Weight: 7.5lb (3.4 kg)
- Shipping size (L x W x D): 22' x 10.375' x 4.5' (55.9cm x 26.4cm x 11.4cm)
- Shipping weight: 8lb (3.63kg)
- Power: +15VDC/400mA adapter included
- Conditions: For use in dry locations only between 5°C and 40°C
The Radial JD7 is a must-have for guitarists looking to take their sound to the next level. Whether you're recording in the studio or performing live, this signal splitter allows you to drive up to seven amplifiers simultaneously without any noise, signal loss, or hum. With its natural tone, quiet operation, and built-in Radial DI box and Reamp capabilities, the JD7 is perfect for splitting your guitar signal and driving multiple amps. The intuitive controls make it easy to use in any setting, and the 14 gauge steel chassis & outer shell provides durability and reliability. The Radial JD7 measures 17.5' x 6' x 1.75' (44.5cm x 15.25cm x 4.45cm) and weighs 7.5lb (3.4 kg). It comes with a +15VDC/400mA adapter and is designed for use in dry locations only between 5°C and 40°C.
