Sennheiser EW-DX SKM (Q1-9) Handheld Transmitter: Your Ultimate Wireless Companion
Upgrade your wireless experience with the Sennheiser EW-DX SKM (Q1-9) Handheld Transmitter. This digital wireless marvel simplifies professional workflows, offering a range of features that make it a must-have for any audio setup.
• Seamless Compatibility: Compatible with Evolution Wireless Digital systems, this transmitter is a versatile addition to your audio toolkit.
• Long-Lasting Performance: With up to 12 hours of runtime, you can rely on this transmitter to keep going throughout your event.

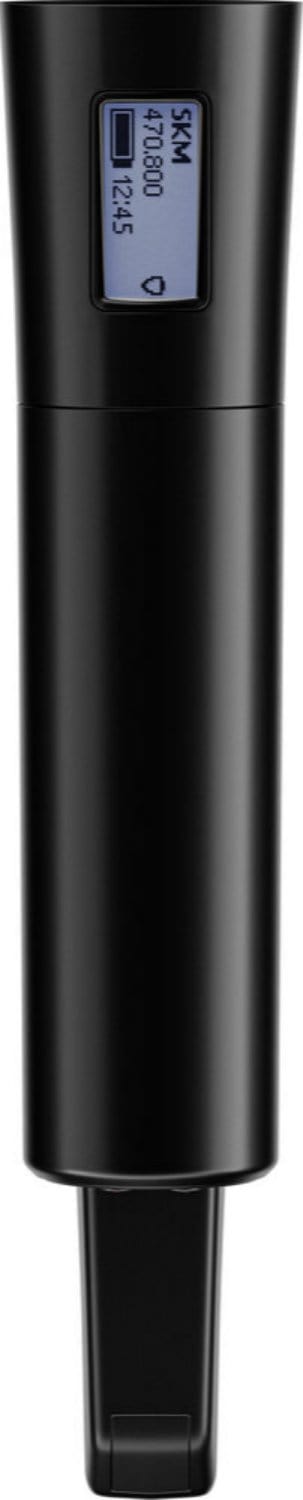

• User-Friendly Design: The persistent E-Ink display and function buttons make it easy to control all settings directly from the handheld.

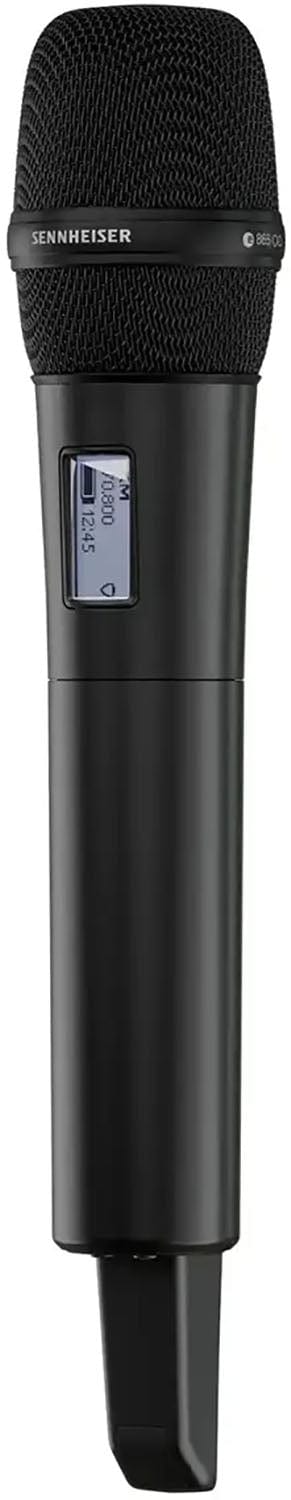

Featuring a rugged metal housing and a standard capsule interface, this transmitter is compatible with a wide range of Sennheiser and Neumann microphone modules. It also offers charging contacts for in-device charging, ensuring you never run out of power.
Whether you're in a classroom, corporate campus, or live production, the Sennheiser EW-DX SKM (Q1-9) Handheld Transmitter is the perfect choice for a seamless and professional audio experience. Its advanced features and hardware options make it a network-ready system that integrates seamlessly, while tools like Sennheiser's Control Cockpit, Wireless Systems Manager, and Smart Assist App allow for remote system monitoring.
Don't miss out on this incredible opportunity to enhance your audio setup. Order your Sennheiser EW-DX SKM (Q1-9) Handheld Transmitter today!
Features:
- 134 dB input dynamic range - no need to set gain on your wireless transmitters at all, thanks to proprietary Sennheiser Performance Audio Codec (SePAC)
- 10mW fixed RF power for up to 100 m/328 ft of range
- Charging contacts for in-device charging with CHG 70N charger (sold separately)
- Persistent E-Ink display for 'always on' information - parameters visible on screen even when batteries are removed
- Up to 12 hours of operation time with rechargeable lithium-ion battery BA 70 (sold separately)
- Function buttons - control all the transmitter settings directly from the handheld including button lock function
- Digital audio trim
- Test tone generator
- Switchable LED configuration (On/Off)
- Switchable low cut (Off, 30, 60, 80, 100, 120 Hz)
- Versatile charging options optionally available: CHG 70 N, L 70 USB, LM 6070 Module for L 6000 full rack charging station (Availability in 2023)
- Sennheiser Standard Capsule Interface - compatible with a wide range of Sennheiser and Neumann capsules (sold separately)
- Metal housing
- Worldwide usage (specific frequencies subject to local RF regulations)
- Note: All components of the Evolution Wireless Digital Family are designed to interoperate. Please be aware of restrictions of features linked to the respective series, such as switching bandwidth and use of Link Density mode.
Specifications:
- System:
- Audio Link Frequency Ranges: 470.2 - 550 MHz
- Bluetooth Low Energy (BLE) Frequency Range: 2402 - 2480 MHz
- Audio Frequency Response: 20 Hz - 20 kHz (-3 dB)
- Audio THD: ¡Ü -60 dB for 1 kHz @ -3 dBfs input level
- Dynamic Range: 134 dB
- System Latency: 1.9 ms
- Operating Temperature: -10 °C - +55 °C (14 °F - 131 °F)
- Relative Humidity: 5 - 95 % (non-condensing)
- EW-DX SKM (Handheld Transmitter):
- Input Voltage: 2.0 - 4.35 V
- Input Current: < 300 mA
- Power Supply: 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
- Occupied Bandwidth: 200 kHz
- Transmit Power (Radiated):
- Audio Link: 10 mW ERP (Range Y1-3: 12 mW ERP)
- LD Mode: 10 mW ERP
- BLE: Max. 10 mW EIRP
- Dimensions:
- With MMD 835 Microphone Module: 50 x 268 mm (1.97' x 10.55')
- Without Microphone Module: 40 x 200 mm (1.57' x 7.87')
- Weight:
- With MMD 835 Microphone Module: Approx. 304 g (0.67 lbs)
- Without Microphone Module: Approx. 195 g (0.43 lbs)
The Sennheiser EW-DX SKM (Q1-9) Handheld Transmitter is perfect for a variety of settings. Whether you're in a classroom, corporate campus, or live production, this transmitter has you covered. It's designed for professionals who demand high-quality audio. With dimensions of 50 x 268 mm (1.97' x 10.55') with the MMD 835 Microphone Module and 40 x 200 mm (1.57' x 7.87') without it, and weights of approximately 304 g (0.67 lbs) with the module and 195 g (0.43 lbs) without, it's lightweight and easy to handle.
