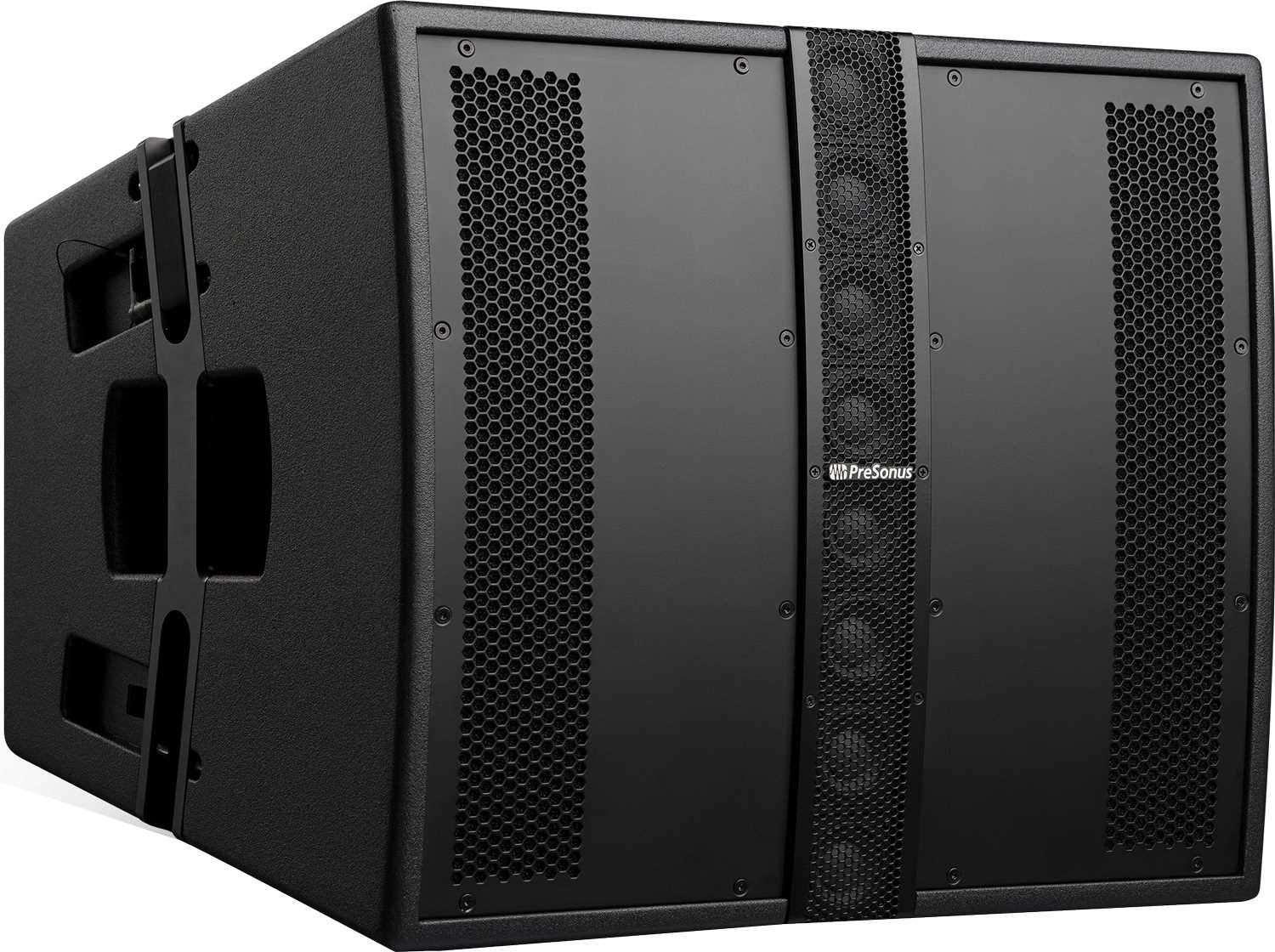

PreSonus CDL-12 Hybrid Point Source/Line Array
Discover the PreSonus CDL12 - a masterpiece of years of R&D! It combines the best of point source and line array tech in a unique, patent-pending design. • Exceptional Sound Quality: Delivers clear speech and natural music reproduction with consistent SPL across the frequency range. • Versatile Configuration: Ideal for various venue sizes, whether used individually or in arrays. • Advanced Connectivity: Features Dante networking and remote control via Worx Control software.

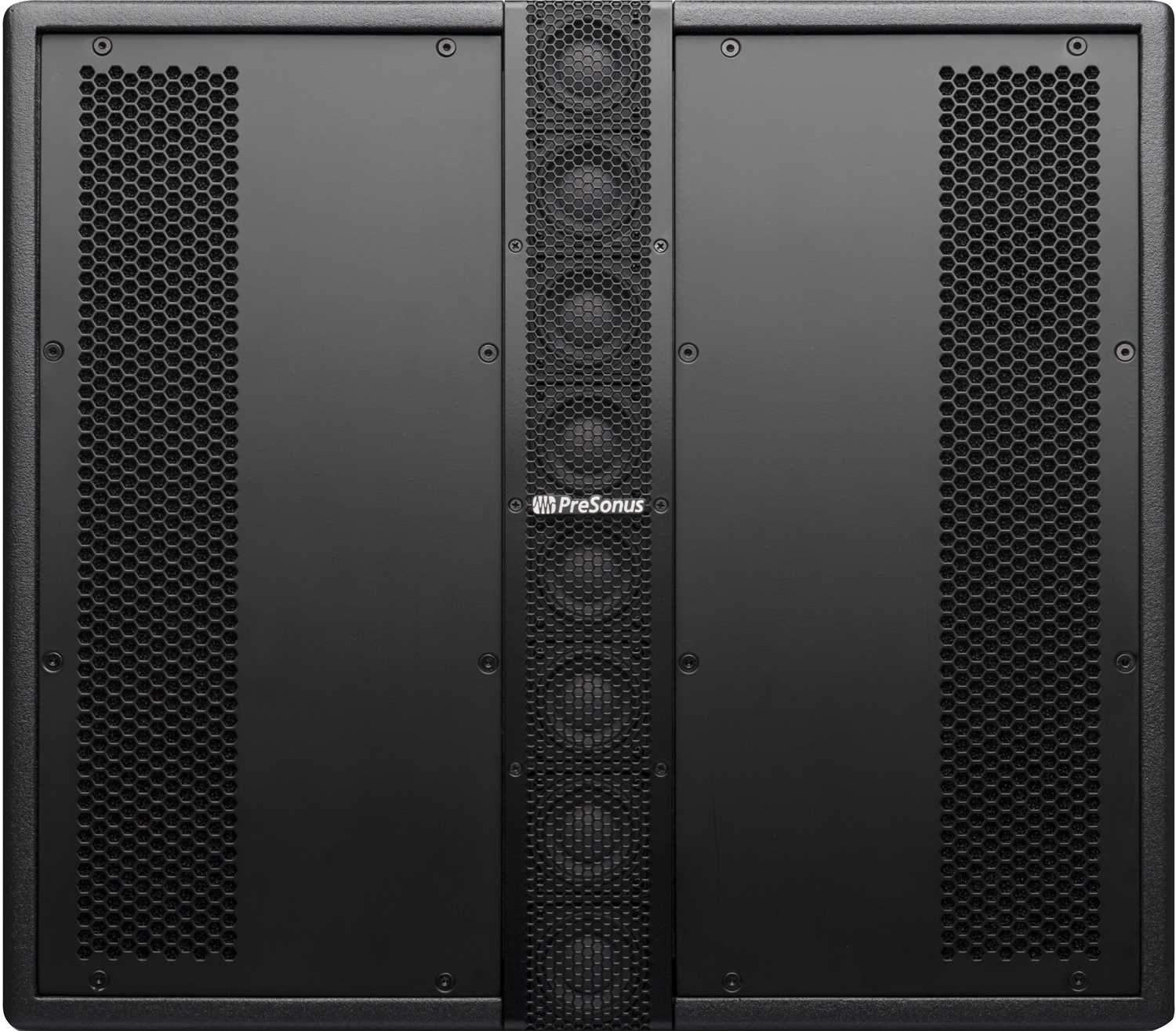

Inspired by the Constant-Directivity design, the CDL12 offers a highly focused pattern. Each unit has eight 2-inch drivers in a segmented circular-arc array in front of a 12-inch woofer. This setup ensures a coherent sound and avoids near-field anomalies.
Traditional line arrays have phase issues, but the CDL12's innovative design provides better sonic coherence. Its integrated PDA-1000 500W x 500W Class D power amplifier with DSP presets simplifies array configurations. And with features like compression, limiting, and EQ, it's perfect for both portable PA and installed sound applications.
Don't miss out on this amazing product. Hear it now at your authorized PreSonus dealer and experience the difference!
Specifications:
- Configuration: Active 2-way
- Frequency Response: (-3 dB) 48 Hz 18 kHz
- Frequency Response: (-10 dB) 42 Hz 19 kHz
- Nominal Coverage: (-6 dB) 120 x 20 per enclosure
- Maximum Peak SPL: 131 dB
- Crossover Frequency: 420 Hz
- LF Transducer: 12 (2.5 voice coil)
- HF Transducer: 8 x 2 (1 Voice Coil)
- Type: Class D
- Total Power Output: 2000W Peak, 1000W Program (500W RMS)
- LF Power: 1000W Peak, 500W Program (250W RMS)
- HF Power: 1000W Peak, 500W Program (250W RMS)
- Cooling: Free air convection
- Rated THD: <0.05% (20 Hz - 20 kHz)
- Dynamic Range: 119 dB (A-weighted)
- Bandwidth: 20 Hz - 20 kHz

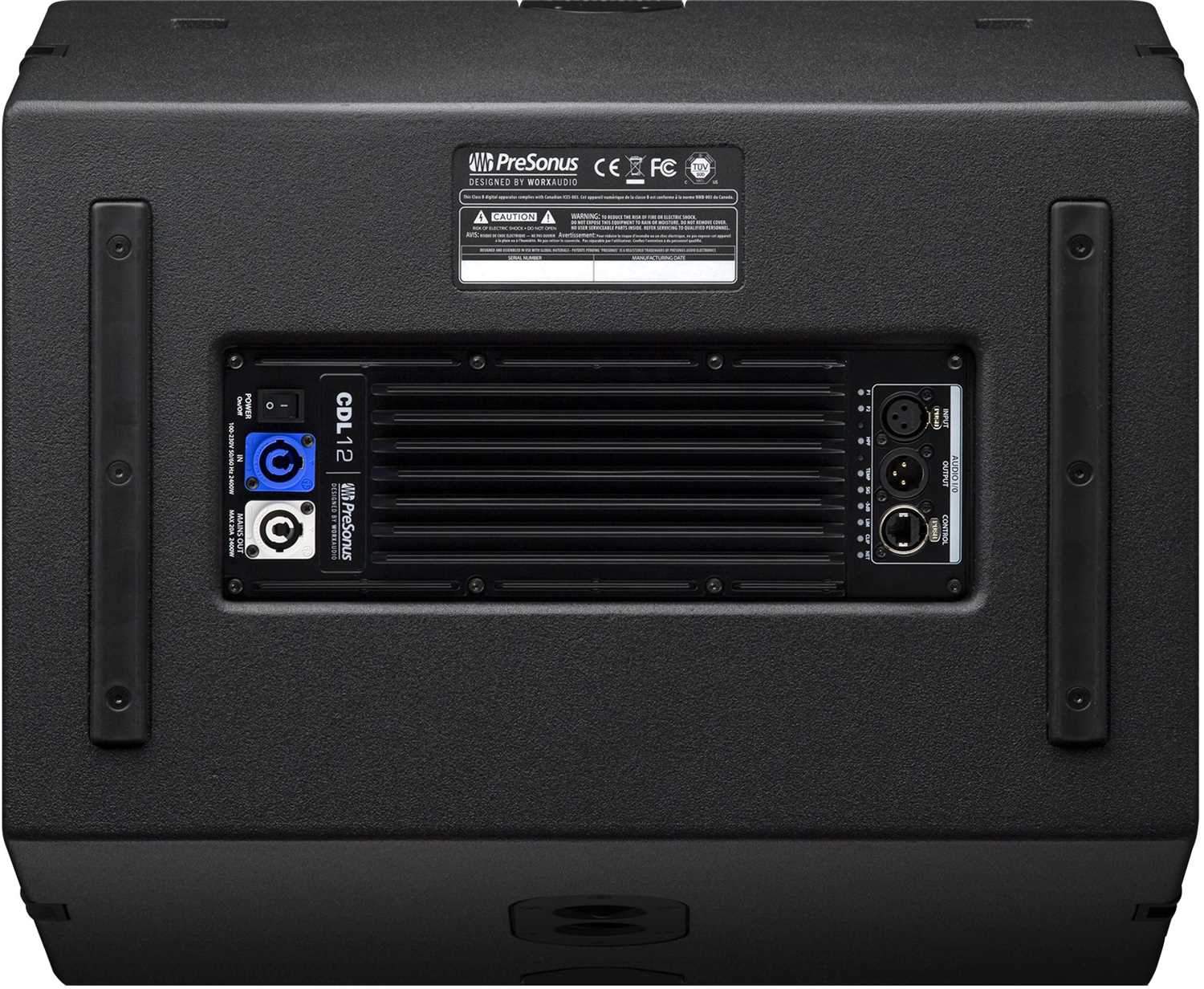

- Mains Connection: powerCON In and Out
- Input Channels: 1 Line
- Input Connector Types: 1 XLR
- Line Input Impedance: 40 kohms
- Maximum Input: +4 dBu
- Output Connector: Direct Line Out (XLR)
- Networking: Dante (Audio and Control), Control (only) via Locking Ethernet
- Controls: Preset Select, HPF On/Off
- Indicators: Over Temperature, Signal, -3 dB, Limiter, Clip, Network Status
- Effects: Compression, Limiting, Delay, 8-band EQ and preset selection via WorxControl
- HPF: 90 Hz, 4th-order Butterworth
- Bit Depth: 24-bit
- Sample Rate: 48 kHz
- Material: 15 mm Eucalyptus plywood
- Finish: Chemline Polyurea
- Grille: Powder-coated steel
- Dimensions (HxWxD): 18.6 x 20.8 x 17.5 (473 mm x 529 mm x 444.5 mm)
- Unit Weight: 65 lbs. (29.5 kg)
- Amplifier Protection: Over-current, DC, over/under-voltage, over-temperature, high frequency
- Transducer Protection: Limiter
- AC Power Input: 90-260V~, 50-60 Hz
- AC Power Consumption (1/8 Power): 4.2 Amps

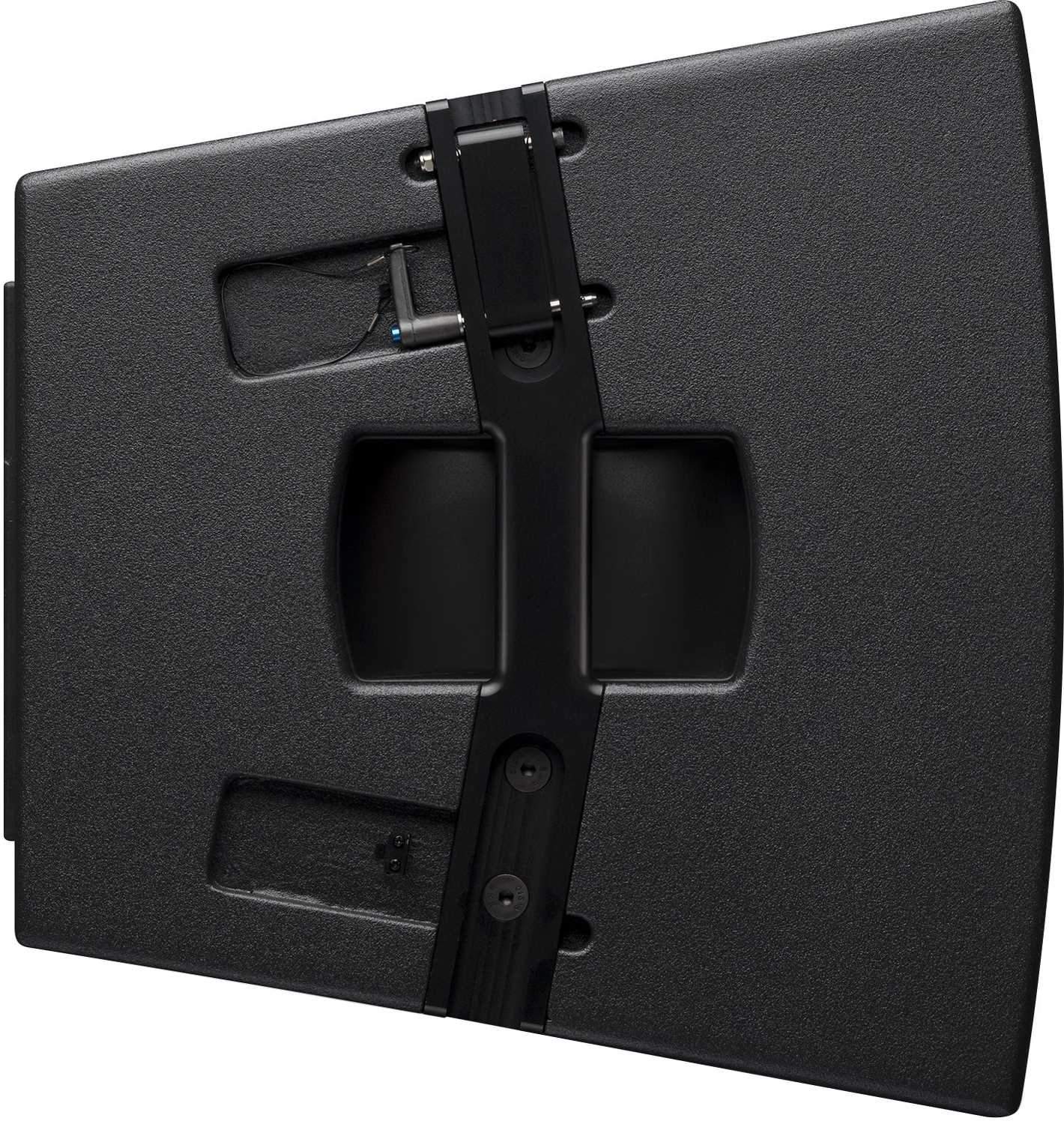

- Rigging Points: Integrated Rigging (10:1 load)
- Mounting: Dual-position pole mount (0 and 10 ) 35 mm
- Rigging: CDL Rigging Grid, CDL Rigging Extension Bar, CDL Rigging Sling
- Other: CDL12-Tote Tote Bag
The PreSonus CDL-12 is perfect for both mobile and installed sound applications. It's great for event organizers, venues, and sound engineers. With dimensions of 18.6 x 20.8 x 17.5 inches and a weight of 65 lbs, it's easy to handle and install. Its advanced features make it a top choice for delivering high-quality sound in any setting.
