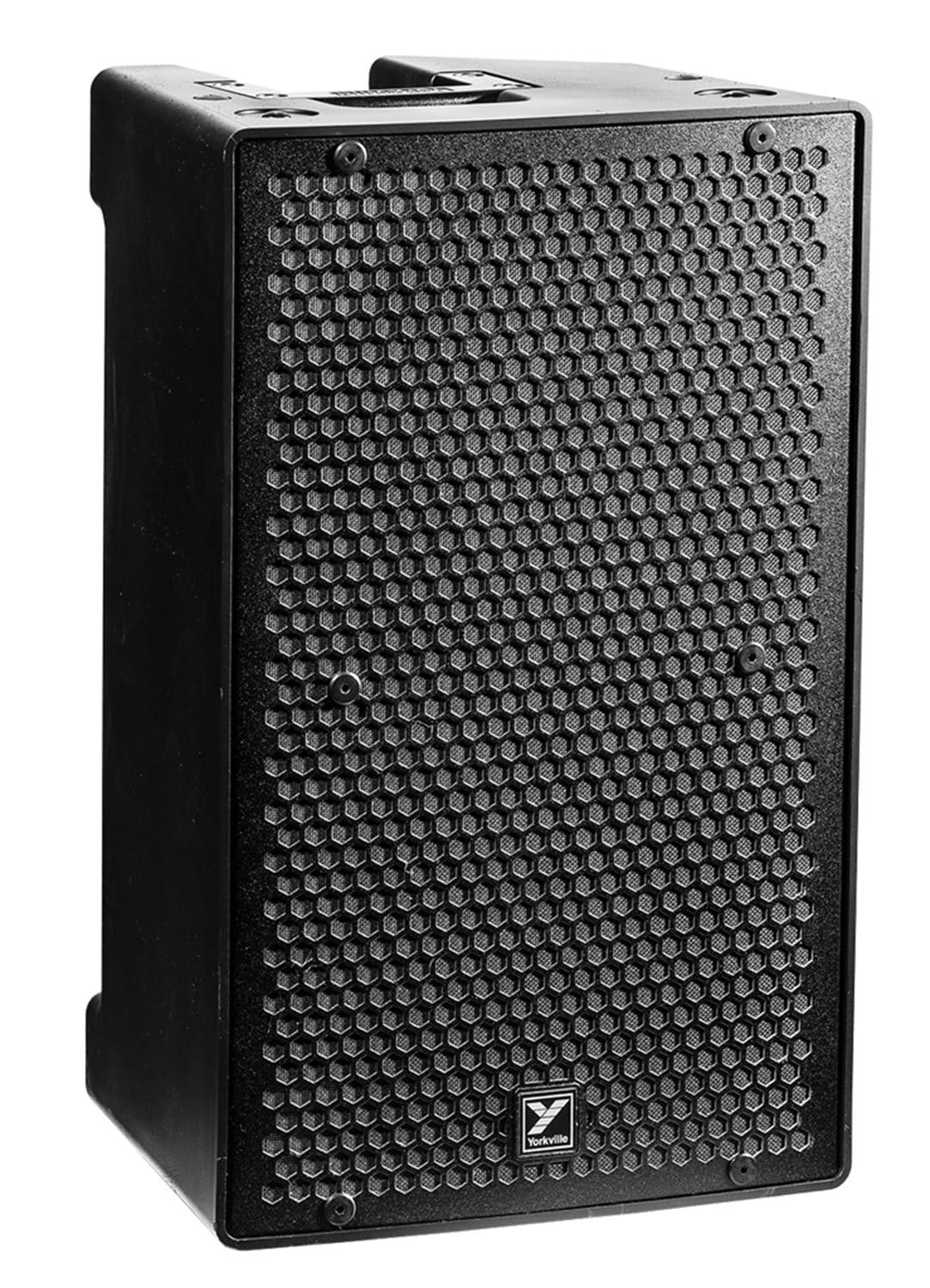

Yorkville PS10P Compact Powerhouse 10-Inch Speaker
Get ready to be blown away by the Yorkville PS10P! This compact speaker packs a punch with its high efficiency 10-inch woofer, delivering extreme low end from a small cabinet. The wide 90° x 70° conical horn ensures great midrange response.
Designed for maximum versatility, it's perfect for front-of-house, side fill, or floor monitor use. Its passive cooling means no noisy fans, and integrated flypoints make hanging it up a breeze.
With integrated DSP, it works in any setup without complex external processing. A one-button high pass filter and bass boost ensure great sound. Multi-band limiting protects the speaker components while delivering a smooth mix.
Features: - Integrated 1600-watt amplifier (peak power - 800-watts program)
- 10' Woofer with 2' Voicecoil
- 1' compression driver
- 90° x 70° horn with thermal and peak protection
- Max SPL 127dB peak (124dB continuous)
- High efficiency bi-amplified class-d power module
- Passive cooling scheme (no loud fans required)
- Designed for front-of-house or monitor applications
- Integrated two channel mini mixer with XLR Microphone, 1/4' and RCA line inputs
- Multiband limiting delivers extremely transparent listening experience (vocals are not modulated by bass)
- Integrated all metal speaker standmount adaptor
- Integrated reinforced flypoints
- Lightweight ABS cabinet construction
- Made in Canada
Specifications: - System type: active parasource powered loudspeaker
- Program power: 800-watts (1600-watts peak)
- Max SPL: 127dB peak (124dB continuous)
- Frequency response (Hz +/- 3dB): 55hz to 20kHz
- Driver configuration: 10' / 1'
- HF dispersion: 90 x 70 (°H x °V)
- HF protection: thermal/peak limiter
- LF drivers: 10' ceramic with 2' voicecoil
- LF protection: thermal/multiband peak limiter
- LF processing: dynamic bass extension
- Cooling scheme: passive
- Power cable: detachable IEC
- Inputs: 1/4-inch, XLR, RCA
- Inputs: 2 x 1/4' Jacks
- Inputs: 2 x XLR
- Input sensitivity (Vrms Sine): 1.23 Vrms +4dBu
- Mixer controls: sub mode HPF, bass boost, mixer enable
- Level controls master level, mic level, line level
- LED indicators: power, limit, clip
- Bar handles: yes
- Flying hardware: EYEBOLT1/4A
- Pole mount adapter: 1 3/8'-3.5cm
- Enclosure materials: ABS
- Baffle material: ABS
- Grille: perforated metal
- Dimensions: 12' x 14' x 23' / 30.5 x 35.5 x 58.5 (DxWxHxbackW)
- Weight: 40 lbs. / 18.2 kg.
The Yorkville PS10P is a versatile 10-inch powered speaker. It's great for front-of-house, side fill, or floor monitor use at events. Ideal for musicians, sound engineers, and event organizers. With dimensions of 12' x 14' x 23' (DxWxH) and weighing 40 lbs., it's easy to handle and install.
