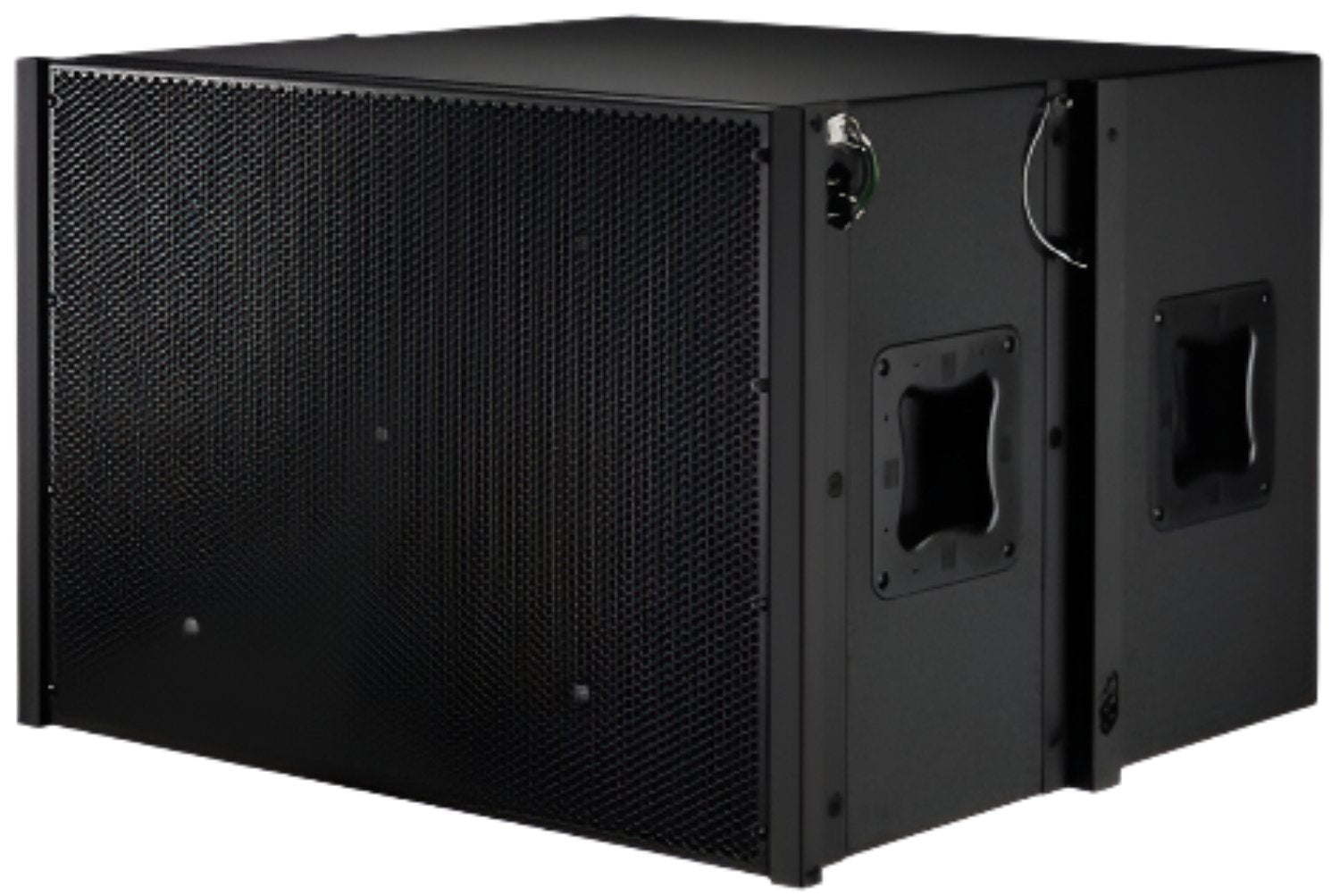

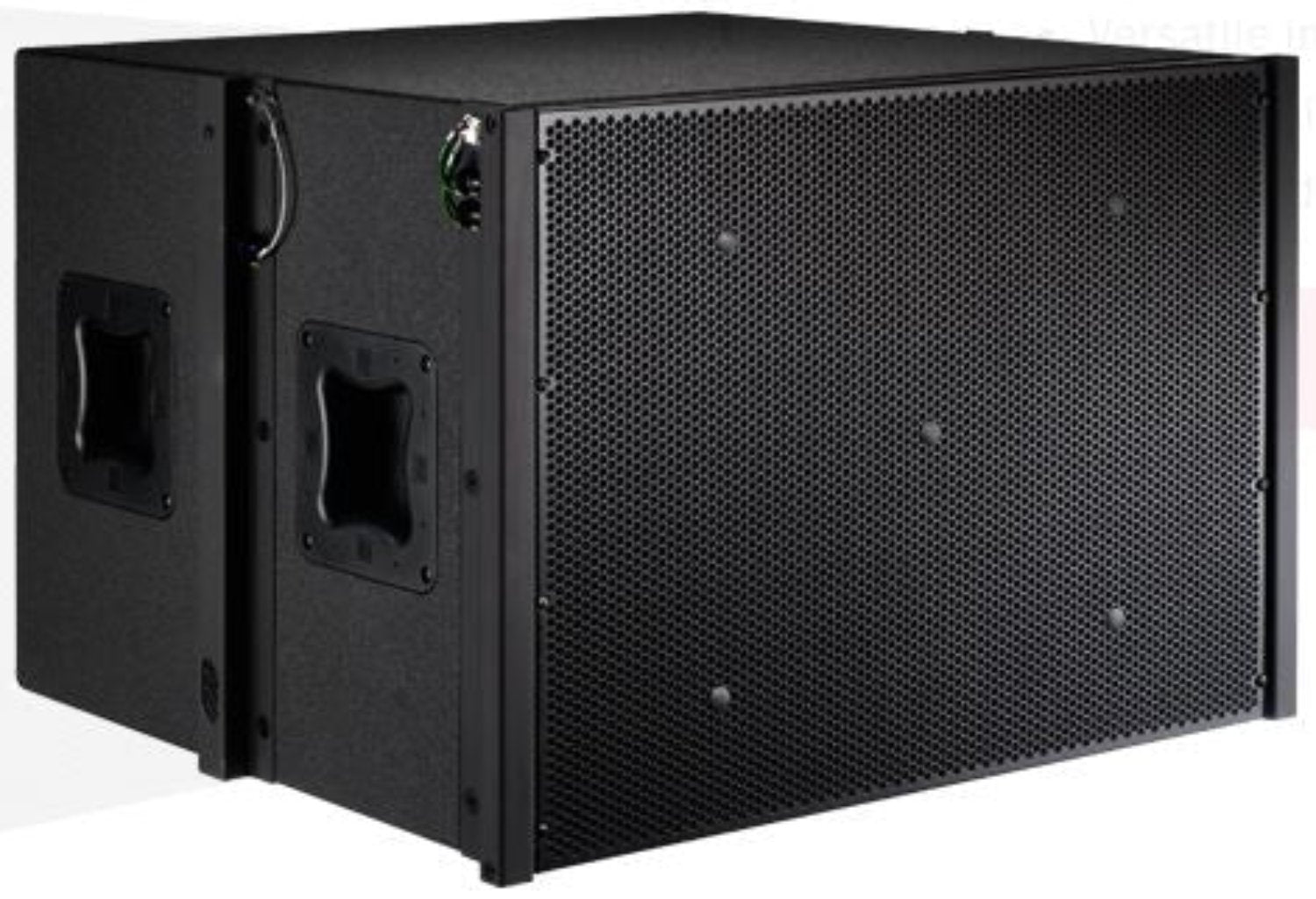

Electro-Voice XCS312-FGB Weatherized 3x 12 Inch Cardioid Subwoofer - DVX3120 Woofer - Bi-Amp - Black

Electro-Voice XCS312-FGB Weatherized 3x 12-Inch Cardioid Subwoofer - DVX3120 Woofer - Bi-Amp - Black - Unleash Powerful Bass

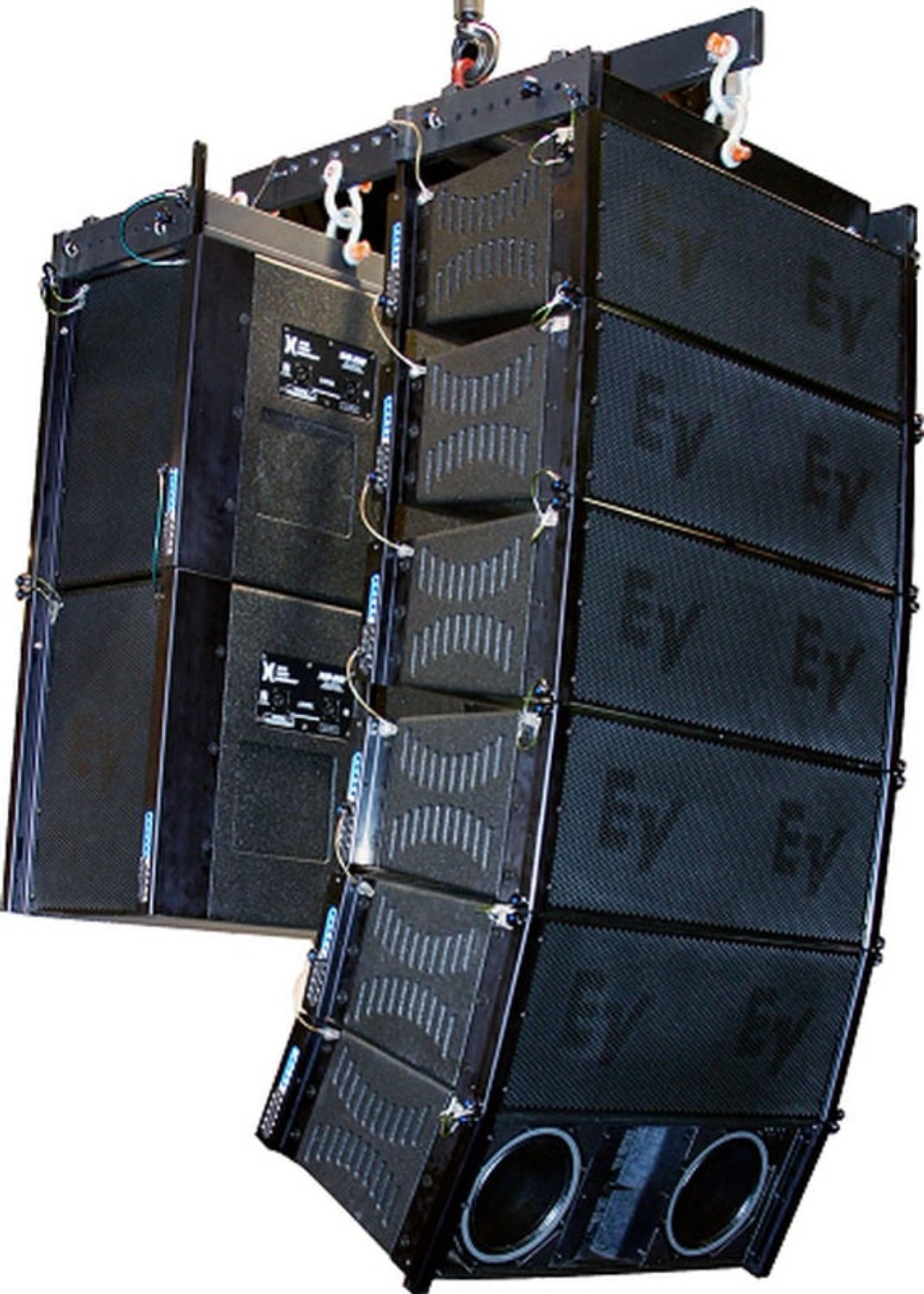

The XCS312-FG is a beast when it comes to delivering high-level low frequency extension down to 40 Hz in a cardioid setup. • It features three DVX3120A forced air-cooled 12-inch transducers for long, linear excursion and high power handling in a two-channel configuration. • The FG models are fully weatherized and fiberglass-coated for outdoor use. • Designed to be used with a ratio of two XLD281-FG or XLD291-FG full range systems for each XCS312-FG subwoofer, it offers versatile integration. The XLVC family consists of two full-range Line Array Elements with dual woofers, two full-range Line Array Elements with single woofers and one subwoofer system. The dual woofer Line Array Element includes the XLD281-FG with a 120° horizontal coverage pattern and the XLD291-FG with a 90° horizontal coverage pattern. The XCS312-FG cardioid subwoofer module has the same rigging footprint as the XLD281-FG and XLD291-FG allowing it to be directly arrayed above, or below XLD281-FG or XLD291-FG full range systems. LAPS2 modeling software quickly provides array configurations and rigging information.

X-Line Very Compact weatherized models are perfect for outdoor venues, delivering outstanding performance even in full exposure. Get ready to experience powerful bass like never before!

Features:

• • Triple 12-inch Cardioid Very Compact Line-Array Bass Element for intense low frequencies
• • Three DVX3120A 12-inch Low Frequency Transducers for reliable performance
• • 1500 Watt Continuous, 6000 Watt Peak power for a booming sound
• • Versatile Integration in Main Arrays for easy setup
• • Self-contained Rigging Hardware for hassle-free installation

Specifications:

• Frequency Response (-3 dB): 45 Hz
• Frequency Range (-10 dB): 40 Hz
• Max Calculated SPL: 130 dB Continuous, 136 dB Peak for a loud and clear sound
• Rigging: Fully Captive Aluminum, 1° Increments, 8 Elements with 8 to 1 Safety Factor for secure setup
• Power Handling:
  • 1500W Continuous
  • 6000W Peak
  • 1 Channel: 1000W
  • 1 Channel: 500W
• Sensitivity: 100 dB for a sensitive audio experience
• Highpass Frequency: 40 Hz
• Recommended Crossover Frequency: 100 Hz
• Coverage: 200° for wide sound distribution
• LF Front: 2 x 12 in (305 mm) DVX3120A, 4 ohms
• LF Rear: 1 x 12 in (305 mm) DVX3120A, 8 ohms
• Connectors: Gland Nut with 30 ft cable for easy connectivity
• Enclosure: 13-ply birch plywood with fiberglass and EVCoat for durability
• Grille: Stainless steel with powder coat paint and hydrophobic cloth for protection
• Environmental Specifications: IEC 60529 IP55 for outdoor use
• Dimensions (H x W x D): 508 mm x 726 mm x 677 mm (20.00 in x 28.58 in x 26.64 in)
• Net Weight: 67.1 kg (148 lb)
• Shipping Weight: 73.0 kg (161 lb)

This Electro-Voice XCS312-FGB subwoofer is perfect for outdoor events. It's great for sound engineers, event organizers, and anyone who wants powerful bass. With dimensions of 508 mm x 726 mm x 677 mm (20.00 in x 28.58 in x 26.64 in) and a net weight of 67.1 kg (148 lb), it's not too big or heavy to handle. It can handle continuous power of 1500W and peak power of 6000W, with a frequency response that goes down to 40 Hz. Whether you're setting up a live concert, a large outdoor party, or any other event, this subwoofer will deliver the deep bass you need to make the music come alive.
