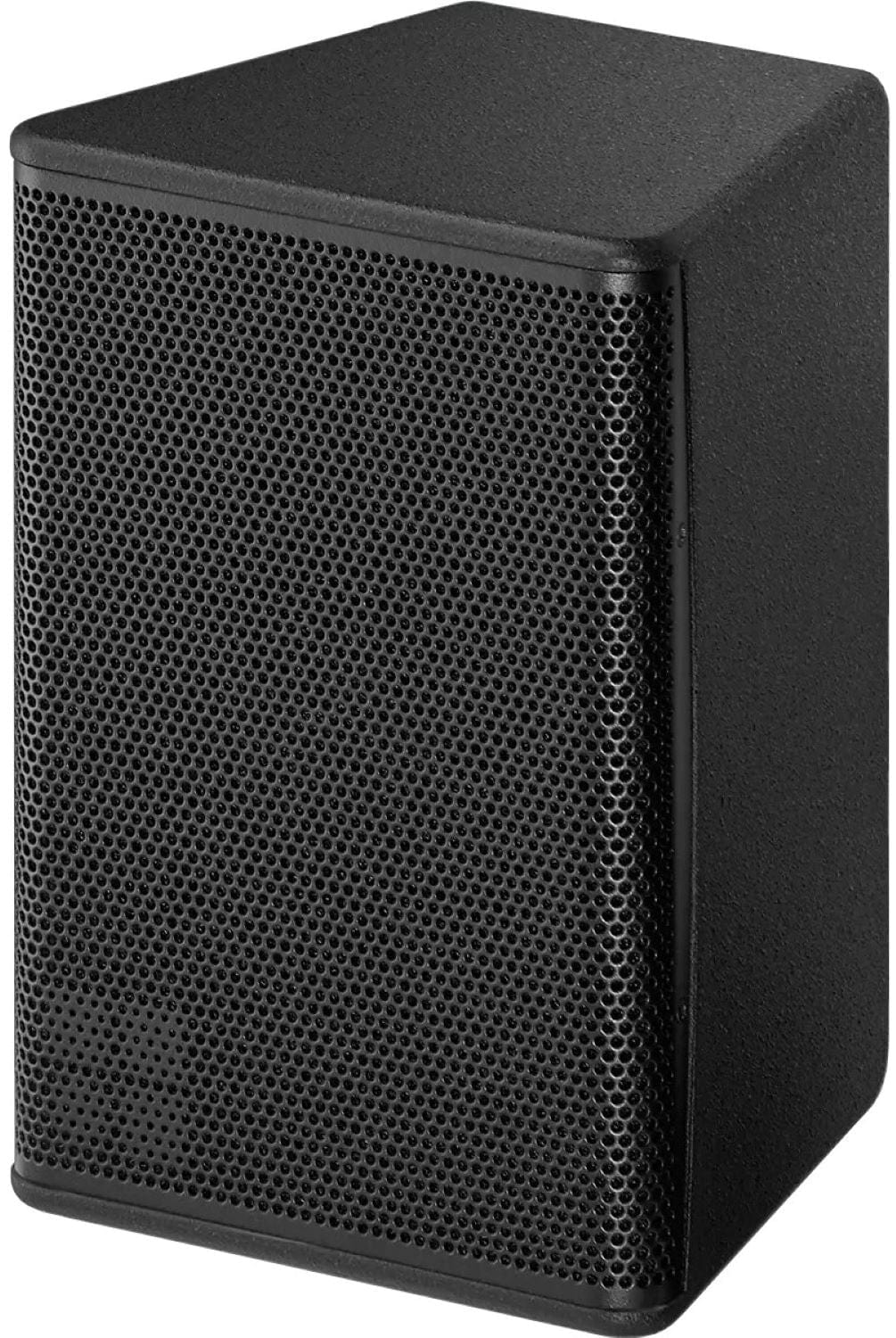

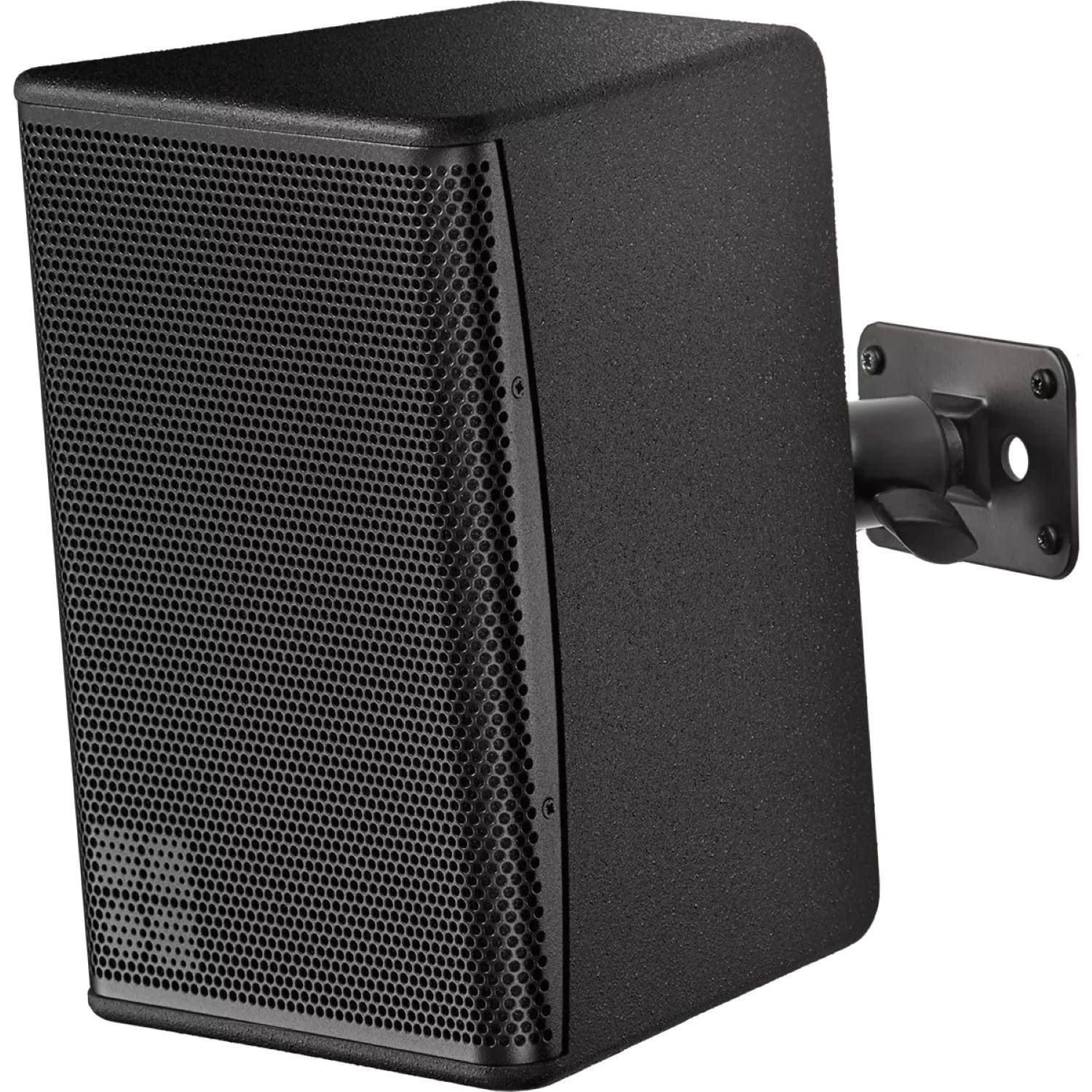

D&B Audiotechnik Z1616.000 5S High-Performance 5-Inch Passive Loudspeaker
Upgrade your audio experience with the 5S! This lightweight 2-way passive loudspeaker is a game-changer. • Compact Design: Fits seamlessly into any space. • High-Quality Sound: Delivers crystal-clear audio with a 100° conical dispersion pattern. • Durable Build: Injection moulded with impact and weather resistance (IP34 rating). Whether you're a professional musician, a DJ, or just looking for great sound at home, the 5S is the perfect choice. It can be used stand-alone or paired with different subwoofers of the xS-Series. The enclosure is available in black or white paint finish, and most accessories also come with the Special Colour (SC) option in all RAL colours. The front is protected by a rigid metal grill and acoustically transparent foam. The rear panel has two M8 threaded inserts, two NL4 connectors, and a two-pole screw terminal block. With components like a 5” driver and a coaxially mounted 1' dome tweeter, along with a passive crossover network, it offers great sound quality. Key Features: • Components 5'/1' • Dispersion 100° conical • SPLmax 118 dB • Weight 2.5 kg / 5.5 lb Specifications: • System data: Frequency response (-5 dB standard) is 80 Hz - 20 kHz, (-5 dB CUT mode) is 130 Hz - 20 kHz. Max. sound pressure varies with different models. Cabinets per amplifier channel: 4. • Loudspeaker data: Configuration is an installation specific 2-way compact coaxial loudspeaker, nominal impedance is 16 Ω, power handling capacity (RMS/peak 10 ms) is 60/400 W, nominal dispersion angle (h x v) is 100° conical. • Dimensions / Weight: Dimensions (H x W x D) are 240 x 164 x 160 mm / 9.4 x 6.5 x 6.3', weight is 2.5 kg / 5.5 lb.
Features:
- Components 5'/1'
- Dispersion 100° conical
- SPLmax 118 dB
- Weight 2.5 kg / 5.5 lb
Specifications:
- System data:
- Frequency response (-5 dB standard): 80 Hz - 20 kHz
- Frequency response (-5 dB CUT mode): 130 Hz - 20 kHz
- Max. sound pressure:
- with 10D: 117 dB
- with D20/5D/30D: 118 dB
- with D40/D80/40D: 118 dB
- Cabinets per amplifier channel: 4
- Loudspeaker data:
- Configuration: Installation specific 2-way compact coaxial loudspeaker
- Nominal impedance: 16 Ω
- Power handling capacity (RMS/peak 10 ms): 60/400 W
- Nominal dispersion angle (h x v): 100° conical
- Components:
- 5' driver
- 1' dome tweeter coaxially mounted
- passive crossover network
- Connections:
- 2 x NL4
- screw terminal block
- Dimensions / Weight:
- Dimensions (H x W x D): 240 x 164 x 160 mm / 9.4 x 6.5 x 6.3'
- Weight: 2.5 kg / 5.5 lb

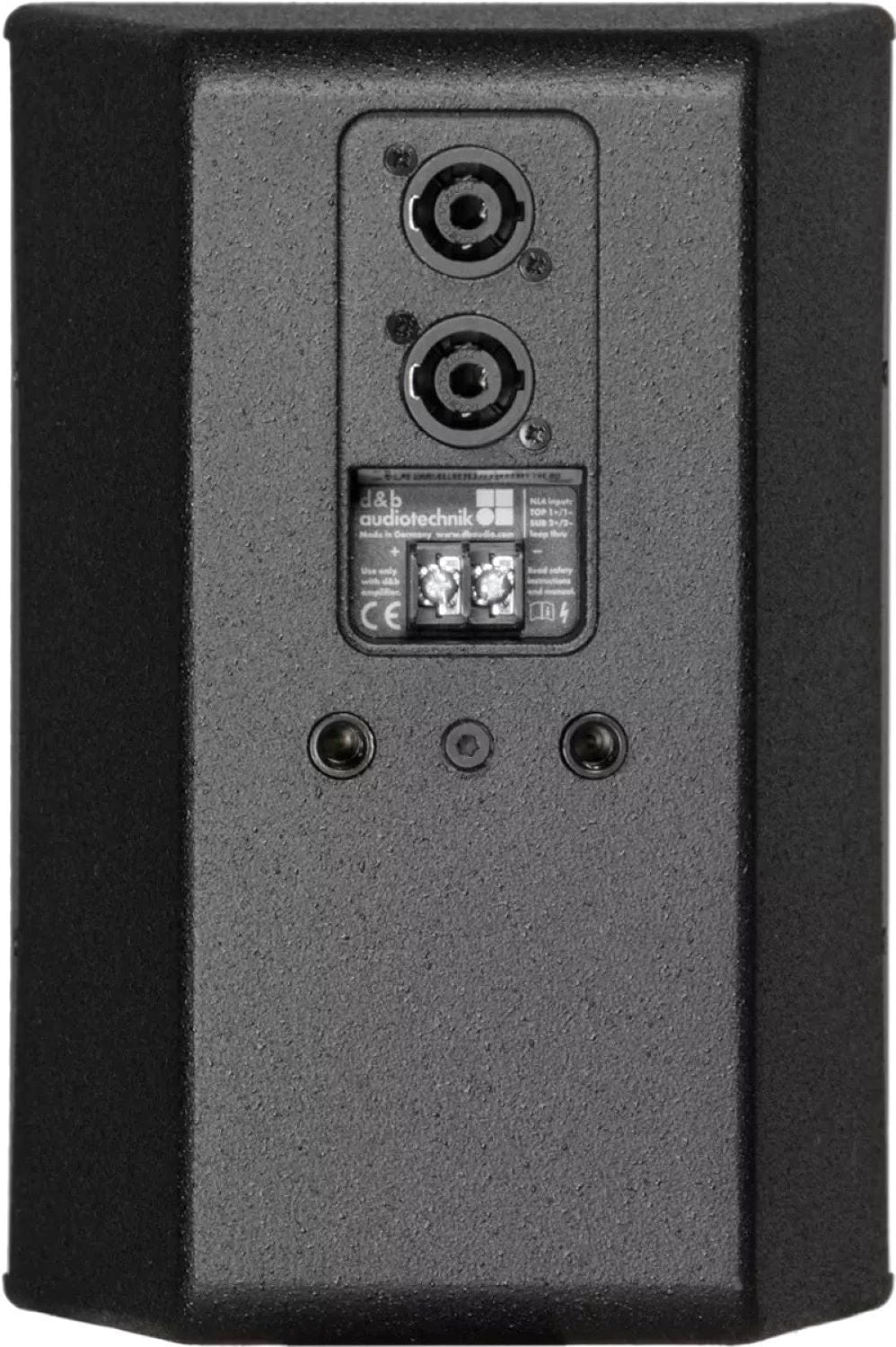

The D&B Audiotechnik Z1616.000 5S is a great choice for various audio setups. It's suitable for both professionals like musicians and DJs, and home users seeking excellent sound. With a compact design, it can fit into different spaces. It has a 100° conical dispersion pattern for wide and clear sound. Measuring 240 x 164 x 160 mm (H x W x D) and weighing 2.5 kg (5.5 lb), it's easy to handle and install. It can be used alone or combined with xS-Series subwoofers. The enclosure is injection moulded with IP34 rating, available in black or white, and many accessories have a Special Colour option. It has a rigid metal grill and acoustically transparent foam on the front, and two M8 threaded inserts, two NL4 connectors, and a two-pole screw terminal block on the rear panel.
