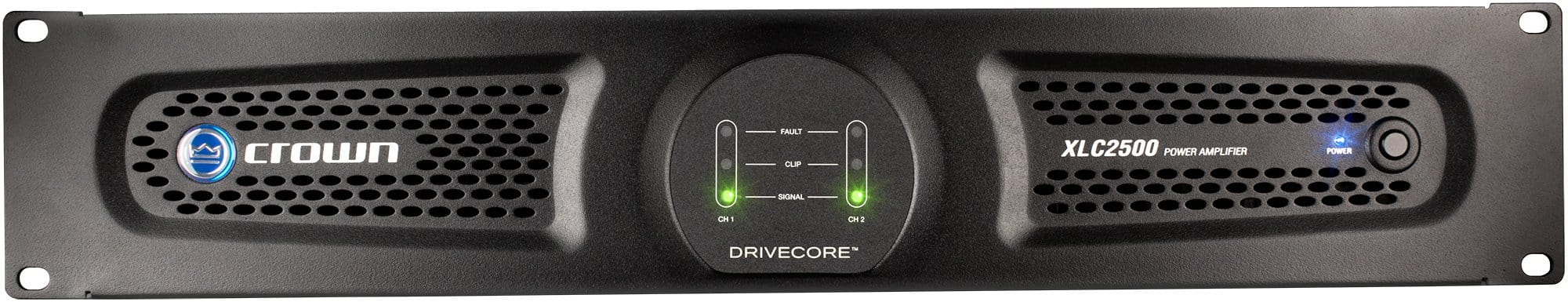

Crown XLC2500: The Compact, High-Powered 2-Channel Power Amplifier with DriveCore Technology
Get ready to experience audio excellence! The Crown XLC2500 and XLC2800, available in two models, are here to revolutionize your audio setup. Incorporating Crown's exclusive DriveCore Technology, these amplifiers are not only compact but also highly energy-efficient without sacrificing an ounce of performance.
Why Choose the XLC Series?
• Compact and powerful, making installation a breeze
• Delivers outstanding sound quality you can rely on
• Cost-effective, perfect for both cinema and install markets
Features That Impress:
For cinema applications:
- Two models: 500W (XLC2500) and 800W (XLC2800) per channel at 4-ohms
• Compatible with CXM2000 for monitor, fault detection and crossover functions
• Works with Crown Monitor System DSi-8M for monitor function
• Powers 2-ohm, 4-ohm and 8-ohm outputs, supports stereo and bridge outputs
• Allows parallel connection of cinema surround speaker
• Indicators for accurate diagnostics: Power, Signal, Clip and Fault
• Volume control on rear panel
• High performance, light weight, weighs less than 14lbs (6 kgs)
For install applications:
- Minimal front panel control, block connectors and controls on back
• High performance lightweight DriveCore based for audiophile quality and reliability
• Configurable input operation for stereo, parallel and bridge modes
• Configurable output operation for stereo and bridge modes
Technical Specifications:
- AC Line Voltage and Frequency Configurations: (+/- 10%) 100VAC 50/60 Hz, 110VAC 60 Hz, 220 and 230~240VAC 50 Hz
• Voltage Gain: 35
• Sensitivity: 1.4V (for full rated power at 4 ohms)
• Signal to Noise Ratio: (ref. rated power, 8 ohms, 1 kHz) > 103 dB
• THD: <0.5%
• Damping Factor (8 ohms, 10 Hz to 400 Hz): >200
• Intermodulation Distortion (from full rated output to -30 dB): <0.3%
• Frequency Response (at 1W, 20 Hz - 20 kHz): 0 dB
• Crosstalk: >85 dB (below rated 8 ohms power, at 1 kHz); >55 dB (below rated 8 ohms power, at 20 kHz)
• Input Impedance (nominal): 20 kilohms balanced, 10 kilohms unbalanced
• Load Impedance: 2~8 ohms per channel in Stereo; 4~8 ohms in Bridge
• Dimensions: 19' x 3.5' x 8' (48.3cm x 8.9cm x 20.6cm)
• Weight: 8.3 lbs (3.75 kg)
• Shipping Weight: 10.7 lbs (4.85 kg)
• IEC Power Connector: 15A
The Crown XLC2500 is a 2-channel power amplifier designed for both cinema and install applications. It's perfect for those looking to enhance their audio systems. With its compact size (19' x 3.5' x 8' or 48.3cm x 8.9cm x 20.6cm) and lightweight (8.3 lbs or 3.75 kg), it's easy to install. It offers 500W per channel at 4-ohms and comes with features like compatibility with certain monitor systems and multiple output options. The AC Line Voltage has various configurations, and it has great technical specs such as high Signal to Noise Ratio and low THD.
