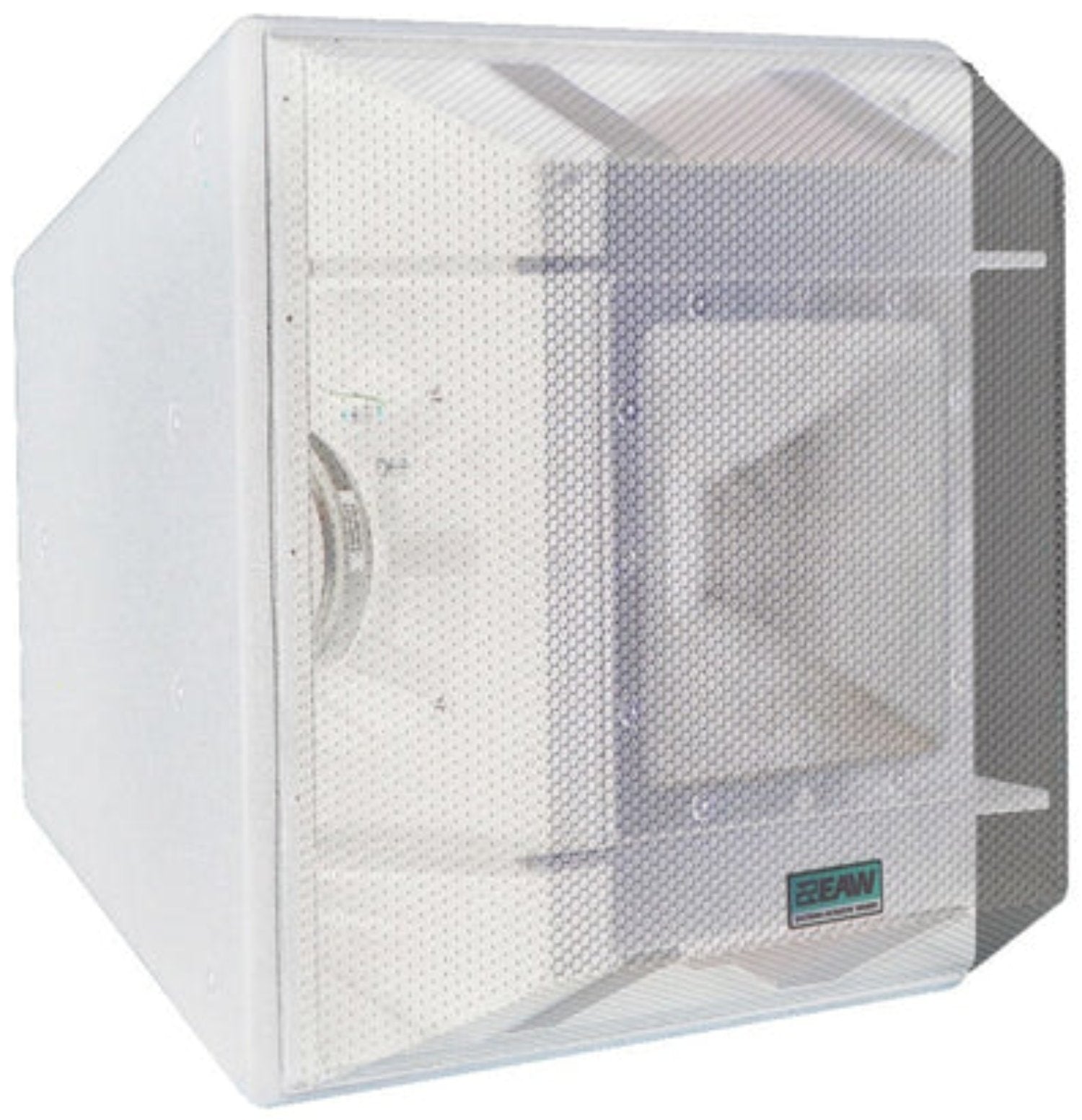

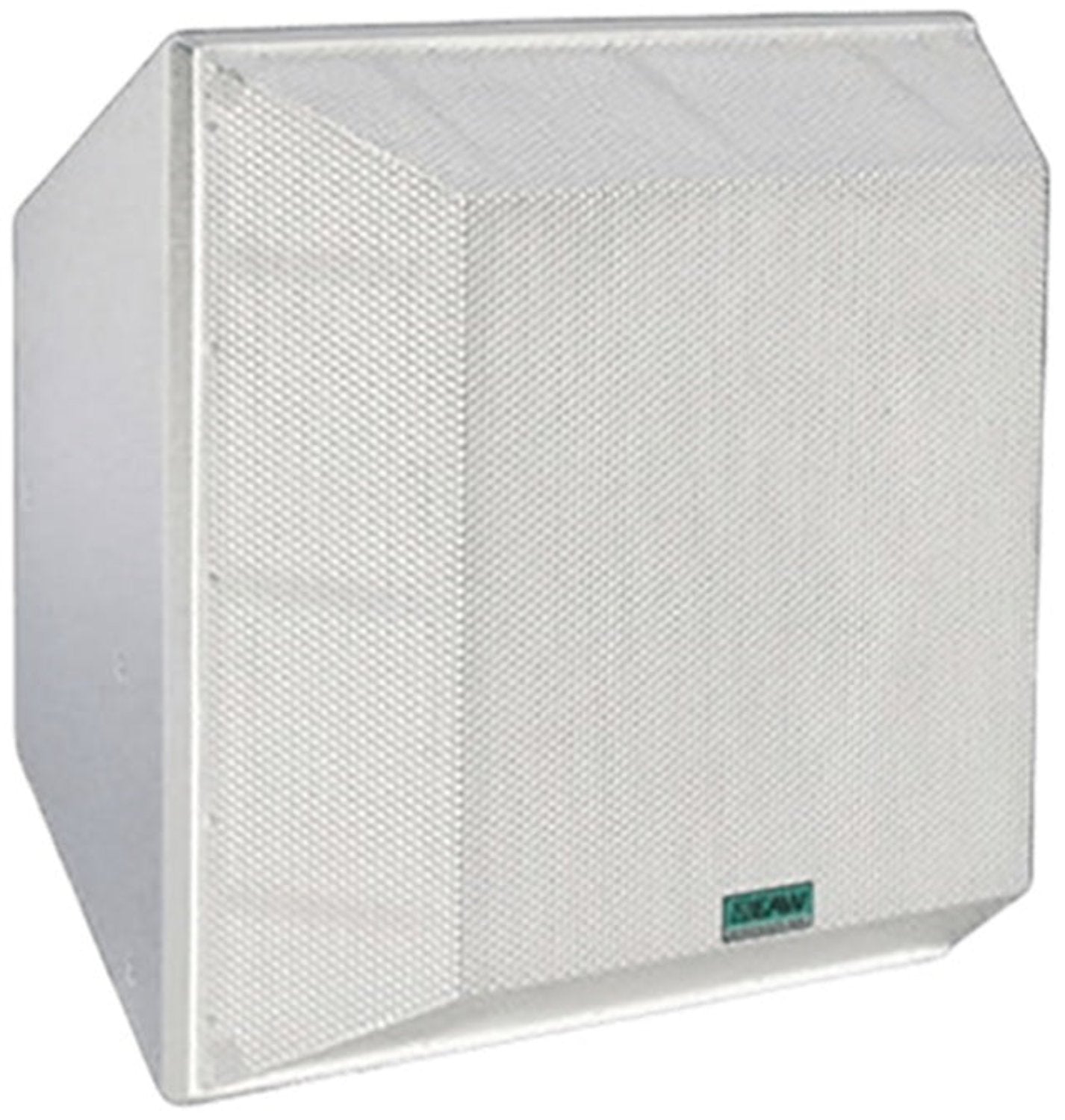

EAW QX394-WP 2-Way Trapezoidal Weather Protected Loudspeaker - White, Your Ultimate Sound Solution
Upgrade your sound experience with the new QX300 Series! This two-way loudspeaker offers great output and renowned broadband pattern control, similar to the QX500 Series three-way but in a compact format. Here's why you'll love it:
- Exceptional Coverage: Its large 4-in voice coil high frequency compression driver covers mid-range frequencies, making it perfect for various venues.
- Powerful Performance: With high output, it's ideal for medium throws in arenas and stadiums, or high-energy places like live music venues and dance clubs.
- Acoustic Control: Tame hostile acoustical environments such as cathedrals or reverberant public spaces with its broadband pattern control.
The QX394 features an ultra-efficient high compression driver with a 90° x 45° constant directivity horn. Four Phase Aligned 10-in low frequency transducers, arranged in vertical and horizontal pairs, extend pattern control. And because they surround the high compression driver symmetrically, the sound appears to come from a single point.
Choose between single-amp and bi-amp operating modes. Each woofer pair is independently wired to the input plate, offering installation flexibility.
Features:
- High output, single or bi-amplified, two-way performance
- Broadband pattern control
- Ultra-efficient HF compression driver
- Four Phase Aligned 10-in cone transducers (vertical and horizontal pairs)
- Installation flexibility, compact size
Specifications:
- Frequency Response: 66hz – 20khz
- Max SPL: 142 dB
- Operating Mode:
- Single-amp LF/HF
- Bi-amp LF, HF
- External Signal Processing: DSP w/EAW Focusing
- Subsystem:
- LF: 4 x 10-in cone
- HF: 1 x 1.4-in. exit, 4-in. voice coil compression driver
- Nominal Beamwidth:
- Horizontal: 90°
- Vertical: 45°
- Power Handling:
- LF: 1800W @ 2ohms (single amp), 800W @ 4ohms (2x pairs)
- HF: 150W @ 8ohms
- Connections: Barrier Strip
- Dimensions:
- Height: 23.7 in (602 mm)
- Width: 23.7 in (602 mm)
- Depth: 19.9 in (505 mm)
- Weight: 94 lbs (43 kg)
- Color: White
The EAW QX394-WP 2-Way Trapezoidal Weather Protected Loudspeaker - White is a versatile sound solution. It's great for arenas, stadiums, live music venues, dance clubs, cathedrals, and performing arts centers. Its dimensions are Height: 23.7 in (602 mm), Width: 23.7 in (602 mm), Depth: 19.9 in (505 mm), and it weighs 94 lbs (43 kg).
