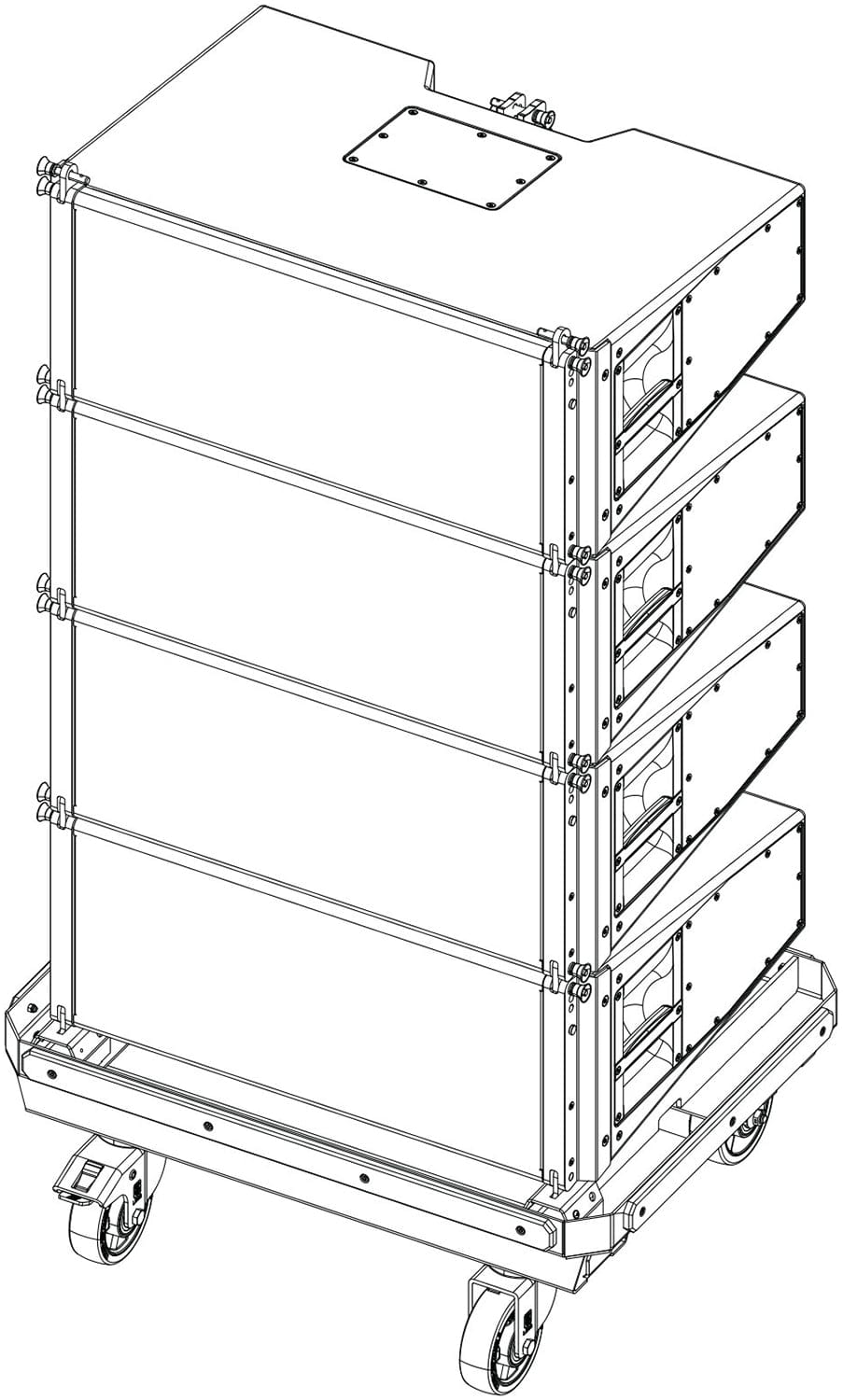

D&B Audiotechnik XSL12 Compression Mode Transport Cart Package
Discover the ultimate convenience with the D&B Audiotechnik XSL12 Compression Cart Package! This all-in-one solution is a game-changer for transporting and storing your XSL12 systems. • Effortless Mobility: Say goodbye to setup headaches. This cart ensures easy movement and quick setup, saving you time and energy. • Top-Notch Protection: Your valuable equipment is in safe hands. It safeguards your gear from damage during transit and storage. • Enhanced Efficiency: Ideal for touring and large-scale events, it boosts your operational efficiency. This package is a must-have for any professional audio setup.
In addition to the cart, this package includes the following:

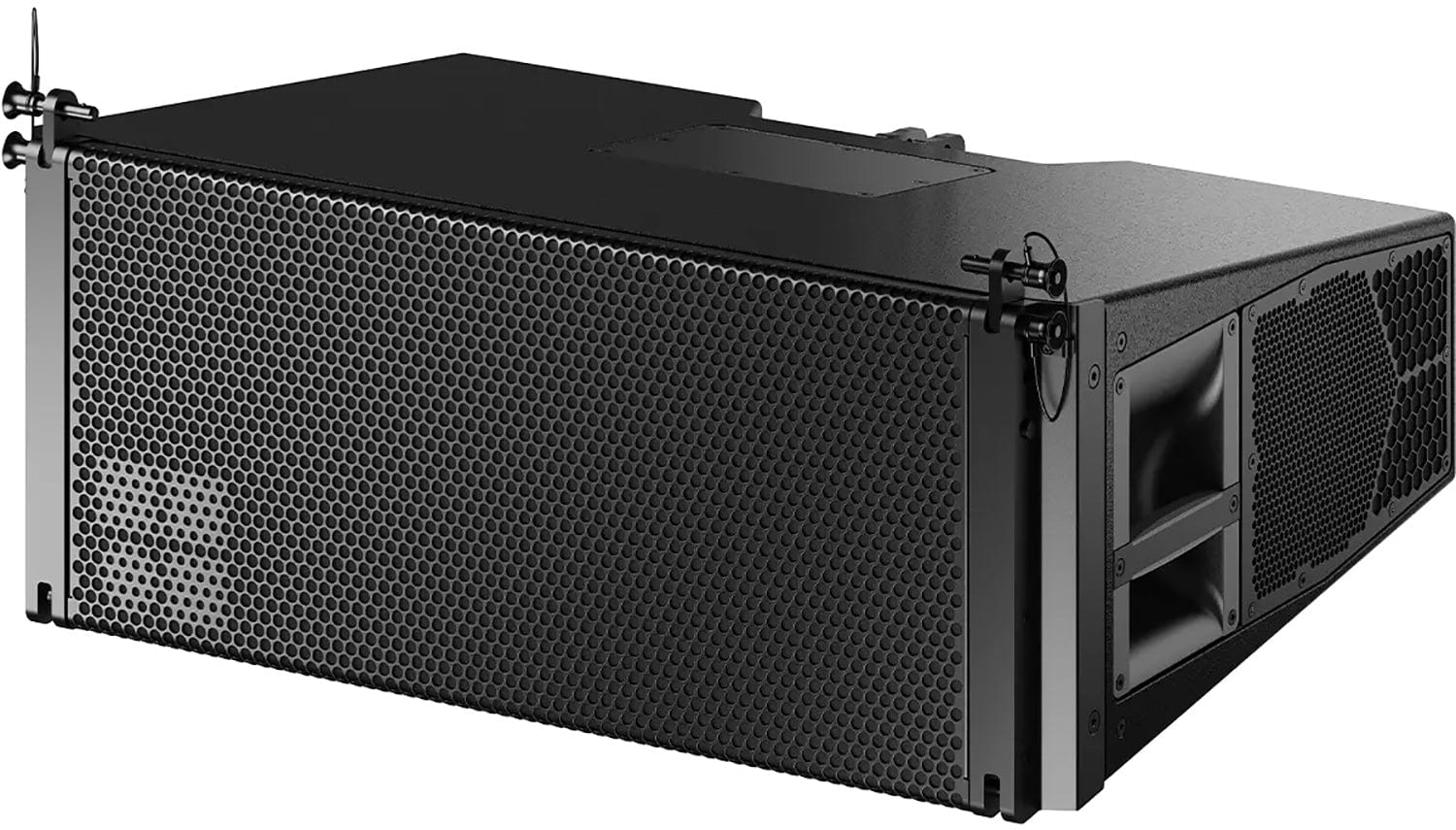

*4x D&B Audiotechnik Z0772.000 XSL12 Loudspeaker with NLT4 F/M Connections
The XSL12 is a great choice for small to medium scale sound reinforcement. It can also work well with GSL and KSL Systems as fill and delay. You can fly up to twenty-four / twenty-two cabinets in compression or tension mode from XSL Flying frames and up top twelve cabinets from the smaller XSL Mounting frames in vertical columns to get a 120° constant directivity dispersion pattern in the horizontal plane. It has two 8” neodymium forward facing LF drivers, two side firing 6.5” neodymium LF drivers, one horn-loaded 6.5” MF driver, and two 1” exit HF compression drivers with 2” voice coils on a dedicated wave shaping device. Thanks to the smart arrangement of the front and side firing LF drivers and their special processing, it keeps seamless directivity from 60 Hz to above 18 kHz. You can also link two cabinets in Line or Arc mode for more flexibility. The SL-Series' flying hardware has a cool patented workflow with integrated tension and compression rigging modes, letting you set splay angles between cabinets from 0° to 14° in 1° increments. The loudspeakers are powered by two channels of an appropriate d&b amplifier, which gives dedicated processing for the front LF and passive crossover for side LF and MF/HF sections. This makes the cabinet produce a perfectly symmetrical dispersion pattern.
The cabinet is made of injection molded PC-ABS plastic and has a tough 2K finish that protects against impacts and weather. The front and side panels have rigid metal grills covered by an acoustically transparent and water repellent fabric. Each side panel has a recessed handle, and there are two more handles at the rear.
Amplifiers
The following amplifiers can be used to drive the XSL12.
Technical Data
- System Data -
- Max. sound pressure[1] with D40/D80/40D - 140 dB
- Frequency response (-5 dB standard) - 60 Hz - 18 kHz
- Frequency response (-5 dB CUT mode) - 90 Hz - 18 kHz
- Cabinets per D40/D80/40D (Array Processing) - 2
- Cabinets per D40/D80/40D (Line or Arc mode) - 4
- Loudspeaker data -
- Nominal impedance front LF - 8 ohms
- Nominal impedance side LF/MF/HF - 8 ohms
- Power handling capacity front LF (RMS/peak 10 ms) - 400/1200 W
- Power handling capacity side LF/MF/HF (RMS/peak 10 ms) - 300/850 W
- Nominal dispersion angle (horizontal) - 120°
- Splay angle settings - 0 ¡ 14° (1° increment)
- Components -
- 2 x 8' front LF driver
- 2 x 6.5' side LF driver
- 1 x 6.5' MF driver
- 2 x 1' exit compression driver with 2' voice coil
- Passive crossover network
- Connections - 2 x NLT4 F/M
- Dimensions / weight
- Dimensions (H x W x D) -
- 283 x 700 x 507 mm
- 11.1 x 27.5 x 20'
- Weight -
[1] 1 m, free field, SPL max peak, test signal: pink noise with crest factor 4, one speaker driven
This D&B Audiotechnik XSL12 Compression Mode Transport Cart Package is perfect for touring and large-scale events. It's designed for professionals in the audio setup field. The cart makes it easy to move and set up your equipment. The included XSL12 loudspeakers are great for small to medium scale sound reinforcement. The system has some great features like seamless directivity from 60 Hz to above 18 kHz and the option to link cabinets in different modes. The dimensions of the cabinet are 283 x 700 x 507 mm (11.1 x 27.5 x 20') and it weighs 39 kg (86 lb).
