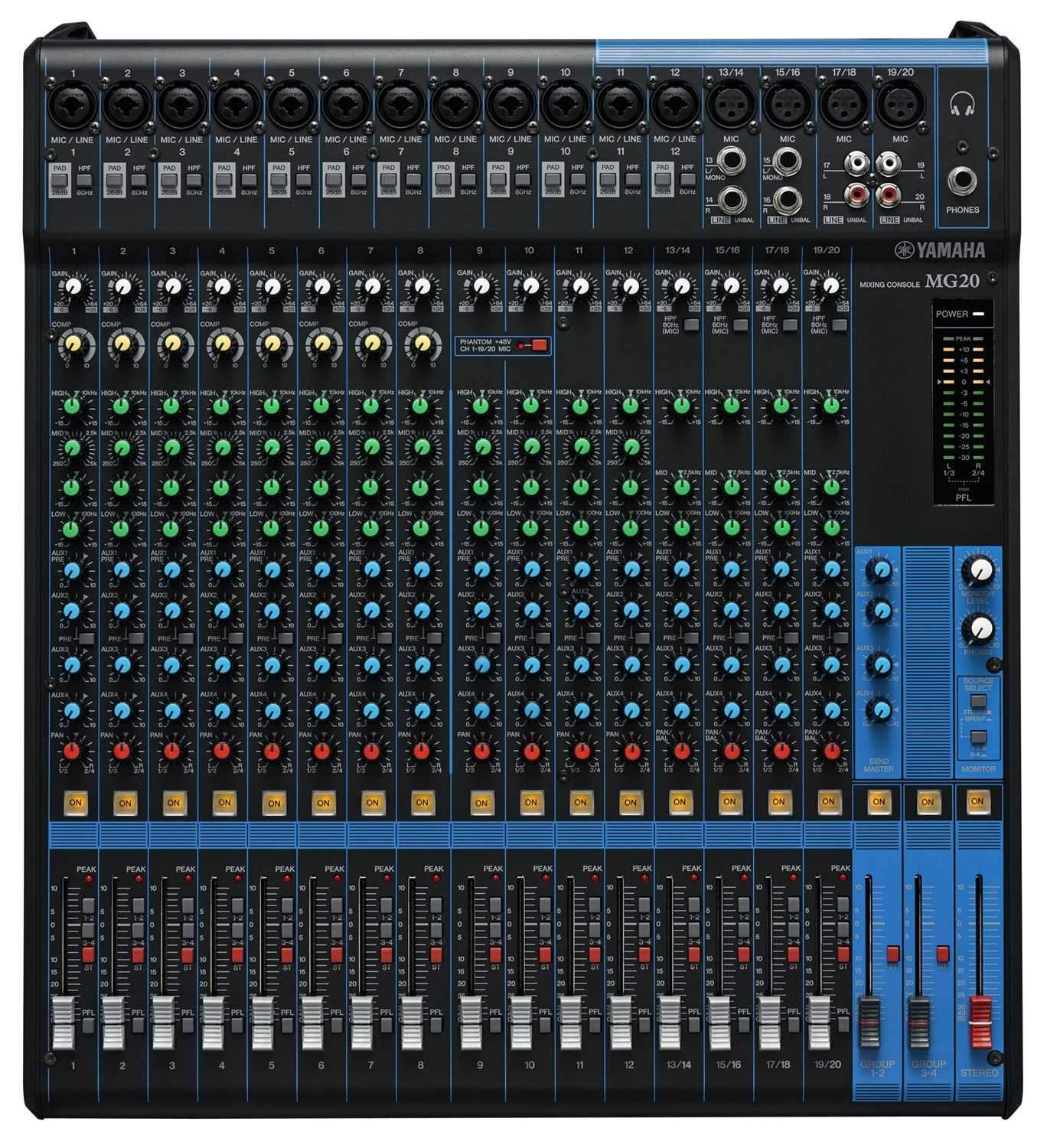

Yamaha MG20 20 In Live Sound PA Mixer

Yamaha MG20: The Ultimate Live Sound PA Mixer

Get ready to take your sound to the next level! The Yamaha MG20 is the perfect choice for musicians, DJs, and audio engineers who demand professional-quality sound in any live or studio setting.

Featuring a suite of Yamaha's renowned SPX effects, the MG20 allows you to precisely control and enhance your sound. With high-resolution Chorus, Flanger, Distortions, Reverb, and Delay, all with editable parameters, you have the tools you need to create the perfect mix.

But that's not all! The MG20 also features 1-knob Compressors, EQ and High-pass Filters, AUX / Effect Sends / Group, a variety of input / output connectors, LED level metering, and a built-to-last metal chassis. With these features, you can produce high-quality sound that is uniquely your own.

1-knob Compressors

Compression is essential for any recording or sound reinforcement environment. The MG20's 1-knob compressors make it easy to achieve professional-quality compression with just a single rotary control.

EQ and High-pass Filters

Precise equalization and high-pass filtering are essential for any mix. The MG20's 3-band equalizers on all mono channels and high-pass filter allow you to eliminate unwanted low-frequency noise and achieve a smoother, cleaner mix.

AUX / Effect Sends / Group

The MG20 features up to 4 AUX sends for expanding your sound reinforcement or recording setup. With master send controls and a variety of input / output connectors, you can easily incorporate additional effects, output to external recording devices, or feed to an monitoring system.

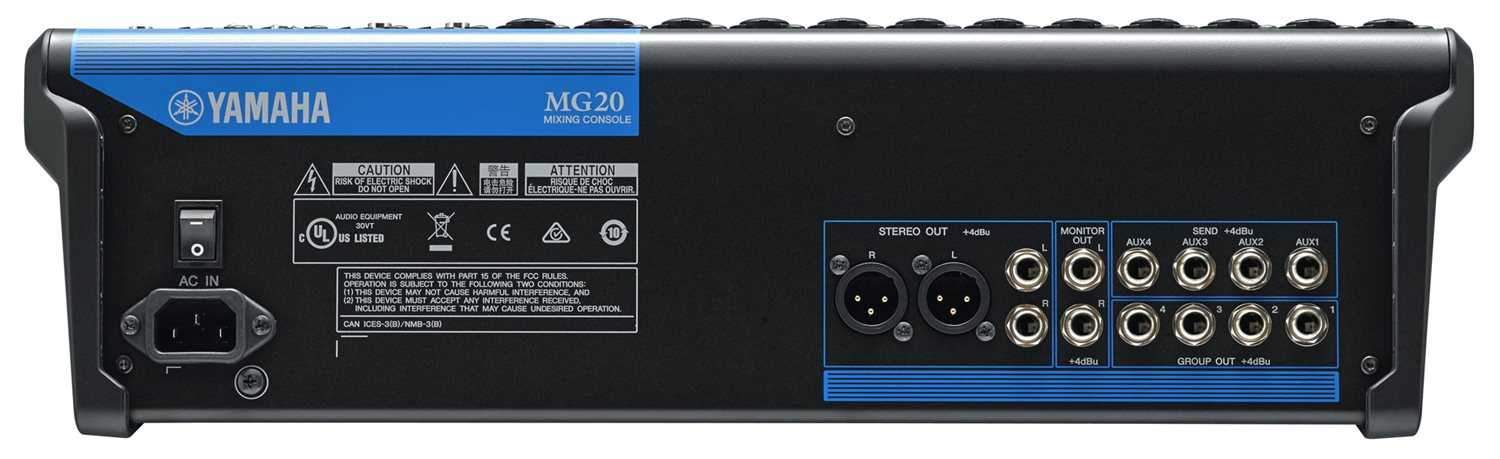

A variety of input / output connectors

The MG20 features high-quality Neutrik balanced XLR connectors on mono microphone/line channels and XLR equipped stereo channels. With a variety of input / output connectors, you can easily connect to any audio source and achieve professional-quality sound.

LED level metering

Easy-to-read LED level metering allows you to monitor your output levels with precision.

Built to last

The MG20 is built to last, with a rugged, impact-resistant, powder-coated metal chassis. With an internal universal power supply and a rack mount kit included, you can easily adapt the MG20 to any installed or portable application.

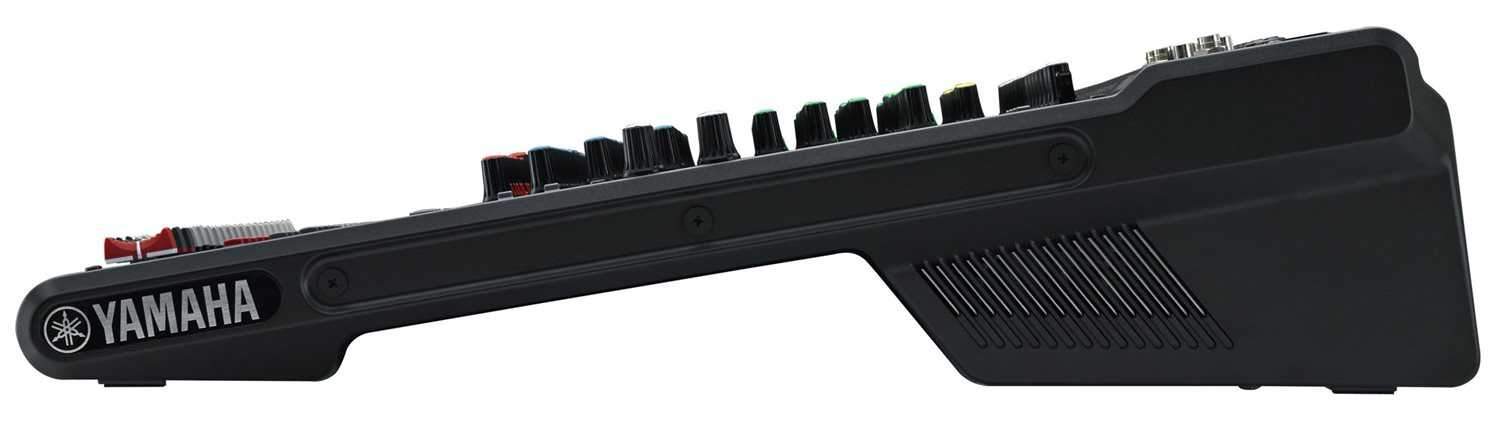

Metal Chassis

The MG20's metal chassis offers unrivalled durability and superior noise reduction. With a sleek design contoured for optimal convection cooling, the internal layout separates the power supply from the analog circuitry for maximum performance.

Internal Universal Power Supply

The MG20's internal universal power supply allows for worry-free operation in any region around the globe. With simplified rack mounting, you can easily install the MG20 in any rack setup.

Rack Mount Kit Included

The MG20's 16- and 20-channel models include rack ears, giving you the option of a rack-mounted or desk-top configuration. With a sleek design and extreme durability, the MG20 makes safe, stable placement hassle-free.

XLR connector

The MG20's main stereo outputs feature XLR type connectors that lock to prevent accidental disconnection. With rugged and dependable professional connectors, you can ensure stable signal transmission even in the most demanding environments.

Features:

• 20-Channel Mixing Console
• Max. 16 Mic / 20 Line Inputs (12 mono + 4 stereo)
• 4 GROUP Buses + 1 Stereo Bus
• 4 AUX (incl. FX)
• 'D-PRE' mic preamps with an inverted Darlington circuit
• 1-Knob compressors
• PAD switch on mono inputs
• +48V phantom power
• XLR balanced outputs
• Internal universal power supply for world-wide use
• Rack Mount Kit Included
• Metal chassis
• Dimensions(W¡ÁH¡ÁD): 444 mm x 130 mm x 500 m (17.5' x 5.1' x 19.7')
• Net Weight: 6.9kg (15.2 lbs.)

The Yamaha MG20 is a 20-channel mixing console designed for live sound and PA applications. It's perfect for musicians, DJs, and audio engineers who need a reliable and versatile mixer. With a variety of features including 1-knob compressors, EQ and high-pass filters, AUX/effect sends/group, and a variety of input/output connectors, the MG20 allows you to precisely control and enhance your sound. The mixer also features LED level metering, a built-to-last metal chassis, an internal universal power supply, and a rack mount kit included. Dimensions are 444 mm x 130 mm x 500 m (17.5' x 5.1' x 19.7') and net weight is 6.9kg (15.2 lbs.).
