Shure P3TR112TW-G20 Twin Pack for PSM300 Monitoring System - G20 Band: The Ultimate Wireless Audio Solution for Performers
Get ready to elevate your performance with the Shure P3TR112TW-G20 Twin Pack for PSM300 Monitoring System. This revolutionary system delivers detailed 24-bit digital audio and reliable wireless freedom to every corner of the stage. Whether you're a professional musician, a DJ, or a live event performer, this system is designed to meet your needs.
Key Features:
- • Exceptional Sound Quality: Enjoy crystal-clear 24-bit digital audio with up to 90 dB signal-to-noise ratio.
- • Reliable Wireless Connectivity: Experience dependable wireless coverage up to 300 ft (90 m) with no dropouts.
- • Easy Setup and Operation: Quickly find and assign a clean wireless channel with one-touch frequency scan and sync.
Technical Specifications:
- RF Carrier Range: 488–512 MHz
- Compatible Frequencies Per band: up to 15
- Tuning Bandwidth: 24 MHz maximum (Note: varies by region)
- Operating Range Environment dependent: 90 m (300 ft)
- Audio Frequency Response 38 Hz–15 kHz
- Signal-to-Noise Ratio A-weighted: 90 dB (typical)
- Total Harmonic Distortion ref. ±34 kHz deviation @1 kHz: <0.5% (typical)
- Companding: Patented Shure Audio Reference Companding
- Spurious Rejection ref. 12 dB SINAD: >80 dB (typical)
- Frequency Stability: ±2.5 ppm
- MPX Pilot Tone: 19 kHz (±1 Hz)
- Modulation: FM*, MPX Stereo (ref. ±34 kHz deviation @ 1 kHz)
- Operating Temperature: -18 °C (0 °F) to +63 °C (145 °F)

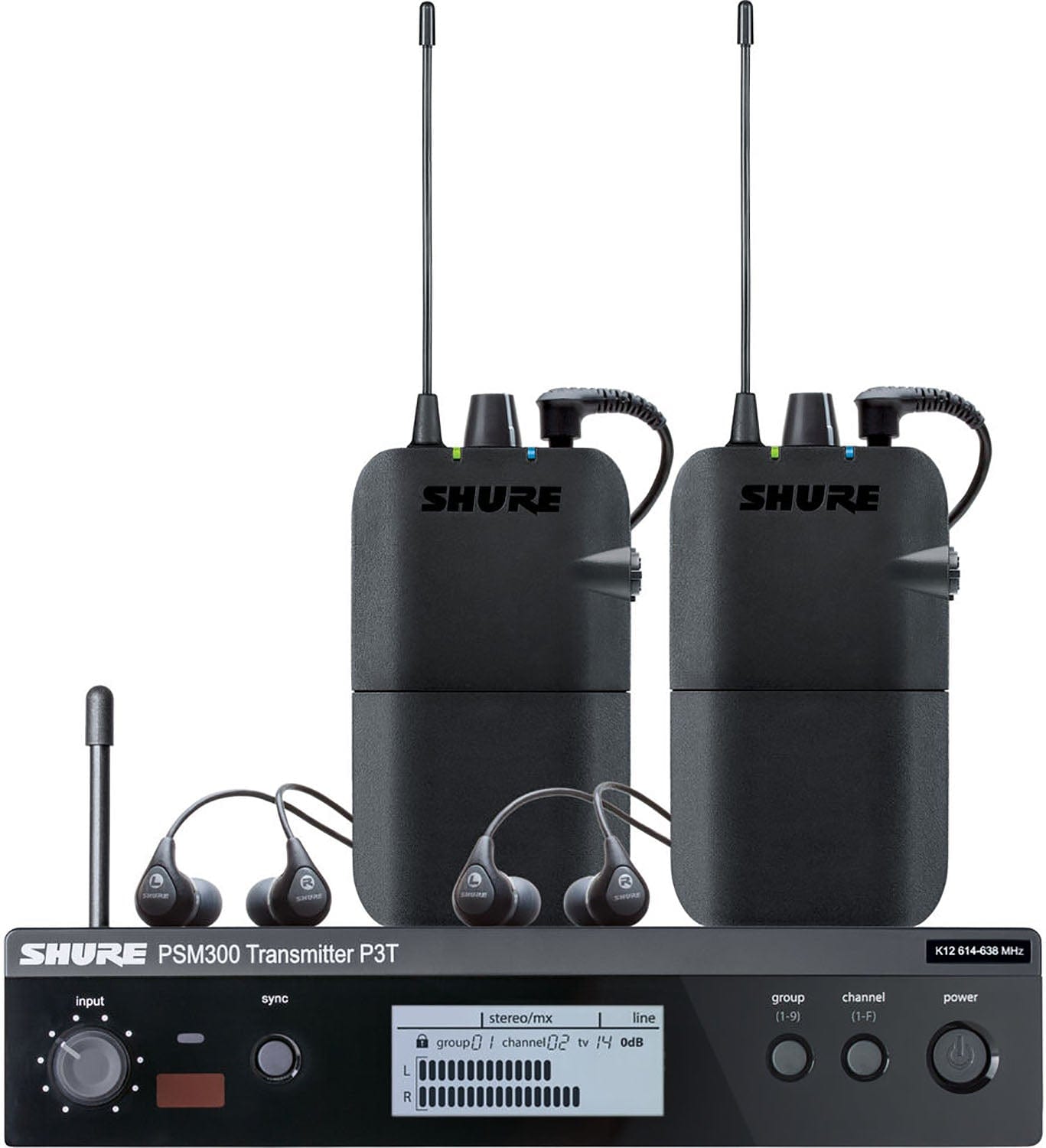

The Shure P3TR112TW-G20 Twin Pack for PSM300 Monitoring System is perfect for live events, concerts, and performances. It's designed for musicians, DJs, and performers who need high-quality wireless audio. The system features a half-rack, single channel transmitter with an included rack mount kit. It also offers two channels of audio wirelessly to performers onstage. The audio frequency response is 38 Hz–15 kHz, and the signal-to-noise ratio is 90 dB (typical). The operating range is up to 90 m (300 ft), depending on the environment.
