Sennheiser XSW Digital Pedalboard Wireless Set
Experience seamless wireless audio with the Sennheiser XSW-D Wireless Digital Pedalboard Set. Effortlessly connect your guitar to the pedalboard and enjoy a reliable connection with just one touch.
• Digital Transmission: Enjoy crystal-clear audio with 2.4 GHz digital transmission for worldwide operation.
• Long Range: Stay connected up to 75m (250ft) in optimal conditions.
• Extended Battery Life: Get up to 5 hours of continuous play on a single charge.

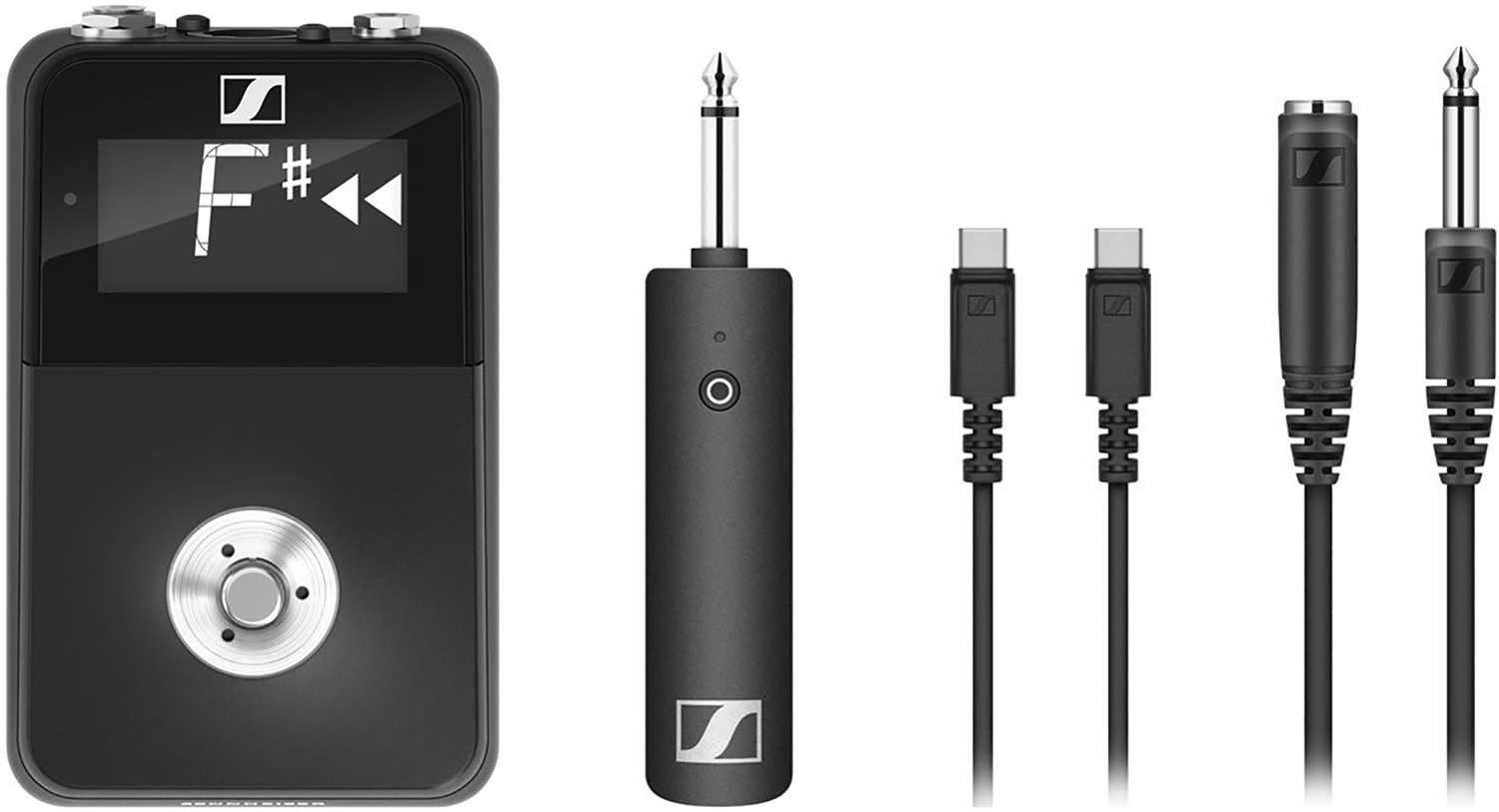

What's in the box:

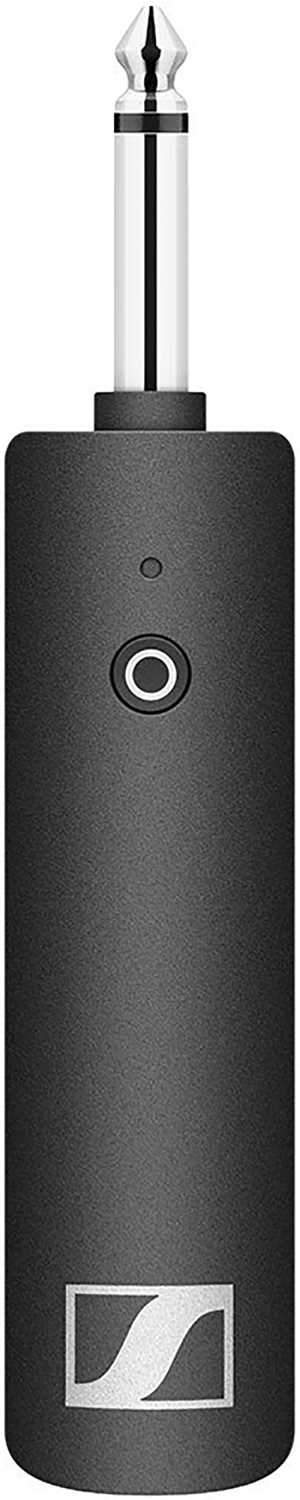

- XSW-D 6.3mm (1/4') transmitter

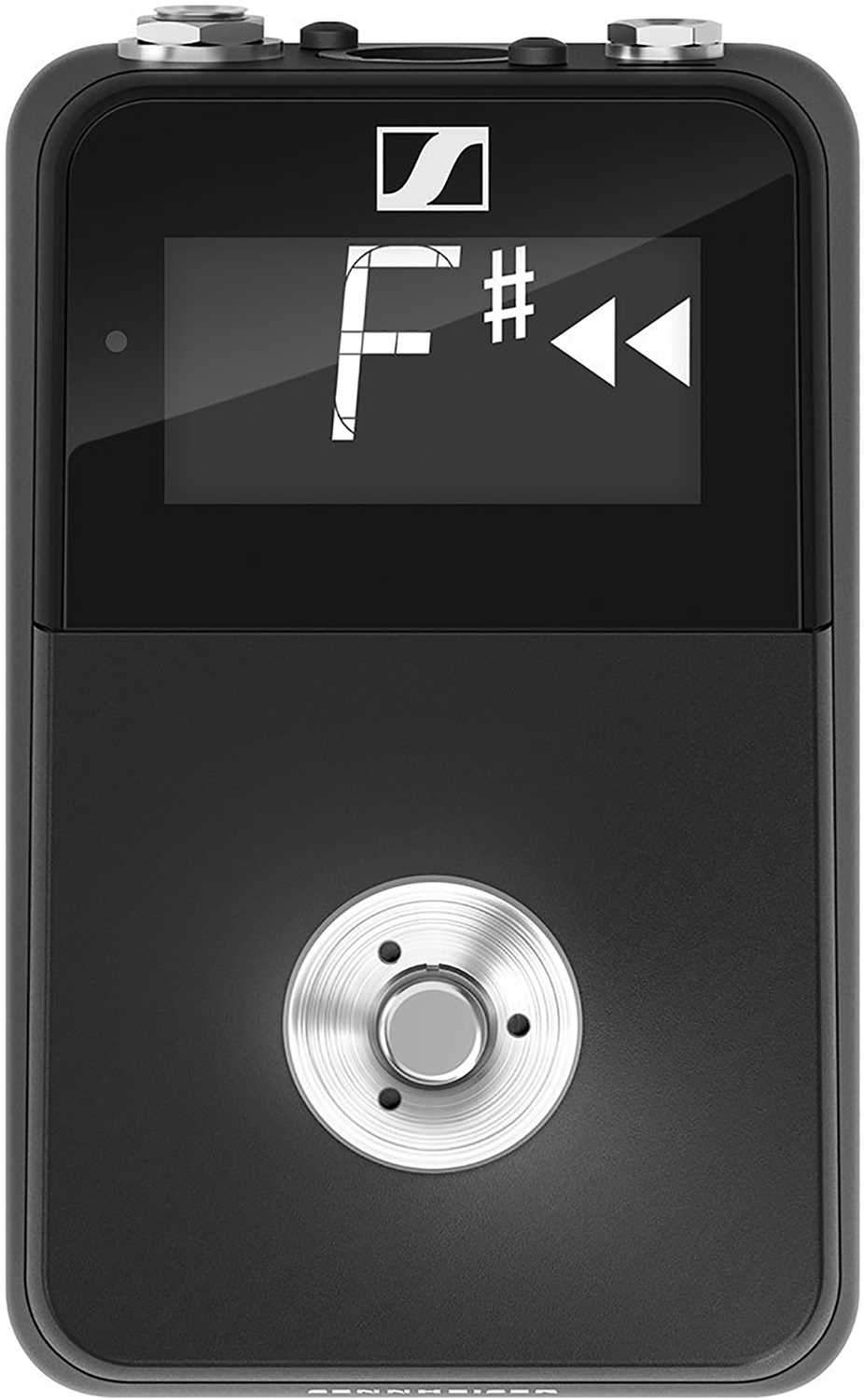

- XSW-D Pedalboard receiver
- Receiver power supply
- Extension cable 6.3mm (1/4')
- Belt clip

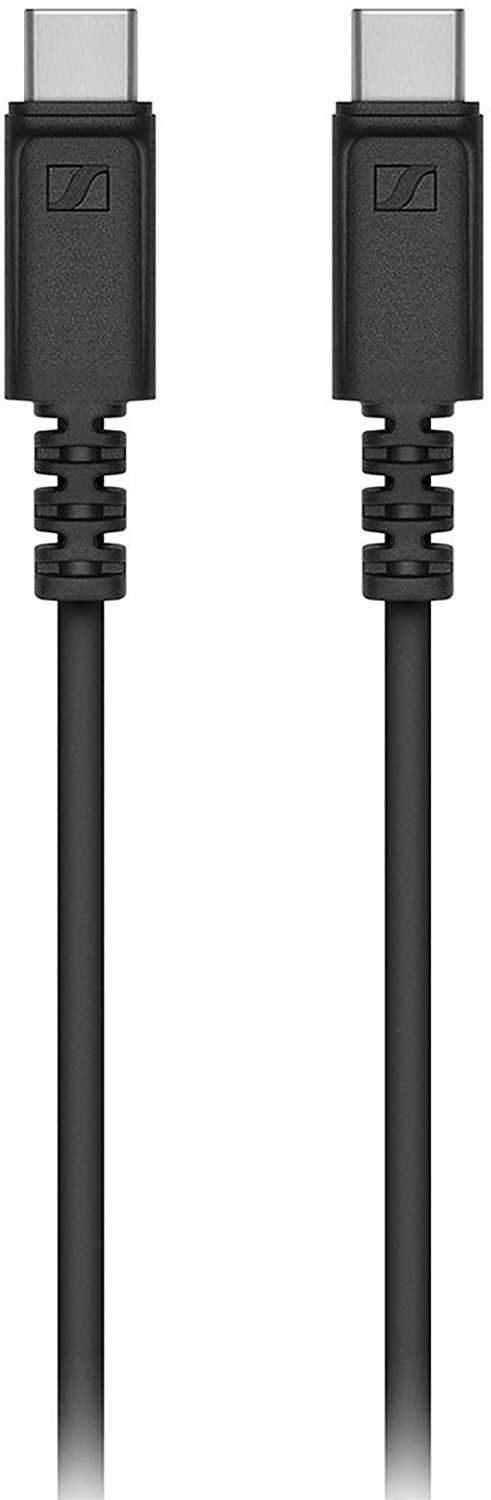

- USB-C to USB-C charging cable
Features:
- One touch ease-of-use
- 2.4 GHz digital transmission for worldwide operation
- 75m range (250ft) in optimal conditions
- Up to 5 hours battery life on a single charge
- Switch between multiple transmitters linked to one receiver
- Configure any combination of transmitters and receivers
- Mute from either transmitter or receiver
Specifications:
- Dimensions:
- XSW-D XLR Female TX: approx. 102 x 24 x 28 mm
- XSW-D Mini Jack TX: approx. 86 x 24 x 28 mm
- XSW-D Instrument TX: approx. 122 x 24 x 28 mm
- XSW-D XLR MALE RX: approx. 109 x 24 x 28 mm
- XSW-D Mini Jack RX: approx. 86 x 24 x 28 mm
- XSW-D Instrument RX: approx. 122 x 24 x 28 mm
- XSW-D Pedalboard RX: approx. 130 x 82 x 51 mm
- THD, total harmonic distortion: < 0.1 %
- Charging time: typ. 3 h
- Audio output: max. 12 dBu
- Operating temperature: -10 °C to +55 °C (14 °F to 131 °F)
- Signal-to-noise ratio: 106 dB
- Operating time: up to 5 h
- Modulation: GFSK with TDMA
- Battery Specification: Li-Ion
- Capacity: 850 mAh
- Codecs: aptX Live
- Frequency range: 2,400 - 2,483.5MHz
- Max. Input voltage: typ. 5.0 V
- Transmission power: max. 10 mW
- Voltage: 3.7 V
- Operating relative humidity : 95 % (non-condensing)
- Latency: < 4 ms
- Temperature Range: 0 °C - 60 °C (32 °F - 140 °F)
- Audio frequency response:
- 3.5 mm Jack/XLR: 80 - 18,000 Hz
- 6.3 mm Jack: 10 - 18,000 Hz
The Sennheiser XSW-D Wireless Digital Pedalboard Set is perfect for musicians on the go. Whether you're performing on stage or practicing in your studio, this set allows you to play guitar wirelessly with a pedalboard for a seamless experience. The set includes an XSW-D 6.3mm (1/4') transmitter, XSW-D Pedalboard receiver, receiver power supply, extension cable 6.3mm (1/4'), belt clip, and USB-C to USB-C charging cable. With features like one-touch ease-of-use, 2.4 GHz digital transmission, and a 75m range (250ft) in optimal conditions, you can enjoy up to 5 hours of battery life on a single charge. The set also allows you to switch between multiple transmitters linked to one receiver and configure any combination of transmitters and receivers. You can even mute from either the transmitter or receiver. The dimensions of the XSW-D XLR Female TX are approx. 102 x 24 x 28 mm, the XSW-D Mini Jack TX is approx. 86 x 24 x 28 mm, the XSW-D Instrument TX is approx. 122 x 24 x 28 mm, the XSW-D XLR MALE RX is approx. 109 x 24 x 28 mm, the XSW-D Mini Jack RX is approx. 86 x 24 x 28 mm, the XSW-D Instrument RX is approx. 122 x 24 x 28 mm, and the XSW-D Pedalboard RX is approx. 130 x 82 x 51 mm.
