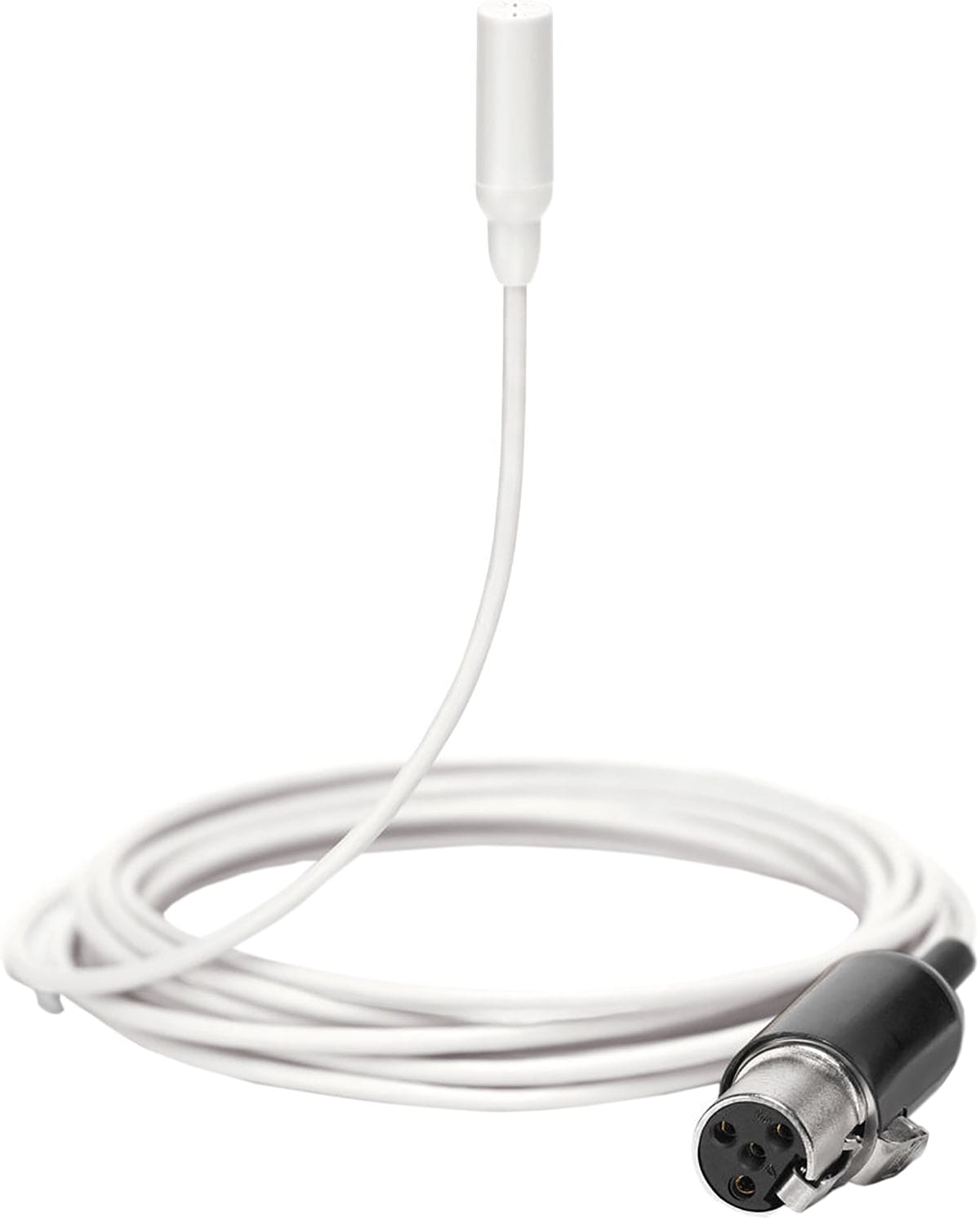

Shure TL48W/O-MTQG-A TwinPlex Omnidirectional Lavalier Microphone - MTQG with Accessories - White - The Ultimate Solution for Crystal Clear Audio
• Ideal for film and TV: Tailored response with mid-range rise for speech and dialogue
• Superior sound quality: Low self-noise, dynamic range, and improved off-axis consistency
• Easy to use: Paintable cable, extensive accessories, and quick mounting
Features:
- With a paintable, fixed frequency cap and mid-band boost that accentuates dialogue, the TL48 is ideal for film and TV applications
- Improved off-axis consistency, due to the patent pending dual-diaphragm design, yields accurate reproduction regardless of vocal source position or movement
- Best-in-class low self-noise and dynamic range for cleaner audio production
- Fixed frequency cap with internal hydrophobic woven lining resists sweat and moisture
- Paintable 1.6 mm cable that is immune to memory effect and kinks
- Dual redundant ground in cable serves as secondary shield for longevity
- Sound signature: Tailored for dialogue (6dB mid-band boost at about 7kHz)
- Sensitivity: Low
- Colors: White
- Connectors: MTQG/TA4F

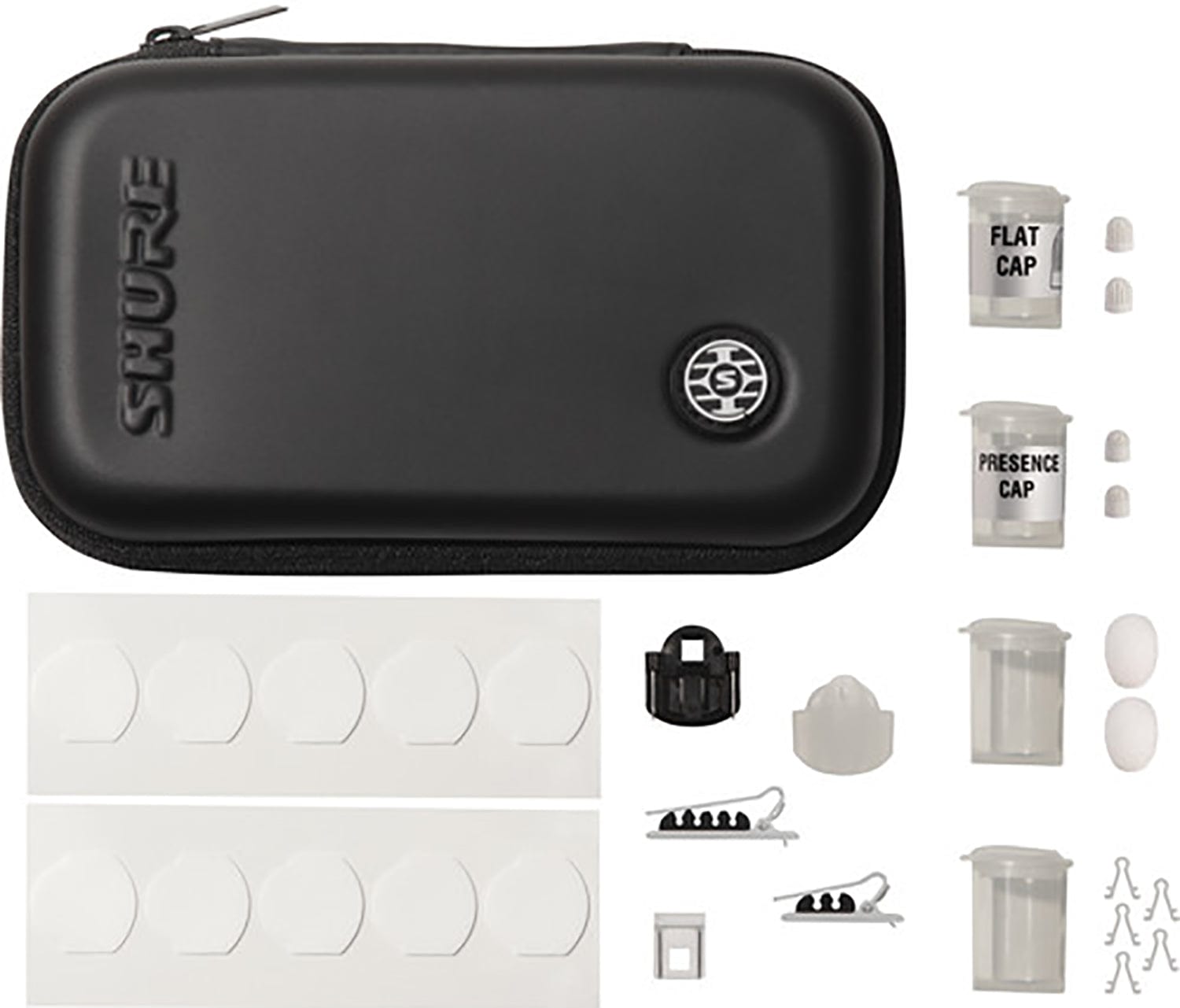

- Accessories: Available with accessories
Specifications:
- Microphone Capsule: Dual-Diaphragm, Prepolarized Condenser
- Polar Pattern: Omnidirectional
- Frequency Response: 20 Hz to 20 kHz
- Sensitivity: -45.0 dBV (5.62 mV) at 1kHz
- Self-Noise, A-Weighted, Equivalent Acoustical: 24.5 dB SPL-A
- Signal-To-Noise Ratio: 69.5 dB
- Output Clipping Level: 3.0 dBV,1 kHz at 1% THD, typical
- Maximum SPL: 142.0 dB SPL 1 kHz at 1% THD, typical
- Dynamic Range: 117.5 dB typical
- Microphone Current Draw: 120 to 240 ¦ÌA, typical
- Bias Voltage Recommended Operating Voltage: 5 VDC
- Housing: Molded ABS
- Polarity: Positive pressure at diaphragm leads to positive voltage with respect to ground
- Cable Diameter: 1.6 mm
- Cable Length: 66 in. (1.67 m)
- Microphone Length: 19 mm
- Microphone Diameter: 5.6 mm
- Net Weight with Cable: 12.0 g (0.42 oz.)
This Shure TL48W/O-MTQG-A TwinPlex Omnidirectional Lavalier Microphone is perfect for film and TV professionals looking for crystal clear audio. With a mid-range rise for speech and dialogue, it's tailored for those applications. It's easy to use, with a paintable cable and extensive accessories for quick mounting. The microphone capsule is a Dual-Diaphragm, Prepolarized Condenser, and it has an Omnidirectional Polar Pattern. It has a frequency response of 20 Hz to 20 kHz. The cable diameter is 1.6 mm and the length is 66 in. (1.67 m). The microphone length is 19 mm and diameter is 5.6 mm. The net weight with cable is 12.0 g (0.42 oz.).
