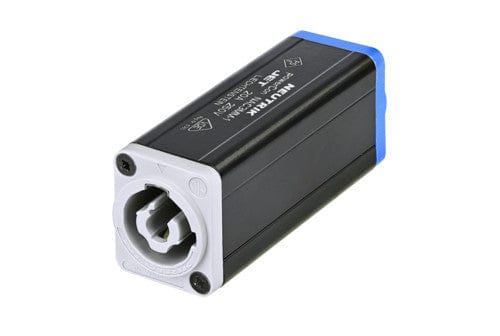

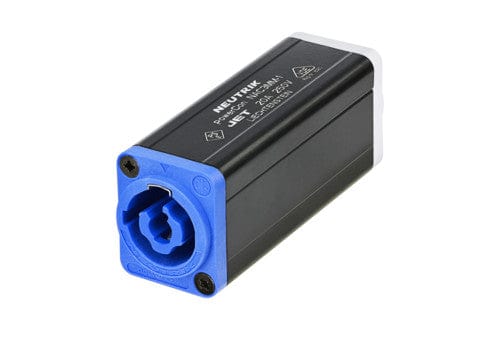

Neutrik NAC3MM-1 PowerCON Coupler: Connect NAC3MPXXA to NAC3MPXXB Securely
• Connect powerCON NAC3MPXXA (power in) to powerCON NAC3MPXXB (power out). Ideal for linking power cables with NAC3FXXA/B.
• The powerCON is a rugged locking 3-conductor AC connector. Ensures a super-safe power connection with its locking device.
• Perfect for scenarios where you need a durable solution for appliance connections.
This product is a locking 3 conductor equipment AC connector with breaking capacity using contacts for line, neutral and pre-mating ground contact. It's designed to replace appliance couplers when a tough, secure power connection is required.
| Contact resistance | ≤ 3 mΩ |
| Dielectric strength | 4 kVdc |
| Insulation resistance | > 0.1 GΩ (after damp heat test IEC 68-2-30) |
| Rated current per contact | 16 A rms |
| Rated voltage | 250 V ac |
Use it for securely connecting power cables in various equipment setups. Great for technicians, electricians, and anyone dealing with power connections. Technical specs include: Contact resistance ≤ 3 mΩ, Dielectric strength 4 kVdc, Insulation resistance > 0.1 GΩ (after damp heat test IEC 68-2-30), Rated current per contact 16 A rms, Rated voltage 250 V ac.
