Shure P3T - J13 PSM300 Wireless Transmitter: Superior Performance for Every Gig
The P3T is a wireless transmitter designed for the PSM 300 Personal Monitor System, delivering an exceptional personal monitoring experience for performers.
• Dependable wireless transmission and 24-bit digital audio ensure a top-notch mix for every show. Send 2 channels of audio to a bodypack receiver up to 90 meters away, with patented technology for crystal-clear sound. The rugged half-rack transmitter features easy front-panel controls for quick setup and smooth operation.

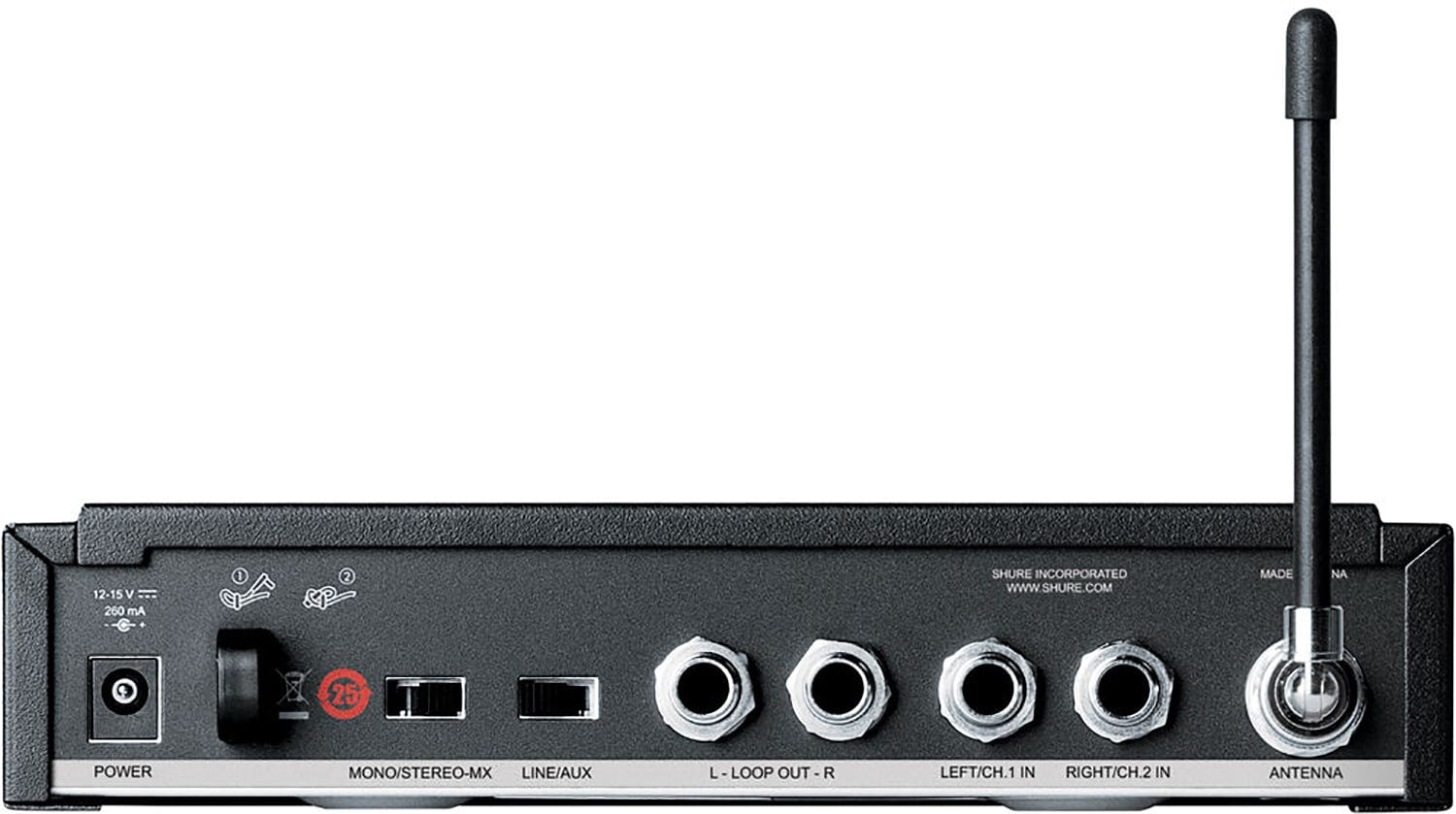

• Effortlessly connect to audio sources and other P3T units with rear-panel balanced inputs and loop outputs. One-touch IR sync instantly links the transmitter to the receiver, making setup a breeze.
• Benefit from features like a high-contrast LCD screen with audio output meters, a detachable antenna, and selectable line/aux level. This reliable transmitter is a must-have for musicians and performers seeking a professional monitoring solution.
Features:
- Single channel, half-rack transmitter with included rack mount kit
- Sends a stereo or mono mix wirelessly to performers onstage
- Rock-solid wireless connection to PSM300 receivers over a 90 meter range
- One-touch IR sync instantly links transmitter to receiver
- Up to 30 mW output power (region dependent)
- Up to 24 MHz tuning range (region dependent)
- ” (6.3 mm) TRS balanced inputs and loop outputs
- High-contrast LCD screen with left/right audio output meters
- Detachable wave antenna
- Selectable line/aux level
Specifications:
- RF Output Power: 10, 20, 30 mW Note: varies by region
- RF Output Impedance: 50 Ω (typical)
- Net Weight: 783 g (27.6oz.)
- Dimensions: 43 ¡Á 198 ¡Á 172 mm (1.7 ¡Á 7.8 ¡Á 6.8 in.), H ¡Á W ¡Á D
- Power Requirements: 12–15 V DC, 260 mA maximum
- Audio Input:
- Connector Type: 6.35 mm (1/4') TRS
- Polarity: Tip positive with respect to ring
- Configuration: Electronically balanced
- Impedance: 40 kΩ (actual)
- Nominal Input Level: Switchable, +4 dBu, -10 dBV
- Maximum Input Level: +4 dBu: +22 dBu, -10 dBV: +12.2 dBu
- Pin Assignments: Tip=hot, Ring=cold, Sleeve=ground
- Phantom Power Protection: Up to 60 V DC
- Audio Output:
- Connector: Types 6.35 mm (1/4') TRS
- Configuration: Electronically balanced
- Impedance: Connected directly to inputs
The Shure P3T - J13 PSM300 Wireless Transmitter is a must-have for musicians and performers. Use it onstage to send a stereo or mono mix wirelessly to your bodypack receiver up to 90 meters away. It features easy front-panel controls and rear-panel connectivity. With a net weight of 783 g (27.6oz.) and dimensions of 43 ¡Á 198 ¡Á 172 mm (1.7 ¡Á 7.8 ¡Á 6.8 in.), it's portable and reliable for any gig.
