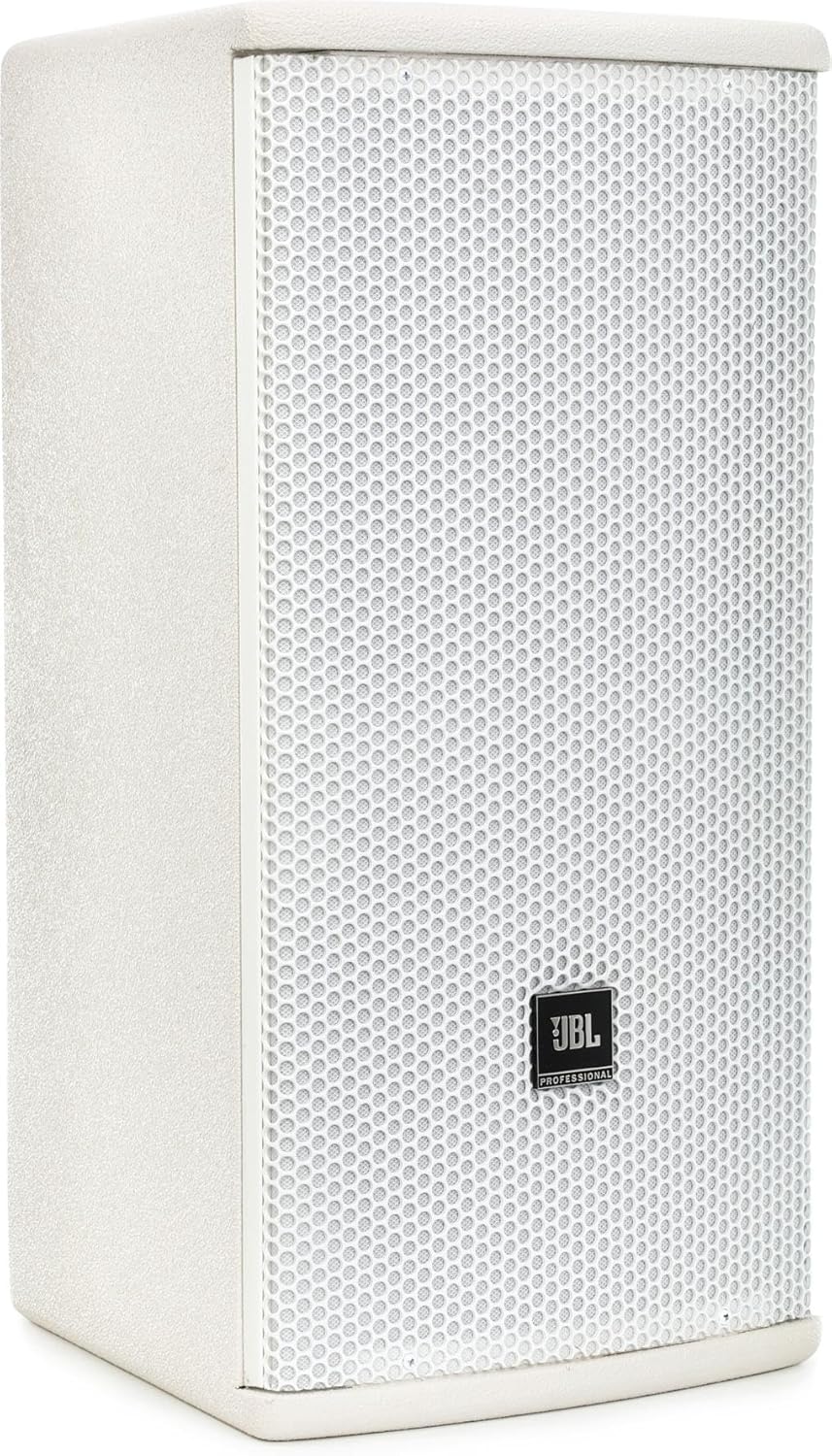

JBL AC18/95-WH Single 8-Inch 2-Way Speaker - White

JBL AC18/95-WH Single 8-Inch 2-Way Speaker - White

An extension of the industry-leading AE Series, the AE Compact family consists of high-output, 2-way loudspeaker systems combining flexibility with high fidelity. Ranging from a single 5.25' point-and-shoot box to dual 8' loudspeaker systems, these models are specifically designed to better serve the needs of both designers and artists alike. The ultra-compact AC15 and AC25 models include a 1' dome tweeter, while the AC16, AC26, AC18, and AC28 models feature 1' exit compression drivers, providing sonic clarity and crisp detail. Furthermore, the AC18 and AC28, featuring JBL's Progressive TransitionTM Rotatable Waveguides, offer the system designer a choice of coverage patterns in either 90° x 50° or 120° x 60° configurations.

Features:

• 1” Exit Compression Driver Coverage PT Waveguide
• 205 mm (8 in) LF transducer
• Compact enclosure
• 500W Program
• Dual Neutrik NL4 connectors plus screw terminal
• FIR Tuning Set Delivers Optimized Frequency & Phase Response, Coverage Consistency, and Sound Quality
• Attachment points for optional U-bracket, third-party OmniMount type bracket, and stand mount accessory

Specifications:

• Frequency Range (-10 dB): 52 Hz - 20 kHz
• Frequency Response (±3 dB): 63 Hz – 19 kHz
• System Power Rating:
  • 250W Cont. Pink Noise
  • 500W Program
  • 1000W Peak
• Impedance: 8 ohms
• Coverage Pattern:
  • /26: 120° x 60°
  • /95: 90° x 50°
• Dimensions (H x W x D): 469.9 x 237.5 x 254.0 mm (18.5 x 9.4 x 10.0 in)
• Net Weight (each): 12.8 kg (28.2 lb)
• Crossover Modes: Passive
• Maximum SPL (1m): 117 dB
• System Sensitivity (1w @ 1m): 93 dB SPL
• LF Driver: 1 x JBL 228H, 205 mm (8 in) SFG driver with 64 mm (2.5 in) edge wound voice coil
• Nominal LF Driver Impedance: 8 Ohms
• HF Driver: 1 x 2408H-1 25 mm (1 in) exit compression driver, 38 mm (1.5 in) voice coil
• Enclosure: 12 mm and 15 mm exterior grade multi-ply hardwood plywood
• Suspension Attachment:
  • 6 x M8 points; 1 top, 3 bottom, 2 rear
  • 4 x M6 rear for OmniMount 30.0 and MultiMount MM-022-BT, MM-024-BT, MM-020-CM
• Environmental: Mil-Std 810; IPx3 per IEC529. For higher environmental ratings, use WRC or WRX.

This JBL speaker is perfect for designers and artists looking for high-quality sound. It's compact, easy to set up, and delivers amazing sound. Use it in your studio, on stage, or at home. The speaker measures 469.9 x 237.5 x 254.0 mm (18.5 x 9.4 x 10.0 in) and weighs 12.8 kg (28.2 lb). It has a frequency range of 52 Hz - 20 kHz and a system sensitivity of 93 dB SPL.
