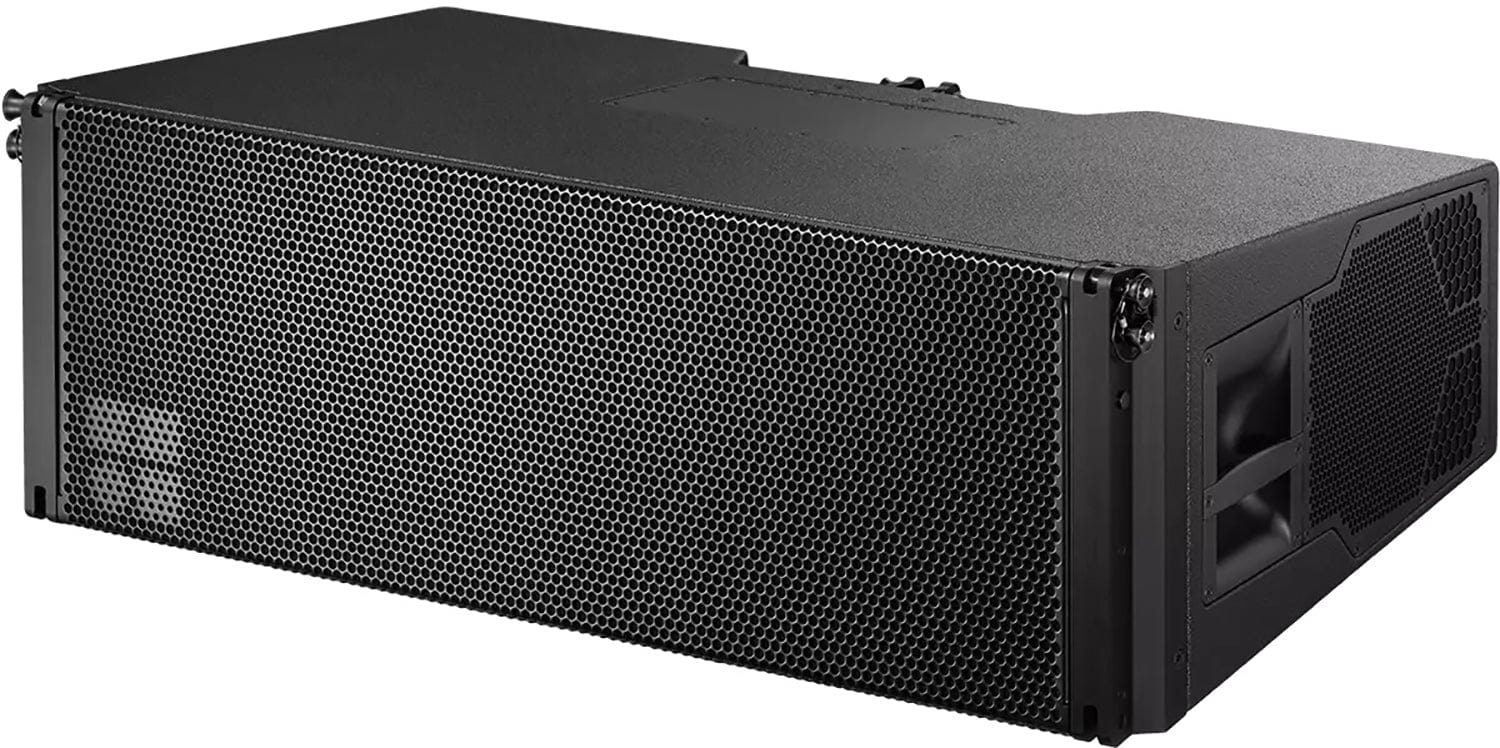

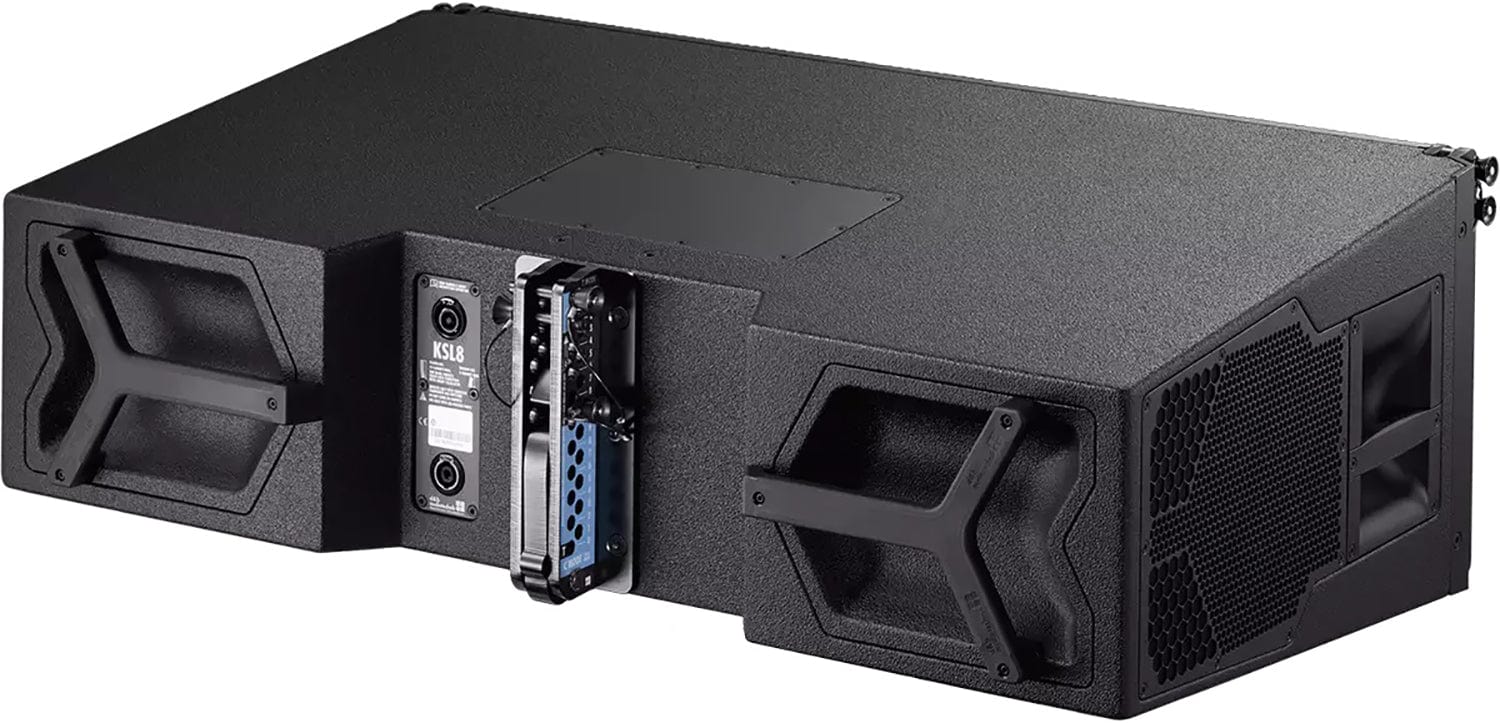

D&B Audiotechnik Z0780.000 KSL8 High-Performance Loudspeaker with NLT4 F/M Connections
• 80° Constant Directivity: Delivers a consistent and powerful sound across the entire horizontal plane.
• Exceptional Sound Quality: Produces rich, clear audio with seamless directivity control from low to high frequencies.
• Flexible Linking Options: Allows you to connect two cabinets in Line or Arc mode for added flexibility.
The KSL8 line array module is a game-changer for sound systems. With its 80° constant directivity dispersion pattern, it ensures an even and powerful sound coverage in any venue. The combination of high-quality drivers and advanced crossover design results in exceptional sound quality that will leave your audience impressed.
Whether you're setting up a concert, a corporate event, or a live performance, the KSL8 is the perfect choice. Its compact size and lightweight design make it easy to transport and set up, while its durable construction ensures long-lasting performance.
With features like patented flying hardware, efficient cabling, and optional ArrayProcessing, the KSL8 offers everything you need for a professional sound system. Don't miss out on this opportunity to enhance your sound experience - get the D&B Audiotechnik Z0780.000 KSL8 today!
Features:
- Constant directivity behaviour over the entire operating range using cardioid techniques in the lower range
- Exceptional broadband headroom
- Patented SL-Series flying hardware and method enables rapid deployment of KSL8 and KSL12 arrays directly from the Touring cart in either compression or tension rigging modes
- Requires only two amplifier channels; one channel drives the front facing 10' LF drivers, while the other amplifier channel drives the passively crossed over 8' side firing LF drivers, the 8” MF section and two HF drivers
- ArrayProcessing optimizes the level and tonal balance over the complete audience listening area
- For short arrays where ArrayProcessing is not required, two KSL loudspeakers can be linked and driven in the Arc / Line mode
- Efficient cabling system and amplifier rack assemblies
- Effective transport solutions
Specifications:
- System data:
- Frequency response (-5 dB standard): 54 Hz - 18 kHz
- Frequency response (-5 dB CUT mode): 75 Hz - 18 kHz
- Max. sound pressure with D40/D80/40D: 145 dB
- Cabinets per D40/D80/40D (ArrayProcessing): 2
- Cabinets per D40/D80/40D (Line or Arc mode): 4
- Loudspeaker data:
- Nominal impedance front LF: 8 ohms
- Nominal impedance side LF/MF/HF: 8 ohms
- Power handling capacity front LF (RMS/peak 10 ms): 450/1800 W
- Power handling capacity side LF/MF/HF (RMS/peak 10 ms): 250/1000 W
- Nominal dispersion angle (horizontal): 80 °
- Splay angle settings: 0 ¡ 10° (1° increment)
- Components:
- 2 x 10' front LF driver
- 2 x 8' side LF driver
- 1 x 8' MF driver
- 2 x 1.4' exit compression driver with 3' voice coil
- Passive crossover network
- Connections: 2 x NLT4 F/M
- Dimensions / weight:
- Dimensions (H x W x D): 330 x 1000 x 597 mm (13 x 39.4 x 23.5')
- Weight: 58 kg (128 lb)
The D&B Audiotechnik Z0780.000 KSL8 is a high-performance loudspeaker designed for a variety of applications. Whether you're hosting a concert, a corporate event, or a live performance, this loudspeaker will deliver exceptional sound quality.
With its 80° constant directivity dispersion pattern, the KSL8 ensures an even and powerful sound coverage across the entire horizontal plane. The combination of high-quality drivers and advanced crossover design results in seamless directivity control from low to high frequencies, providing rich, clear audio that will impress your audience.
The KSL8 is also incredibly flexible. It can be linked with another cabinet in Line or Arc mode for added configuration options. Additionally, it comes with patented SL-Series flying hardware and method, allowing for rapid deployment directly from the Touring cart in either compression or tension rigging modes.
In terms of specifications, the KSL8 has a frequency response of 54 Hz - 18 kHz (-5 dB standard) and 75 Hz - 18 kHz (-5 dB CUT mode). It has a maximum sound pressure of 145 dB with D40/D80/40D. The cabinets are 330 x 1000 x 597 mm (13 x 39.4 x 23.5') in size and weigh 58 kg (128 lb).
Ideal for sound engineers, event planners, and anyone who demands professional-grade audio, the D&B Audiotechnik Z0780.000 KSL8 is a must-have for creating an immersive sound experience.
