Shure BLX14 Wireless Headset System - Unleash Your Audio Potential with PGA31 Headset in H11 Band
Get ready to rock the stage with the Shure BLX14 Wireless Headset System! It's a game-changer for performers, offering professional-quality sound right out of the box. With easy setup and up to 14 hours of battery life, you can focus on delivering an amazing performance without any distractions.
Features:
- • Superior Audio - Perform with Confidence
- • Reliable Signal - Extend your range
- • Easy Setup – Own the stage
Specifications:
- System:
- Wireless Technology: Analog UHF
- Number of RF Channel Frequencies: 123
- Included Transmitters: 1 x Bodypack
- Diversity: Antenna Diversity
- RF Frequency Band: H11(572-596 MHz)
- RF Bandwidth: 24 MHz
- RF Channel Scanning: Auto-Scan
- Max Operating Range: 300' / 91.4 m (Line of Sight)
- Max Transmitters per Band: 12
- Dynamic Range: 100 dBA
- Receiver:
- Receiver Type: Tabletop
- Antenna: 2 x Internal, Fixed
- Number of Audio Channels: 1

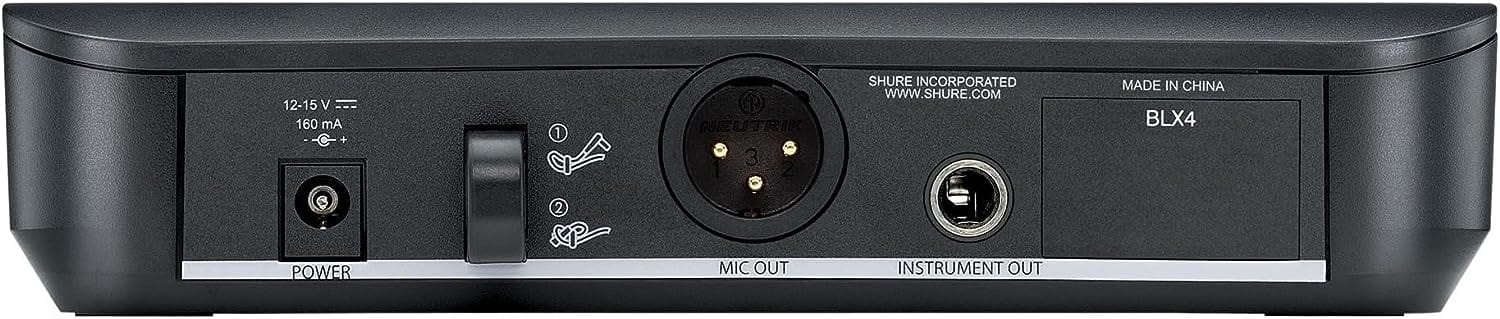

- Audio I/O:
- 1 x XLR 3-Pin Male Balanced Output
- 1 x 1/4' TS Female Unbalanced Output
- Audio Output Level:
- XLR Outputs: -27 dBV (Mic Level)
- 1/4' Outputs: -13 dBV (Instrument Level)
- Frequency Response: 50 Hz to 15 kHz (Dependent on Mic)
- Impedance:
- XLR Outputs: 200 Ohms
- 1/4' Outputs: 50 Ohms
- Power Requirements: AC/DC Power Adapter
- AC/DC Power Adapter: 12 to 15 VDC at 160 mA, Center-Positive (Included)
- AC Input Power: 100 to 240 VAC, 50 / 60 Hz at 150 mA

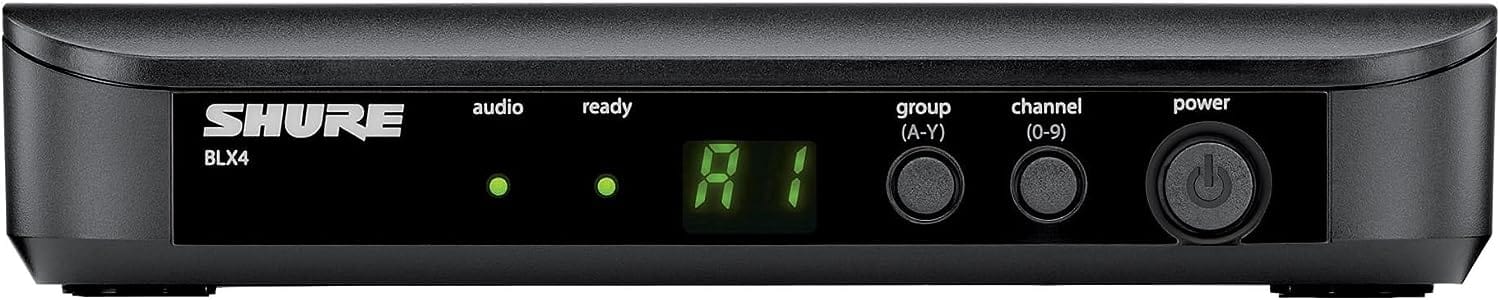

- Display & Indicators:
- 1 x Multi-Segment LED (Channel, Group)
- 2 x LED (AF Level, Sync)
- Housing: ABS
- Operating Temperature: 0 to 135°F / -17 to 57°C
- Dimensions: 7.4 x 1.6 x 4.1' / 188 x 40 x 103 mm
- Weight: 8.5 oz / 241 g
- Transmitter:

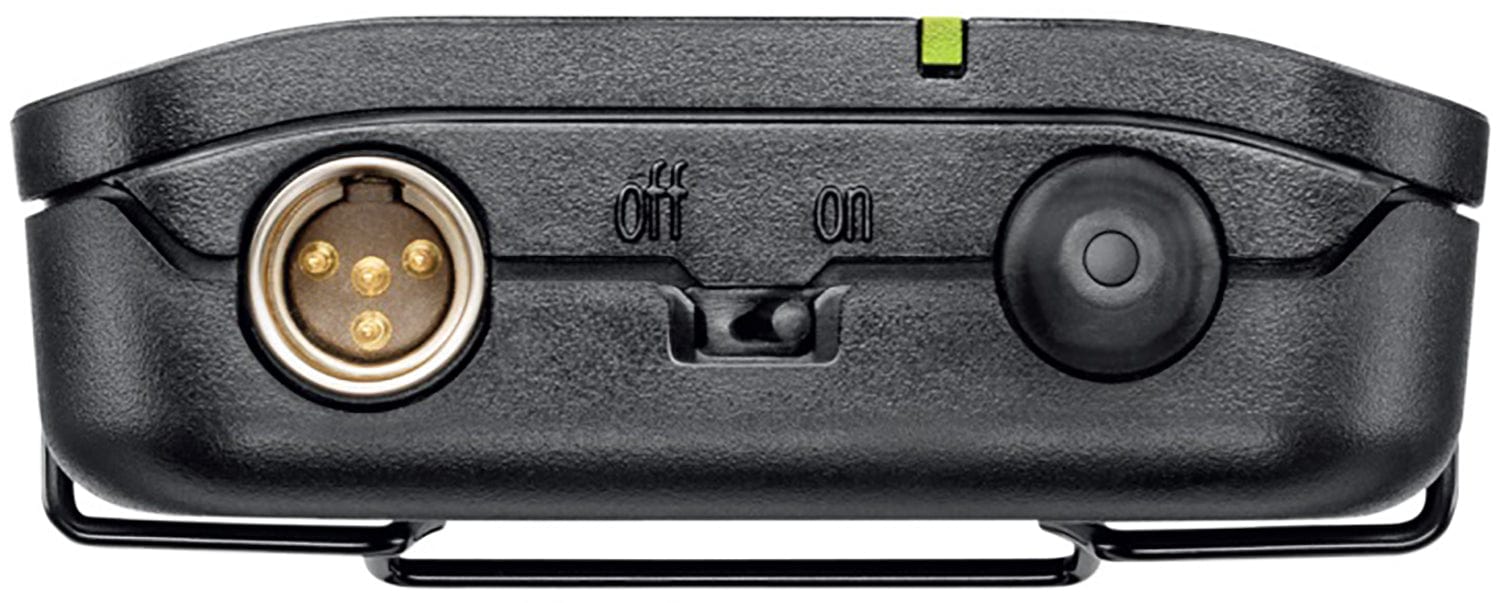

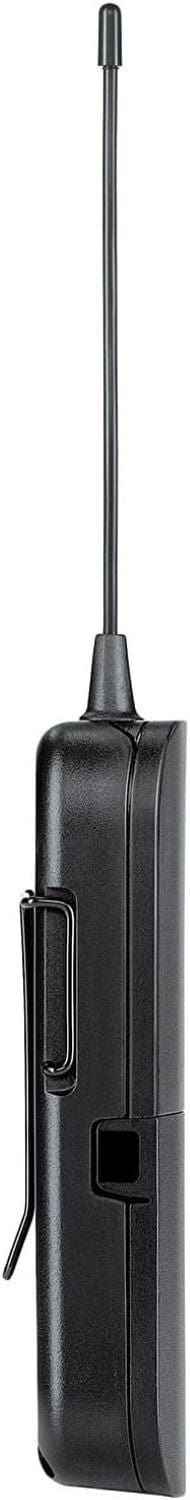

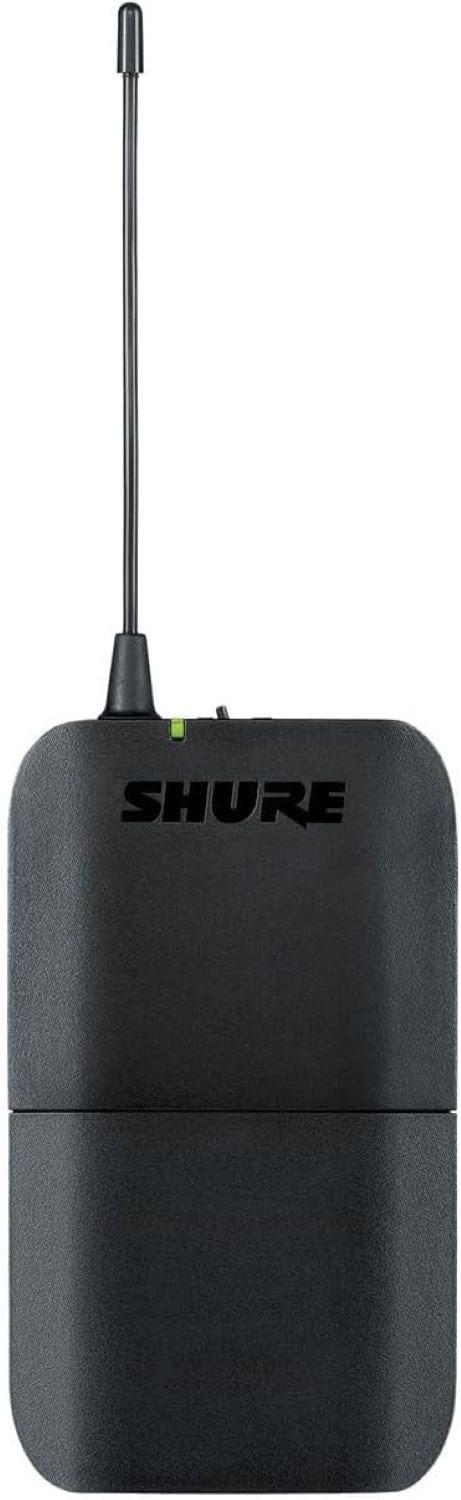

- Transmitter Type: Bodypack
- RF Output Power: 10 mW
- Audio I/O: 1 x TA4/Mini XLR 4-Pin Male Input (Lockable)
- Muting: Off/On Switch
- Auto-Level Control: No
- Gain Range: -16 to +10 dB
- Sync Method: Manual
- Antenna: 1 x Flexible Whip, Fixed (Beltpack)
- Power Requirements: Battery

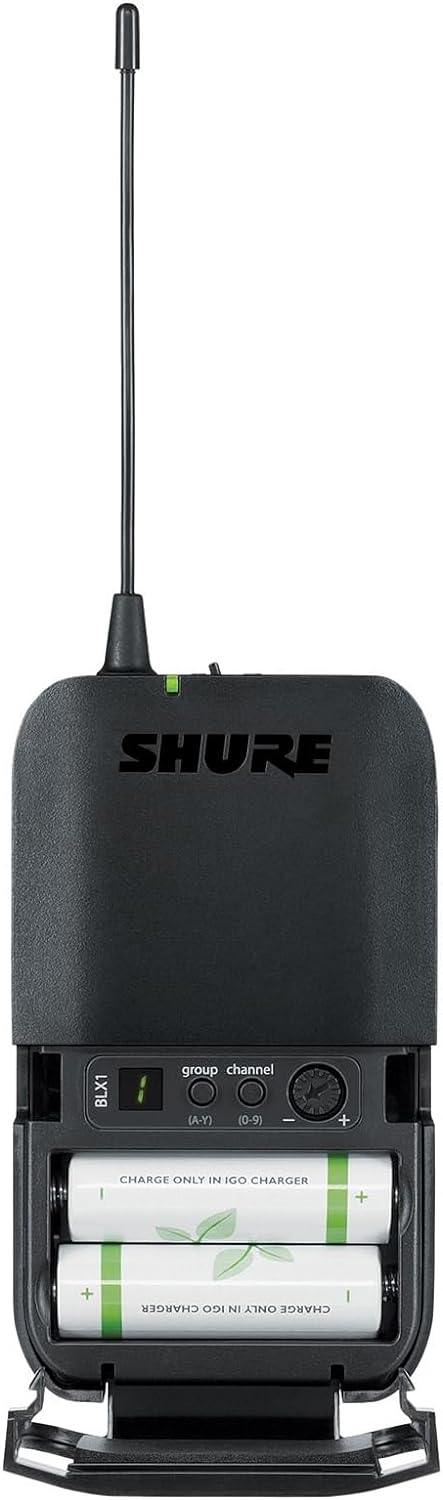

- Battery Type: 2 x AA (Included)
- Approx. Battery Life: 14 Hours (Alkaline)
- Display & Indicators:
- 1 x Multi-Segment LED (Channel, Group)
- 1 x LED (Battery Status, Power)
- Housing: ABS
- Dimensions: 2.5 x 4.3 x 0.8' / 64 x 110 x 21 mm
- Weight: 2.6 oz / 75 g (without Batteries)

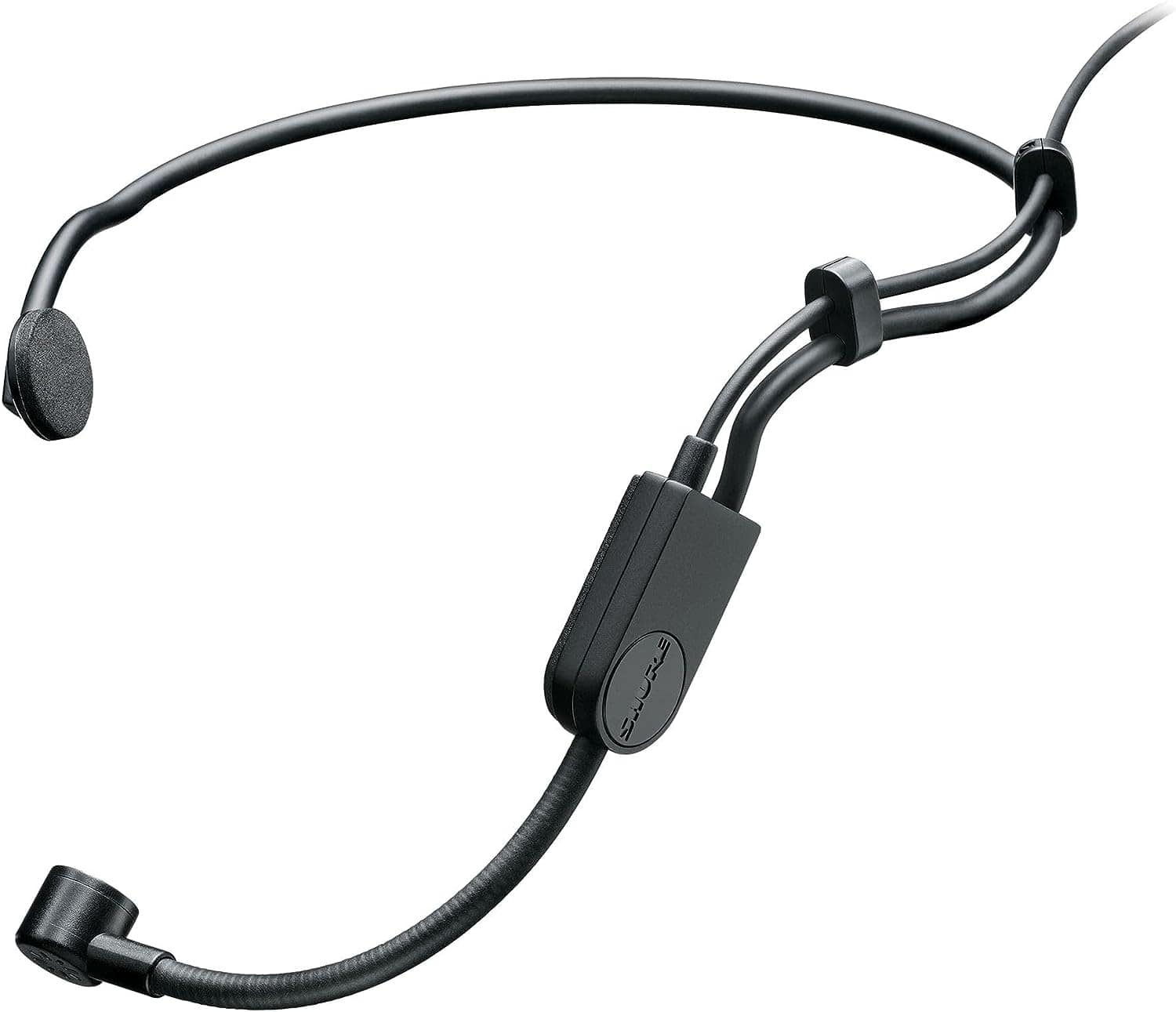

- Microphone:
- Microphone Type: Headset
- Color: Black
- Sound Field: Mono
- Capsule: Electret Condenser
- Polar Pattern: Cardioid
- Frequency Range: 60 Hz to 20 kHz
- SNR: 66 dB
- Maximum SPL: 145 dB SPL
- Impedance: 600 Ohms
- Dynamic Range: 117 dB
- Output Connector: 1 x TA4F/Mini XLR 4-Pin Female (Lockable)
- Cable Length: 4.27' / 1.3 m
- Operating Voltage: 5 V
- Weight: 1.59 oz / 45 g
- Packaging Info:
- Package Weight: 2.81 lb
- Box Dimensions (LxWxH): 13.55 x 11.8 x 4.1'

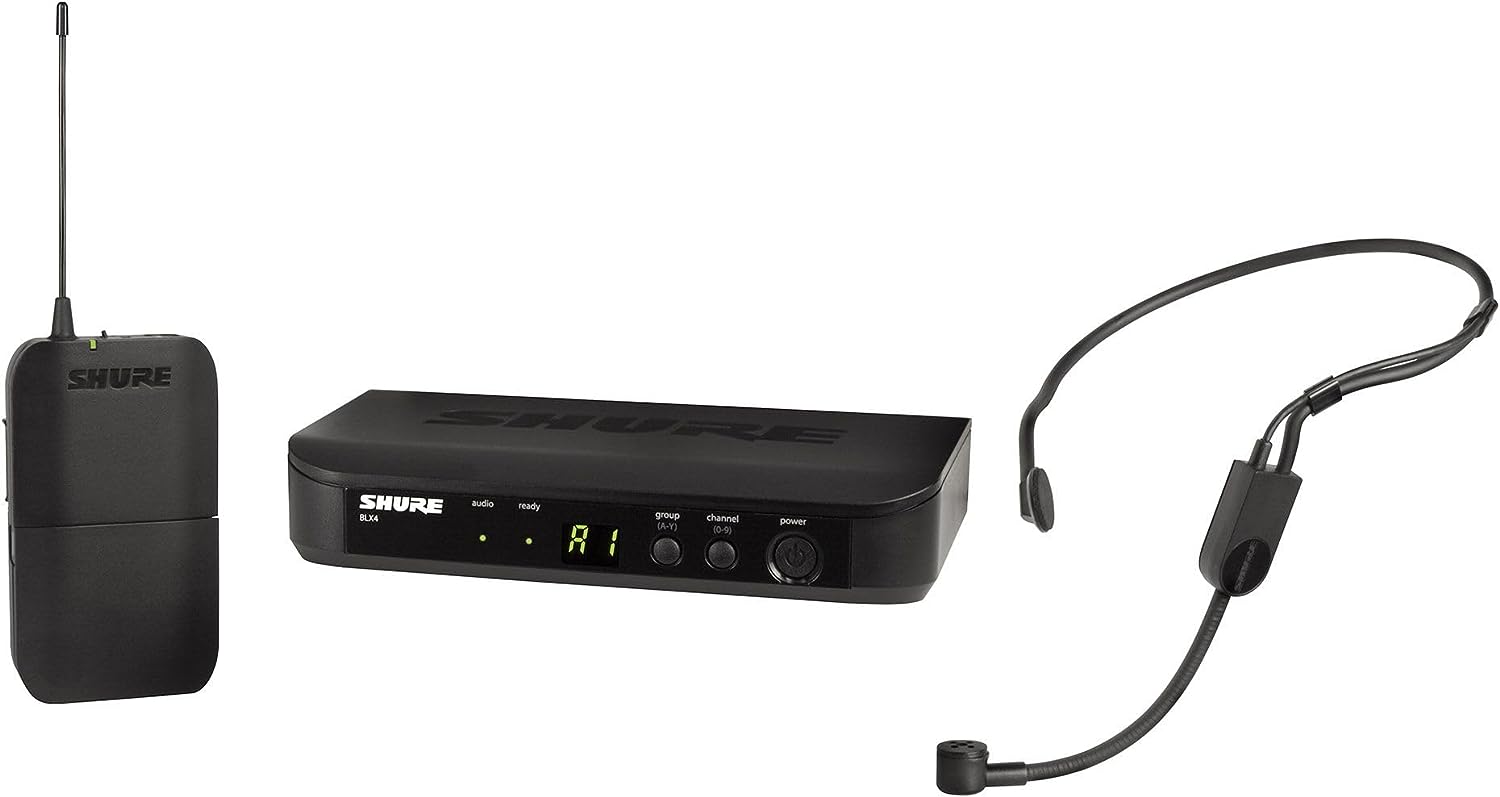

This Shure BLX14 Wireless Headset System is perfect for performers who want to deliver a professional-quality audio experience. With its easy setup and up to 14 hours of battery life, you can focus on your performance without any distractions. The system includes a BLX4 tabletop single-channel receiver, PGA31 headset microphone with BLX1 bodypack transmitter, clothing clip, power supply, 2 AA batteries, windscreens, and user guide. The dimensions of the receiver are 7.4 x 1.6 x 4.1' / 188 x 40 x 103 mm and it weighs 8.5 oz / 241 g. The transmitter dimensions are 2.5 x 4.3 x 0.8' / 64 x 110 x 21 mm and it weighs 2.6 oz / 75 g (without Batteries). The microphone weighs 1.59 oz / 45 g.
